No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a SIM card and turn on the TL-MR6400. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network, which can achieve download speeds of up to 150 Mbps. The TL-MR6400 shares your 4G LTE network with multiple Wi-Fi devices, so you can enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.
Wi-Fi Where You Need It
The TL-MR6400 offers unmatched convenience and versatility. Whether you’re at hom or working in a remote location, the TL-MR6400 is the perfect solution. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments.
From the exhibition center to the RV, the TL-MR6400 always has you covered.
Internet Access for up to 32 Devices simultaneously
The TL-MR6400 can easily share a 3G/4G connection with up to 32 wireless devices, such as tablets, laptops and mobile phones at the same time. The LAN ports are also ready to provide internet for wired devices like desktop computers.
Easy Management
Set up the TL-MR6400 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings from any Android or iOS device. Control your home network anytime and anywhere.
WAN connection | |
---|---|
WAN connection type | RJ-45 |
3G/4G USB modem compatibility | No |
SIM card slot | Yes |
DSL WAN | No |
Ethernet WAN | Yes |
Wireless LAN features | |
---|---|
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
WLAN data transfer rate (max) | 300 Mbit/s |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Wi-Fi band | Single-band (2.4 GHz) |
Network | |
---|---|
Port forwarding | Yes |
Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3 |
Cabling technology | 10/100Base-T(X) |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet LAN interface type | Fast Ethernet |
Ethernet LAN | Yes |
Mobile network | |
---|---|
UMTS bands supported | 1900,2100 MHz |
4G bands supported | 800,900,1800,1900,2100,2600 MHz |
4G standard | LTE |
3G standards | HSPA+, UMTS |
3G | Yes |
4G | Yes |
Mobile network generation | 4G |

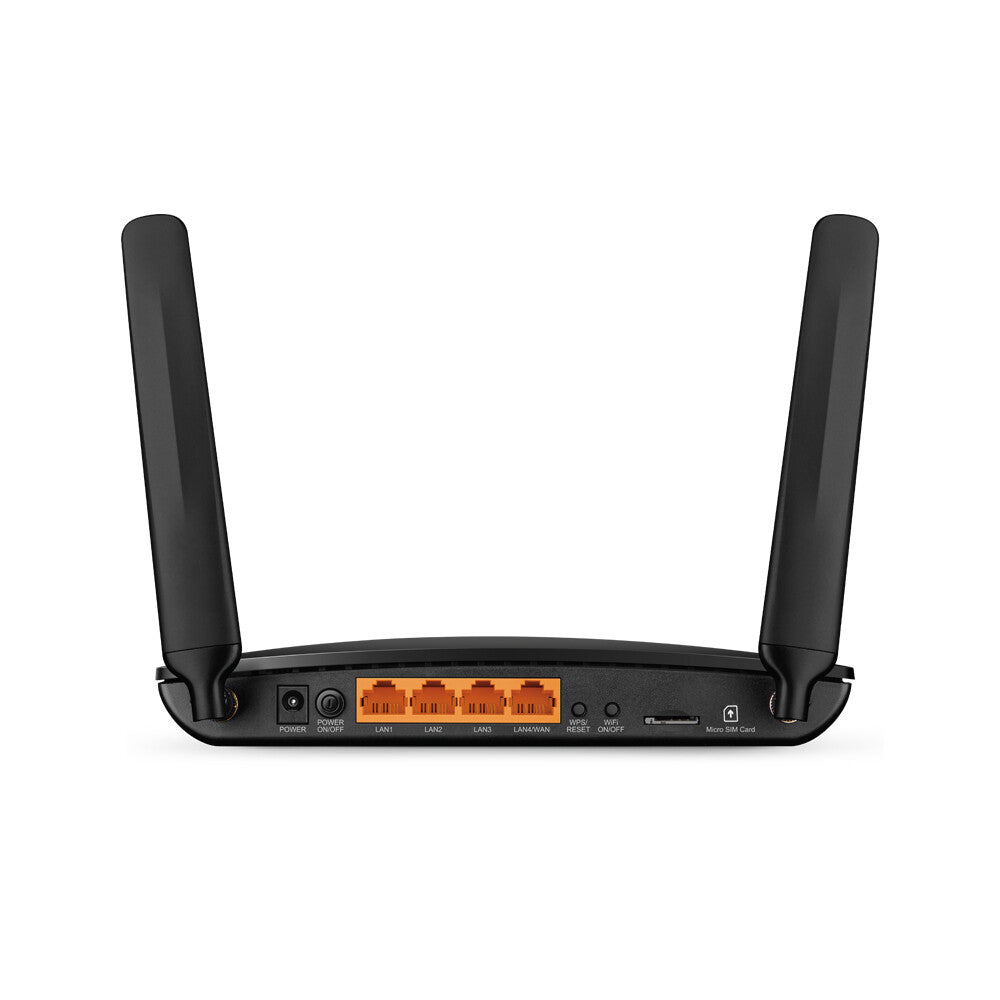

Ports & interfaces | |
---|---|
DC-in jack | Yes |
Memory card slot(s) | No |
USB port | No |
Ethernet LAN (RJ-45) ports | 4 |
Management features | |
---|---|
WPS push button | Yes |
Reset button | Yes |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
Security | |
---|---|
DMZ support | Yes |
IP address filtering | Yes |
MAC address filtering | Yes |
Filtering | Yes |
DoS attack prevention | Yes |
Stateful Packet Inspection (SPI) | Yes |
Firewall | Yes |
Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols | |
---|---|
Supported network protocols | IPv4, IPv6 |
Universal Plug and Play (UPnP) | Yes |
DHCP server | Yes |
DHCP client | Yes |
Design | |
---|---|
On/off switch | Yes |
LED indicators | LAN, Power, WLAN |
Product colour | Black |
Product type | Tabletop router |
Packaging content | |
---|---|
Quick start guide | Yes |
Quick installation guide | Yes |
Manual | Yes |
AC adapter included | Yes |
Cables included | LAN (RJ-45) |
Antenna | |
---|---|
Detachable antenna(s) | Yes |
Antennas quantity | 2 |
Antenna design | External |
Features | |
---|---|
Certification | CE, RoHS |
Power | |
---|---|
Output current | 0.85 A |
Output voltage | 9 V |
Power source type | DC |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
System requirements | |
---|---|
Mac compatibility | Yes |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Windows operating systems supported | Yes |
Weight & dimensions | |
---|---|
Width | 202 mm |
Depth | 141 mm |
Height | 33.6 mm |
Packaging data | |
---|---|
Package weight | 600 g |
Package height | 70 mm |
Package depth | 223 mm |
Package width | 307 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 85176990 |
