A case of attitude
The vividly colored motherboard plates, drive trays and exterior accents create a fresh, expressive feel
A hidden compartment
Two neatly concealed 5.25” bays with storage drawer and magnetic cover
Openly expressive
The easy-to-clean front mesh acts as a dust filter while allowing high airflow
Flexible storage support
- Two ultra-versatile storage trays each support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included
- Easy cable management with multiple tie-down points, pre-mounted cable ties and convenient extra-large pass-through holes
Show off your build
- Easily mounted tempered glass side panel lets you showcase your components. (TG models only)
- Holds radiators up to 280 mm in the front, 240 mm in the top and 120 mm in the rear
- The honeycomb patterned front mesh creates a striking visual effect that gives the Pop series a premium feel
Design | |
---|---|
Maximum PSU length | 17 cm |
Maximum graphics card length | 40.5 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
RGB control button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 3 |
Number of 5.25" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | Steel, Tempered glass |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 280 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 120 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5,5.25" |
Weight & dimensions | |
---|---|
Weight | 7.2 kg |
Height | 454 mm |
Depth | 473.5 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 8.7 kg |
Package height | 537 mm |
Package depth | 548 mm |
Package width | 307 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

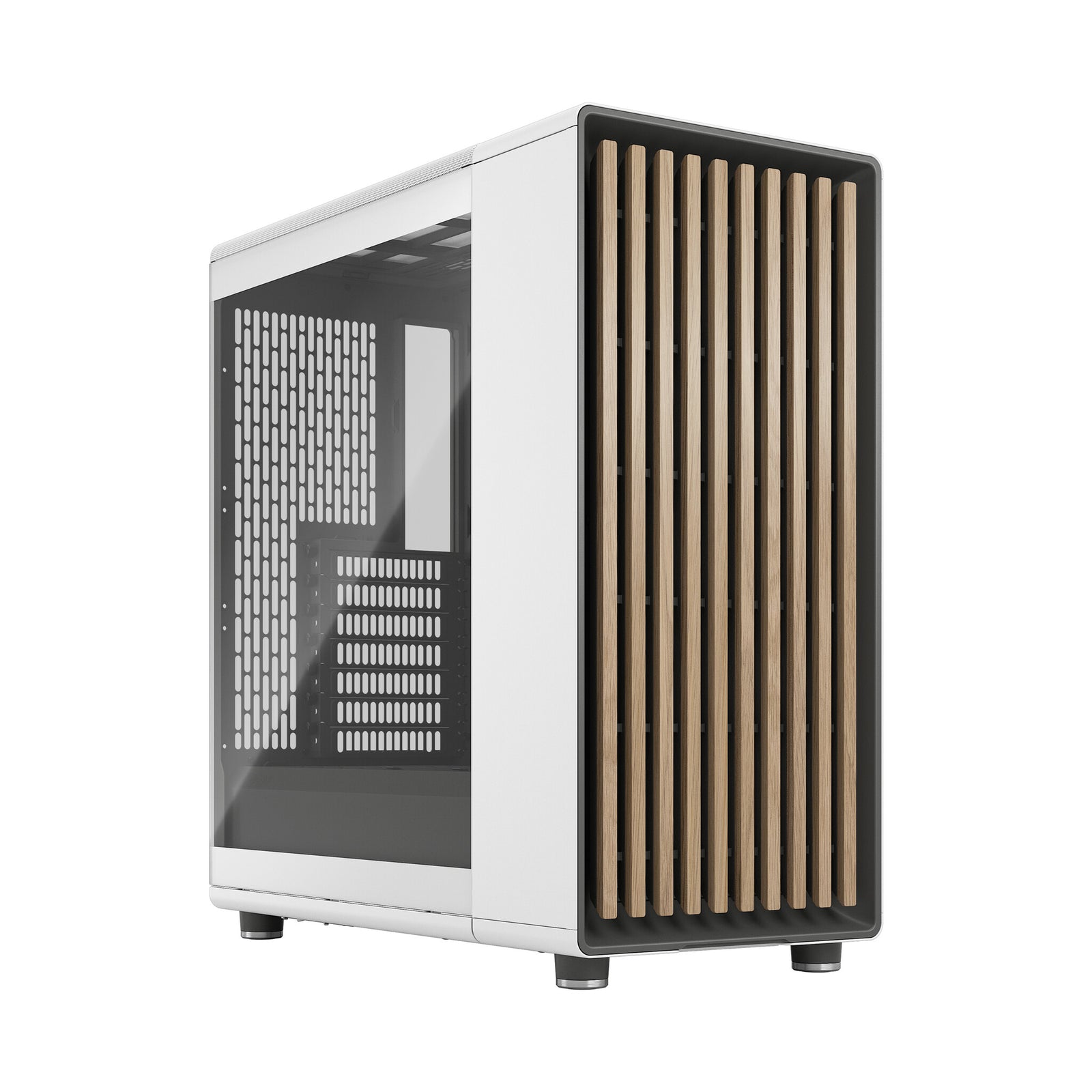

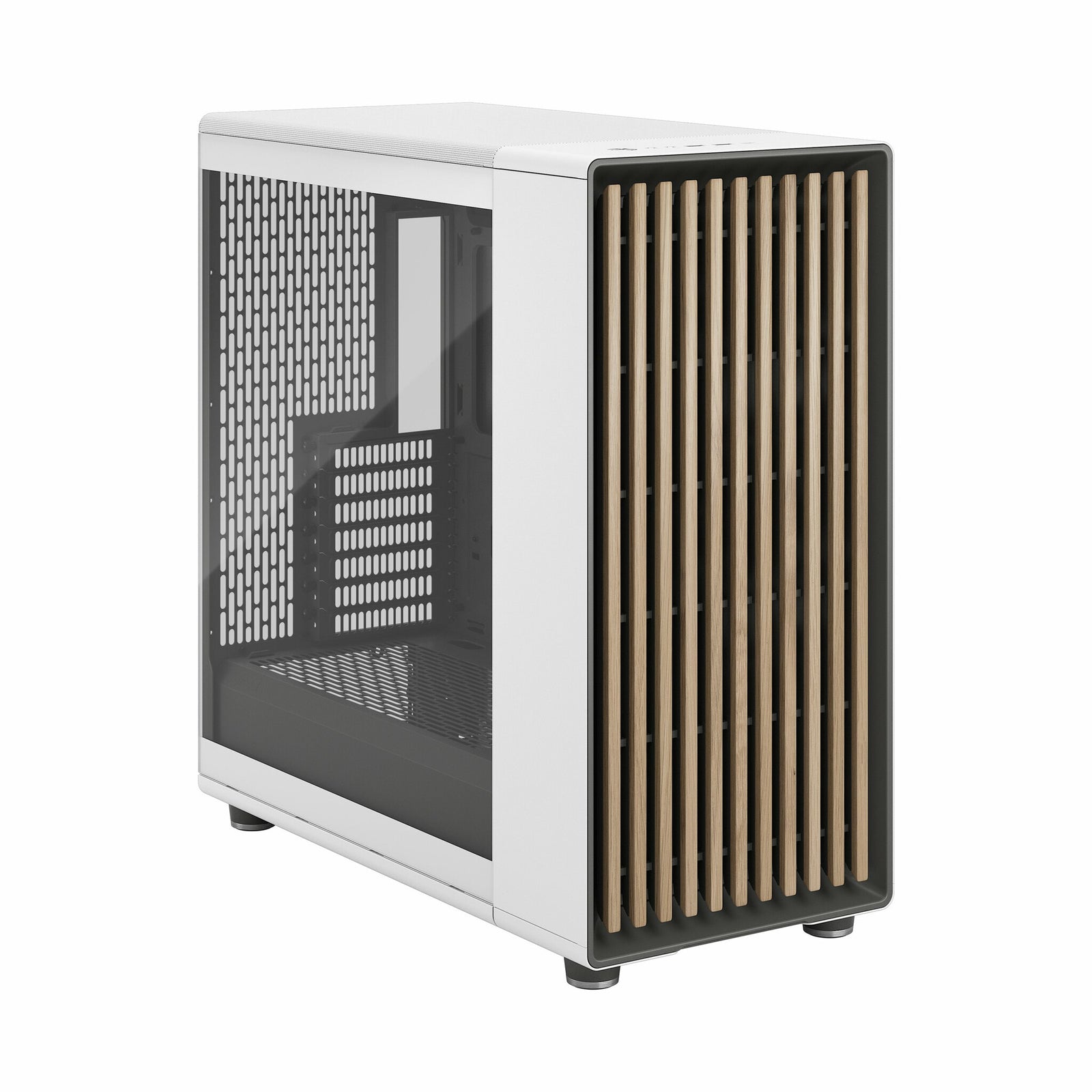

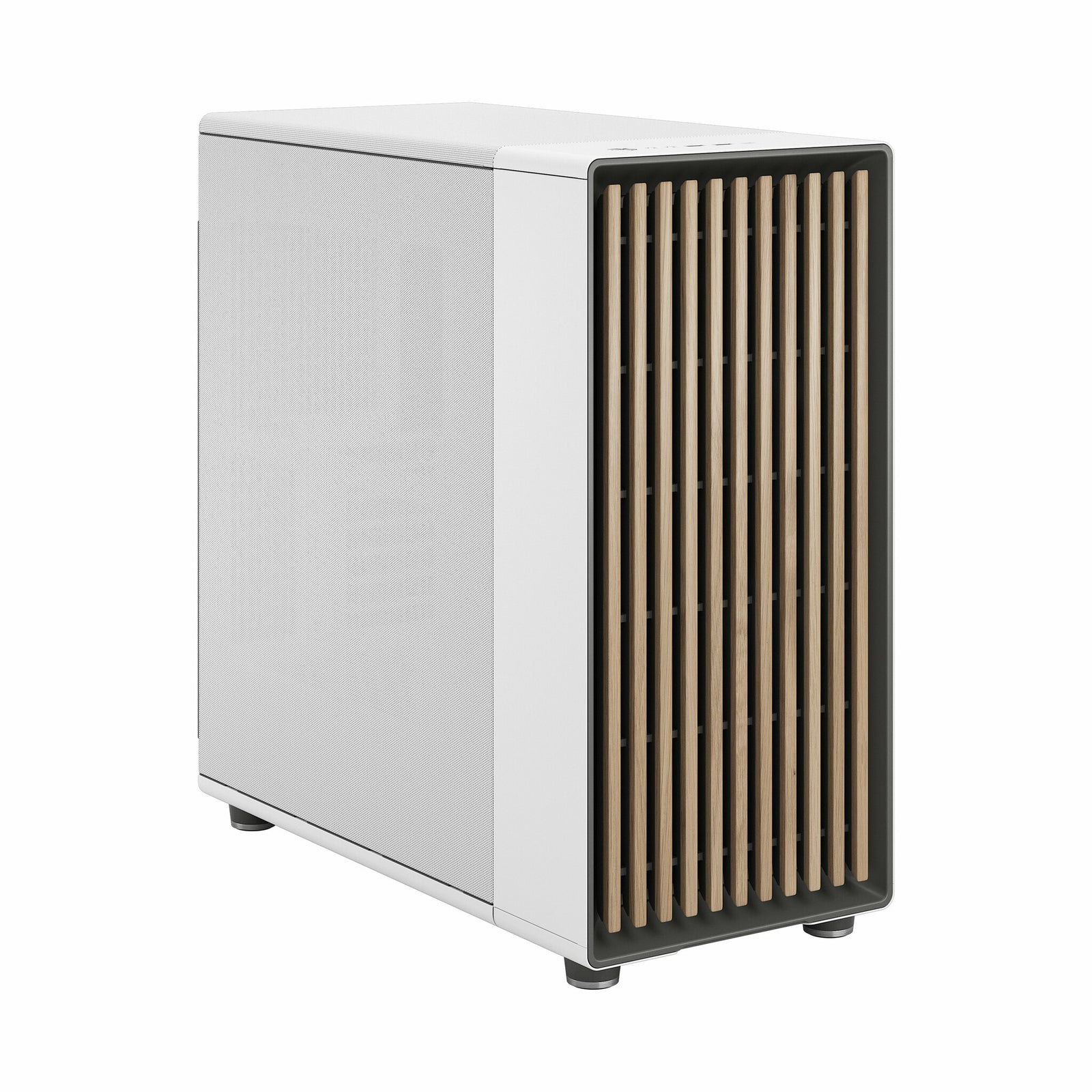

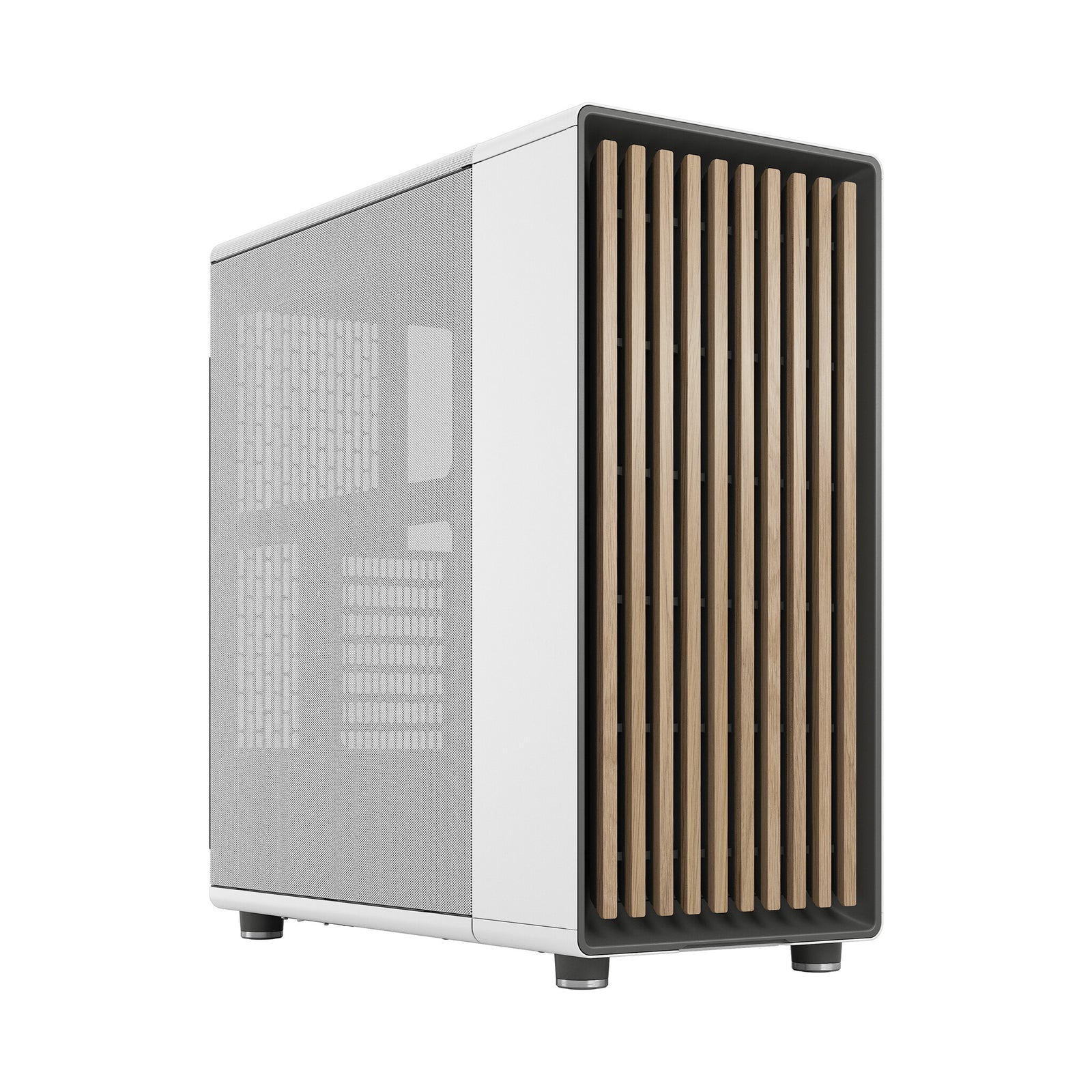

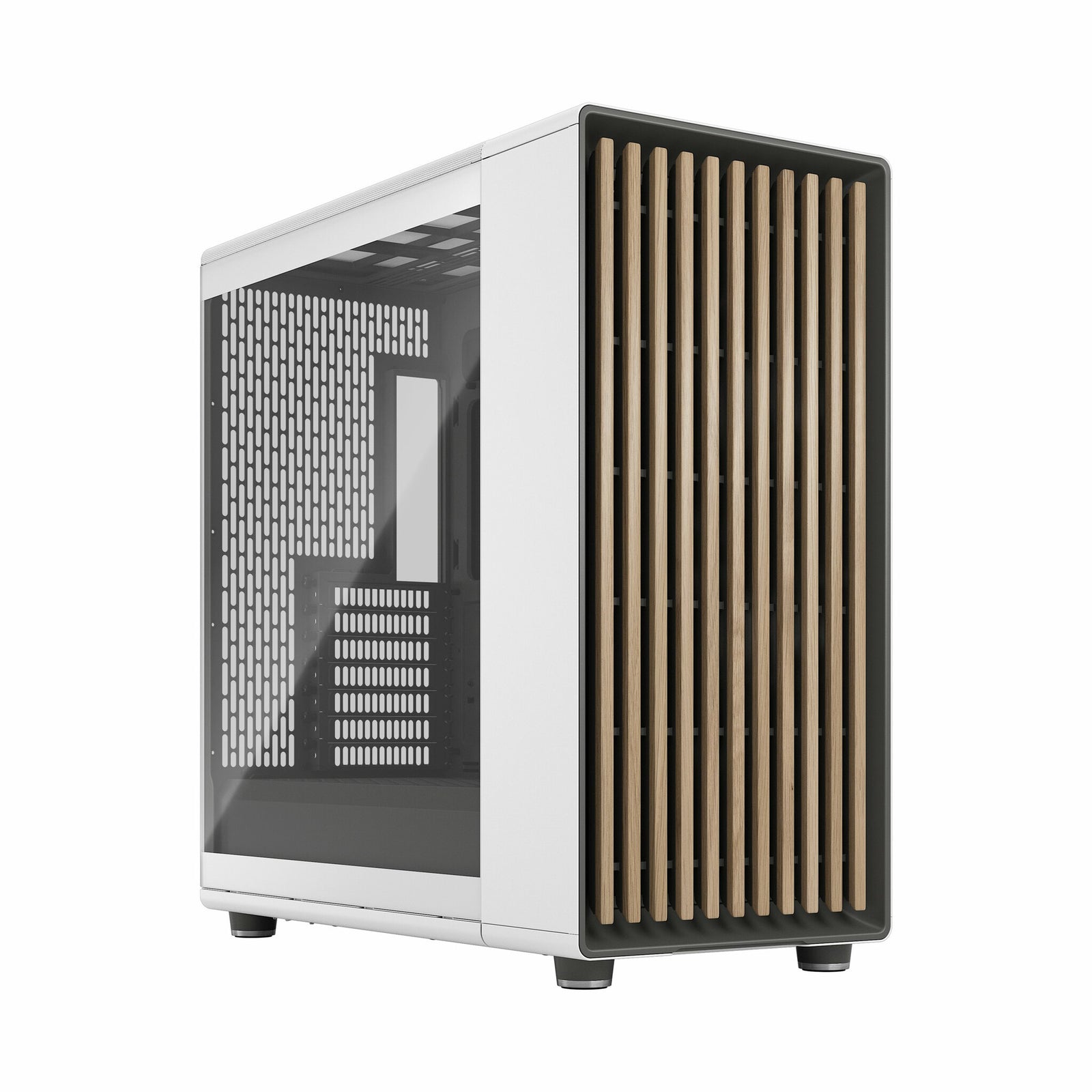

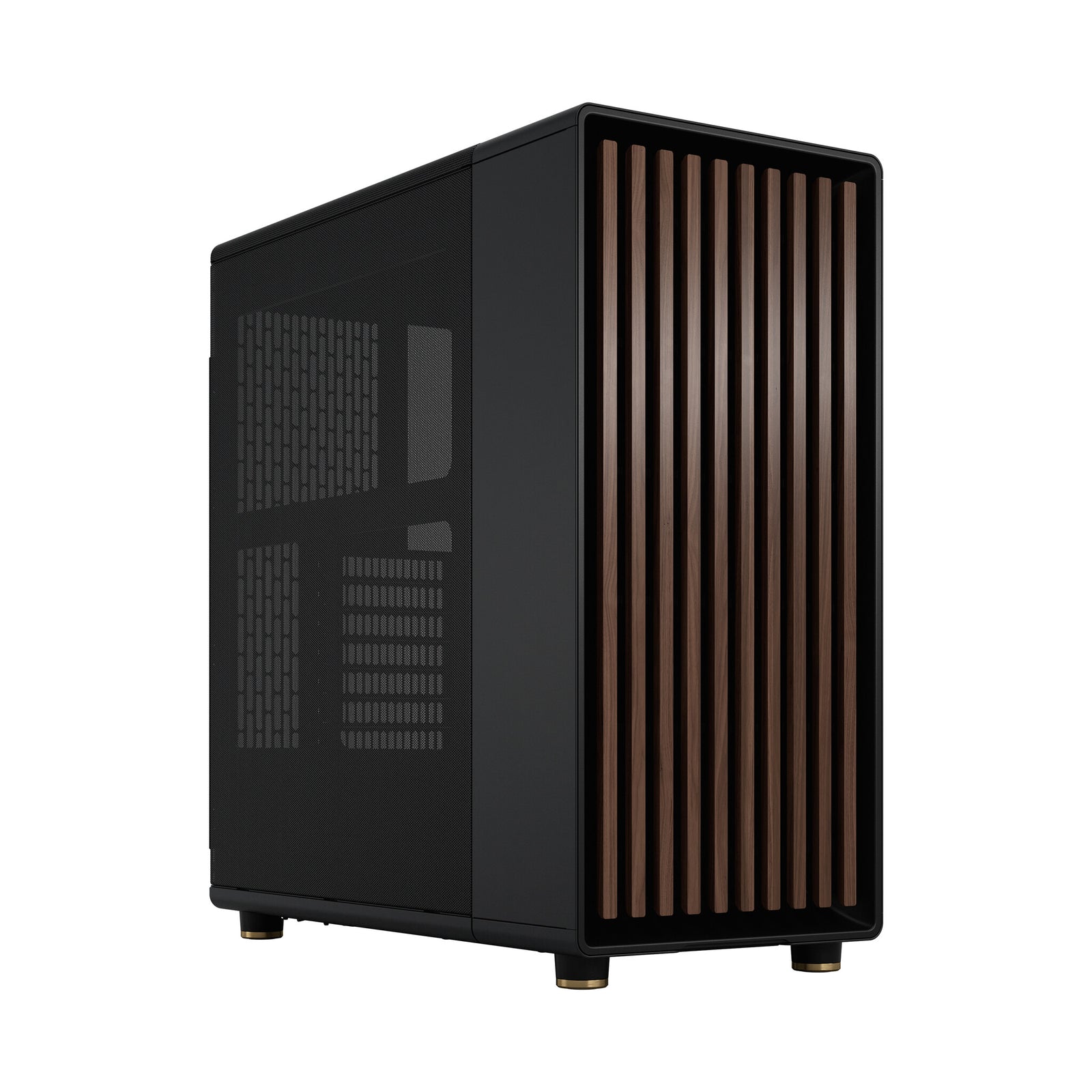

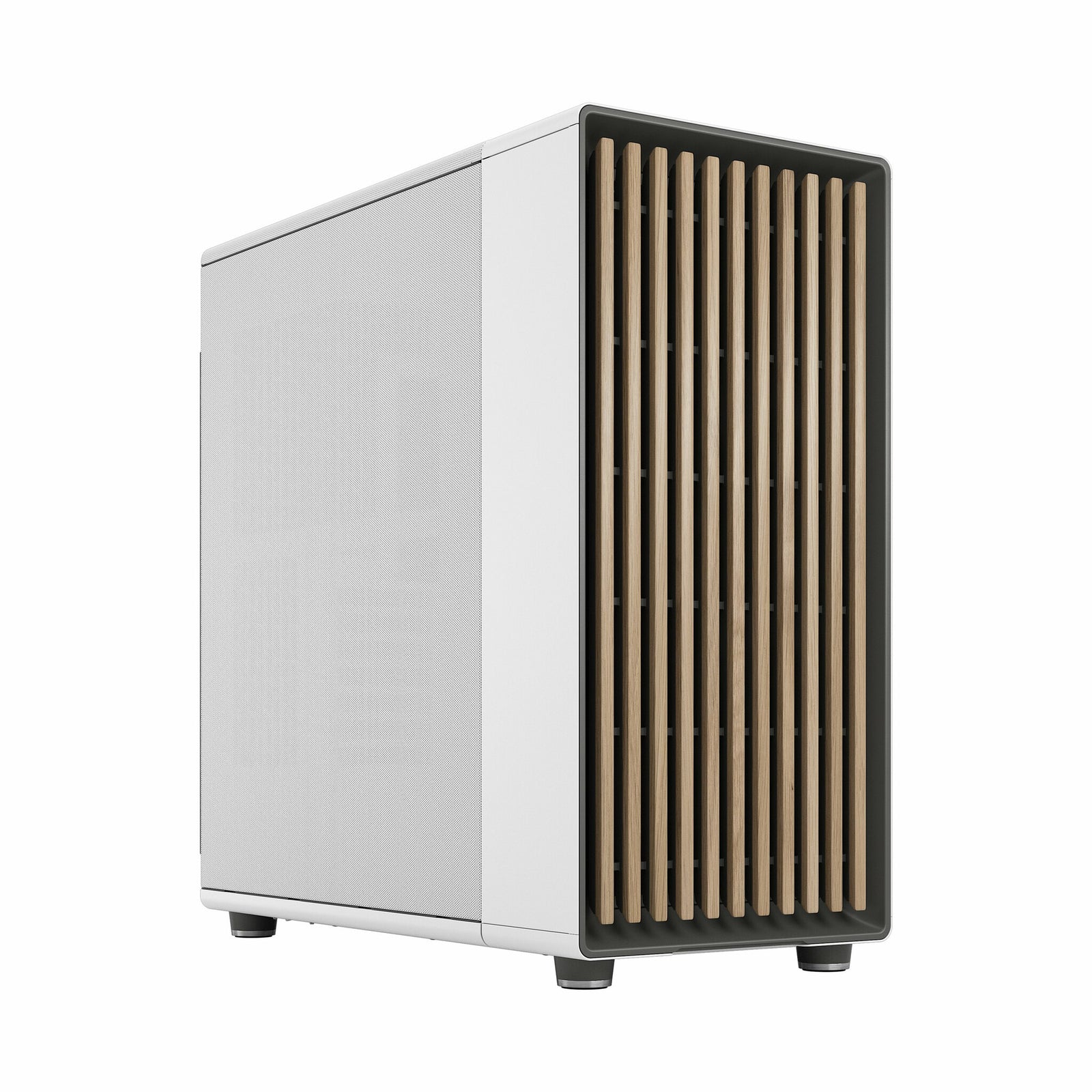

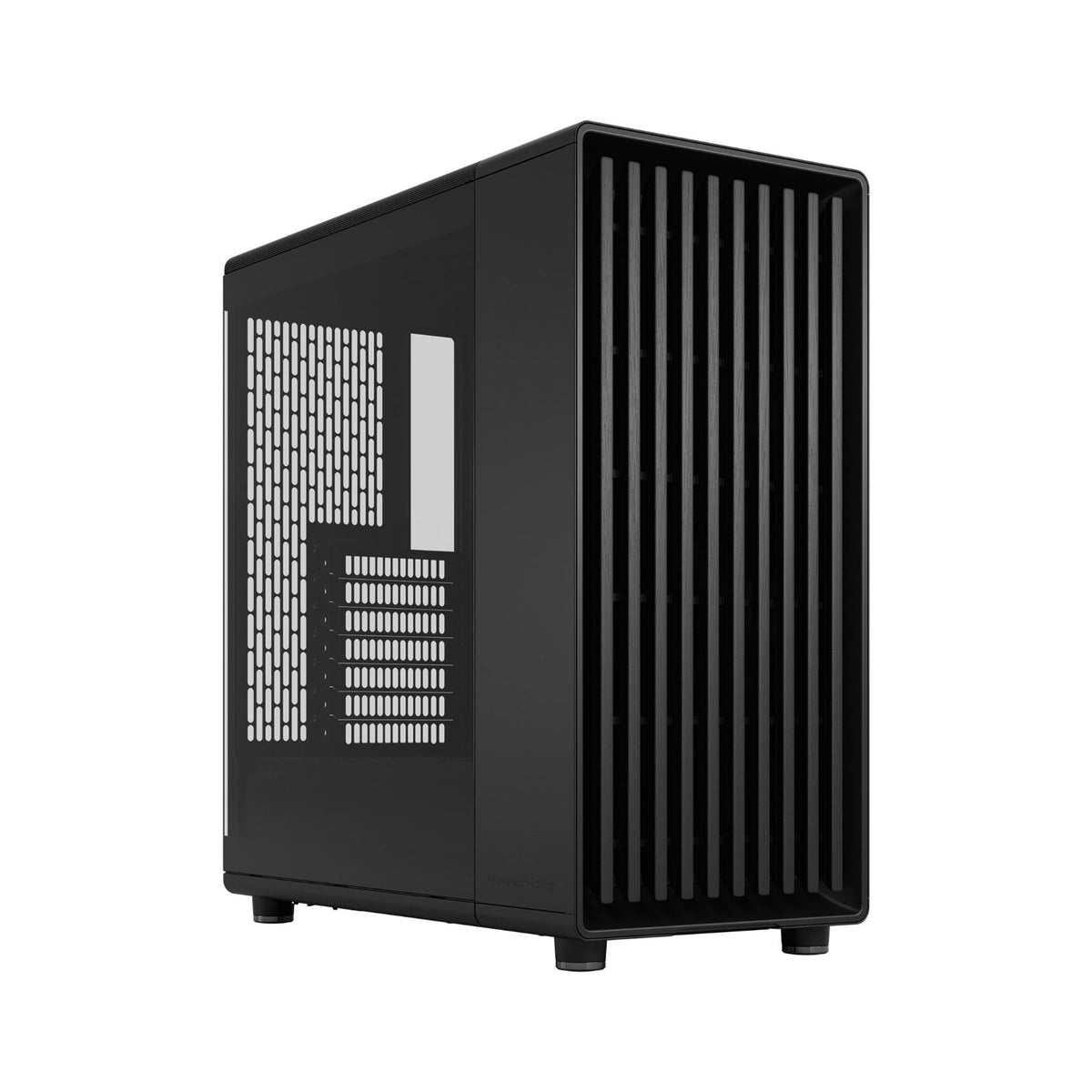

North reimagines the gaming PC, introducing natural materials and bespoke details to make gaming a stylish addition to the living space. Fusing design and airflow engineering, the case features fine-patterned mesh ventilation and an open front with real walnut or oak panels. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, North offers an intuitive interior layout and generous compatibility.

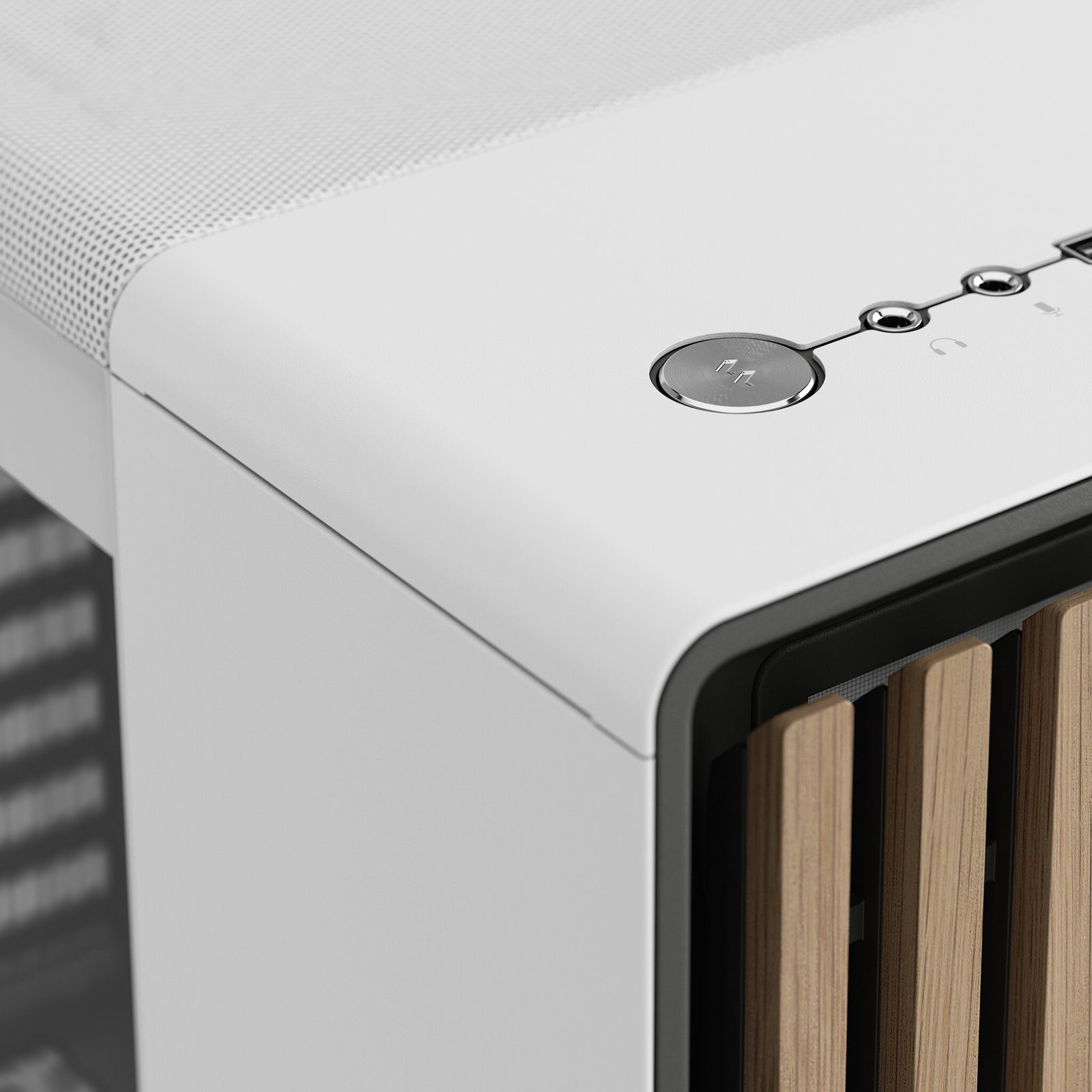

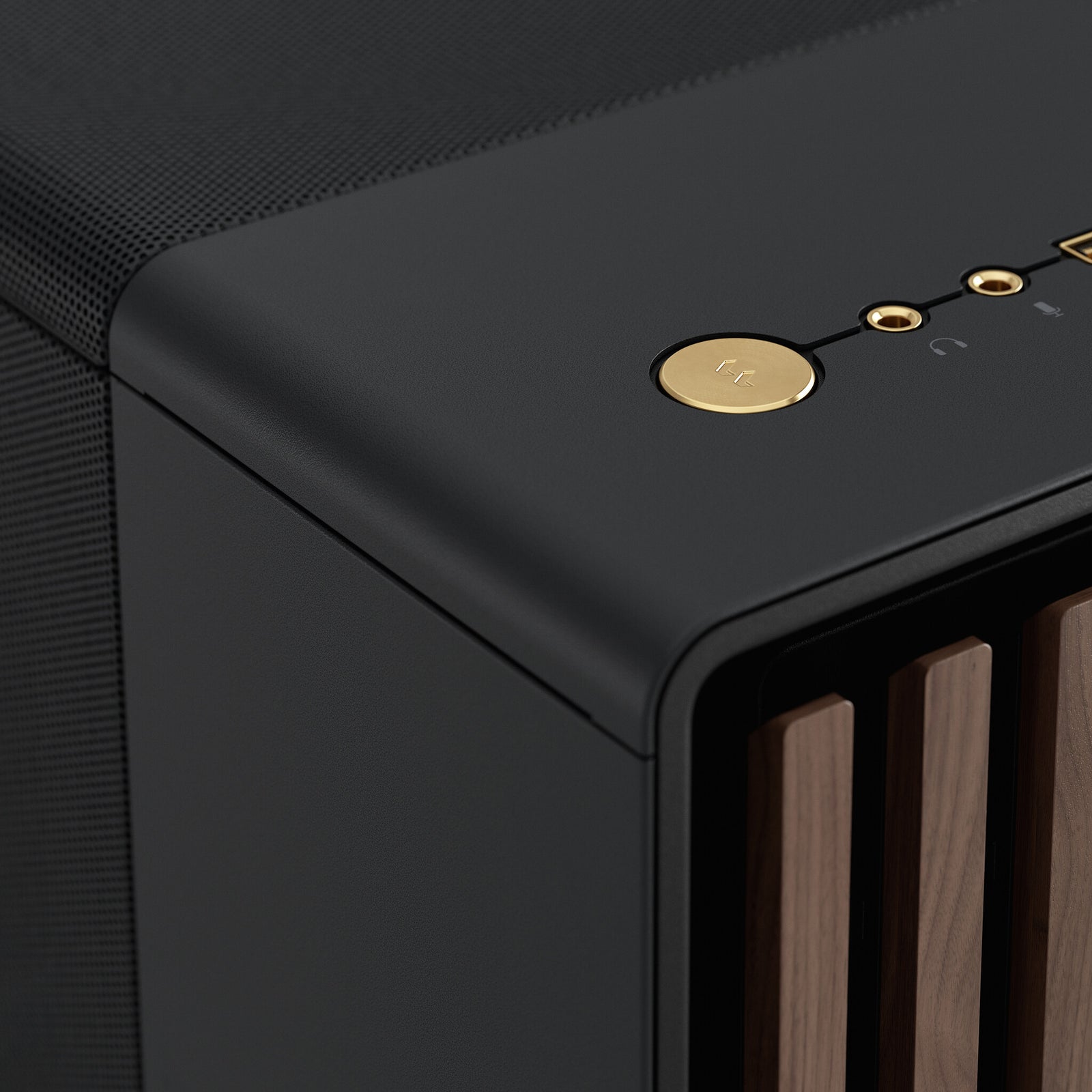

Natural design

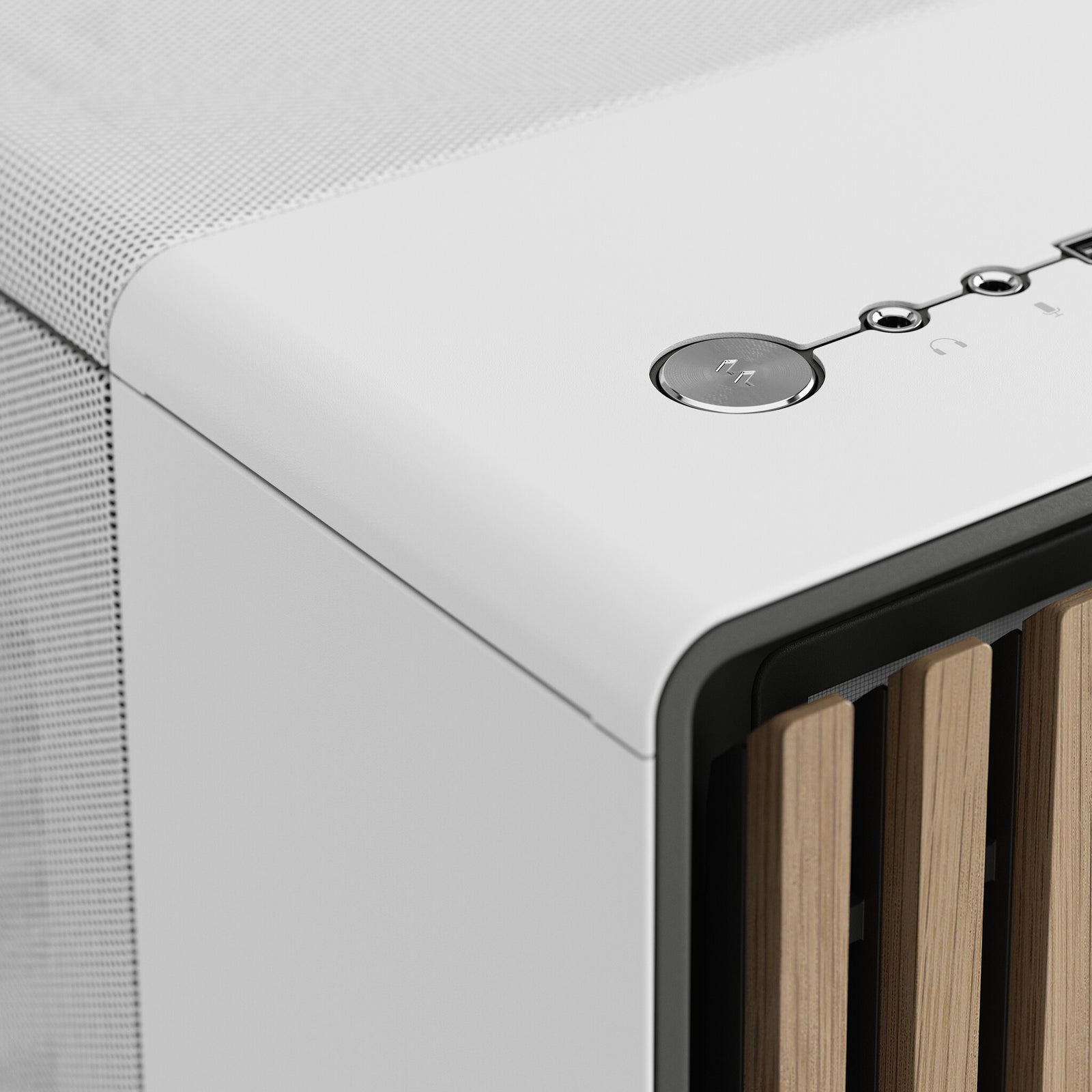

- Enjoy a sophisticated looking case which integrates effortlessly into your living space
- Enhance your gaming station with a real oak or walnut front, a faux leather tab and sleek steel or brass details
Type-C interface
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Gaming ready
- Support radiators up to 240 mm in the top and 360 mm in the front
- Room for a GPU up to 355 mm with front fans installed or up to 300 mm with a front radiator
- Seven bridgeless expansion slots allow for extensive customization
- Designed for ATX / mATX / ITX motherboards
Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Ventilated performance
- Natural ventilation through an open front and a stylishly integrated mesh top panel
- The mesh version of the case features a full mesh side panel in addition to the top
Flexible storage
North features two included combined 3.5″/2.5″ drive mounts and two dedicated 2.5″ drive mounts out of the box
Build versatility
- Make the most of your building experience with an intuitive interior layout
- Two Aspect 14 PWM fans preinstalled with room to expand up to a total of four 140 mm or six 120 mm fans
- The mesh version also ships with a fanhub and a fan bracket, providing an additional two fan positions
Design | |
---|---|
Maximum PSU length | 25.5 cm |
Maximum graphics card length | 35.5 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 3 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | White |
Material | Steel, Tempered glass |
Type | PC |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,180,240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 60,120,140,200,240,280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 7.7 kg |
Height | 469 mm |
Depth | 447 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 9.3 kg |
Package height | 553 mm |
Package depth | 565 mm |
Package width | 326 mm |

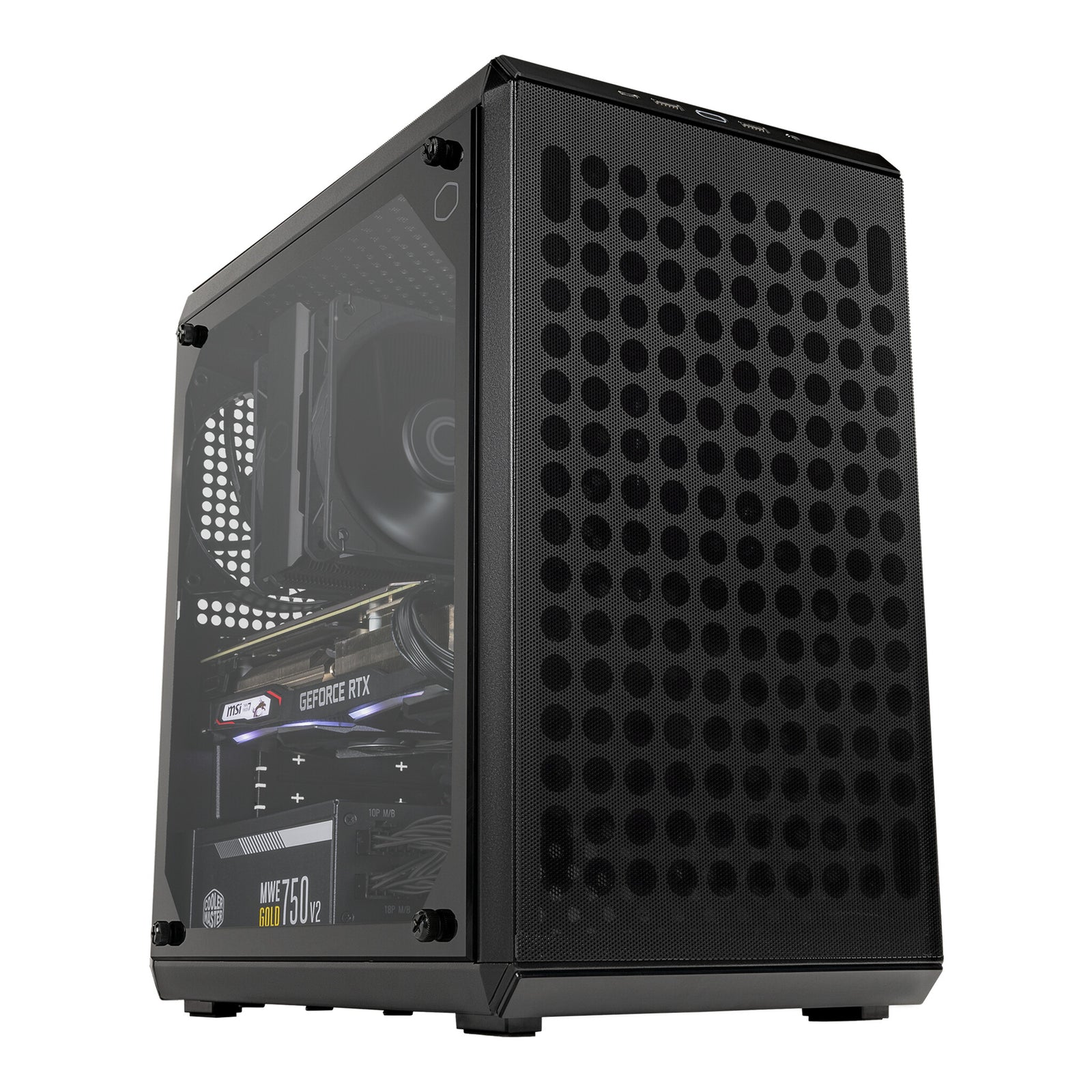

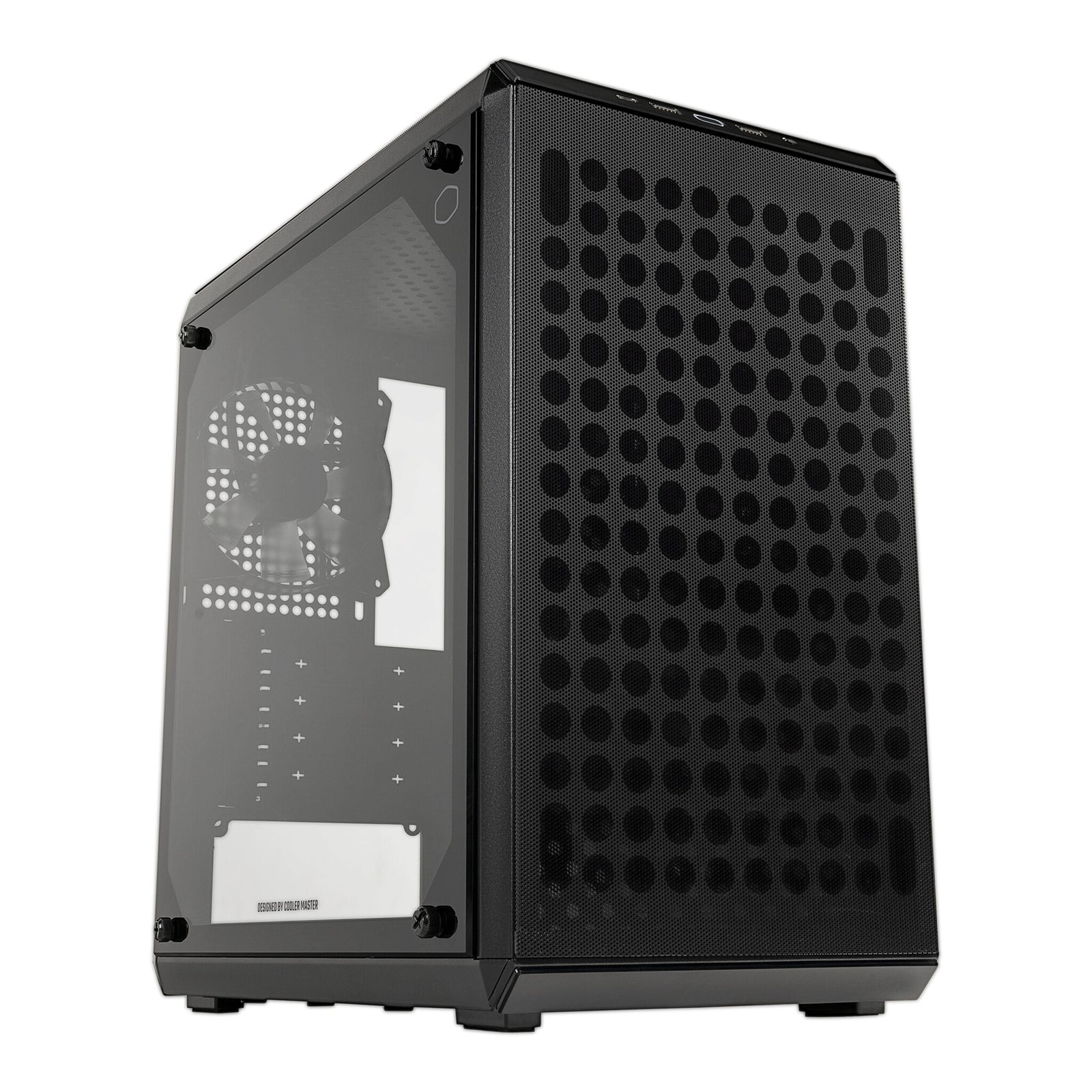

REFRESH YOUR STYLE
Redesigned Magnetic Dust Filter
The redesigned dust filter keeps your PC breathing easy with a refreshed patterned design.
USB 3.2 GEN2x2 (20Gbps) SUPPORTED
USB 3.2 Gen 2x2 Type C port built into the I/O panel with data transfer speeds up to 20Gbps.
Excellent Thermal Performance
The open design of the perforated front, top, and bottom guarantees excellent thermal performance.
Clean Routing Space
28mm of space behind the motherboard tray allow for easy and hidden cable management.
Multiple Positioning Options
The case can be put in vertical or horizonal position.
Edge To Edge Tempered Glass Side Panel
Show off your build through the 4mm-thick tempered glass side panel, easily installed with thumbscrews.
Fan and Radiator Support
The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance.
Components Clearance
The Q300L V2 case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.
Design | |
---|---|
Maximum PSU length | 16 cm |
Maximum graphics card length | 36 cm |
Maximum CPU cooler height | 15.9 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 4 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 1 |
Supported motherboard form factors | micro ATX, Mini-ITX |
Product colour | Black, Transparent |
Material | Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Mini Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,240 mm |
Bottom fans diameters supported | 120 mm |
Number of bottom fans supported (max) | 1 |
Top fans diameters supported | 120 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 3.5" |
Weight & dimensions | |
---|---|
Weight | 4.35 kg |
Height | 383 mm |
Depth | 387 mm |
Width | 230 mm |
Packaging data | |
---|---|
Package weight | 5.3 kg |
Package height | 461 mm |
Package depth | 435 mm |
Package width | 276 mm |
Other features | |
---|---|
Volume | 29 L |

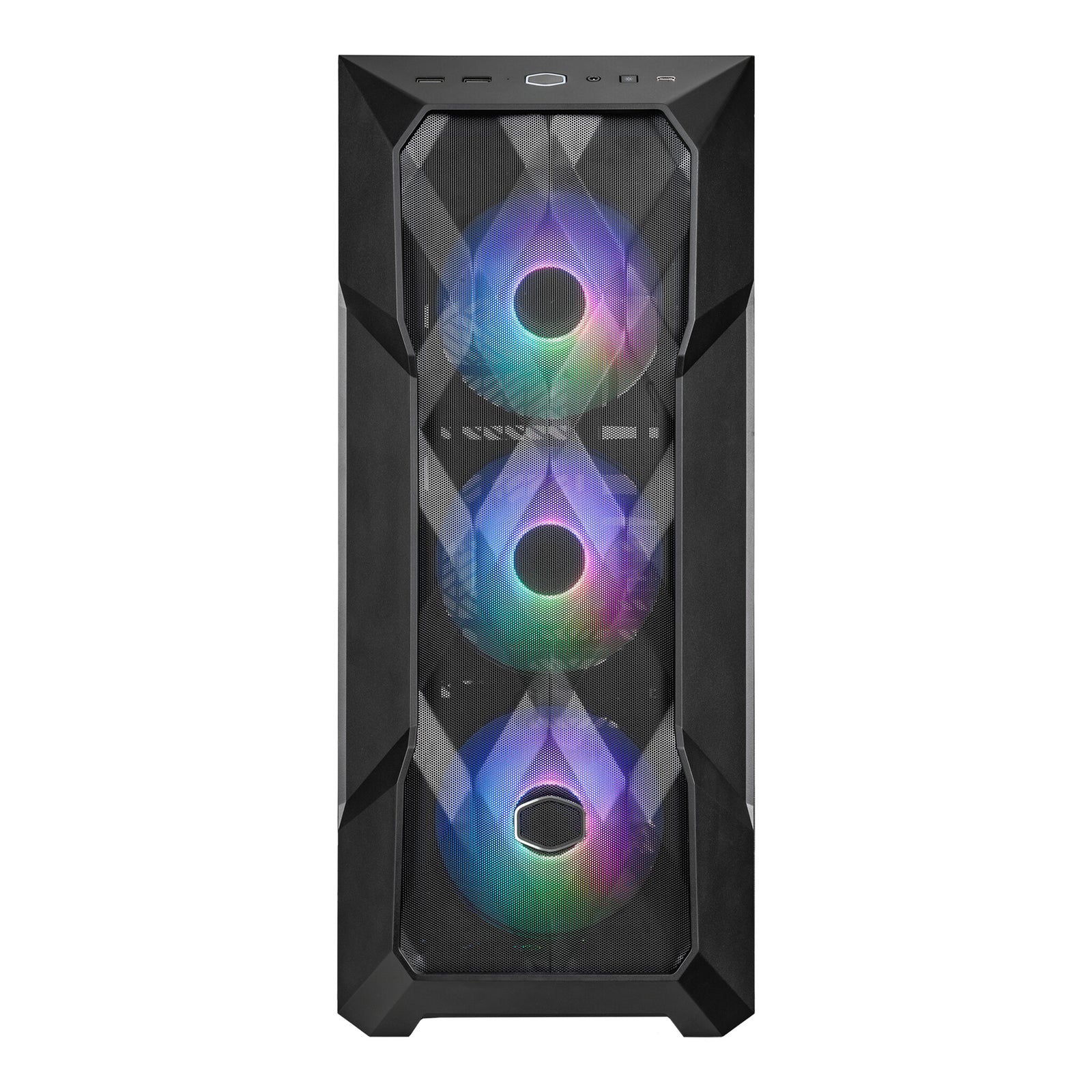

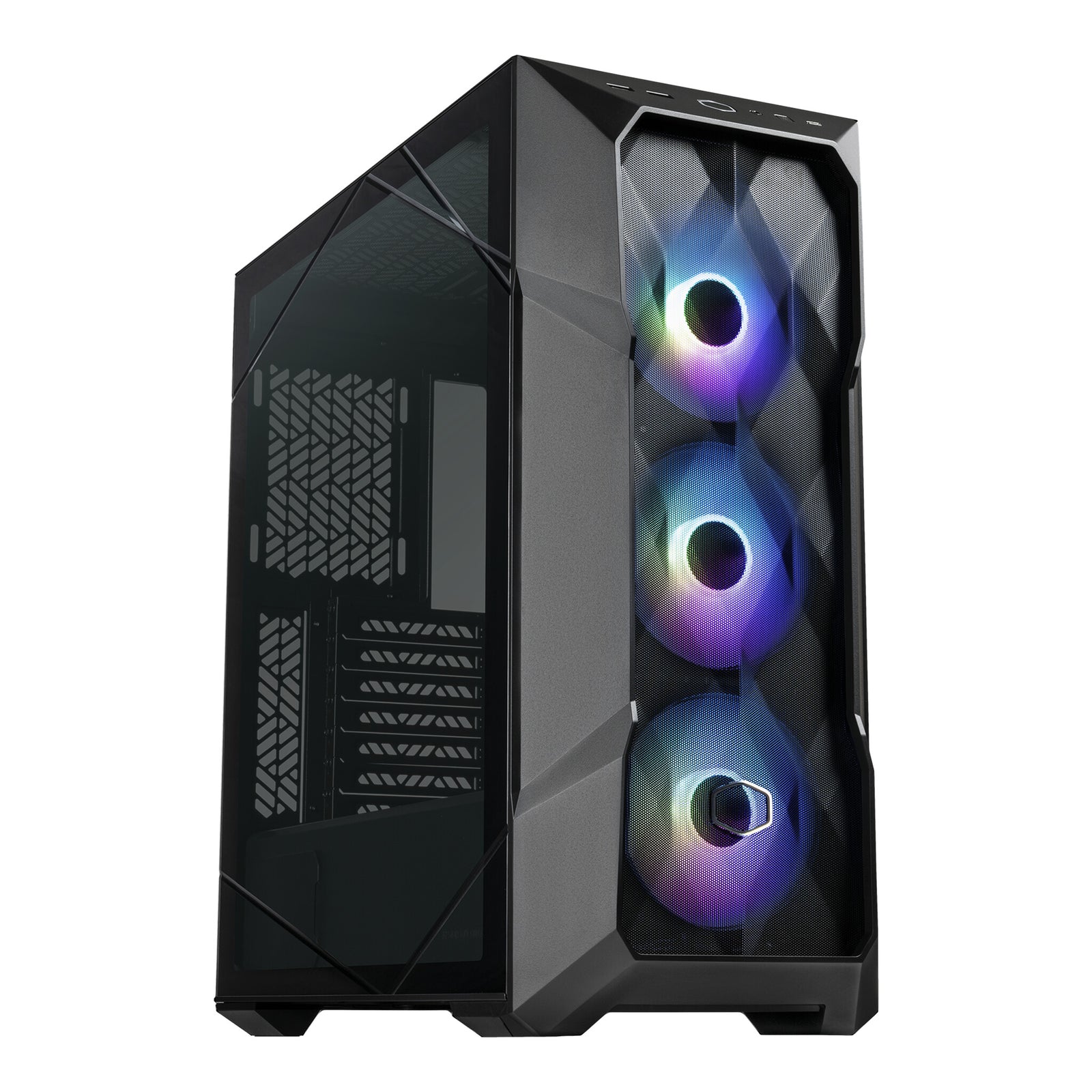

Exquisitely Ruthless
MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
FineMesh Performance Front Panel
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Available in both Black & White colorations
MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!
Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
ARGB/FAN HUB Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
Removable Top Panel
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
Tool-Free Crystalline TG Side Panel
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
Versatile Cooling Options
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
PSU Shroud With Removable Cover
MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
Hardware Compatibility
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.5 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
Product colour | Black |
Material | Mesh, Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,240,280,360 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
General | |
---|---|
Product Family | MasterBox |
Weight & dimensions | |
---|---|
Weight | 7.7 kg |
Height | 500 mm |
Depth | 499 mm |
Width | 210 mm |
Packaging data | |
---|---|
Package weight | 9.2 kg |
Package height | 584 mm |
Package depth | 558 mm |
Package width | 290 mm |
Other features | |
---|---|
Volume | 50 L |
Slick and streamlined
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
- Room for GPUs up to 306 mm long including front fans with 331 mm total space
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
Detachable front filter
- Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Double layered front filter with detachable nylon for increased airflow
Refined airflow
- The open interior layout creates a smooth airflow path from intake to rear exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 GP fans included)
Bolt-free glass
Seamless, top-latching tempered glass panels make for a stylish exterior
All access
- The fully removable top panel and fan bracket offers excellent interior access and easy cable routing
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
More in store
- Flexible storage options with two HDD/SSD drive trays and four dedicated SSD mounts (2 brackets included)
- Integrated cable guides with cable straps further simplify cable management behind the board
Type-C Interface
USB Type-C front I/O offers quick access to fast charging and speeds up to 10 Gbps
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 33.1 cm |
Maximum CPU cooler height | 16.7 cm |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 4 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | DTX, micro ATX, Mini-DTX, Mini-ITX |
Product colour | Black |
Material | Steel, Tempered glass |
Type | PC |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,180,240 mm |
Rear radiator sizes supported | 120 mm |
Bottom radiator sizes supported | 120 mm |
Front radiator sizes supported | 60,120,140,200,240,280 mm |
Bottom fans diameters supported | 120 mm |
Number of bottom fans supported (max) | 1 |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 1x 140 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 6.62 kg |
Height | 406 mm |
Depth | 396 mm |
Width | 205 mm |
Packaging data | |
---|---|
Package weight | 7.68 kg |
Package height | 462 mm |
Package depth | 457 mm |
Package width | 277 mm |
A case of attitude
The vividly colored motherboard plates, drive trays and exterior accents create a fresh, expressive feel
A hidden compartment
Two neatly concealed 5.25” bays with storage drawer and magnetic cover
Openly expressive
The easy-to-clean front mesh acts as a dust filter while allowing high airflow
Flexible storage support
- Two ultra-versatile storage trays each support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included
- Easy cable management with multiple tie-down points, pre-mounted cable ties and convenient extra-large pass-through holes
Show off your build
- Easily mounted tempered glass side panel lets you showcase your components. (TG models only)
- Holds radiators up to 280 mm in the front, 240 mm in the top and 120 mm in the rear
- The honeycomb patterned front mesh creates a striking visual effect that gives the Pop series a premium feel
Design | |
---|---|
Maximum PSU length | 17 cm |
Maximum graphics card length | 40.5 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 3 |
Number of 5.25" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | White |
Material | Steel, Tempered glass |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 280 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 120 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5,5.25" |
Weight & dimensions | |
---|---|
Weight | 7.2 kg |
Height | 454 mm |
Depth | 473.5 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 8.7 kg |
Package height | 537 mm |
Package depth | 548 mm |
Package width | 307 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

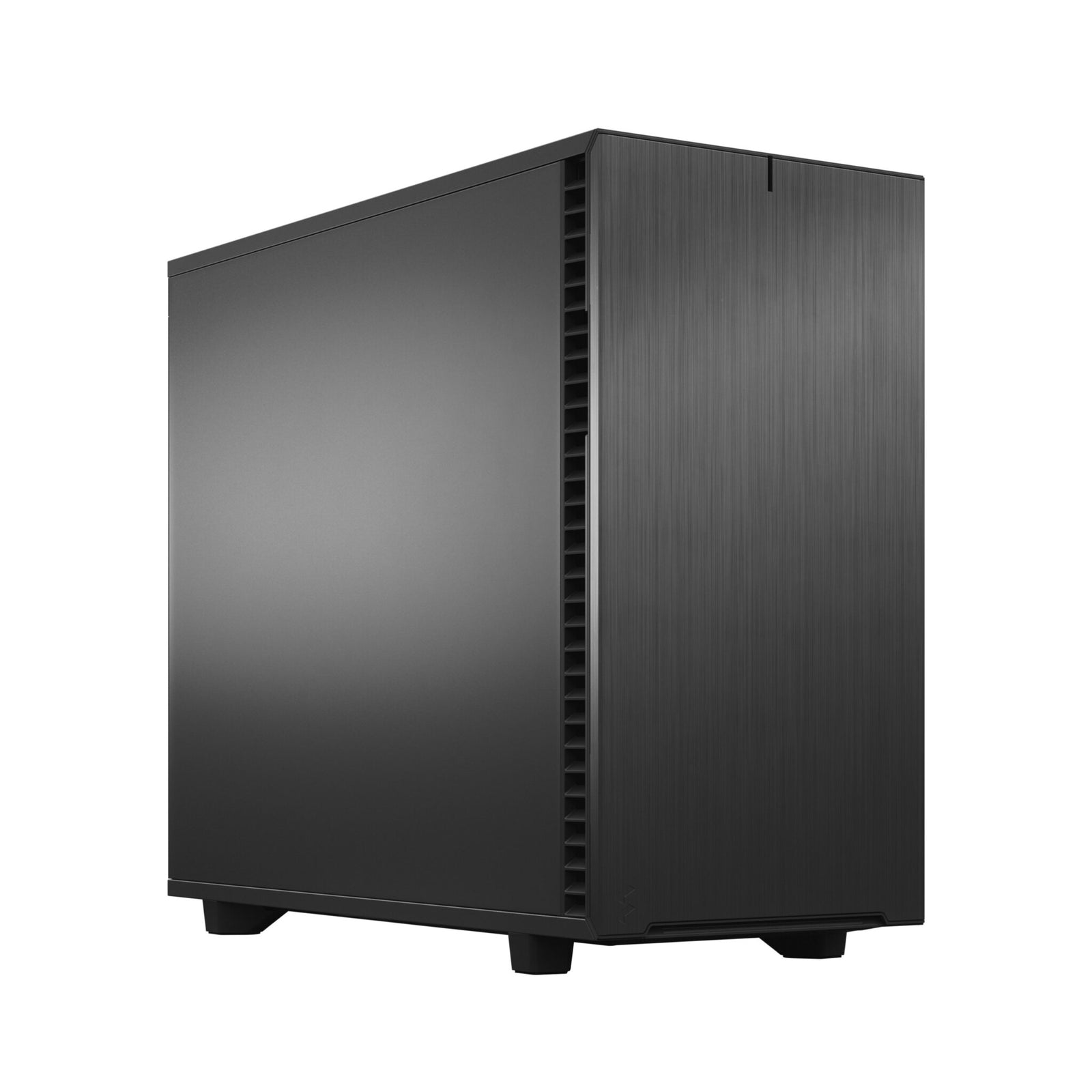

Stylish, smart and sophisticated
Design fuses with function in a case that offers both aesthetics and flexibility
A hidden compartment
Two neatly concealed 5.25” bays with storage drawer and magnetic cover
Keeping it down
Excellent noise reduction thanks to the closed front and top, bitumen side panels and sound-damping foam
Flexible storage support
- Two ultra-versatile storage trays each support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included
- Enjoy multiple tie-down points, pre-mounted cable ties and extra-large pass-through holes for a clean interior
Show off your build
Easily mounted tempered glass side panel (TG versions only) lets you showcase your components
Aspect fans
Comes with three 120 mm Aspect 12 fans pre-installed, featuring Trip Wire technology and rifle bearings for enhanced blade efficiency and reliable cooling performance
Design | |
---|---|
Maximum PSU length | 17 cm |
Maximum graphics card length | 38 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 3 |
Number of 5.25" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | White |
Material | Steel, Tempered glass |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 280 mm |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 120 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 3.5" |
Weight & dimensions | |
---|---|
Weight | 7.3 kg |
Height | 454 mm |
Depth | 473.5 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 8.8 kg |
Package height | 537 mm |
Package depth | 548 mm |
Package width | 307 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

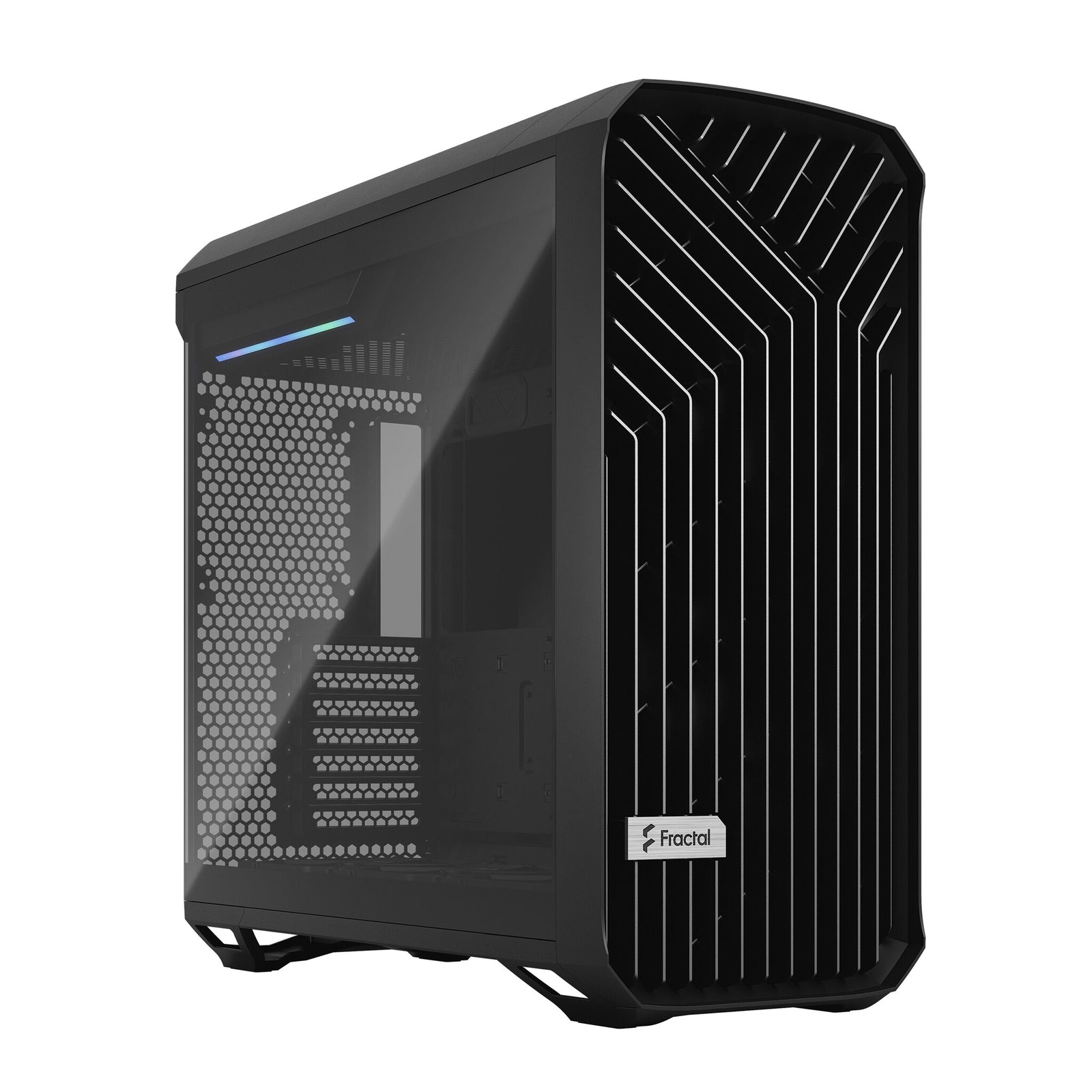

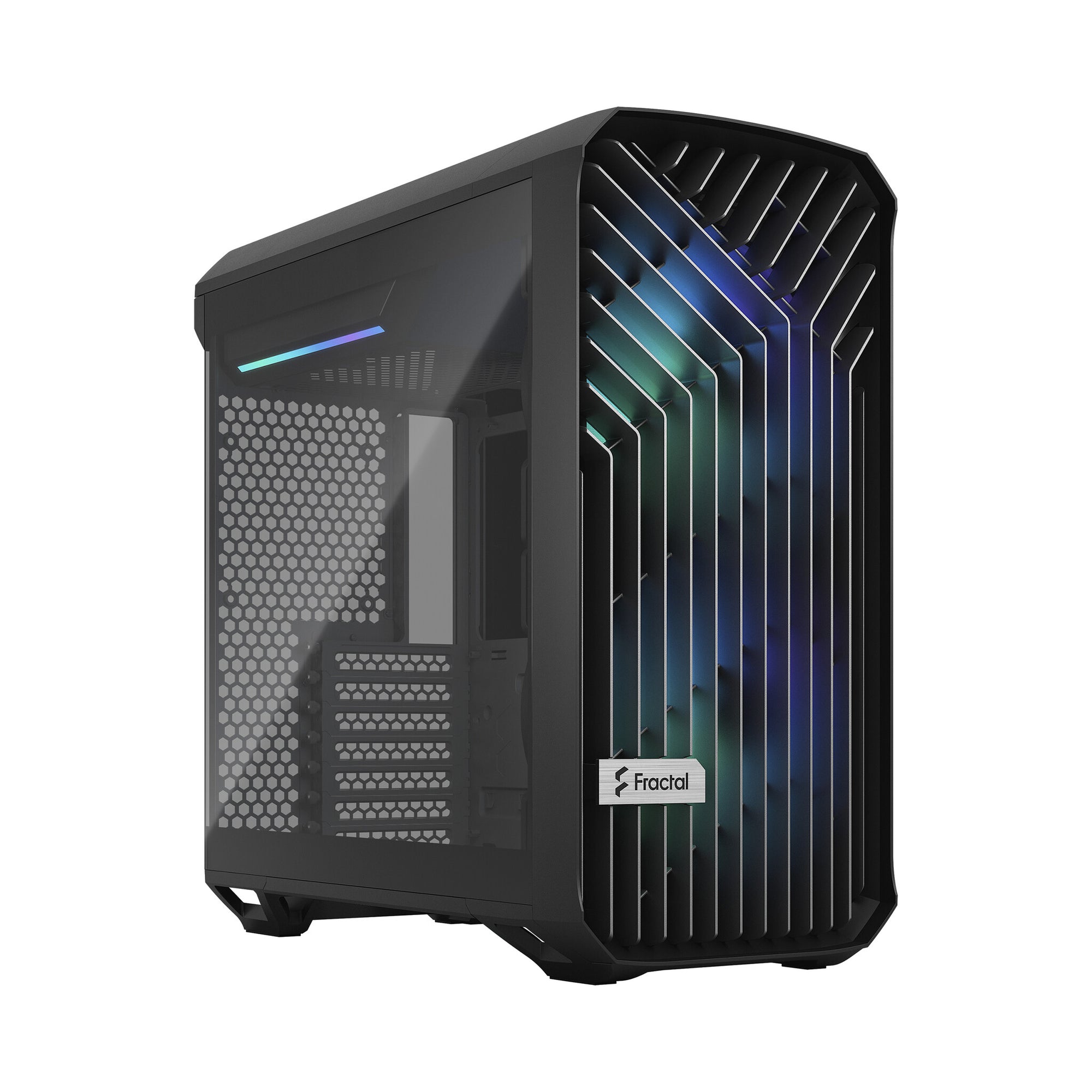

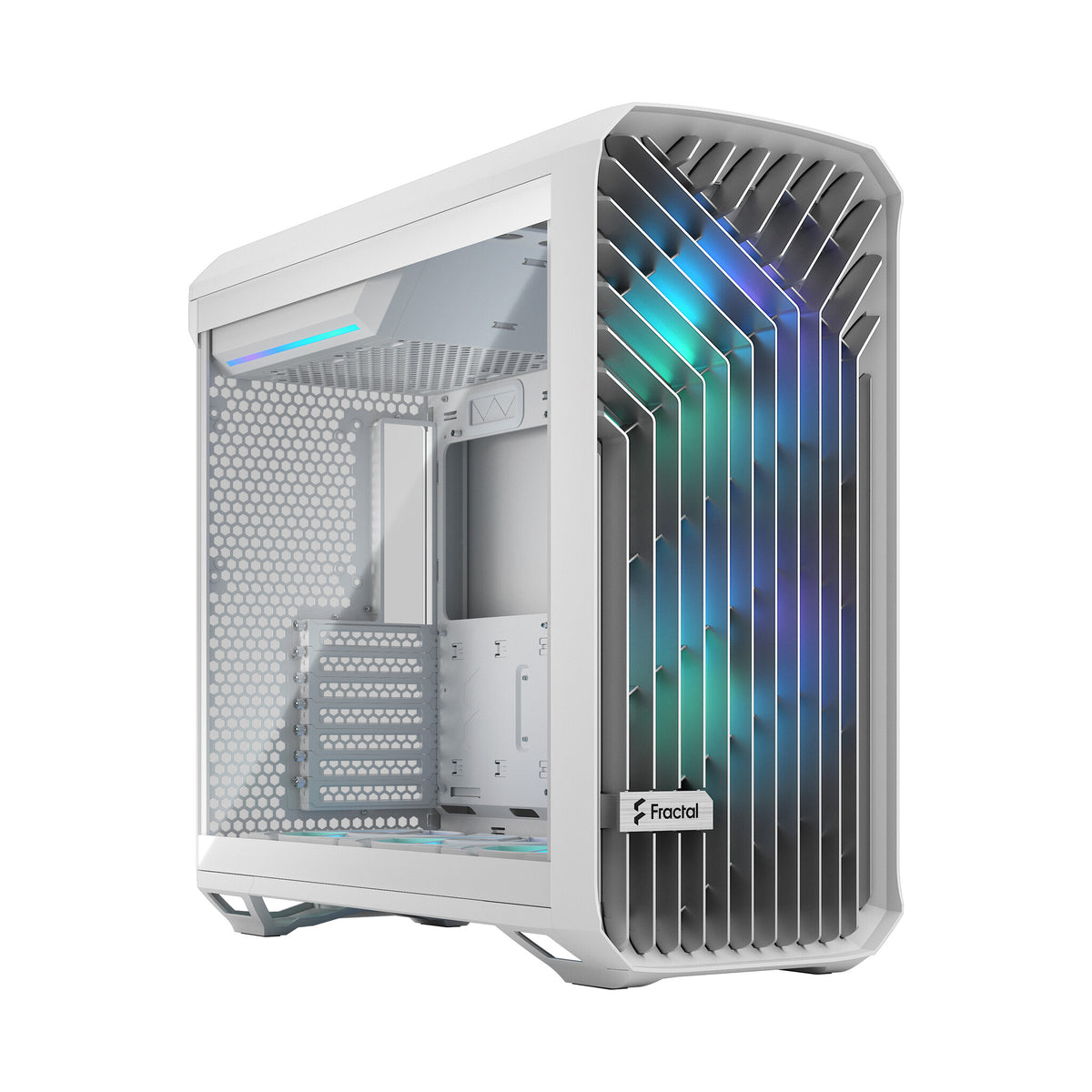

Built to maximize cooling potential straight out of the box, the Torrent comes with a brand-new component layout and two custom-made 180 x 38 mm Dynamic PWM / Prisma RGB fans. The Torrent is a perfect fit for anyone serious about high-end cooling – with or without a custom water loop.
Top-tier airflow
- Designed for exceptional performance at controlled sound levels with included fan hub
- The 38 mm thick blades leverage power, size, and thickness for massive air-moving capacity
- Streamlined through and through for component breathing room and superlative airflow
Let your system breathe
- New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling
- Optional front and bottom nylon filters included, allowing the user to prioritize between dust filtering or even higher airflow
- Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling
Next level GPU cooling
Expansive base intakes and extra-large bottom fan support
Streamlined inside and out
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator and fan sizes
- Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm
- Seven bridgeless expansion slots allow for extensive customization
Quick start, clean finish
- Comes with external cable straps for tidying up behind your computer
- New, pre-installed Nexus 9P Slim PWM fan hub
- Removable top bezel and cable guides with cable straps make for easy installation and cable management
- Two sturdy steel drive trays with vibration-damping rubber grommets for smooth, quiet and reliable operation
- Four dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels (on TG models) with bolt-free top-latching mechanisms for easy handling
- Integrated support for a water-cooling reservoir on the motherboard tray
Design | |
---|---|
Maximum PSU length | 23 cm |
Maximum graphics card length | 46.1 cm |
Maximum CPU cooler height | 18.8 cm |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Internal |
Illumination colour | Multi |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB |
Product colour | Black |
Material | Tempered glass |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Rear radiator sizes supported | 120,140 mm |
Bottom radiator sizes supported | 360,420 mm |
Front radiator sizes supported | 360,420 mm |
Bottom fans diameters supported | 120,140,180 mm |
Number of bottom fans supported (max) | 3 |
Bottom fans installed | 3x 140 mm |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140,180 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 180 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 11.1 kg |
Height | 530 mm |
Depth | 544 mm |
Width | 242 mm |
Packaging data | |
---|---|
Package weight | 13.7 kg |
Package height | 674 mm |
Package depth | 640 mm |
Package width | 343 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
A case of attitude
The vividly colored motherboard plates, drive trays and exterior accents create a fresh, expressive feel
A hidden compartment
Two neatly concealed 5.25” bays with storage drawer and magnetic cover
Openly expressive
The easy-to-clean front mesh acts as a dust filter while allowing high airflow
Flexible storage support
- Two ultra-versatile storage trays each support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included
- Easy cable management with multiple tie-down points, pre-mounted cable ties and convenient extra-large pass-through holes
Show off your build
- Easily mounted tempered glass side panel lets you showcase your components. (TG models only)
- Holds radiators up to 280 mm in the front, 240 mm in the top and 120 mm in the rear
- The honeycomb patterned front mesh creates a striking visual effect that gives the Pop series a premium feel
Design | |
---|---|
Maximum PSU length | 17 cm |
Maximum graphics card length | 40.5 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 3 |
Number of 5.25" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | Steel, Tempered glass |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 280 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 120 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5,5.25" |
Weight & dimensions | |
---|---|
Weight | 7.2 kg |
Height | 454 mm |
Depth | 473.5 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 8.7 kg |
Package height | 537 mm |
Package depth | 548 mm |
Package width | 307 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
We've seen a lot, but when we look at the ENDORFY Arx 700 Air we’re quite literally bursting with pride. We’ve put our best solutions into this project – and it’s EPIC (Caps Lock intentional).
This is the largest PC case we’ve ever made (486×228×472 mm). It can easily fit all your components – for example, a tall cooling system (up to 179 mm), 8 fans (including 5 pre-installed Stratus 140 PWM), and virtually any available graphics card (up to 410 mm). The ENDORFY Arx 700 Air keeps them in a pleasant breeze thanks to mesh panels (front and top) that allow the fresh air to flow while blocking dirt and dust from entering your PC case. Like sentinels guarding the gates of heaven.
And all under your watchful eye – through a tempered glass window.
Why so cold?
The interior of the Arx 700 Air is as frosty as the gaze of a cosplayer who’s just had the last ticket to a fantasy convention snatched from under their nose. We're serious – your components won't overheat, even when you crank up the settings in your favorite shooter.
With rendering video in the background.
On the hottest day of the year.
That's because the Arx 700 Air gives you plenty of room to mount up to 8 freezers fans. What’s more, the front and top panels are also filters, so there’s no need for additional dust covers. Compared to traditional solutions, a single layer of filters improves air circulation and makes it easier to keep the components in a pleasant breeze (because cooling is extremely important to us).
Simply put, with such a combo like this, your components will wonder why it’s so cold in here. If components can wonder, ofc.
Cold-hearted <3
Without beating around the bush – the Arx 700 Air has icy heart interior and we’re proud of it. The 5 Stratus 140 PWM fans (developed with Synergy Cooling) are in charge of the arctic temperatures inside your PC case. And thanks to the splitter, you can control them with a PWM signal from a single motherboard connector.
The Stratus 140 PWM is one of our favorite fans. It’s 14 cm tall, so – compared to smaller ones – this bad boy delivers more airflow at the same speed. It also has an optional semi-passive mode that stops the fan at lower loads. You can say goodbye to the monotonous hum in the background.
On top of that, the Stratus 140 PWM uses a durable FDB bearing that guarantees smooth operation in all conditions. It means that you can work go wild on your PC without worrying about a blue screen popping up. Because colorful effects are reserved for ARGB.
Outer space technology
From time to time, we hear that the Arx 700 Air is some kind of space technology. And there is something in it – our PC case looks as if it’s about to conquer the universe. Maybe one day we’ll add an option like that.
The front and top mesh panels serve as filters. This means there's no need to install additional dust covers (and cool air can flow freely inside the case). Each of the elements can be easily removed and cleaned with a cloth or vacuum cleaner (or even rinsed under running water) – in a few minutes, because we know that you have more important things to do.
Window for components
Closed PC cases are cool, but transparent elements – in our opinion – add 1,000 extra points to the look. That's why the Arx 700 Air has a tempered glass side panel that shows off your beautiful components. We all know it’s what's on the inside that counts.
Size does not matter
Supposedly, size doesn’t matter. But when it comes to PC cases, those extra centimeters = more space for your treasures components and better airflow. As a result, we made sure that the Arx 700 Air is our largest PC case – at least for now.
Its size (486×228×472 mm) gives you plenty of room for components – including a tall cooling system (up to 179 mm), 8 fans (including 5 we provide to get you started) and virtually every graphics card available on the market (up to 410 mm). The interior also accommodates simultaneously two radiators up to 360 mm – for efficient cooling of the most demanding builds.
We also left plenty of space for the power supply – you can mount it in any convenient position. Thanks in part to the removable mounting frame.
Design | |
---|---|
Maximum PSU length | 34 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 17.9 cm |
On/off button | Yes |
Reset button | Yes |
Anti-dust filter | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of storage drives supported | 7 |
Number of 2.5" bays | 6 |
Number of 3.5" bays | 1 |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
Product colour | Black |
Type | PC |
Form factor | Full Tower |
Power supply | |
---|---|
Power supply included | No |
Ports & interfaces | |
---|---|
USB Type-C ports quantity | 1 |
Audio output | Yes |
Audio input | Yes |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240,280,360 mm |
Rear radiator sizes supported | 120,140 mm |
Front radiator sizes supported | 140,240,280,360 mm |
Fan speed | 200 - 1200 RPM |
Number of top fans supported (max) | 3 |
Top fans installed | 1x 140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 140 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 8.7 kg |
Height | 486 mm |
Depth | 472 mm |
Width | 228 mm |
Packaging data | |
---|---|
Package weight | 9.9 kg |
Package height | 528 mm |
Package depth | 540 mm |
Package width | 290 mm |
CREATE IT YOUR WAY
Flatpack Assembly
Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience. Welcome to the future of PC DIY.
Fully Modular
Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.
Highly Customizable
An unprecedented level of customizability allows for full creative expression.
Full-sized SPECS, Pint-sized Body
The Qube 500 can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.
Build As You Unbox
From the moment you open the box, the build begins with fun and easy step-by-step instructions.
Hardware Compatibilty
The Qube 500 is compatible with 280mm water coolers, 172mm air coolers, 173mm ATX PSUs, E-ATX motherboards and smaller, and 360mm GPUs.
Side Radiator Bracket
The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
Built-in Vertical GPU Bracket
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Accessory Ecosystem
The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and a handle-bar is included, and we have prepared some 3D-printable files for you to create your own accessories.
Design | |
---|---|
Maximum PSU length | 33.2 cm |
Maximum graphics card length | 36.5 cm |
Maximum CPU cooler height | 17.2 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 4 |
Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
Product colour | Black |
Material | Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX, SFX, SFX-L |
Power supply included | No |
Ports & interfaces | |
---|---|
Combo headphone/mic port | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,240,280 mm |
Rear radiator sizes supported | 120 mm |
Bottom radiator sizes supported | 120,140,240,280 mm |
Side radiator sizes supported | 120,140,240,280 mm |
Front radiator sizes supported | 120,140 mm |
Fan speed | 0 - 1800 RPM |
Bottom fans diameters supported | 120,140 mm |
Number of bottom fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Side fans diameters supported | 120,140 mm |
Number of side fans supported (max) | 2 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 1 |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 7.8 kg |
Height | 415 mm |
Depth | 406 mm |
Width | 231 mm |
Packaging data | |
---|---|
Package weight | 9.42 kg |
Package height | 146 mm |
Package depth | 513 mm |
Package width | 453 mm |
Other features | |
---|---|
Volume | 33.44 L |
The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Top: 2x 120mm
Front: 2x 140mm / 2x 120mm
Rear: 1x 120mm
Bottom: 1x 120mm
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
Design | |
---|---|
On/off button | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 1 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Product colour | Black, Transparent |
Material | Glass, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Cooling | |
---|---|
Top radiator sizes supported | 120 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 140 mm |
Maximum airflow | 89.48 cfm |
Bottom fans diameters supported | 120 mm |
Number of bottom fans supported (max) | 1 |
Top fans diameters supported | 120 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 8.1 kg |
Height | 464 mm |
Depth | 446 mm |
Width | 227 mm |
Packaging data | |
---|---|
LED controller | Yes |
Built to maximize cooling potential straight out of the box, the Torrent comes with a brand-new component layout and two custom-made 180 x 38 mm Dynamic PWM / Prisma RGB fans. The Torrent is a perfect fit for anyone serious about high-end cooling – with or without a custom water loop.
Top-tier airflow
- Designed for exceptional performance at controlled sound levels with included fan hub
- The 38 mm thick blades leverage power, size, and thickness for massive air-moving capacity
- Streamlined through and through for component breathing room and superlative airflow
Let your system breathe
- New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling
- Optional front and bottom nylon filters included, allowing the user to prioritize between dust filtering or even higher airflow
- Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling
Next level GPU cooling
Expansive base intakes and extra-large bottom fan support
Streamlined inside and out
- Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator and fan sizes
- Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm
- Seven bridgeless expansion slots allow for extensive customization
Quick start, clean finish
- Comes with external cable straps for tidying up behind your computer
- New, pre-installed Nexus 9P Slim PWM fan hub
- Removable top bezel and cable guides with cable straps make for easy installation and cable management
- Two sturdy steel drive trays with vibration-damping rubber grommets for smooth, quiet and reliable operation
- Four dedicated SSD brackets included
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
Transparently easy
- Seamless tempered glass panels (on TG models) with bolt-free top-latching mechanisms for easy handling
- Top mounted aerodynamic PSU shroud with integrated ARGB effects (TG versions only)
- Integrated support for a water-cooling reservoir on the motherboard tray
Design | |
---|---|
Maximum PSU length | 23 cm |
Maximum graphics card length | 46.1 cm |
Maximum CPU cooler height | 18.8 cm |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Internal |
Illumination colour | Multi |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB |
Product colour | Black |
Material | Tempered glass |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Rear radiator sizes supported | 120,140 mm |
Bottom radiator sizes supported | 360,420 mm |
Front radiator sizes supported | 360,420 mm |
Bottom fans diameters supported | 120,140,180 mm |
Number of bottom fans supported (max) | 3 |
Bottom fans installed | 3x 140 mm |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140,180 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 180 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 11.1 kg |
Height | 530 mm |
Depth | 544 mm |
Width | 242 mm |
Packaging data | |
---|---|
Package weight | 13.7 kg |
Package height | 674 mm |
Package depth | 640 mm |
Package width | 343 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
A case of attitude
The vividly colored motherboard plates, drive trays and exterior accents create a fresh, expressive feel
A hidden compartment
Two neatly concealed 5.25” bays with storage drawer and magnetic cover
Openly expressive
The easy-to-clean front mesh acts as a dust filter while allowing high airflow
Flexible storage support
- Two ultra-versatile storage trays each support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included
- Easy cable management with multiple tie-down points, pre-mounted cable ties and convenient extra-large pass-through holes
Show off your build
- Easily mounted tempered glass side panel lets you showcase your components. (TG models only)
- Holds radiators up to 280 mm in the front, 240 mm in the top and 120 mm in the rear
- The honeycomb patterned front mesh creates a striking visual effect that gives the Pop series a premium feel
Design | |
---|---|
Maximum PSU length | 17 cm |
Maximum graphics card length | 40.5 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
RGB control button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 3 |
Number of 5.25" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black, Orange |
Material | Steel, Tempered glass |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 280 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 120 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5,5.25" |
Weight & dimensions | |
---|---|
Weight | 7.2 kg |
Height | 454 mm |
Depth | 473.5 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 8.7 kg |
Package height | 537 mm |
Package depth | 548 mm |
Package width | 307 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Exquisitely Ruthless
MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
FineMesh Performance Front Panel
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Available in both Black & White colorations
MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!
Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
ARGB/FAN HUB Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
Removable Top Panel
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
Tool-Free Crystalline TG Side Panel
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
Versatile Cooling Options
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
PSU Shroud With Removable Cover
MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
Hardware Compatibility
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.5 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, SSI CEB, Mini-ITX, EATX |
Product colour | White |
Material | Mesh, Tempered glass, Plastic, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240,360,140,280 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 140,240,360,120,280 mm |
Top fans diameters supported | 140,120 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
General | |
---|---|
Product Family | MasterBox |
Weight & dimensions | |
---|---|
Weight | 7.7 kg |
Height | 500 mm |
Depth | 499 mm |
Width | 210 mm |
Packaging data | |
---|---|
Package weight | 9.2 kg |
Package height | 584 mm |
Package depth | 558 mm |
Package width | 290 mm |
Other features | |
---|---|
Volume | 50 L |
Homecoming Classic
Cooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups.
Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.
Mesh Front Panel
Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature.
Dual 200MM ARGB Fans
Iconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build.
Rotatable GPU Fan
A 120mm fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance. The fan bracket can be rotated to accommodate various GPU size and configurations.
Screwless & Tool-free TG Side Panel Design
The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.
Removable Top Panel
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
Versatile Cooling Options
Support for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
Want to know more?
Got any unanswered questions or future product requests? Or maybe you just want the latest scoop on upcoming product launches and giveaways? Join us our community on Reddit and Discord to talk directly to the designers of the products!
Design | |
---|---|
Maximum PSU length | 18 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.7 cm |
Reset button | Yes |
RGB control button | Yes |
Anti-dust filter | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, SSI CEB, ITX, EATX |
Product colour | White |
Material | Mesh, Tempered glass, Plastic, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240,360,140,280 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,200,280,140,240,360 mm |
Top fans diameters supported | 140,120,200 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 140,120,200 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 200 mm |
Storage | |
---|---|
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 9.5 kg |
Height | 510 mm |
Depth | 516 mm |
Width | 224 mm |
Packaging data | |
---|---|
Package weight | 11.2 kg |
Package height | 605 mm |
Package depth | 588 mm |
Package width | 315 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
North reimagines the gaming PC, introducing natural materials and bespoke details to make gaming a stylish addition to the living space. Fusing design and airflow engineering, the case features fine-patterned mesh ventilation and an open front with real walnut or oak panels. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, North offers an intuitive interior layout and generous compatibility.
Natural design
- Enjoy a sophisticated looking case which integrates effortlessly into your living space
- Enhance your gaming station with a real oak or walnut front, a faux leather tab and sleek steel or brass details
Type-C interface
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Gaming ready
- Support radiators up to 240 mm in the top and 360 mm in the front
- Room for a GPU up to 355 mm with front fans installed or up to 300 mm with a front radiator
- Seven bridgeless expansion slots allow for extensive customization
- Designed for ATX / mATX / ITX motherboards
Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Ventilated performance
- Natural ventilation through an open front and a stylishly integrated mesh top panel
- The mesh version of the case features a full mesh side panel in addition to the top
Flexible storage
North features two included combined 3.5″/2.5″ drive mounts and two dedicated 2.5″ drive mounts out of the box
Build versatility
- Make the most of your building experience with an intuitive interior layout
- Two Aspect 14 PWM fans preinstalled with room to expand up to a total of four 140 mm or six 120 mm fans
- The mesh version also ships with a fanhub and a fan bracket, providing an additional two fan positions
Design | |
---|---|
Maximum PSU length | 25.5 cm |
Maximum graphics card length | 35.5 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 3 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | White |
Material | Mesh, Steel |
Type | PC |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,180,240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 60,120,140,200,240,280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 7.6 kg |
Height | 469 mm |
Depth | 447 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 9.55 kg |
Package height | 553 mm |
Package depth | 565 mm |
Package width | 326 mm |
North reimagines the gaming PC, introducing natural materials and bespoke details to make gaming a stylish addition to the living space. Fusing design and airflow engineering, the case features fine-patterned mesh ventilation and an open front with real walnut or oak panels. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, North offers an intuitive interior layout and generous compatibility.
Natural design
- Enjoy a sophisticated looking case which integrates effortlessly into your living space
- Enhance your gaming station with a real oak or walnut front, a faux leather tab and sleek steel or brass details
Type-C interface
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Gaming ready
- Support radiators up to 240 mm in the top and 360 mm in the front
- Room for a GPU up to 355 mm with front fans installed or up to 300 mm with a front radiator
- Seven bridgeless expansion slots allow for extensive customization
- Designed for ATX / mATX / ITX motherboards
Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Ventilated performance
- Natural ventilation through an open front and a stylishly integrated mesh top panel
- The mesh version of the case features a full mesh side panel in addition to the top
Flexible storage
North features two included combined 3.5″/2.5″ drive mounts and two dedicated 2.5″ drive mounts out of the box
Build versatility
- Make the most of your building experience with an intuitive interior layout
- Two Aspect 14 PWM fans preinstalled with room to expand up to a total of four 140 mm or six 120 mm fans
- The mesh version also ships with a fanhub and a fan bracket, providing an additional two fan positions
Design | |
---|---|
Maximum PSU length | 25.5 cm |
Maximum graphics card length | 35.5 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 3 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | Mesh, Steel |
Type | PC |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,180,240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 60,120,140,200,240,280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 7.6 kg |
Height | 469 mm |
Depth | 447 mm |
Width | 215 mm |
Packaging data | |
---|---|
Package weight | 9.55 kg |
Package height | 553 mm |
Package depth | 565 mm |
Package width | 326 mm |
The new Focus series from Fractal Design is the cornerstone for your PC build, showcasing the hardware aesthetics at the heart of your system with elegant accents and sophisticated style.
Contemporary Micro ATX case design accommodates high-performance components with smart and efficient space utilization for a compact footprint. Extensive cooling options are available with support for tall CPU heatsink/fan combos and water cooling with multiple dual-fan radiators. Filtered front, top and base air intakes maintain a dust-free environment while expert cable management options keep wiring tidy. With edge-to-edge visibility, clean contemporary styling and two Silent Series LED fans, the Focus Mini makes your hardware the center of attention.
Design | |
---|---|
Maximum PSU length | 23 cm |
Maximum graphics card length | 38 cm |
Maximum CPU cooler height | 16.5 cm |
LED indicators | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Illumination location | Case fans, Front |
Illumination colour | White |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 4 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ITX, micro ATX |
Product colour | Black |
Type | PC |
Form factor | Mini Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 1 |
Cooling | |
---|---|
Top radiator sizes supported | 240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140 mm |
Cooling | Yes |
Bottom fans diameters supported | 120 mm |
Number of bottom fans supported (max) | 1 |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 4.1 kg |
Height | 383 mm |
Depth | 464 mm |
Width | 205 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Other features | |
---|---|
Volume | 32.5 L |
Easy to customize | Yes |
The Fractal Design Core Series offers a unique combination of design, cooling performance and value.
The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior.
The sleek black interior is contrasted with white expansion slots while all HDD mountings are fitted with anti-vibration silicone grommets for optimal silence.
Key Features
- Simple yet elegant mesh front panel allowing for increased airflow through the case
- Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
- NEW: 1 x USB 3.0 with internal connector, 1 x USB 2.0
- One Silent Series R2 fan included: 1 x 120mm in front
- A total of 3 fan slots (1 x 120mm in front, 1 x 92mm in rear, 1 x 120mm in side panel)
- Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
- Supports long graphics cards up to 350mm in length
- Supports various combinations of drive sets ups: 3 x 2.5" SSD, 2 x 3.5" HDD or 1 x 2.5" SSD + 1 x 3.5" HDD
- Dust filter for front fan position
Design | |
---|---|
Maximum graphics card length | 35 cm |
Maximum CPU cooler height | 14.8 cm |
LED indicators | Yes |
Reset button | Yes |
Built-in speaker(s) | No |
Side window | No |
Number of expansion slots | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | DTX, micro ATX, Mini-ITX |
Product colour | Black |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 1 |
Cooling | |
---|---|
Rear fans diameters supported | 92 mm |
Number of rear fans supported (max) | 1 |
Side fans diameters supported | 120 mm |
Number of side fans supported (max) | 1 |
Front fans diameters supported | 120 mm |
Number of front fans supported (max) | 1 |
Front fans installed | 1x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 4.1 kg |
Height | 355 mm |
Depth | 420 mm |
Width | 175 mm |
Packaging data | |
---|---|
Package weight | 5 kg |
Package height | 415 mm |
Package depth | 473 mm |
Package width | 230 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
Introducing the Define 7 series
Re-defining versatility
Open and interchangeable
Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance.
Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
- Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering.
Open layout for massive headroom
You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
- Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base
6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included
Superlative storage
Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts
- 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
- 2 dedicated SSD brackets included with 4 positions total
- Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
- Sturdy new HDD cage design with vibration damped trays
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels
Cable management
Integrated cable guides with Velcro ties simplifies cable management behind the board.
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans.
Type-C interface
Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps.
Versatile new Multibracket
The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount.
Design | |
---|---|
Maximum PSU length | 25 cm |
Maximum graphics card length | 49.1 cm |
Maximum CPU cooler height | 18.5 cm |
LED indicators | Yes |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | No |
Side window | No |
Number of expansion slots | 9 |
Number of 3.5" bays | 6 |
Number of 5.25" bays | 1 |
Supported motherboard form factors | ATX, EATX, micro ATX, Micro-ITX |
Product colour | White |
Material | Aluminium, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Number of power supply units | 1 |
Power supply included | No |
Ports & interfaces | |
---|---|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 360,420 mm |
Top radiator installed | No |
Rear radiator fan size installed | 120 |
Bottom radiator sizes supported | 240,280 mm |
Rear radiator installed | Yes |
Front radiator sizes supported | 280,360 mm |
Front radiator installed | No |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5,5.25" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 13.5 kg |
Height | 451 mm |
Depth | 240 mm |
Width | 533 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Despite its extremely small outer dimensions, the Core 1100 mATX case provides everything you need. The stylish, Scandinavian exterior design is matched by the fully painted interior, complete with the signature white details of Fractal Design. The case is optimized for airflow with a straight cooling path, and comes equipped with a pre-installed 120mm fan. The front panel is equipped with dust filters. An innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both the 3.5" drive slots come with silicone vibration dampening grommets
Brushed aluminum
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
1x120 mm fan included
One Fractal Design 120 mm fan included
Smart HDD Bracket
Innovative vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each size
Design | |
---|---|
Maximum graphics card length | 35 cm |
Maximum CPU cooler height | 14.8 cm |
LED indicators | HDD, Power |
Built-in speaker(s) | No |
Side window | No |
Number of expansion slots | 4 |
Number of 3.5" bays | 2 |
Number of 5.25" bays | 2 |
Supported motherboard form factors | micro ATX, Mini-ITX |
Product colour | Black |
Type | PC |
Form factor | Mini Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 1 |
Cooling | |
---|---|
Fan speed | 1200 |
Rear fans diameters supported | 92 mm |
Number of rear fans supported (max) | 1 |
Side fans diameters supported | 120 mm |
Number of side fans supported (max) | 1 |
Front fans diameters supported | 120 mm |
Number of front fans supported (max) | 1 |
Front fans installed | 1x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 3.8 kg |
Height | 358 mm |
Depth | 410 mm |
Width | 175 mm |
Packaging data | |
---|---|
Package weight | 4.6 kg |
Package height | 420 mm |
Package depth | 485 mm |
Package width | 235 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
