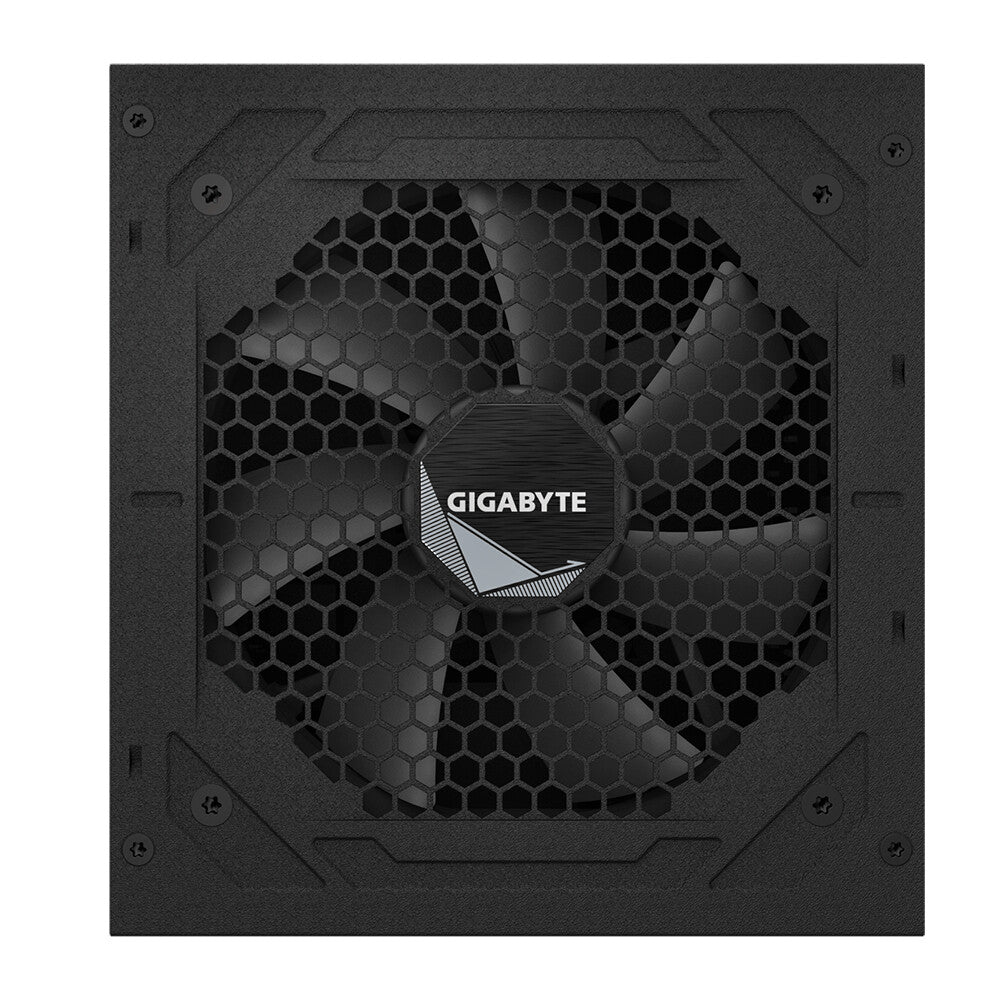

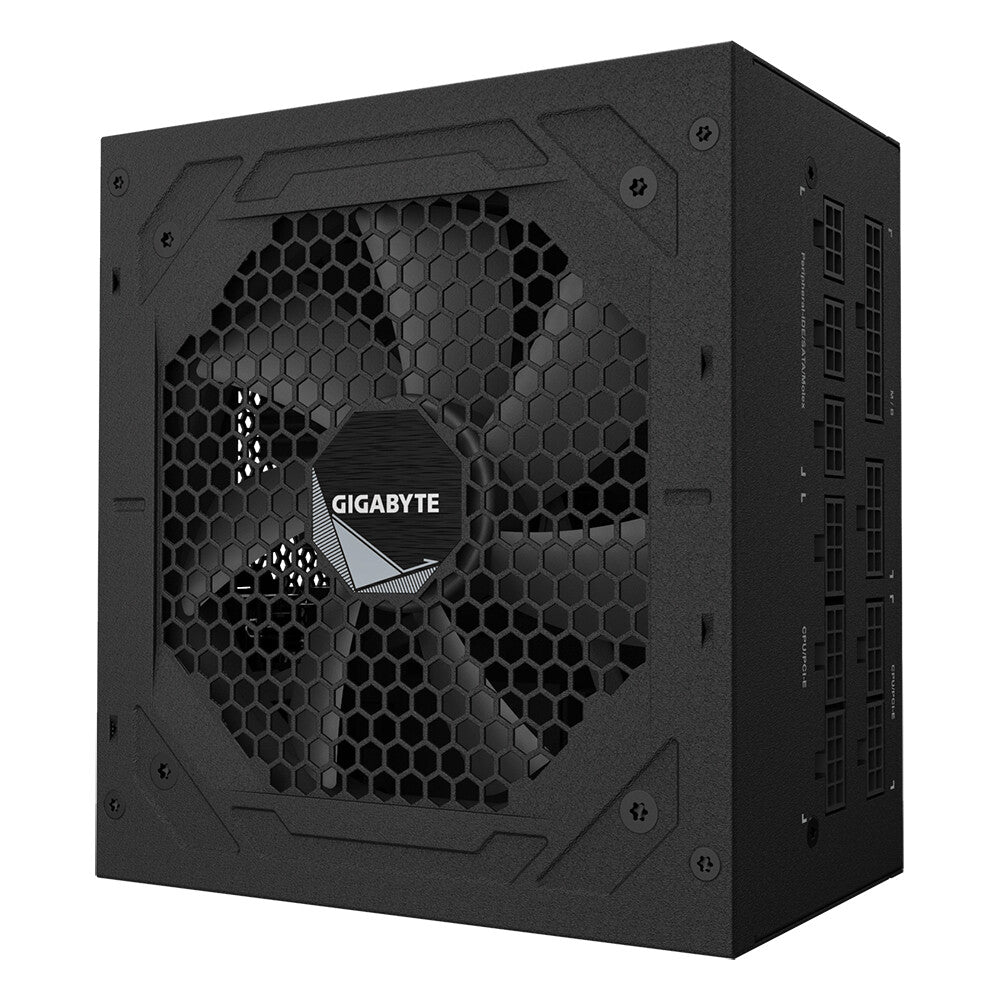

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 849.6 W |
Combined power (+3.3V) | 105 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.9 |
Maximum input current (@220V) | 6 A |
Maximum input current (@110V) | 12 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy drive power connector | 2 |
Floppy disk drive connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
120MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 2.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 61 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 105 W |
Combined power (+12V) | 732 W |
Combined power (+3.3V) | 105 W |
Power Factor Correction (PFC) type | Active |
Input current | 12 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy drive power connector | 1 |
Floppy disk drive cable length | 15 cm |
Floppy disk drive connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 60 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 120,500 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 150,300,450,600 mm |
Number of SATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HYB |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
GameMax Semi-Modular Series is a semi-Modular PSU with a compact and quiet engineering, with semi-modular cables for easy maintenance, allowing you to only connect cables that your system needs. Fewer cables allows it to be tidy and better airflow inside your case. High 80 Plus efficiency, reduced ripple and electrical instabilities and better efficiency and protection gives the user durability and total confidence in your next system build. 100% 6th Generation Skylake Ready!
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overload, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 85% |
Power Good signal delay range | 100 - 500 ms |
Input current | 6.3 - 12 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 800 W |
Ports & interfaces | |
---|---|
Cabling type | Semi-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 8 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Safety | CE / FCC / CB |
Mean time between failures (MTBF) | 100 h |
Noise level | 25 dB |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan diameter | 14 cm |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 2.1 kg |
Height | 85 mm |
Depth | 150 mm |
Width | 160 mm |
Packaging data | |
---|---|
Package weight | 2.8 kg |
Package height | 242 mm |
Package depth | 122 mm |
Package width | 335 mm |
Antec’s new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, CSK Bronze includes Antec’s 3 year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.
80 PLUS® Bronze certified
Delivering up to 88% efficiency, the CSK Bronze Series utilize active PFC, giving you a cooler, quieter system, all powered by Continuous Power.
3-Year Warranty
We stand by the quality and safety of the CSK Bronze Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
120 mm Silent Fan
The 120 mm silent fan is ideal for quite computing and is designed for longer lifetime, guaranteeing hours of operation.
Power | |
---|---|
Power protection features | Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 500 ms |
Efficiency | 88% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 16 A |
Max output current (+12V) | 42 A |
Max output current (+3.3V) | 14 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 504 W |
Combined power (+3.3V) | 110 W |
Power Factor Correction (PFC) type | Active |
Input current | 10 - 5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 550 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
Floppy drive power connector | 1 |
Floppy disk drive cable length | 95 cm |
PCI Express power cable length | 65 cm |
PCI Express power connectors (6+2 pin) | 2 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 650,800 mm |
Peripheral (Molex) power connectors (4-pin) | 2 |
SATA power cable length | 500,650,800 mm |
Number of SATA power connectors | 7 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | cTUVus, TUV, CB, RCM, CE, CCC, FCC |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.53 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 1.71 kg |
Technical details | |
---|---|
Warranty period | 3 year(s) |
World Class Quiet and Efficiency
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1500W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Under voltage |
Hold time | 25.3 ms |
Efficiency | 91.8% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.5 A |
Max output current (+5V) | 25 A |
Max output current (+12V) | 83.3 A |
Max output current (+3.3V) | 25 A |
Combined power (+5V) | 150 W |
Combined power (+12V) | 999.6 W |
Combined power (+3.3V) | 150 W |
Power factor | 0.99 |
Input current | 13/6.5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 1070 W |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power cable length | 70 cm |
PCI Express power cable length | 60 cm |
PCI Express power connectors (16-pin) | 1 |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 1000,850 mm |
SATA power cable length | 550,700,850,1000 mm |
Number of SATA power connectors | 9 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Noise level | 28.9 dB |
EPS version | 2.92 |
ATX version | 3.0 |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 0 - 2100 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | CPU, SATA |
Weight & dimensions | |
---|---|
Weight | 1.85 kg |
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 3.56 kg |
Package height | 102 mm |
Package depth | 328 mm |
Package width | 248 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | Triman, ENERGY STAR, ErP |
Warranty period | 10 year(s) |
Compliance certificates | RoHS, Federal Communications Commission (FCC), UKCA, WEEE, CE |
Logistics data | |
---|---|
Shipping (inner) case length | 65.1 cm |
Shipping (inner) case width | 28.2 cm |
Shipping (inner) case height | 34.6 cm |
Products per shipping (inner) case | 6 pc(s) |
Shipping (inner) case net weight | 22.9 kg |
Compact and Silent Energy
be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.
QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.
MODULAR AND FLAT CABLES
Highly compatible and convenient
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16.8 ms |
Efficiency | 92% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V) | 50 A |
Max output current (+3.3V) | 22 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 600 W |
Combined power (+3.3V) | 110 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.99 |
Input current | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 650 W |
Total power | 600 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power cable length | 40 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 40 cm |
PCI Express power connectors (6+2 pin) | 4 |
Number of SATA power connectors | 6 |
Number of PATA power connectors | 3 |
Motherboard power cable length | 30 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | CE, CB, TÜV, FCC, cTUVus, RCM |
Bearing technology | Sleeve |
Silent mode | Yes |
ATX version | 2.4 |
Supported motherboard form factors | Mini-ITX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | SFX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.16 kg |
Height | 64 mm |
Depth | 130 mm |
Width | 125 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.04 kg |
Package height | 80 mm |
Package depth | 220 mm |
Package width | 205 mm |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | ENERGY STAR |
Compliance certificates | RoHS |
Logistics data | |
---|---|
Products per master (outer) case | 10 pc(s) |
Master (outer) case gross weight | 21.5 kg |
Harmonized System (HS) code | 84733020 |
Master (outer) case height | 240 mm |
Master (outer) case length | 430 mm |
Master (outer) case width | 430 mm |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 28.7 dB |
Noise level (quiet mode, 50%) | 14.5 dB |
Noise level (silent mode, | 9.9 dB |
Cable ties included | Yes |
Screws included | Yes |
TFX Power 3 300W Bronze, the advanced be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Bronze the perfect choice for PCs with TFX form factor.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of TFX Power 3 300W Bronze with an efficiency rating of up to 88.3% is convincing evidence of this PSU’s power saving operation.
STRONG SINGLE 12V RAIL
For maximum power
The 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Bronze the ideal PSU for all who strive for enough power to support small systems at low noise.
QUIET AND SAFE
Optimized for low-noise operation
The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Bronze meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Hold time | 22 ms |
Efficiency | 86.4% |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 16 A |
Max output current (+12V1) | 25 A |
Max output current (+3.3V) | 16 A |
Combined power (+5V) | 85 W |
Combined power (+12V) | 300 W |
Combined power (+3.3V) | 85 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.96 |
Maximum input current (@220V) | 1.5 A |
Maximum input current (@110V) | 4 A |
Input current | 4/1.5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 350 W |
Total power | 300 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
Floppy drive power connector | 1 |
Floppy disk drive cable length | 60 cm |
CPU power cable length | 35 cm |
CPU P4 connector (4-pin) | 1 |
PCI Express power cable length | 40 cm |
PCI Express power connectors (6+2 pin) | 1 |
Peripheral (Molex) power cable length | 300,450 mm |
Peripheral (Molex) power connectors (4-pin) | 2 |
SATA power cable length | 300,450,600 mm |
Number of SATA power connectors | 3 |
Motherboard power cable length | 35 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Safety | CE, CB, TÜV, CU |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Rifle |
Noise level | 29.1 dB |
EPS version | 2.92 |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | TFX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 8 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 900 g |
Height | 65 mm |
Depth | 175 mm |
Width | 85 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 1.24 kg |
Package height | 215 mm |
Package depth | 80 mm |
Package width | 159 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, ErP |
Compliance certificates | RoHS, WEEE |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Shipping (inner) case length | 47.4 cm |
Shipping (inner) case width | 27.5 cm |
Shipping (inner) case height | 19.5 cm |
Products per shipping (inner) case | 6 pc(s) |
Shipping (inner) case gross weight | 8.25 kg |
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 25 A |
Max output current (+12V) | 83.3 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 125 W |
Combined power (+12V) | 999.6 W |
Combined power (+3.3V) | 125 W |
Power Factor Correction (PFC) type | Active |
Input current | 15 - 6.5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy drive power connector | 1 |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 6 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Product colour | Black |
Packaging content | |
---|---|
Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 140 mm |
Packaging data | |
---|---|
Package type | Box |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
PCIE5.0 READY
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.
80 PLUS BRONZE CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
PROTECTION DEISGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.
120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Short circuit |
Efficiency | 85% |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Maximum input current (@220V) | 5 A |
Maximum input current (@110V) | 10 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
Floppy drive power connector | 1 |
ATX Power connector (24-pin) | Yes |
PCI Express power connectors (16-pin) | 1 |
PCI Express power connectors (6+2 pin) | 2 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 2 |
Number of SATA power connectors | 5 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | No |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Packaging data | |
---|---|
Package height | 86 mm |
Package depth | 140 mm |
Package width | 150 mm |
The World's Quietest and Most Powerful SFX-L PSU
Taking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
COOLING
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
Lambda Standard ++ Certification
Quietly deviant
On average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.
ENGINEERING
80 PLUS Titanium Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
EXPERIENCE
ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
10-Year Warranty
A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 1200W Titanium that we back it with a 10-year warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
Power | |
---|---|
Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.8 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 100 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 9.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 1200 W |
Combined power (+3.3V) | 110 W |
Power Factor Correction (PFC) type | Active |
AC input voltage | 100 - 240 V |
Peak power | 1200 W |
Total power | 1200 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 55 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (8-pin) | 4 |
PCI Express power connectors (16-pin) | 2 |
Peripheral (Molex) power cable length | 100,300 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 100,200,300 mm |
Number of SATA power connectors | 6 |
Motherboard power cable length | 45 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Bearing technology | Ball bearing |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | SFX-L |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black, Silver |
General | |
---|---|
Product Family | ROG |
Packaging content | |
---|---|
Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 2.15 kg |
Height | 63.5 mm |
Depth | 125 mm |
Width | 125 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.84 kg |
Package height | 100 mm |
Package depth | 190 mm |
Package width | 285 mm |
Manual | Yes |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | RoHS |
Warranty period | 10 year(s) |
Compliance certificates | RoHS |
The black flat cable reduces the clutter and improves the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
DIMENSIONS
Compact size to fit any small chassis.
Power | |
---|---|
Power protection features | Over power, Overcharge, Short circuit, Under voltage |
Max output current (+5Vsb) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 54.17 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 650 W |
Combined power (+12V) | 650 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Maximum input current (@220V) | 6 A |
Maximum input current (@110V) | 12 A |
Input current | 12 - 6 A |
AC input voltage | 100 - 240 V |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
Floppy disk drive connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
CPU P4 connector (4-pin) | 1 |
PCI Express power cable length | 65 cm |
PCI Express power connectors (6+2 pin) | 4 |
Peripheral (Molex) power cable length | 150,500 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 150,500 mm |
Number of SATA power connectors | 6 |
Motherboard power cable length | 50 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
Noise level | 39 dB |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 140 mm |
Packaging data | |
---|---|
Package type | Box |
Elevate your PC's performance with the Vida 500W power supply (ATX-500W). Designed for ATX 12V compatibility, this fully wired unit delivers 500 watts of reliable power. Equipped with essential connectors, including SATA and PCIe, and boasting an ultra-quiet 120mm black fan with fluid/hydraulic bearing, it ensures efficient cooling and stable performance. With an 80+ Bronze certification, the Vida 500W power supply strikes the perfect balance between power efficiency and reliability, all backed by a 1-year warranty for your peace of mind.
Power | |
---|---|
AC input voltage | 100 - 240 V |
Total power | 500 W |
Ports & interfaces | |
---|---|
PCI Express power connectors (6+2 pin) | 2 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Design | |
---|---|
Fan location | Front |
Fan diameter | 12 cm |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.43 kg |
Height | 140 mm |
Depth | 85 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.
Reliable Power
DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Power Efficiency Graph 88% Efficiency at 50% LoadNZXT C750W Bronze PSU
Highly Efficient
Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Fan Noise Graph 19dB Fan Noise at 50% LoadNZXT C750W Bronze PSU Fan
Quiet Cooling
A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
Enhanced Safety
Tested for safety at up to 40°C, and features over-temperature and over-current protections.
Durable & Sleek
Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.
Power | |
---|---|
Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Maximum input current (@220V) | 5 A |
Maximum input current (@110V) | 10 A |
Input current | 10-5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX Power connector (24-pin) | Yes |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 150,500 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 150,500 mm |
Number of SATA power connectors | 4 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Noise level | 39.92 dB |
EPS version | 2.92 |
ATX version | 2.53 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 2400 - 2400 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, China RoHS, REACH, RoHS, UKCA |
FULL MODULAR 80 PLUS GOLD ATX POWER SUPPLY UNIT
Power Up
The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.
80 Plus Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.
2 EPS Connectors
All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.
Quiet Cooling
The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.
High Temperature Resilience
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.
Full Modular Cabling
The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Power Good signal delay range | 100 - 500 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 45.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 549.6 W |
Combined power (+3.3V) | 100 W |
Input current | 4 - 8 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 90 -264 V |
Total power | 550 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express power cable length | 67 cm |
PCI Express power connectors (6+2 pin) | 2 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 500,620,740,860 mm |
Number of SATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
Noise level | 21 dB |
ATX version | 2.41 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC/Server |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Fan speed | 0 - 1500 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 1.92 kg |
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 2.52 kg |
Package height | 120 mm |
Package depth | 310 mm |
Package width | 194 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Compliance certificates | BSMI, CCC, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM, REACH, TUV, cTUVus |
POWERFUL CONNECTIONS
With three EPS12V connectors and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION
HXi Series PSUs combine a 140mm fluid dynamic bearing fan with Zero RPM mode support for long-lasting fan performance and near-silent operation when the fan switches off at low and medium loads – only spinning as fast as it needs to.
UNWAVERING POWER AND QUALITY
80 PLUS Platinum certified with premium 100% Japanese 105°C electrolytic capacitors, HXi PSUs ensure up to 92% efficiency for exceptional power delivery and long-term reliability with low power consumption, less noise, and cooler temperatures.
POWER AT THE READY
As a fully digital power supply, each HXi Series PSU provides clean, consistent power while minimizing coil whine and noise for stable and quiet operation.
Supporting Modern Standby sleep mode, the HXi Series takes low-load efficiency to the next level with quiet operation and extremely fast wake-from-sleep times.
80 PLUS PLATINUM CERTIFIED
Steady power output at up to 92% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.
YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Power | |
---|---|
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 25 A |
Max output current (+12V) | 100 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 1200 W |
Combined power (+3.3V) | 150 W |
Input current | 15-7.5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 1200 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
PCI Express power connectors (8-pin) | 4 |
EPS power connector (8-pin) | Yes |
SATA power cable length | 800 mm |
Number of SATA power connectors | 4 |
Number of PATA power connectors | 4 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
ATX version | 3.1 |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 14 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 4.4 kg |
Packaging data | |
---|---|
Package type | Box |
Antec’s new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120mm fan, CSK Bronze includes Antec’s 3-year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.
Better Looking Builds
The semi-modular cabling system lets you use the cables you need,
allowing your build to save space and reduce clutter, and improving the airflow.
120 mm Silent Fan
The 120 mm silent fan is ideal for quite computing and is designed for longer lifetime, guaranteeing hours of operation.
Power | |
---|---|
Hold time | 500 ms |
Efficiency | 88% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 58 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 696 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Input current | 10 - 5 A |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Semi-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 80 cm |
PCI Express power cable length | 65 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 500,650,800 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 500,650,800,950 mm |
Number of SATA power connectors | 8 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | cTUVus, TUV, CB, RCM, CE, CCC, FCC, KC |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.77 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 2.19 kg |
Technical details | |
---|---|
Warranty period | 3 year(s) |
The ROG Strix 1200W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.
COOLING
Aluminum Case
Built to run cool
The ROG Strix 1200W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
ENGINEERING
80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.
EXPERIENCE
Aura Sync
Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 1200W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
10-year Warranty
A decade of power
We're so confident about the reliability of the ROG Strix 1200W Gold Aura Edition that we back it with a 10-year warranty.
Power | |
---|---|
Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
Efficiency | 80% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V) | 100 A |
Max output current (+3.3V) | 22 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 1200 W |
Combined power (+3.3V) | 120 W |
AC input voltage | 100 - 240 V |
Total power | 1200 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 65 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 70 cm |
PCI Express power connectors (8-pin) | 4 |
PCI Express power connectors (16-pin) | 1 |
Peripheral (Molex) power cable length | 150,300,400,550 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 400,520,640 mm |
Number of SATA power connectors | 5 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Bearing technology | Ball bearing |
Silent mode | Yes |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
General | |
---|---|
Product Family | ROG |
Packaging content | |
---|---|
Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 3.23 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 180 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 3.73 kg |
Package height | 129 mm |
Package depth | 242 mm |
Package width | 386 mm |
Manual | Yes |
FULL MODULAR 80 PLUS GOLD ATX POWER SUPPLY UNIT
Power Up
The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.
80 Plus Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.
2 EPS Connectors
All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.
Quiet Cooling
The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.
High Temperature Resilience
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.
Full Modular Cabling
The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 100 W |
Power Factor Correction (PFC) type | Active |
Input current | 5 - 10 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 90 -264 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express power cable length | 67 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 500,620,740,860 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 500,620,740,860 mm |
Number of SATA power connectors | 12 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | ErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan speed | 0 - 1500 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 2.17 kg |
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 2.57 kg |
Package height | 120 mm |
Package depth | 310 mm |
Package width | 194 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Make It Mini
The V SFX Gold is Cooler Master's debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance in 550, 650, 750, and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.
SFX Form Factor
The V SFX Gold delivers the high quality performance you've come to expect from the V series in a mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category. Though it didn't come as soon as we originally planned, Cooler Master is glad to finally be able to provide a reliable, high quality PSU that's compatible with smaller cases and their accompanying components. A reduction in size should never mean a reduction in quality and with the V SFX Gold, it doesn't. Make it mini. Make It Yours.
80 Plus Gold Efficiency
The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V SFX Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.
SFX-to-ATX Bracket
Though the V SFX Gold was made for mini-ITX builds, it can actually be used for any ATX case as well. With the included SFX-to-ATX bracket, you can instantly convert this unit from an SFX to an ATX PSU. That makes this product Cooler Master's first power supply unit that can be used to power systems ranging from as small as mini-ITX all the way up to E-ATX motherboards. Cooler Master's motto is "Make It Yours" and with the V SFX Gold's almost universal case compatibility, you can use this PSU to build just about any system you'd like.
Quiet Cooling
Two of the main benefits of a mini-ITX build are the reduced size requirements and reduced noise. The main cause of noise in a PSU is usually the fan. The V SFX Gold uses a 92mm FDB fan so it's extremely quiet. With its small size, high efficiency, and excellent heat dissipation, the overall noise is kept to an absolute minimum.
Full-modular Cabling
A mini-ITX case means minimal space for everything. Not only does that mean a reduction in room for the power supply unit, but also for the accompanying cables. That's why the V SFX Gold offers full-modular cabling. Use the absolute bare minimum in space for cable management by using the absolute bare minimum in cables. Connect only the ones you need for your system to preserve as much room as possible, leading to both improved airflow and better presentation.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Power Good signal delay range | 100 - 500 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Input current | 5 - 10 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 90 - 264 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 8 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | ErP 2014 Lot 3, TUV, cTUVus, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
ATX version | 3.42 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | SFX |
Purpose | PC/Server |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 9.2 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 1.76 kg |
Height | 63.5 mm |
Depth | 100 mm |
Width | 125 mm |
Packaging data | |
---|---|
Package weight | 2.06 kg |
Package height | 100 mm |
Package depth | 190 mm |
Package width | 260 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE |
Logistics data | |
---|---|
Products per master (outer) case | 5 pc(s) |
Master (outer) case height | 215 mm |
Master (outer) case length | 275 mm |
Master (outer) case width | 520 mm |
Products per pallet layer | 24 pc(s) |
Make It Mini
The V SFX Gold is Cooler Master's debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance in 550, 650, 750, and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.
SFX Form Factor
The V SFX Gold delivers the high quality performance you've come to expect from the V series in a mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category. Though it didn't come as soon as we originally planned, Cooler Master is glad to finally be able to provide a reliable, high quality PSU that's compatible with smaller cases and their accompanying components. A reduction in size should never mean a reduction in quality and with the V SFX Gold, it doesn't. Make it mini. Make It Yours.
80 Plus Gold Efficiency
The efficiency of your power supply unit is important because it directly affects your system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V SFX Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.
SFX-to-ATX Bracket
Though the V SFX Gold was made for mini-ITX builds, it can actually be used for any ATX case as well. With the included SFX-to-ATX bracket, you can instantly convert this unit from an SFX to an ATX PSU. That makes this product Cooler Master's first power supply unit that can be used to power systems ranging from as small as mini-ITX all the way up to E-ATX motherboards. Cooler Master's motto is "Make It Yours" and with the V SFX Gold's almost universal case compatibility, you can use this PSU to build just about any system you'd like.
Quiet Cooling
Two of the main benefits of a mini-ITX build are the reduced size requirements and reduced noise. The main cause of noise in a PSU is usually the fan. The V SFX Gold uses a 92mm FDB fan so it's extremely quiet. With its small size, high efficiency, and excellent heat dissipation, the overall noise is kept to an absolute minimum.
Full-modular Cabling
A mini-ITX case means minimal space for everything. Not only does that mean a reduction in room for the power supply unit, but also for the accompanying cables. That's why the V SFX Gold offers full-modular cabling. Use the absolute bare minimum in space for cable management by using the absolute bare minimum in cables. Connect only the ones you need for your system to preserve as much room as possible, leading to both improved airflow and better presentation.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Power Good signal delay range | 100 - 500 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 849.6 W |
Combined power (+3.3V) | 120 W |
Input current | 6 - 12 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 8 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
ATX version | 3.42 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | SFX |
Purpose | PC/Server |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 9.2 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 1.8 kg |
Height | 63.5 mm |
Depth | 100 mm |
Width | 125 mm |
Packaging data | |
---|---|
Package weight | 2.1 kg |
Package height | 100 mm |
Package depth | 260 mm |
Package width | 190 mm |
Logistics data | |
---|---|
Products per master (outer) case | 5 pc(s) |
Master (outer) case height | 215 mm |
Master (outer) case length | 520 mm |
Master (outer) case width | 275 mm |
Master (outer) cases per pallet | 24 pc(s) |
Power Up
The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great mid-tier computing experience, you can't go wrong with the MWE Bronze V2.
80 Plus Bronze Certified
It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
120mm HDB Fan
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze's solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system's temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.
Single +12V Rail
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading.
The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system's overall performance. That's why the MWE Bronze only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.
DC-TO-DC Circuit Design
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White's DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected components.
Flat Black Cables
For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
Power | |
---|---|
Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Hold time | 14 ms |
Efficiency | 88% |
Power Good signal delay range | 100 - 500 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 744 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Input current | 6 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 220 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX Power connector (24-pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 6 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.27 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 1.67 kg |
Package height | 110 mm |
Package depth | 245 mm |
Package width | 190 mm |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 39.5 dB |
Noise level (quiet mode, 50%) | 20.3 dB |
FULL MODULAR 80 PLUS GOLD ATX POWER SUPPLY UNIT
Power Up
The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.
80 Plus Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.
2 EPS Connectors
All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.
Quiet Cooling
The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.
High Temperature Resilience
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.
Full Modular Cabling
The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Power Good signal delay range | 100 - 500 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 849.6 W |
Combined power (+3.3V) | 100 W |
Power Factor Correction (PFC) type | Active |
Input current | 6 - 12 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 90 -264 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express power cable length | 67 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 500,620,740,860 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 500,620,740,860 mm |
Number of SATA power connectors | 12 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | ErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
Noise level | 25.9 dB |
ATX version | 2.41 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC/Server |
Design | |
---|---|
Fan speed | 0 - 1500 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 2.17 kg |
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 2.57 kg |
Package height | 120 mm |
Package depth | 310 mm |
Package width | 194 mm |
Logistics data | |
---|---|
Products per master (outer) case | 5 pc(s) |
Harmonized System (HS) code | 84733020 |
Master (outer) case height | 220 mm |
Master (outer) case length | 620 mm |
Master (outer) case width | 325 mm |
Products per pallet | 16 pc(s) |
Support PCIe Gen 5.0 graphics card
The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
HIGH QUALITY
JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
120MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
PLENTIFUL POWER SUPPLY
The +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.
COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Power Factor Correction (PFC) type | Active |
Input current | 6.5 - 15 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 80 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 70 cm |
PCI Express power connectors (16-pin) | 1 |
PCI Express power connectors (6+2 pin) | 4 |
Peripheral (Molex) power cable length | 120,150,500 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 150,600 mm |
Number of SATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HYB |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Height | 140 mm |
Depth | 86 mm |
Width | 150 mm |
RM750e POWER SUPPLY
FULLY MODULAR LOW-NOISE ATX POWER SUPPLIES
STEADY POWER FOR YOUR SYSTEM
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.
Includes Zero RPM Fan Mode for near-silent operation at lower loads.
LOW NOISE
FAN MODE
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Power | |
---|---|
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 110 W |
Input current | 10 - 5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
PCI Express power cable length | 75 cm |
PCI Express power connectors (6+2 pin) | 3 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
SATA power cable length | 800 mm |
Number of SATA power connectors | 7 |
Number of PATA power connectors | 4 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Silent mode | Yes |
ATX version | 3.0 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.48 kg |
Depth | 150 mm |
Width | 140 mm |
