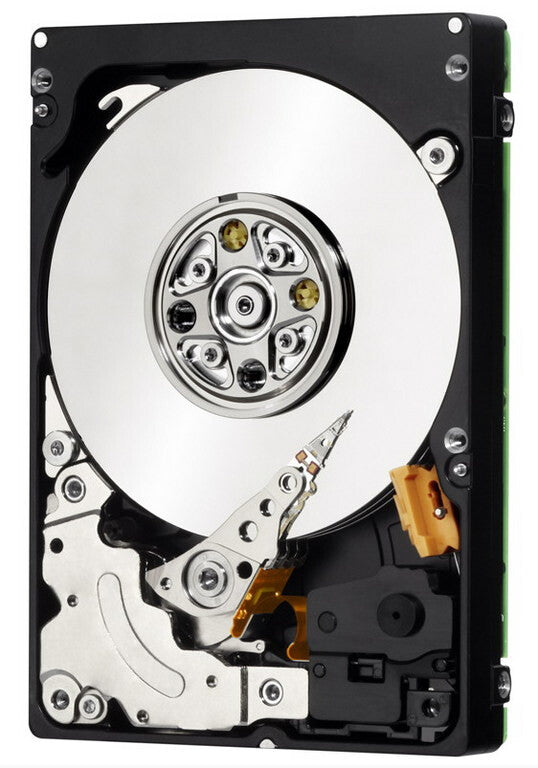

The Seagate® Savvio® 10K.3 drive offers the best combination of power efficiency and enterprise performance, with large capacity for mainstream server and external storage applications for the enterprise. The Savvio 10K.3 drive with PowerTrim™ technology uses 75 percent less power than a 3.5-inch 15K drive for the lowest power profile of any Tier 1 mission-critical drive. It is 70 percent smaller than 3.5-inch drives, enabling more system airflow, which results in lower cooling costs. Its Unified Storage™ architecture converges best-of-breed technologies (Serial Attached SCSI, small form factor and Self-Encrypting Drives) to enable powerful yet simple external storage and internal server storage solutions that enable business sustainability while cutting TCO and boosting ROI.
Key Features and Benefits
- Seagate® PowerTrim™ technology dynamically reduces power.
- 75 percent power savings over comparable 3.5-inch drives.
- 60 percent improvement in system-level performance over 3.5-inch 15K drives.
- 70 percent smaller size than 3.5-inch drives reduces overall system cooling costs.
- 40 percent reduction in $/IOPS over comparable 3.5-inch drives.
- Third-generation 2.5-inch 10K-RPM enterprise drive with field-proven reliability.
- Supports 6-Gb/s transfer rates and SAS 2.0 feature set.
- Government-grade, Self-Encrypting Drive for data center data protection.
- Unified Storage architecture cuts TCO and boosts ROI.
Features | |
---|---|
Mean time between failures (MTBF) | 1600000 h |
Bytes per sector | 512 |
Average latency | 3 ms |
Read seek time | 3.6 ms |
Write seek time | 4.2 ms |
HDD number of heads | 4 |
Storage drive buffer size | 16 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 300 GB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (idle) | 3.5 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 60 G |
Non-operating vibration | 2.4 G |
Operating vibration | 0.5 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
General | |
---|---|
Product Family | Savvio |
Weight & dimensions | |
---|---|
Weight | 227 g |
Height | 14.8 mm |
Depth | 100.5 mm |
Width | 70 mm |
