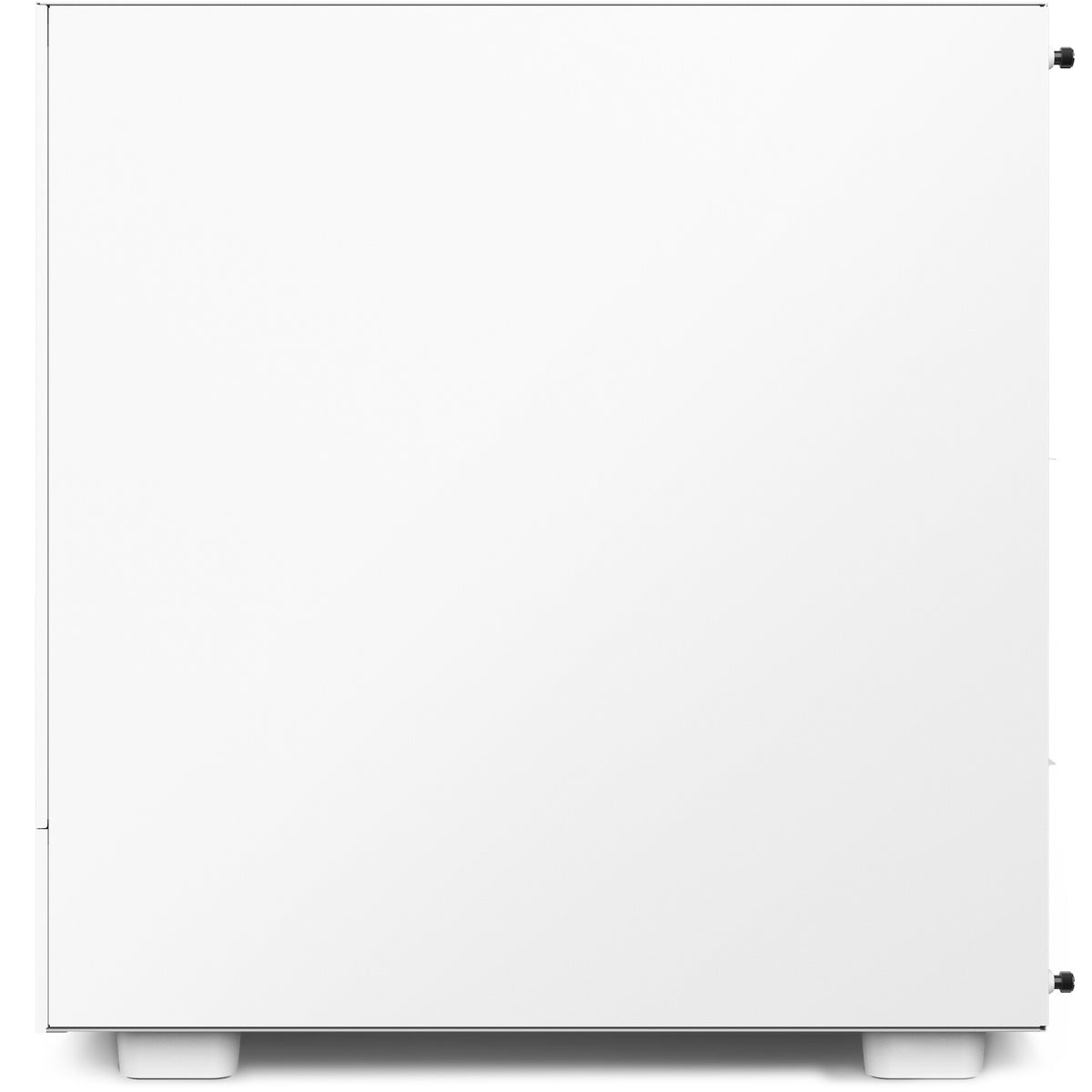

The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
Design | |
---|---|
Maximum PSU length | 18.5 cm |
Maximum graphics card length | 36.5 cm |
Maximum CPU cooler height | 16.5 cm |
On/off button | Yes |
Cable management | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 1 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | White |
Material | Glass, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply included | No |
Ports & interfaces | |
---|---|
Combo headphone/mic port | Yes |
USB Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Cooling | |
---|---|
Top radiator sizes supported | 240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 280 mm |
Fan speed | 1080 - 1320 RPM |
Maximum airflow | 61.74 cfm |
Fan 2 maximum airflow | 62.18 cfm |
Maximum air pressure | 2.06 mmH2O |
Fan 2 maximum air pressure | 1.05 mmH2O |
Bottom fans diameters supported | 120 mm |
Number of bottom fans supported (max) | 1 |
Bottom fans installed | 1x 120 mm |
Top fans diameters supported | 120 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 7.36 kg |
Height | 464 mm |
Depth | 446 mm |
Width | 227 mm |
