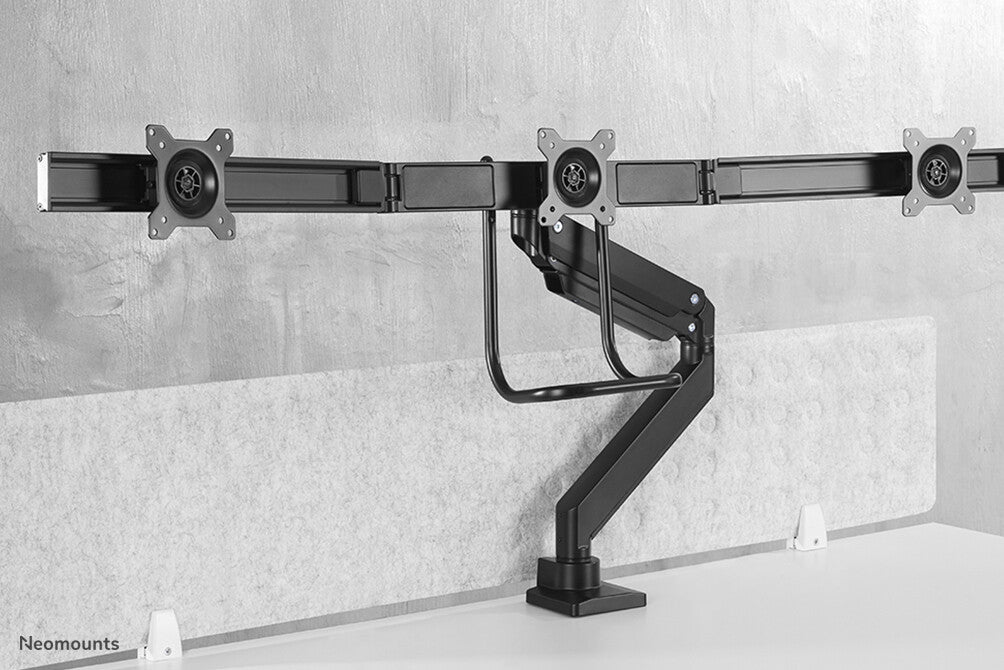

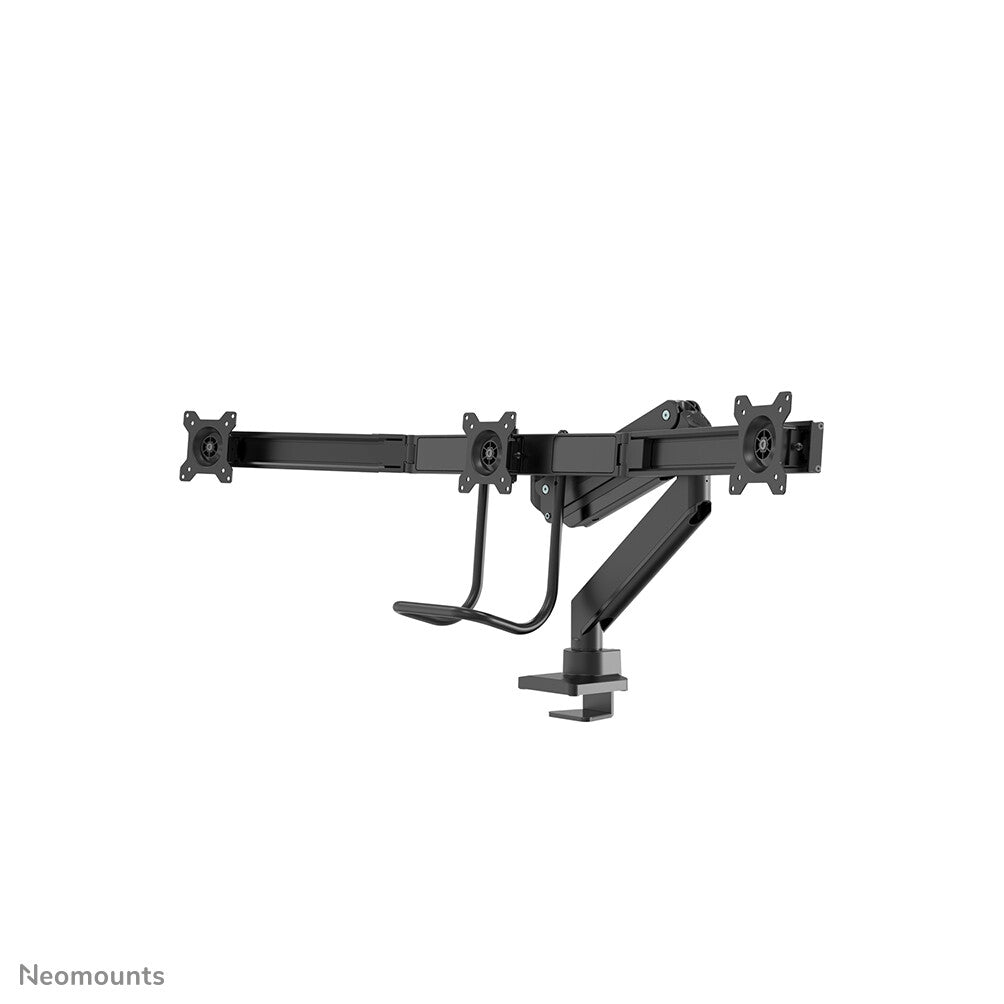

The Neomounts NM-D775DX3BLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for three flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

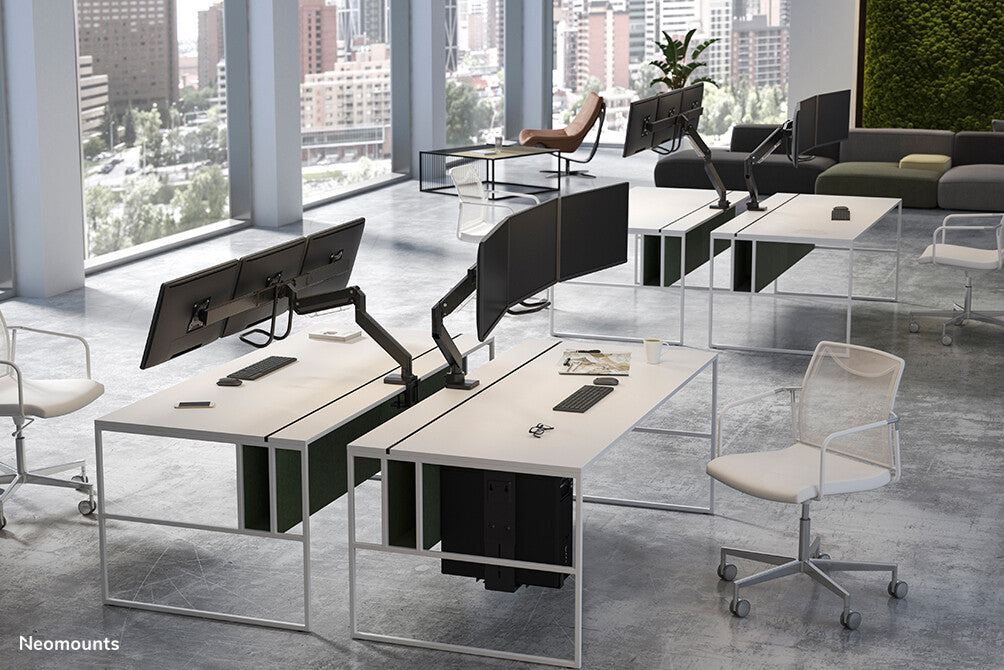

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Mounting | |
---|---|
Number of displays supported | 3 |
Panel mounting interface | 75 x 75,100 x 100 mm |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Mounting type | Desk |
Maximum screen size | 68.6 cm (27") |
Minimum screen size | 43.2 cm (17") |
Maximum weight capacity | 6 kg |
Ergonomics | |
---|---|
Cable management | Yes |
Angle of rotation | 360° |
Swivel angle | 360° |
Tilt angle range | 0 - 20° |
Depth adjustment range | 0 - 630 mm |
Adjustable depth | Yes |
Height adjustment range | 270 - 600 mm |
Height adjustment type | Gas spring |
Height adjustment | Yes |
Design | |
---|---|
Product colour | Black |
Weight & dimensions | |
---|---|
Package net weight | 10.2 kg |
Package height | 623 mm |
Package depth | 145 mm |
Package width | 320 mm |
Height | 600 mm |
Logistics data | |
---|---|
Master (outer) case net weight | 10.2 kg |
Products per pallet (EU) | 30 pc(s) |
Harmonized System (HS) code | 85299097 |
Products per master (outer) case | 2 pc(s) |
Master (outer) case gross weight | 10.2 kg |
Master (outer) case height | 640 mm |
Master (outer) case length | 310 mm |
Master (outer) case width | 340 mm |
Other features | |
---|---|
Country of origin | China |
