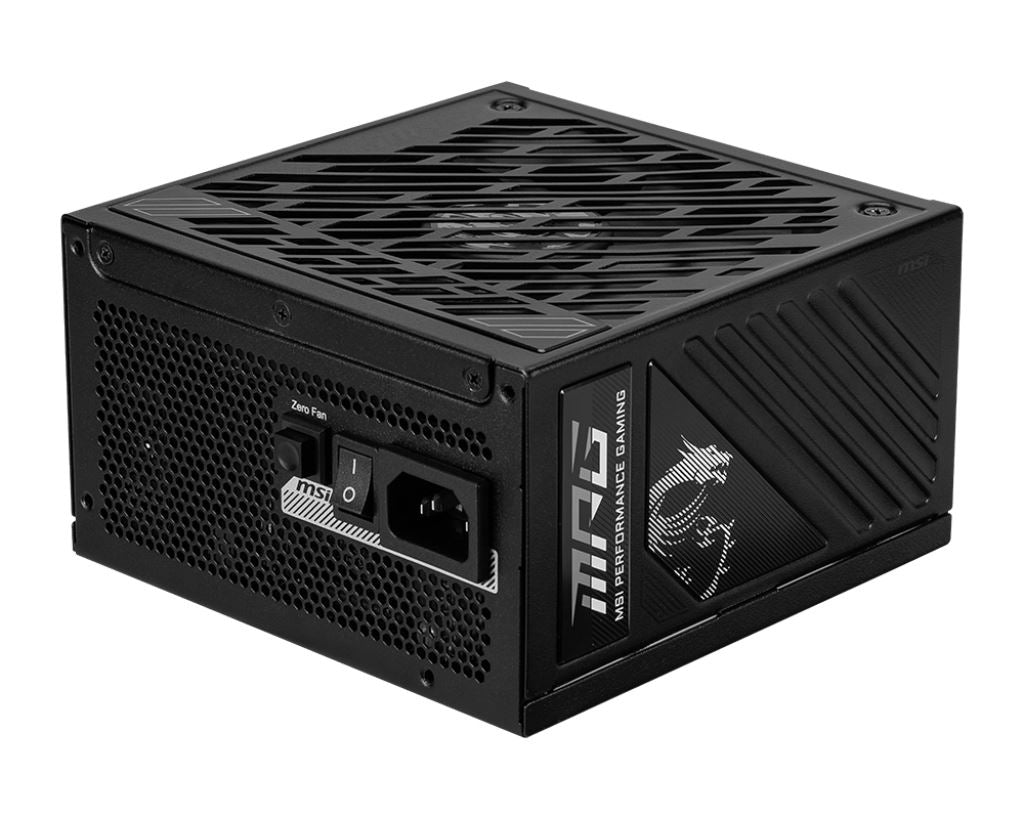

Featuring ATX 3.1 and PCIe 5.1 support with two 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
Cooling | |
---|---|
Fan diameter | 13.5 cm |
Design | |
80 PLUS certification | 80 PLUS Gold |
Product colour | Black |
Fan diameter | 13.5 cm |
Power | |
Total power | 1000 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 1000 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 22 A |
Max output current (+12V) | 83.3 A |
Max output current (+5V) | 22 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Ports & interfaces | |
Motherboard power connector | 24-pin ATX |
Number of SATA power connectors | 8 |
Peripheral (Molex) power connectors (4-pin) | 4 |
PCI Express power connectors (6+2 pin) | 1 |
EPS power connector (4+4 pin) | Yes |
PCI Express power connectors (16-pin) | 2 |
Performance | |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
Bearing technology | FDB |
Weight & dimensions | |
Width | 150 mm |
Depth | 150 mm |
Height | 86 mm |
Certificates | |
80 PLUS certification | 80 PLUS Gold |
This review is for the MSI shoutout promotion. Handles my Gaming Trio 5080 just fine, runs stable with 13700k. Has the newer revision of the PCI 5.1 connector for using the newer video card power cables. jays2cents had good things to say about this PSU, and the quality standards seemed to be higher than Corsair.
This review is for the MSI shoutout promotion. Handles my Gaming Trio 5080 just fine, runs stable with 13700k. Has the newer revision of the PCI 5.1 connector for using the newer video card power cables. jays2cents had good things to say about this PSU, and the quality standards seemed to be higher than Corsair.
