STEP UP TO BRILLIANT PC GRAPHICS
Accelerate your entire PC experience with the fast, powerful NVIDIA® GeForce® GT 1030 graphics card. Gaming. HD video and picture editing. The GT 1030's award-winning NVIDIA Pascal™ architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today’s most demanding PC applications.
THE LATEST GAMING TECHNOLOGIES
Pascal is built to meet the demands of next generation displays. It features NVIDIA GameWorks™ technologies for extremely smooth gameplay and cinematic experiences.
PERFORMANCE
Pascal-powered graphics cards give you superior performance and power efficiency, built using ultra-fast FinFET and supporting DirectX™ 12 features to deliver the fastest, smoothest, most power-efficient gaming experiences.
GEFORCE EXPERIENCE
The easiest way to optimize your games and keep your drivers up to date, the GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you'll be able to update the driver directly, without leaving your desktop.
SMALL PACKAGE, BIG PUNCH

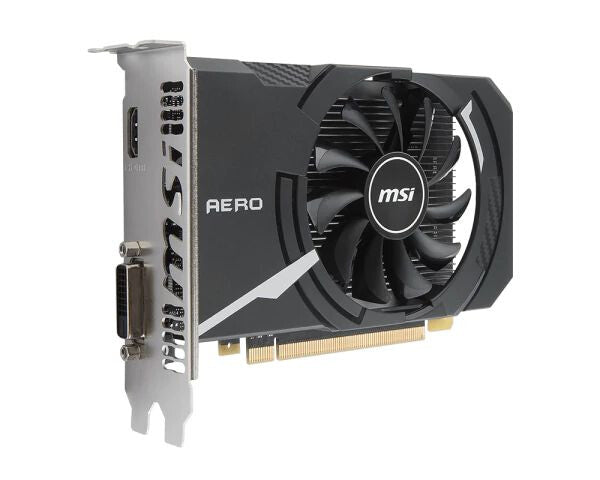

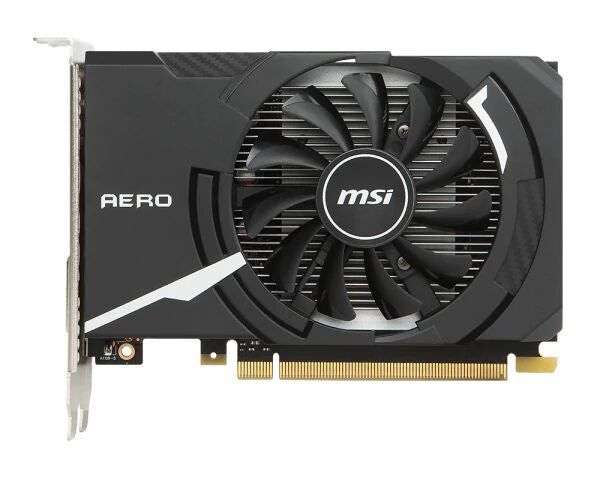

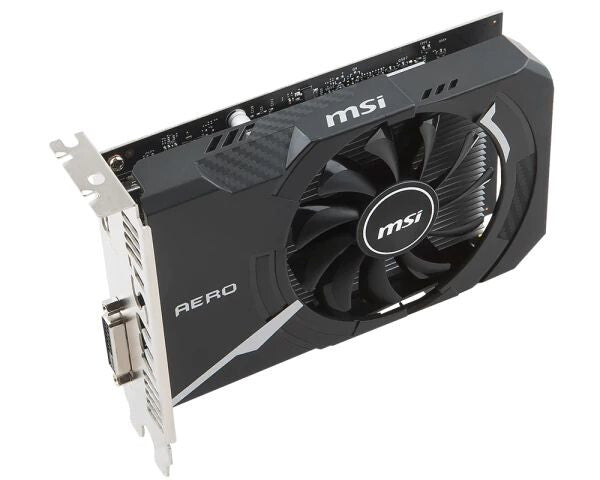

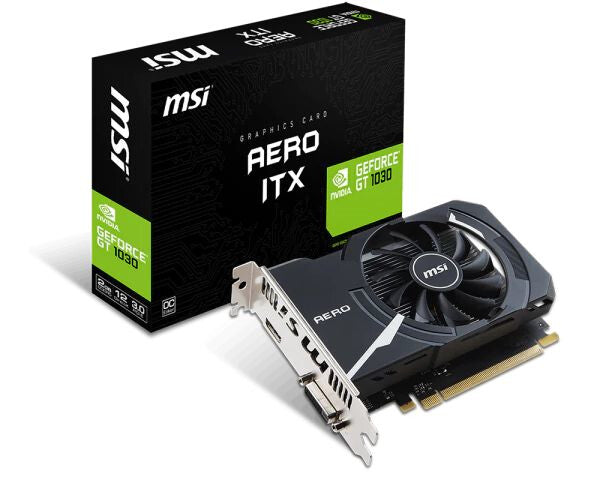

The power of a full size graphics card in an incredibly small package. MSI AERO ITX graphics cards are perfect for small form factor systems and HTPC’s as they only take up a fraction of the space of a full size graphics card. This means they will fit into virtually any system and ensure a smooth gaming experience.
PERFECT IN ANY CASE
The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.
MILITARY CLASS 4 COMPONENTS
One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for graphics cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.
AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
Processor | |
---|---|
Parallel processing technology support | Not supported |
FireStream | No |
Processor boost clock speed | 1518 MHz |
Processor frequency | 1265 MHz |
CUDA cores | 384 |
CUDA | Yes |
Maximum resolution | 2560 x 1600 pixels |
Graphics processor | GeForce GT 1030 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory clock speed | 6008 MHz |
Memory bus | 64 bit |
Graphics card memory type | GDDR5 |
Discrete graphics card memory | 2 GB |

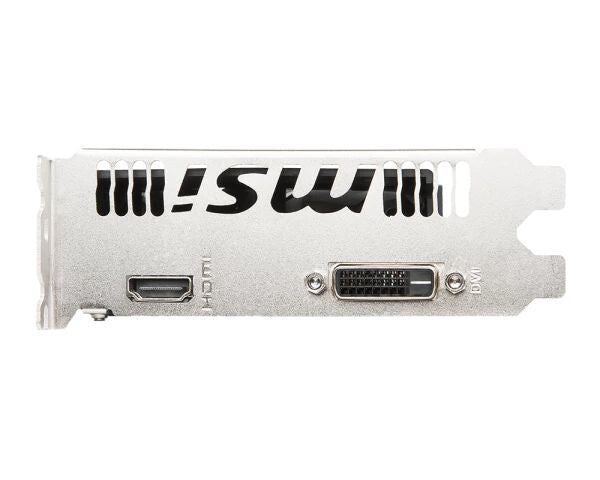

Ports & interfaces | |
---|---|
HDMI version | 2.0b |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
Interface type | PCI Express 3.0 |
Performance | |
---|---|
Dual Link DVI | Yes |
HDCP | Yes |
OpenGL version | 4.5 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black, White |
Number of slots | 2 |
Number of fans | 1 fan(s) |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 30 W |
Minimum system power supply | 300 W |
System requirements | |
---|---|
Linux operating systems supported | Yes |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
General | |
---|---|
Product Family | AERO ITX |
Packaging content | |
---|---|
Quick installation guide | Yes |
Weight & dimensions | |
---|---|
Depth | 38 mm |
Height | 102 mm |
Length | 147 mm |
Weight | 246 g |
Packaging data | |
---|---|
Package type | Box |
