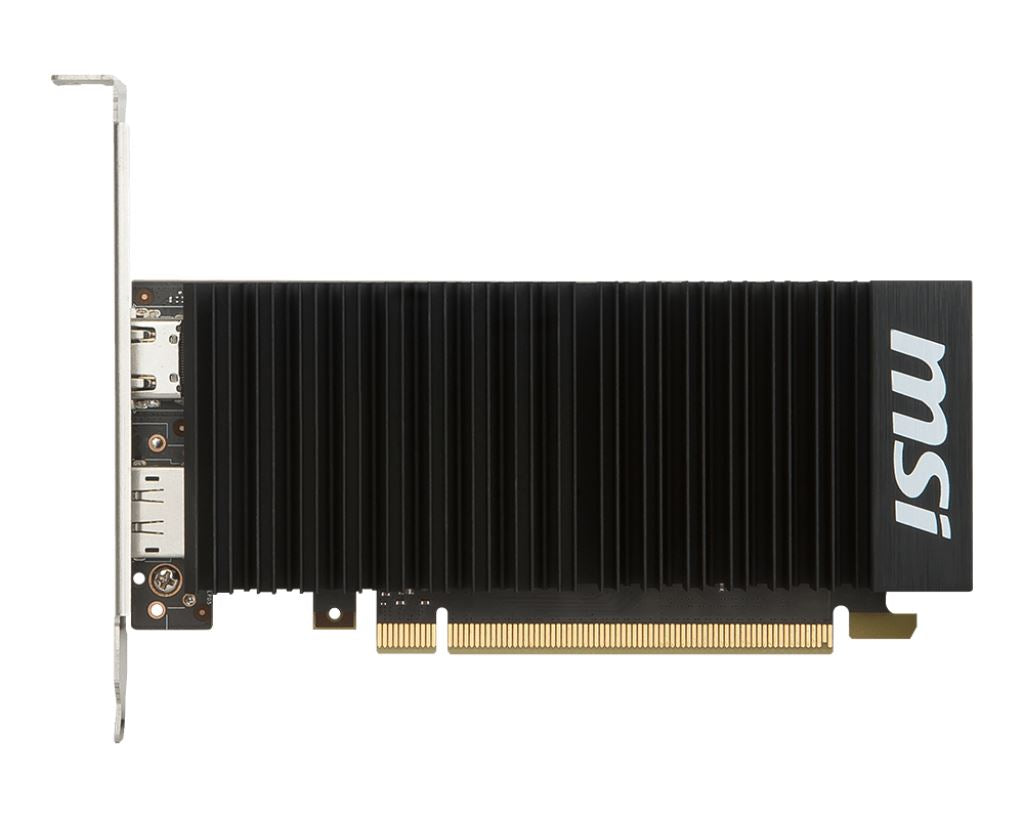

STEP UP TO BRILLIANT PC GRAPHICSAccelerate your entire PC experience with the fast, powerful NVIDIA GeForce GT 1030 graphics card. Gaming. HD video and picture editing. The GT 1030's award-winning NVIDIA Pascal architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive todays most demanding PC applications. THE LATEST GAMING TECHNOLOGIESPascal is built to meet the demands of next generation displays. It features NVIDIA GameWorks technologies for extremely smooth gameplay and cinematic experiences. PERFORMANCEPascal-powered graphics cards give you superior performance and power efficiency, built using ultra-fast FinFET and supporting DirectX 12 features to deliver the fastest, smoothest, most power-efficient gaming experiences. GEFORCE EXPERIENCEThe easiest way to optimize your games and keep your drivers up to date, the GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you'll be able to update the driver directly, without leaving your desktop. LOW PROFILE DESIGNLow profile design saves more spaces and can build slim or smaller system easier. MILITARY CLASS 4 COMPONENTSOne of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for graphics cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage. AFTERBURNER MSI Afterburner is the worlds most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
Processor | |
---|---|
Graphics processor family | NVIDIA |
Processor frequency | 1265 MHz |
Processor boost clock speed | 1518 MHz |
Maximum displays per videocard | 2 |
CUDA cores | 384 |
CUDA | Yes |
Graphics processor | GeForce GT 1030 |
Memory | |
Discrete graphics adapter memory | 2 GB |
Memory clock speed | 6008 MHz |
Memory bus | 64 bit |
Graphics adapter memory type | GDDR5 |
Ports & interfaces | |
HDMI version | 2.0b |
HDMI ports quantity | 1 |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
Interface type | PCI Express x16 3.0 |
Video | |
DirectX version | 12.0 |
OpenGL version | 4.5 |
HDMI version | 2.0b |
HDCP | Yes |
CUDA cores | 384 |
Performance | |
DirectX version | 12.0 |
OpenGL version | 4.5 |
HDCP | Yes |
Design | |
Cooling type | Passive |
Software | |
Windows operating systems supported | Yes |
Power | |
Power consumption (typical) | 30 W |
Minimum system power supply | 300 W |
Technical details | |
Cooling type | Passive |
System requirements | |
Windows operating systems supported | Yes |
Minimum system power supply | 300 W |
Weight & dimensions | |
Weight | 302 g |
Width | 153 mm |
Height | 69 mm |
Depth | 38 mm |
Packaging data | |
Package type | Box |
Package weight | 542 g |
