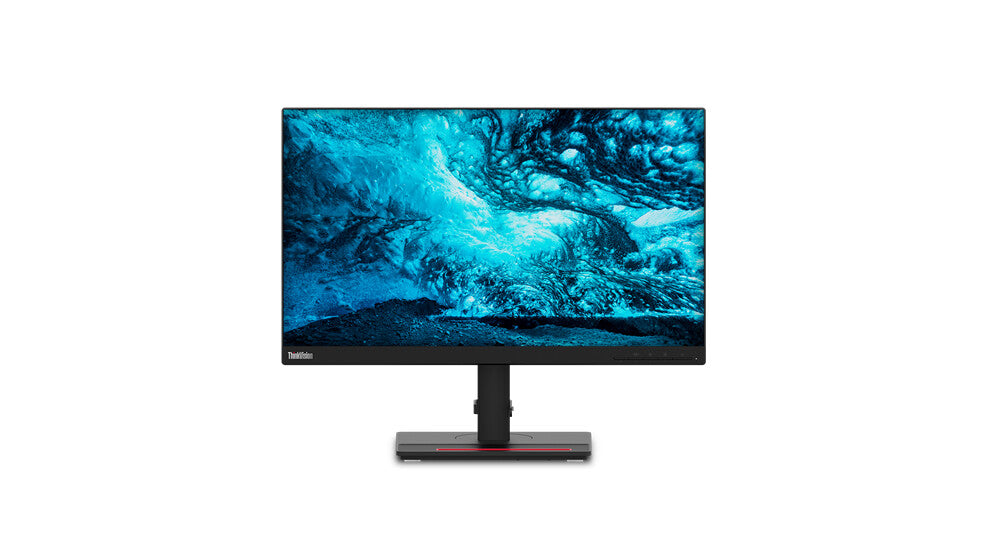

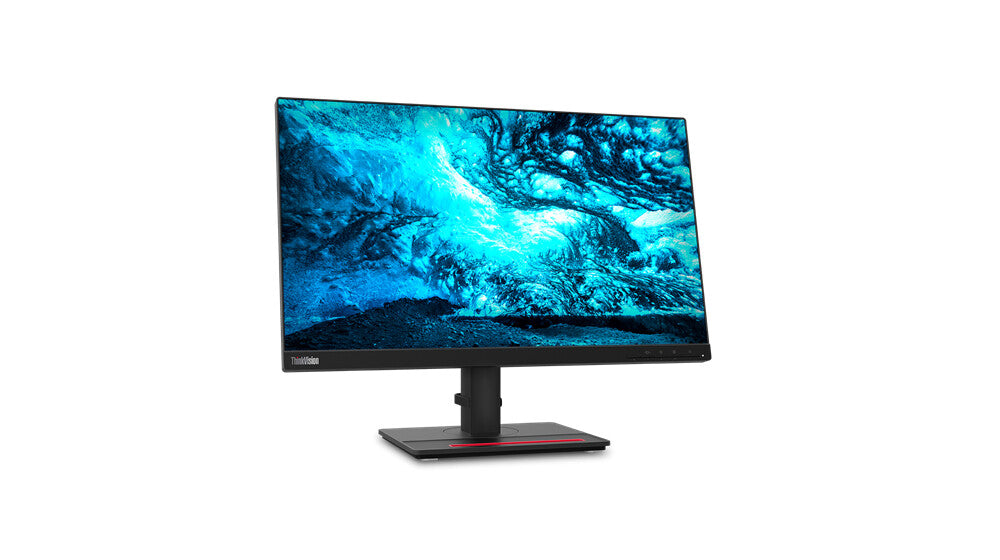

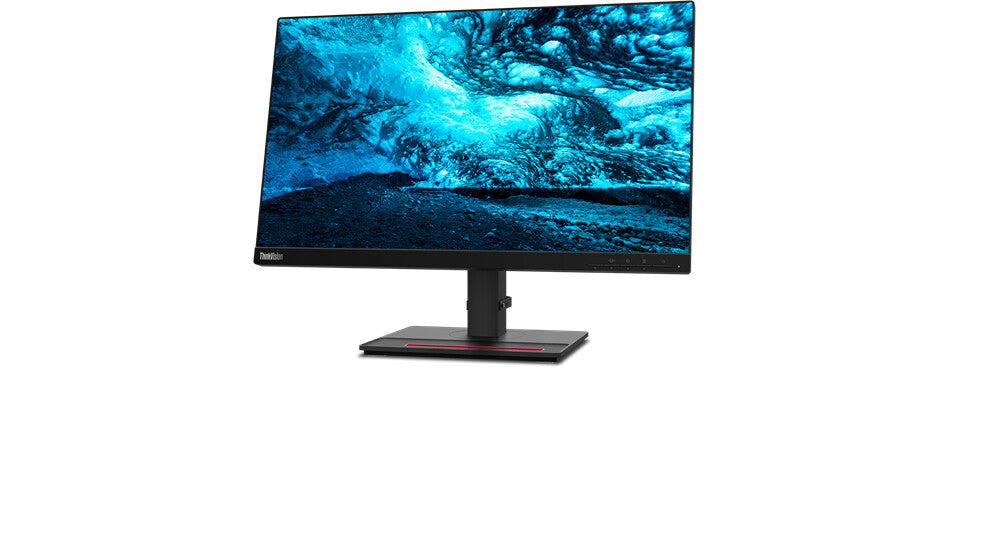

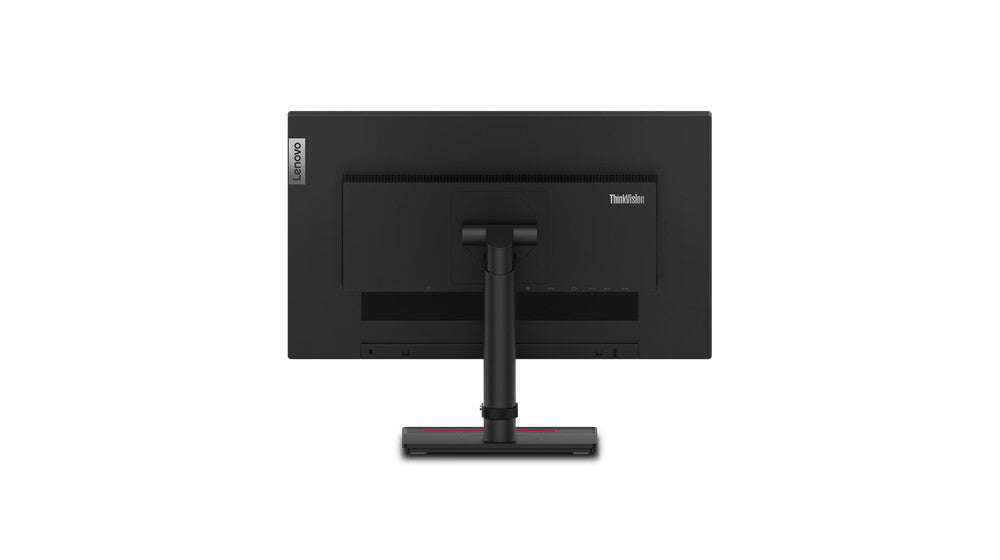

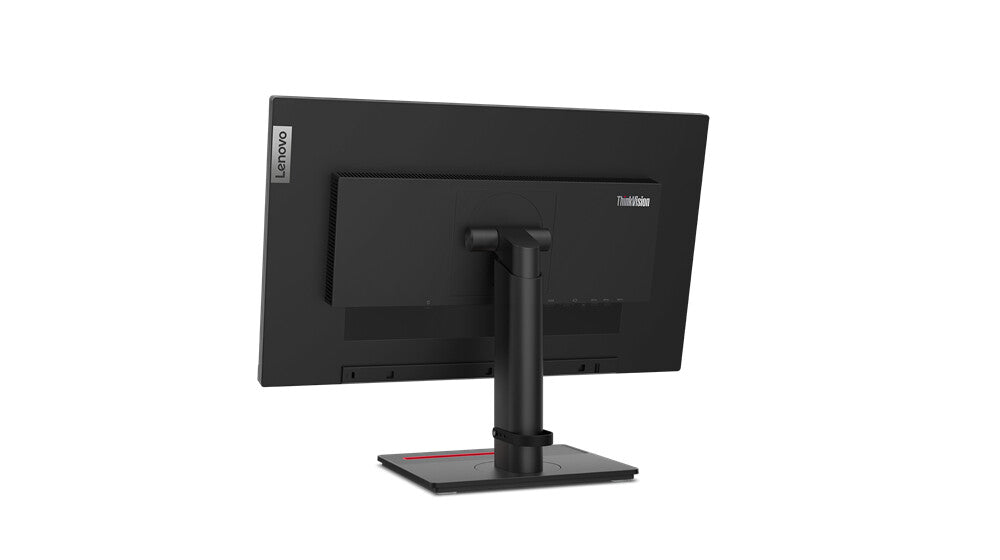

Enhance your work and experience brilliant visuals on the ThinkVision T23i-20. View crystal-clear details from all angles on this 23-inch monitor that has an In-Plane Switching panel and anti-glare display. Its ultra-thin, 3-side NearEdgeless bezels offer wide screen real estate to let you create and collaborate efficiently. Multiple ports on the ThinkVision T23i-20 allow you to connect to peripherals effortlessly. While enabling efficient working, the monitor, with ergonomic stand and TÜV Rheinland Eye Comfort certification, ensures that you work comfortably.
Display | |
---|---|
Colour gamut standard | NTSC |
NTSC coverage (typical) | 75% |
Colour depth | 8 bit |
Viewable size, vertical | 28.6 cm |
Viewable size, horizontal | 50.9 cm |
Pixel density | 95.78 ppi |
Pixel pitch | 0.2652 x 0.2652 mm |
Response time (fast) | 4 ms |
Display number of colours | 16.78 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 3000000:1 |
Contrast ratio (typical) | 1000:1 |
Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Screen shape | Flat |
Response time | 6 ms |
Display brightness (typical) | 250 cd/m² |
Backlight type | W-LED |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 58.4 cm (23") |
Performance | |
---|---|
Compatibility | Tiny Bracket, Nano Bracket |
Low Blue Light technology | Yes |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Feet colour | Black |
Front bezel colour | Black |
Colour name | Raven Black |
Product colour | Black |

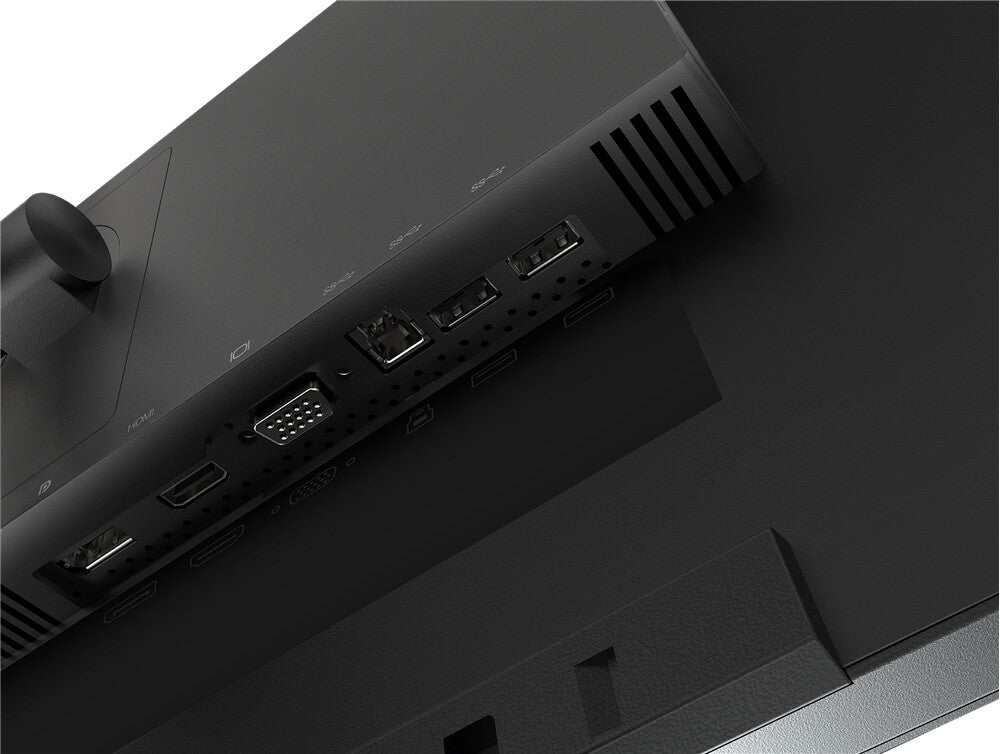

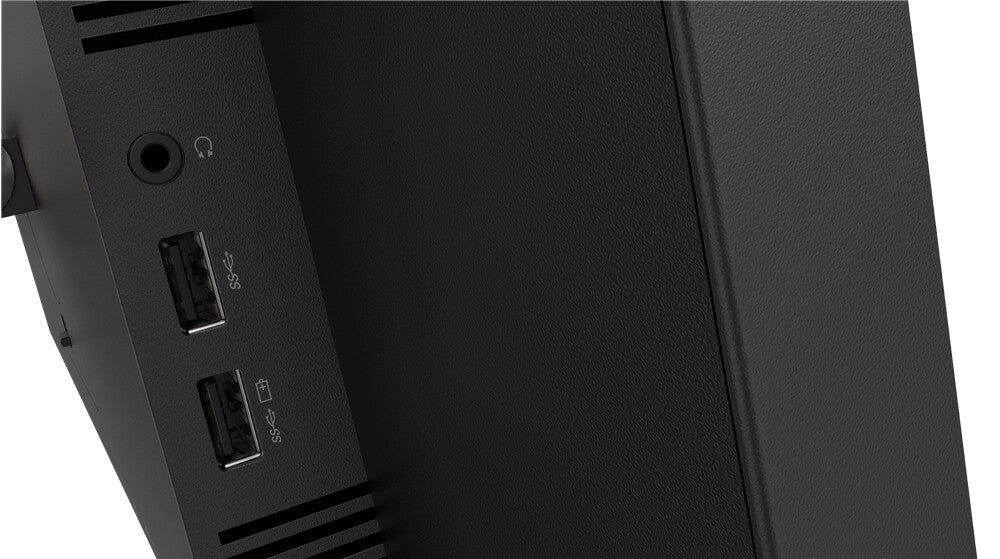

Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | No |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 1.4 |
HDMI ports quantity | 1 |
HDMI | Yes |
DVI port | No |
VGA (D-Sub) ports quantity | 1 |
USB Type-A downstream ports quantity | 4 |
Number of upstream ports | 1 |
USB upstream port type | USB Type-B |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 8 |
On Screen Display (OSD) | Yes |
Tilt angle range | -5 - 35° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot angle | -90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
AC input frequency | 47/63 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (typical) | 14.5 W |
Packaging content | |
---|---|
DisplayPort cable length | 1.8 m |
Quick start guide | Yes |
Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 2.2 cm |
Bezel width (top) | 2 mm |
Bezel width (side) | 2 mm |
Weight (without stand) | 3.32 kg |
Height (without stand) | 316.3 mm |
Depth (without stand) | 44.8 mm |
Width (without stand) | 521.8 mm |
Weight (with stand) | 5.59 kg |
Height (with stand) | 554.3 mm |
Depth (with stand) | 200 mm |
Width (with stand) | 521.8 mm |
Packaging data | |
---|---|
Package weight | 7.5 kg |
Package height | 387 mm |
Package depth | 175 mm |
Package width | 599 mm |
Sustainability | |
---|---|
Sustainability certificates | EPEAT Gold, ENERGY STAR |
General | |
---|---|
Product Family | ThinkVision |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
Technical details | |
---|---|
Compliance certificates | RoHS |
Other features | |
---|---|
Energy efficiency class (old) | A+ |
