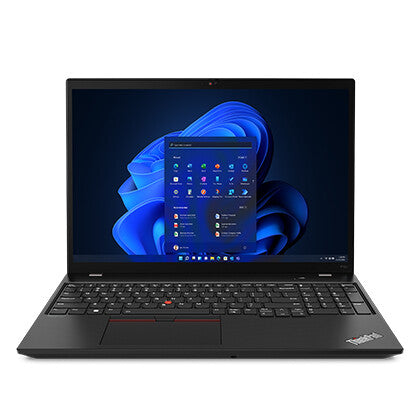

Intel Core i7-1260P, 12C (4P + 8E)/16T, P-core 2.1/4.7GHz, E-core 1.5/3.4GHz, 18MB, 16GB DDR4-3200 non-ECC, 512GB SSD M.2 2280 PCIe x4 Value NVMe Opal2, 16" WUXGA (1920x1200) IPS 300nits Anti-glare 45% NTSC, NVIDIA Quadro T550 4GB, Intel AX211 Wi-Fi 6E 2x2 + BT5.1, FHD 1080p + IR with Privacy Shutter, Windows 11 DG Windows 10 Pro 64

Real power meets real freedom
- Powerful, high-performance 16" mobile workstation, ISV-certified
- Latest Intel® Core™ processors, plus choice of NVIDIA® or Intel® graphics
- Multiple display options, including WQXGA & X-Rite color calibration
- Next-gen memory & storage for seamless multitasking
- Superb connectivity, including Intel® WiFi 6E & Intel® Thunderbolt™ 4
- Includes number pad, glass-like touchpad, & webcam privacy shutter

The freedom to work from anywhere

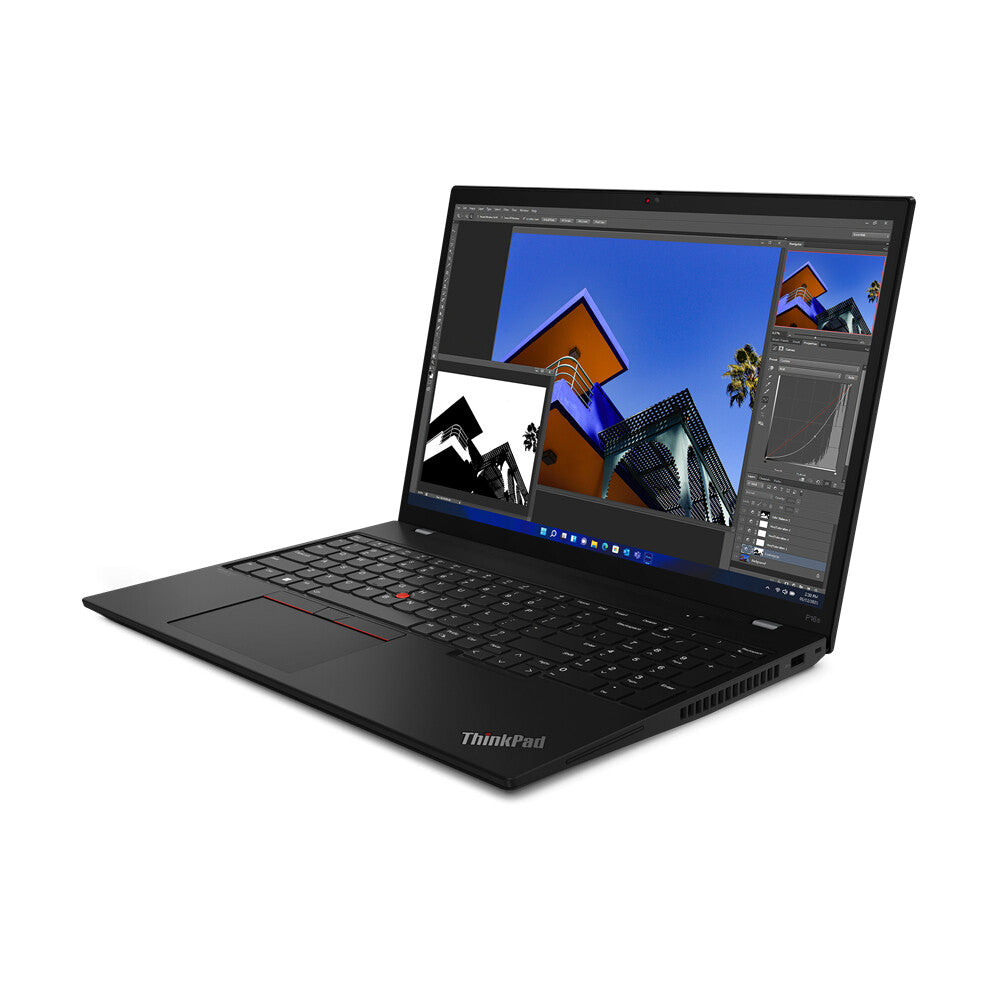

Built to perform superbly in the field or office, the ThinkPad P16s enables everyone from engineers to students and medical professionals to be innovative, anywhere. This light, powerful mobile workstation boasts up to Intel® Core™ i7 processors and comes with a choice of NVIDIA® discrete graphics or integrated Intel® graphics. It’s also ISV certified* and breezes through graphics-intensive software like AutoCAD® and SolidWorks®.

Be inspired, from the outside in

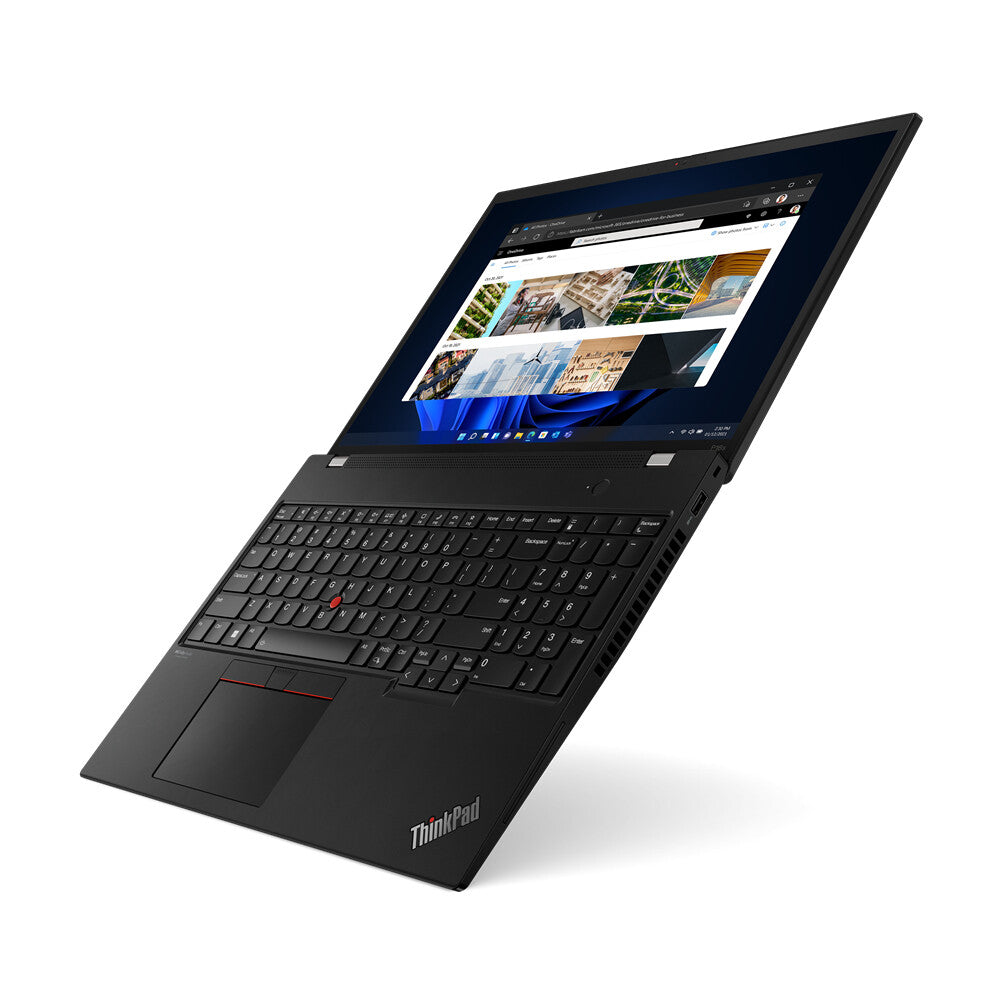

Designed with enhanced usability including a secure fingerprint reader, full numeric keypad, and wide touchpad, ThinkPad P16s is the ideal for whether you're collaborating in the office, on site, or with clients. Available with a choice of screen options, including QHD+ with X-Rite Factory Color Calibration, touch display, and low-blue light technology.

Configurable, durable, & reliable
With up to 48GB of lightning-quick DDR4 memory and up to 2TB of next-gen PCIe Gen4 NMVe storage, the ThinkPad P16s can be configured to meet your exact needs. Together with its array of advanced ThinkShield security features and ability to meet stringent US military tests for durability, ruggedness, and reliability, this mobile workstation enables you to work in almost any environment.

All you need to be connected, or not

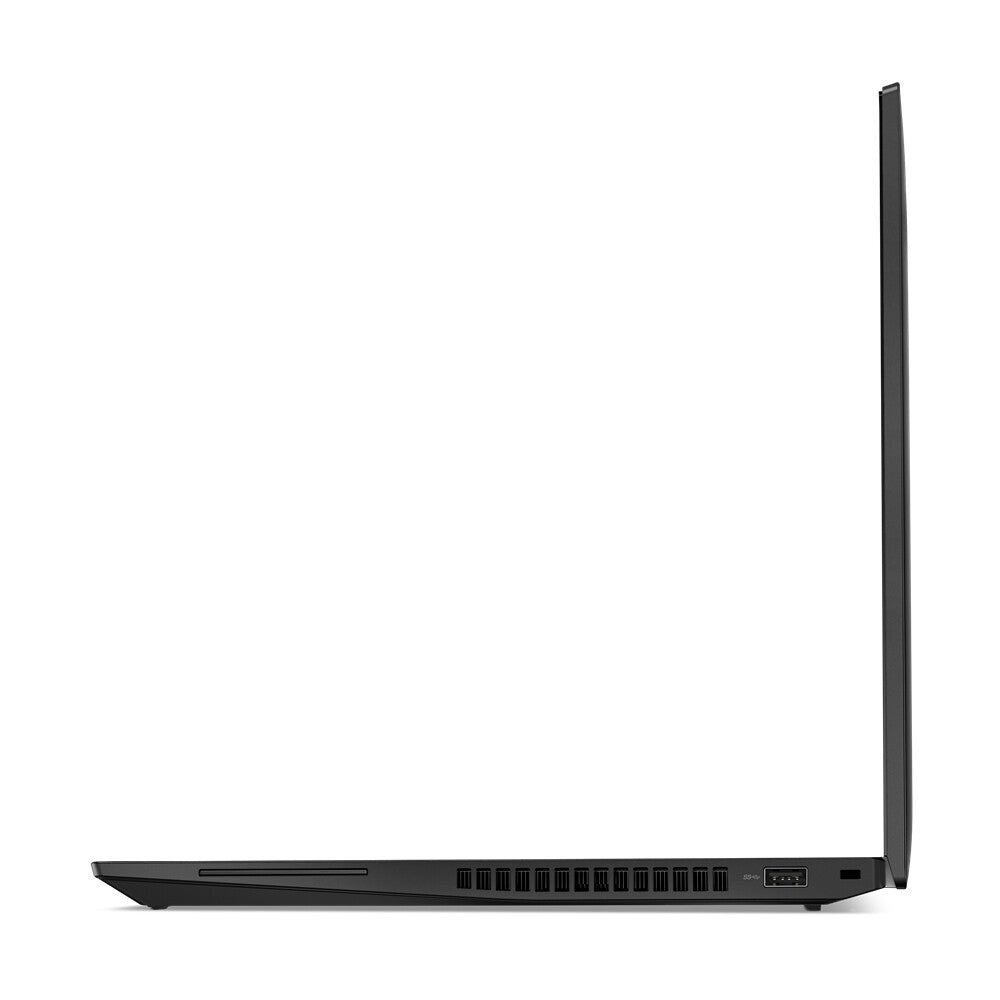

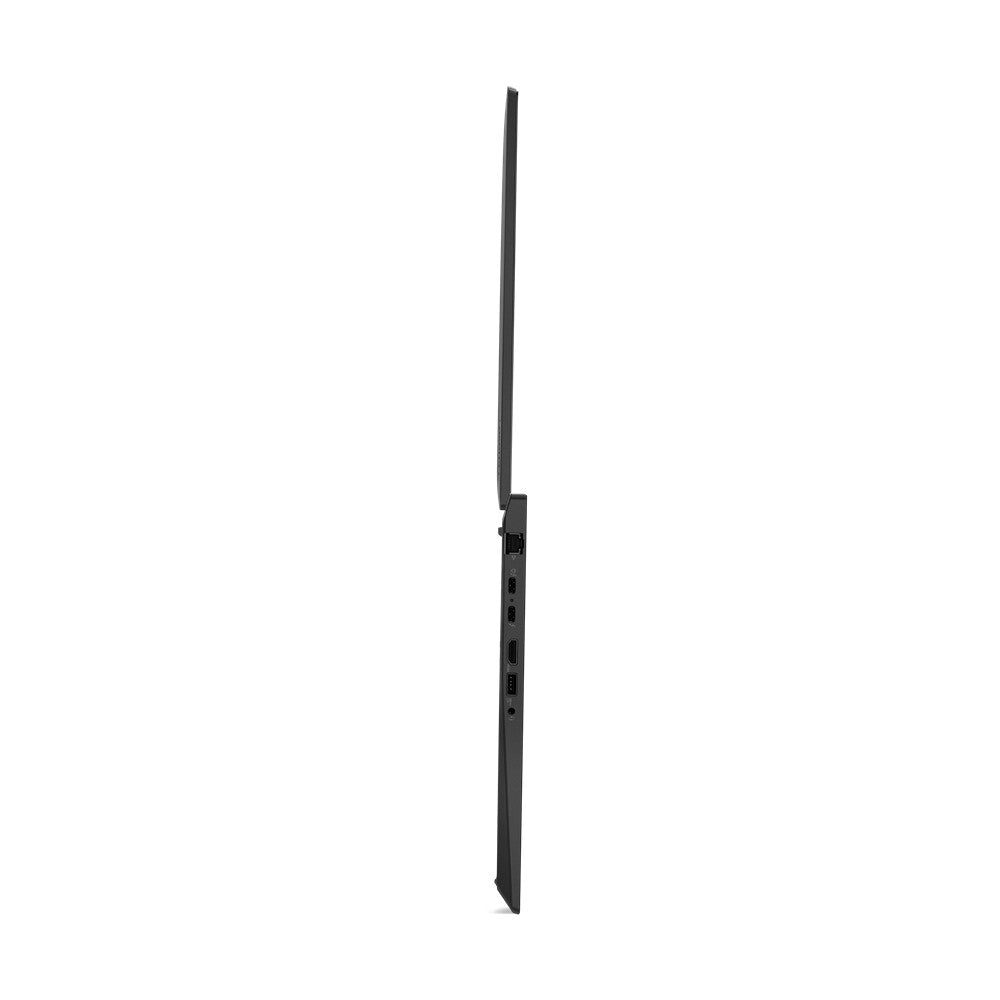

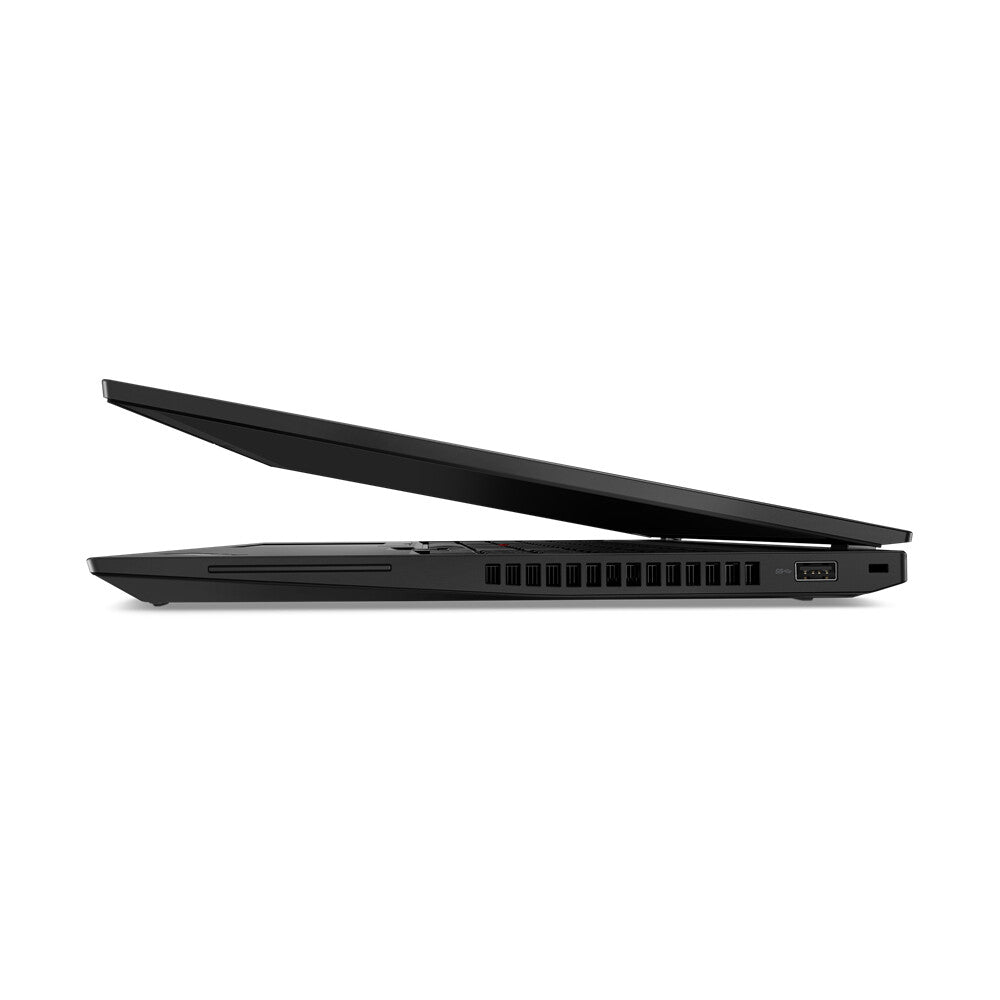

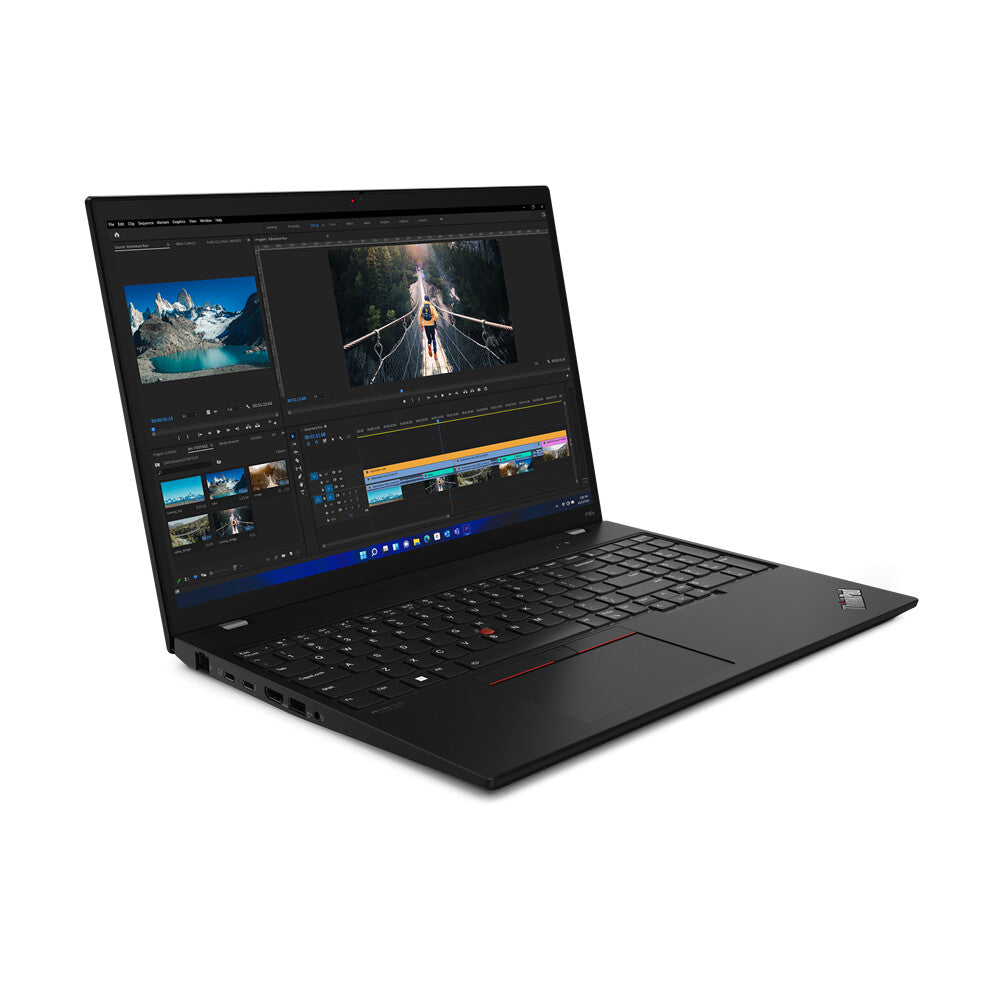

Even with jaw-dropping performance, the ThinkPad P16s  is still surprisingly light and slim, weighing from just 1.68kg / 3.70lbs and 20.5mm / 0.8" thin. It offers robust connectivity, including two Intel® Thunderbolt™ 4 ports, plus HDMI and USB-A 3.2 connectors. It also has a webcam privacy shutter, so you can physically turn the FHD camera off and on.

Design
Housing material	Carbon fibre, Glass fibre, Polycarbonate (PC), Polyphenylene sulfide (PPS)
Form factor	Clamshell
Colour name	Black
Product colour	Black
Product type	Mobile workstation

Display
RGB colour space	NTSC
Colour gamut	45%
Display brightness	300 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WUXGA
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	40.6 cm (16")

Processor
Configurable TDP-down	20 W
Motherboard chipset	Intel SoC
Processor cache type	Smart Cache
Processor cache	18 MB
Processor cores	12
Processor boost frequency	4.7 GHz
Processor model	i7-1260P
Processor generation	12th gen Intel® Core™ i7
Processor family	Intel® Core™ i7
Processor manufacturer	Intel

Memory
Memory channels	Dual-channel
Maximum internal memory	48 GB
Memory slots	1x SO-DIMM
Memory clock speed	3200 MHz
Memory form factor	On-board + SO-DIMM
Internal memory type	DDR4-SDRAM
Internal memory	16 GB

Storage
Card reader integrated	No
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express
SSD capacity	512 GB
Number of SSDs installed	1
Total SSDs capacity	512 GB
Storage media	SSD
Total storage capacity	512 GB

Graphics
Discrete graphics memory type	GDDR6
Discrete graphics card memory	4 GB
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card family	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	NVIDIA Quadro T550
Discrete GPU manufacturer	NVIDIA
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Number of built-in speakers	2
Audio system	Dolby Audio
Audio chip	Realtek ALC3287

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Infrared (IR) camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Front camera	Yes

Network
WWAN	Installed
Near Field Communication (NFC)	No
Bluetooth version	5.1
Bluetooth	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet LAN	Yes
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No

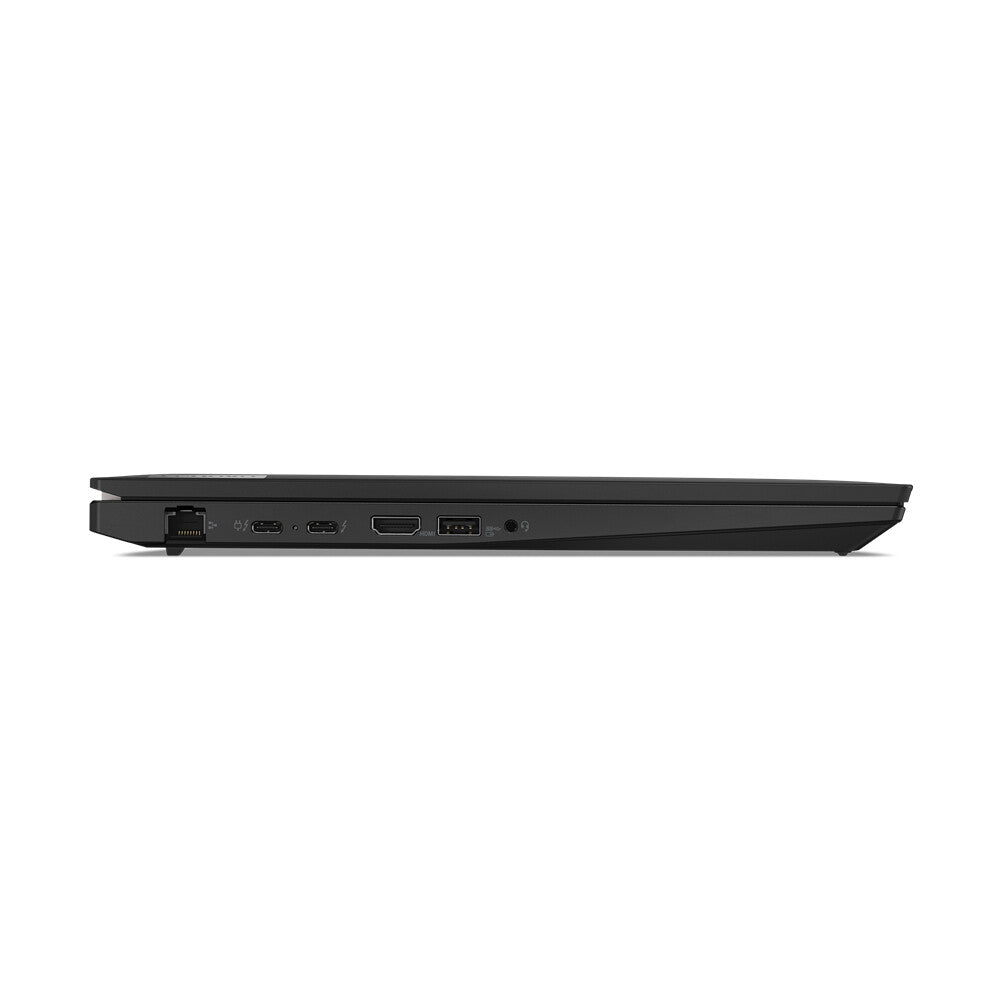

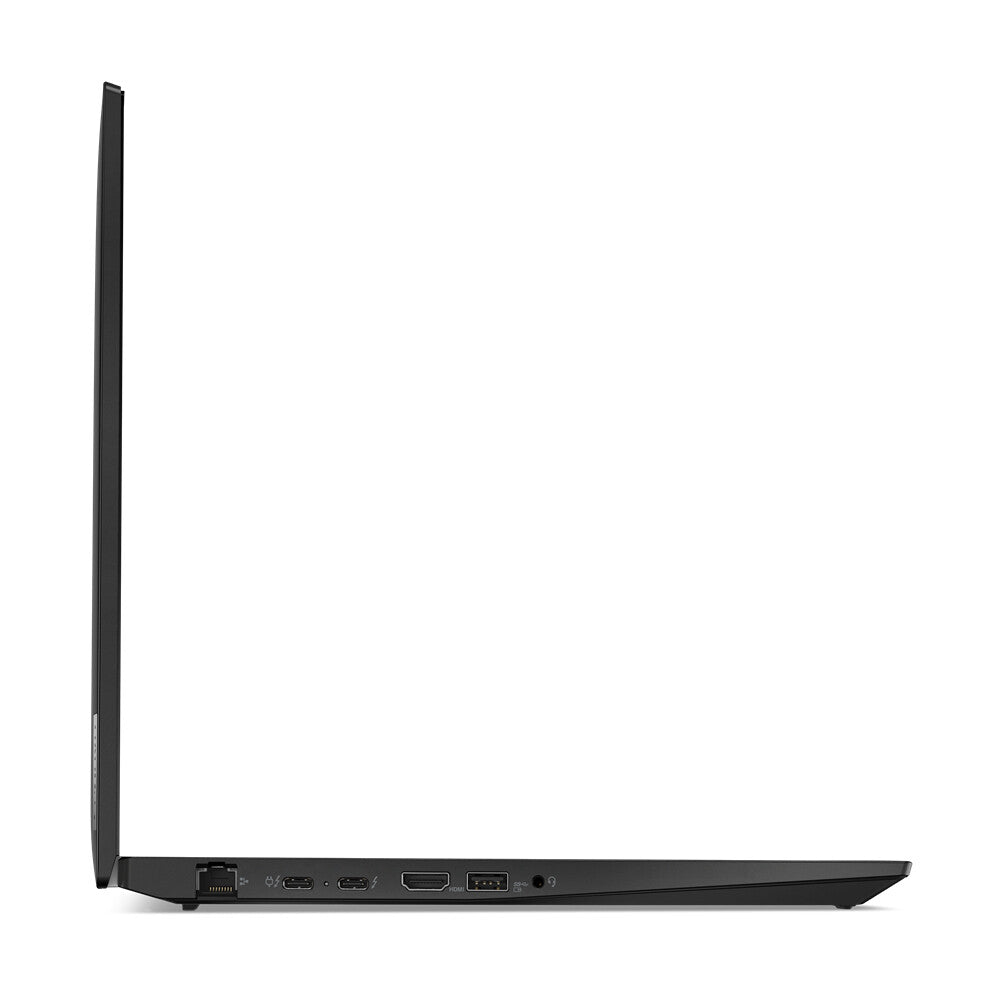

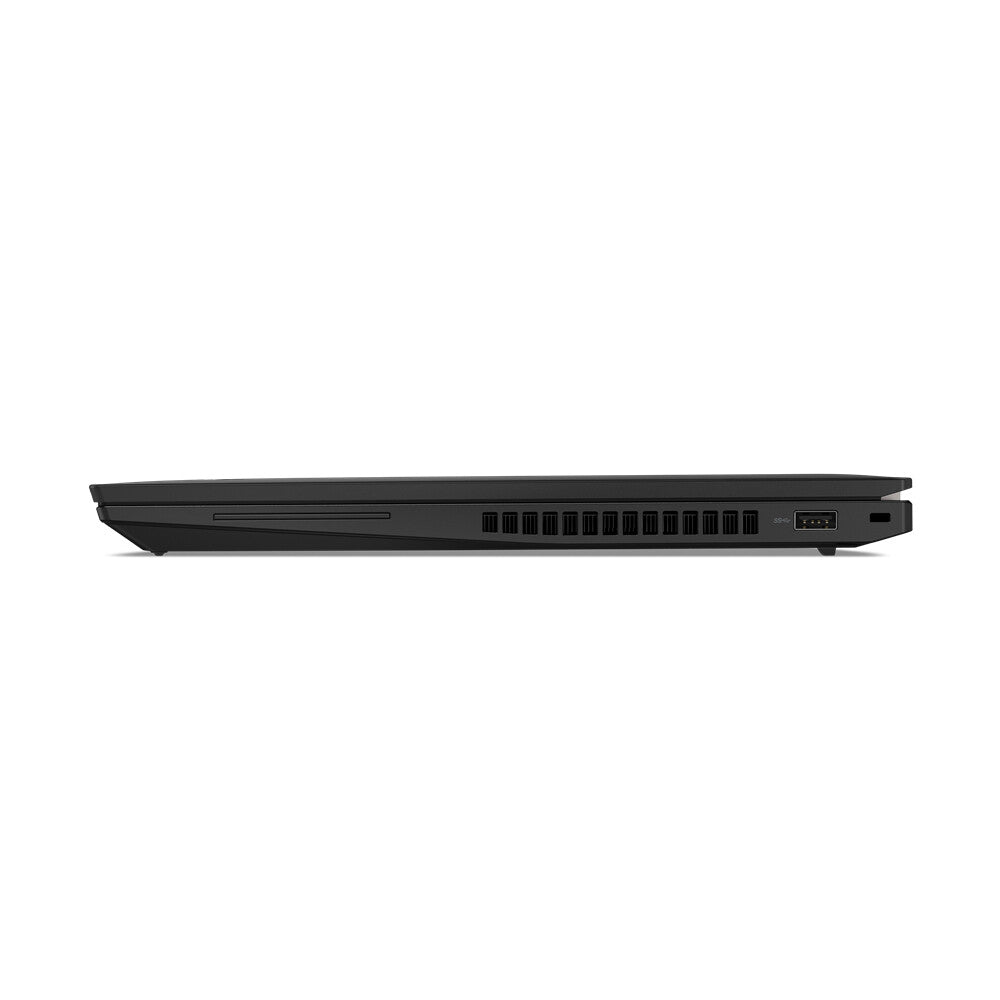

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

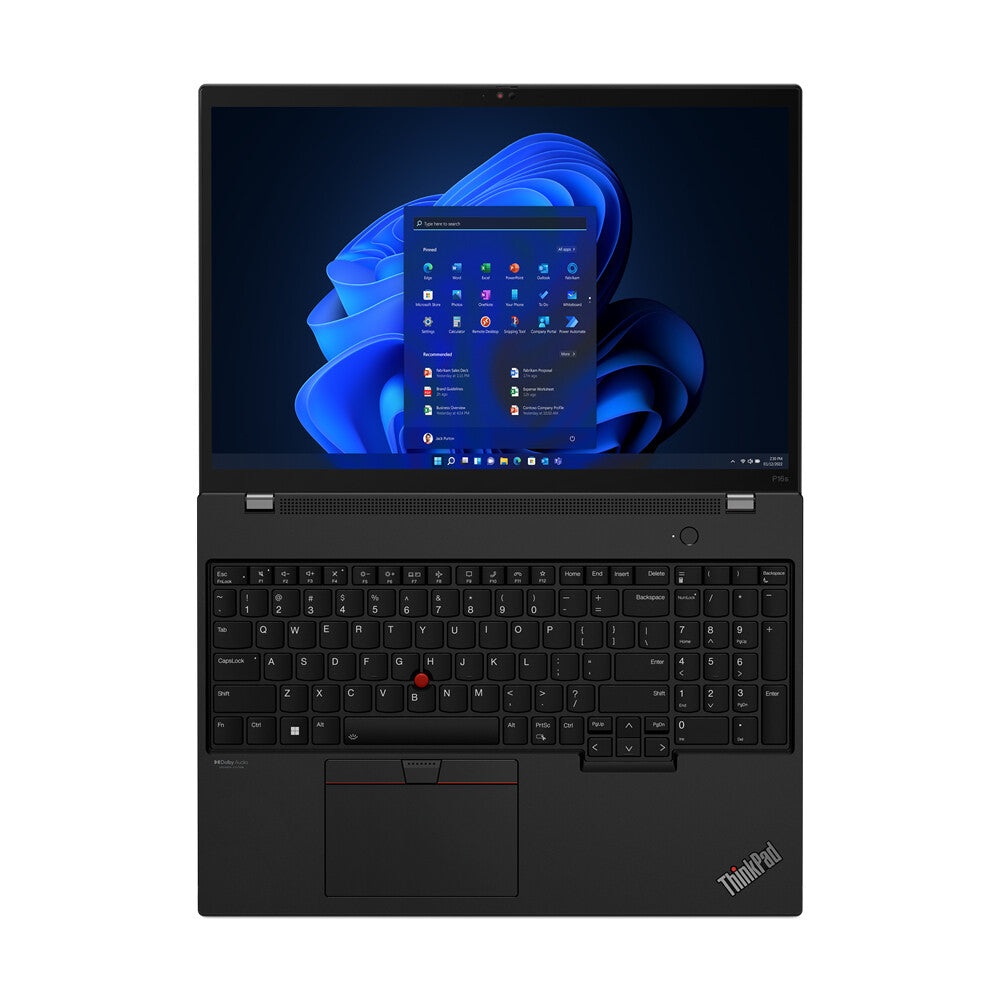

Keyboard
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	UK English
Pointing device	ThinkPad UltraNav

Software
Recovery operating system	Windows 10 Pro
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro

Processor special features
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Execute Disable Bit	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes

Battery
Battery capacity	52.5 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter power	100 W

Security
Password protection type	BIOS, Power on, Supervisor, SSD
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Windows Hello	Yes
Fingerprint reader	Yes
Smart card reader	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes

Operational conditions
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Certification	EPEAT GoldENERGY STAR 8.0TCO Certified 9.0RoHS compliant
Compliance certificates	RoHS

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO

Weight & dimensions
Height	20.8 mm
Depth	255.5 mm
Width	361.9 mm
Weight	1.67 kg

General
Product Family	ThinkPad
Product Series	P
