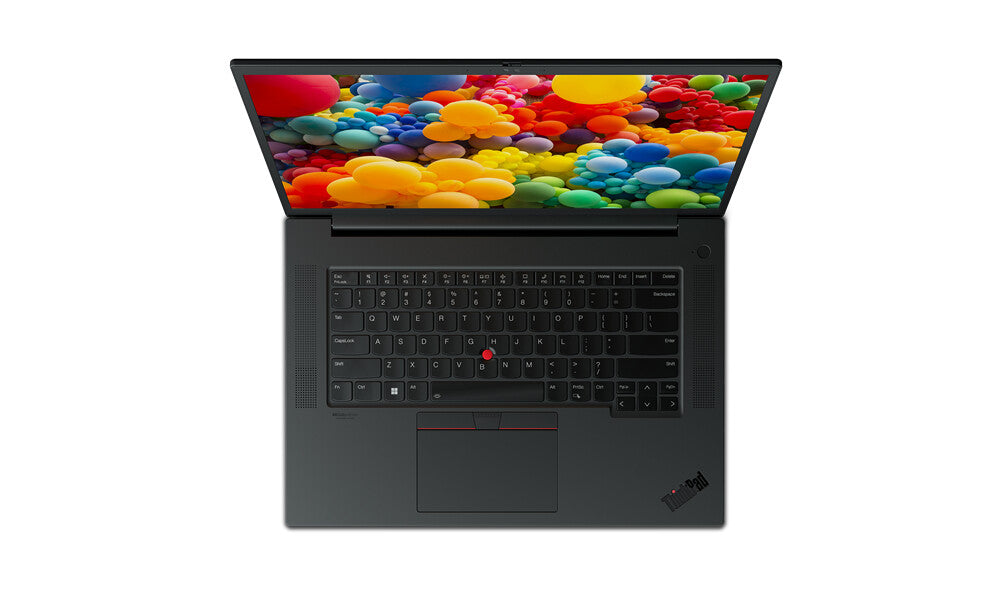

Intel Core i7-12800H, 14C (6P + 8E)/20T, P-core 2.4/4.8GHz, E-core 1.8/3.7GHz, 24MB, 1x 32GB SO-DIMM DDR5-4800 non-ECC, 1TB SSD M.2 2280 PCIe Gen 4x4 Performance NVMe Opal2, 16.0" WQXGA (2560x1600) IPS 500nits Anti-glare 100% sRGB 165Hz Low Blue Light DC Dimming, NVIDIA RTX A3000 12GB ECC, Intel AX211 Wi-Fi 6E 2x2 + BT5.1, IR & FHD 1080p with Privacy Shutter, Windows 11 DG Windows 10 Pro 64

The power you need, the machine you want
- 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
- Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
- Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
- Carbon-Fiber Weave or Black chassis options
- DDR5 memory & tons of SSD storage for speedy system performance

Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.

Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.

Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.

Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.

Built to withstand the worst
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.

Design
Housing material	Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP)
Form factor	Clamshell
Colour name	Black
Product colour	Black
Product type	Mobile workstation

Display
Maximum refresh rate	165 Hz
RGB colour space	sRGB
Colour gamut	100%
Display brightness	500 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WQXGA
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	40.6 cm (16")

Processor
Configurable TDP-down	35 W
Motherboard chipset	Intel SoC
Processor cache type	Smart Cache
Processor cache	24 MB
Processor cores	14
Processor boost frequency	4.8 GHz
Processor model	i7-12800H
Processor generation	12th gen Intel® Core™ i7
Processor family	Intel® Core™ i7
Processor manufacturer	Intel

Memory
ECC	No
Memory channels	Dual-channel
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Memory layout (slots x size)	1 x 32 GB
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR5-SDRAM
Internal memory	32 GB

Storage
Compatible memory cards	SD
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express 4.0
SSD capacity	1 TB
Number of SSDs installed	1
Total SSDs capacity	1 TB
Storage media	SSD
Total storage capacity	1 TB

Graphics
Discrete graphics memory type	GDDR6
Discrete graphics card memory	12 GB
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card family	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	NVIDIA RTX A3000
Discrete GPU manufacturer	NVIDIA
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Speaker power	2 W
Number of built-in speakers	2
Audio system	Dolby Atmos
Audio chip	Realtek ALC3306

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Infrared (IR) camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Front camera	Yes

Network
Near Field Communication (NFC)	No
Bluetooth version	5.2
Bluetooth	Yes
Ethernet LAN	No
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Keyboard
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	UK English
Pointing device	ThinkPad UltraNav

Software
Recovery operating system	Windows 10 Pro
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro

Processor special features
Intel Stable Image Platform Program (SIPP)	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Execute Disable Bit	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes

Battery
Battery capacity	90 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter power	230 W

Security
Password protection type	BIOS, Power on, Supervisor, SSD
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes

Operational conditions
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Certification	EPEAT GoldENERGY STAR 8.0RoHS compliant
Compliance certificates	RoHS

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold

Weight & dimensions
Height	17.7 mm
Depth	253.8 mm
Width	359.5 mm
Weight	1.81 kg

General
Product Family	ThinkPad
Product Series	P
