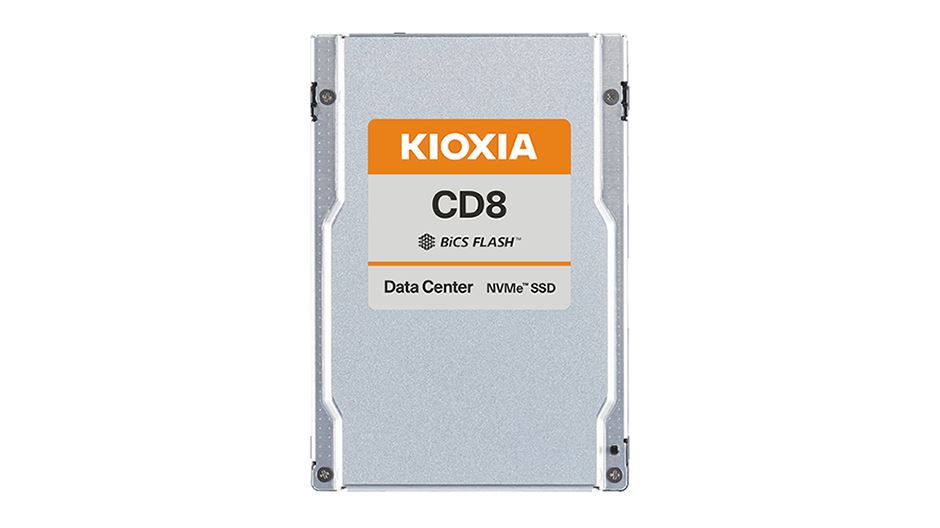

Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Features | |
---|---|
Mean time between failures (MTBF) | 2500000 h |
PCI Express interface data lanes | x4 |
Random write (4KB) | 195000 IOPS |
Random read (4KB) | 1250000 IOPS |
Write speed | 3800 MB/s |
Read speed | 7200 MB/s |
Component for | Server/workstation |
NVMe version | 1.4 |
NVMe | Yes |
Memory type | BiCS FLASH TLC |
Interface | PCI Express 4.0 |
SSD capacity | 3.84 TB |
SSD form factor | 2.5" |
Power | |
---|---|
Power consumption (max) | 14 W |
Operating voltage | 12 V |
Operational conditions | |
---|---|
Operating shock | 1000 G |
Operating vibration | 2.17 G |
Operating relative humidity (H-H) | 5 - 95% |
Maximum operating temperature | 74 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating temperature (T-T) | 0 - 74 °C |
Technical details | |
---|---|
Warranty period | 5 year(s) |
Weight & dimensions | |
---|---|
Weight | 130 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 69.8 mm |
