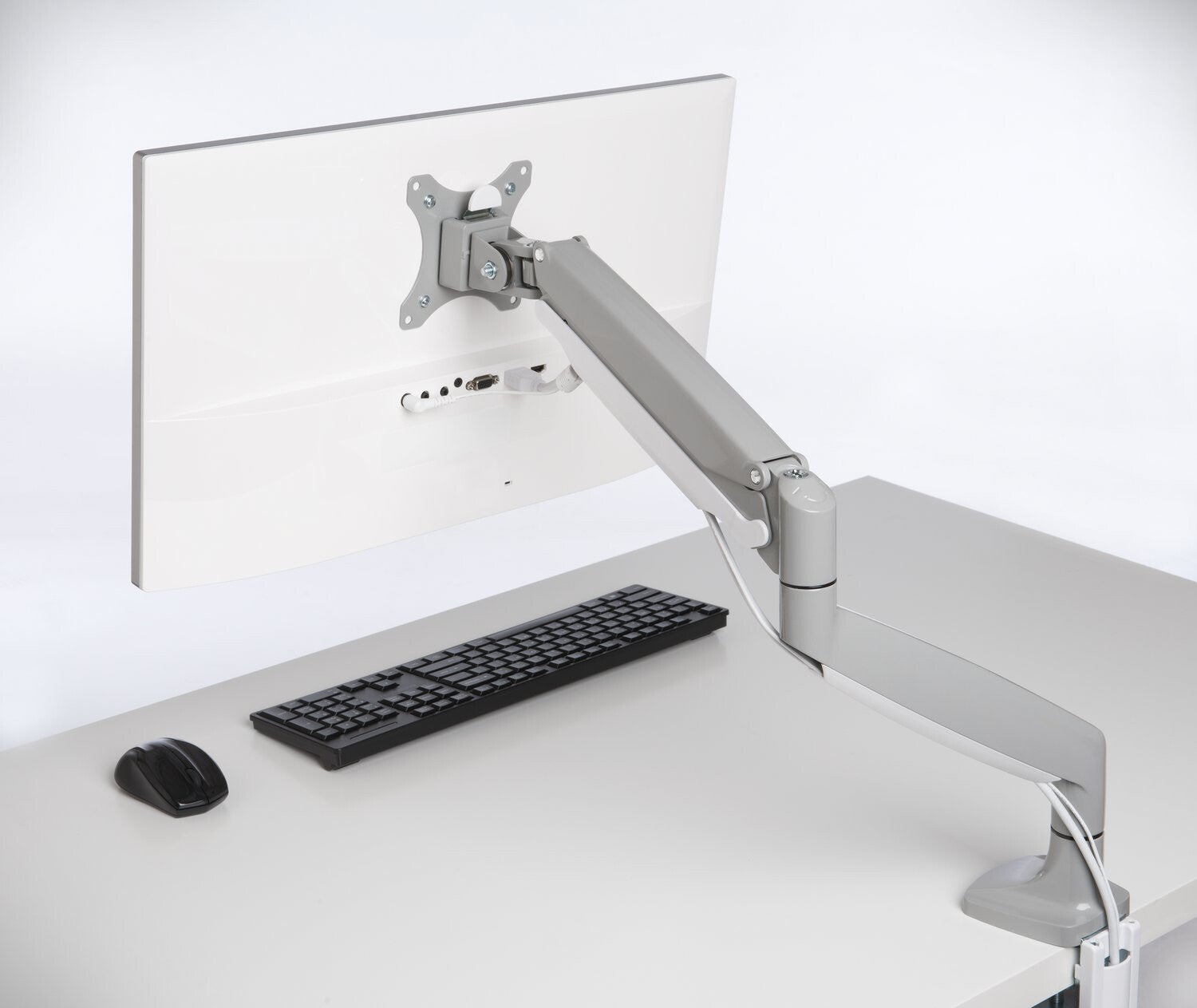

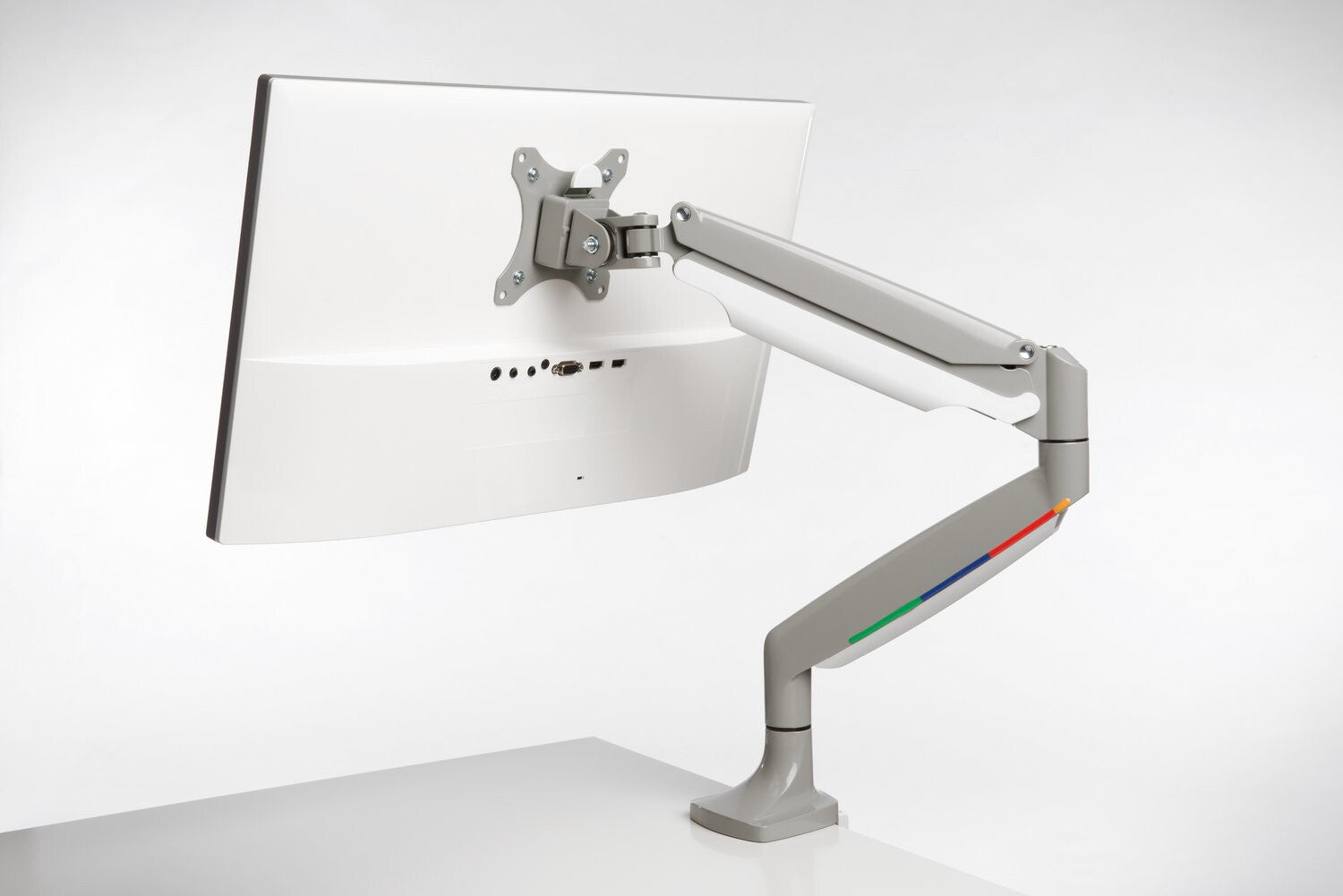

Improve posture, promote proper eye alignment and support neck and shoulder comfort with the Kensington SmartFit® One-Touch Height Adjustable Monitor Arm. Ergonomically designed to promote wellness and increase productivity, the SmartFit® One-Touch Height Adjustable Monitor Arm incorporates Kensington’s patented SmartFit® technology to simplify proper fit and allows users to adjust the height, depth and angle of their monitor for individualised comfort. Stable at any monitor position, users can easily switch from landscape to portrait mode. An ideal monitor arm for the modern office and a perfect complement to the SmartFit Sit/Stand Desk (K52804WW).

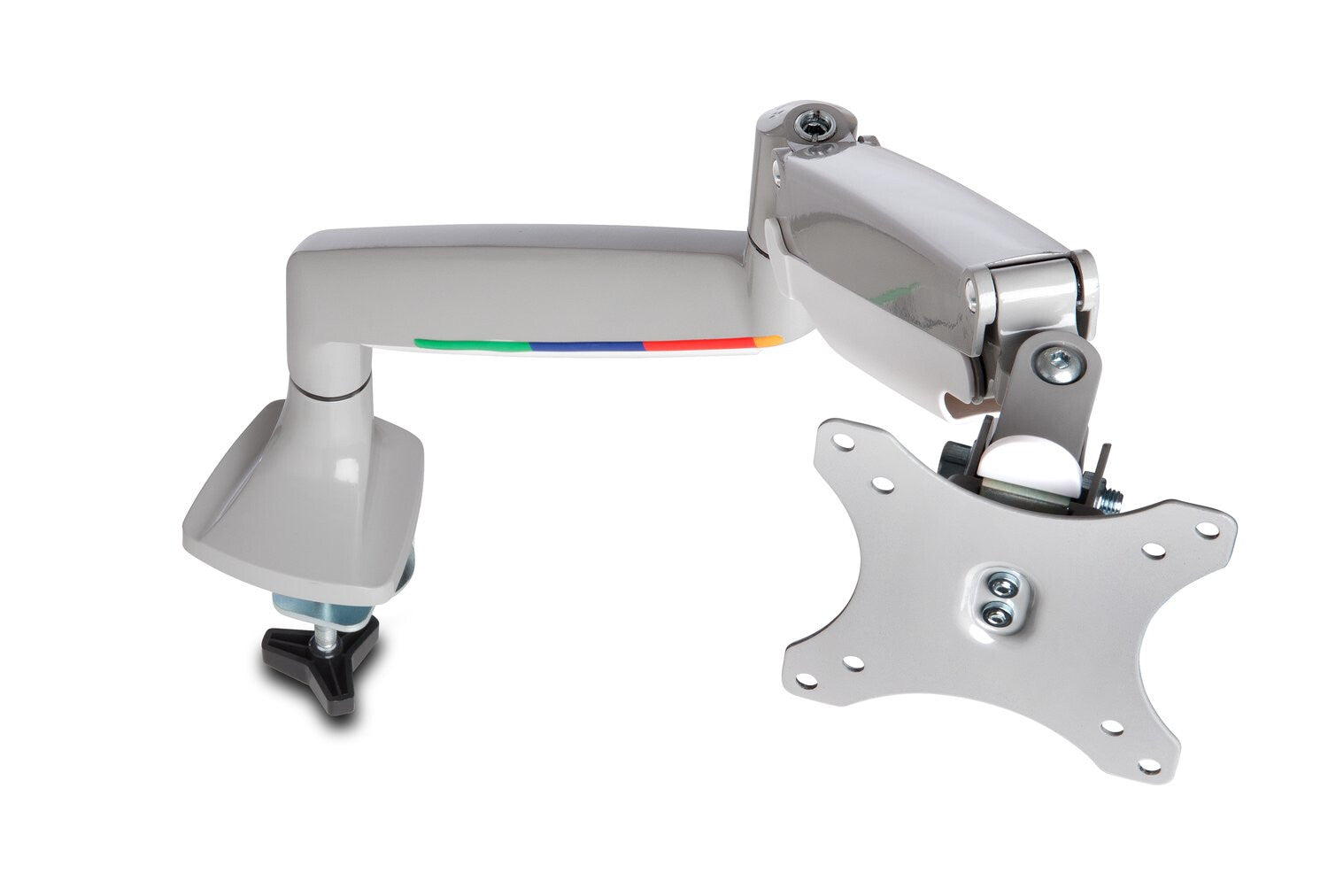

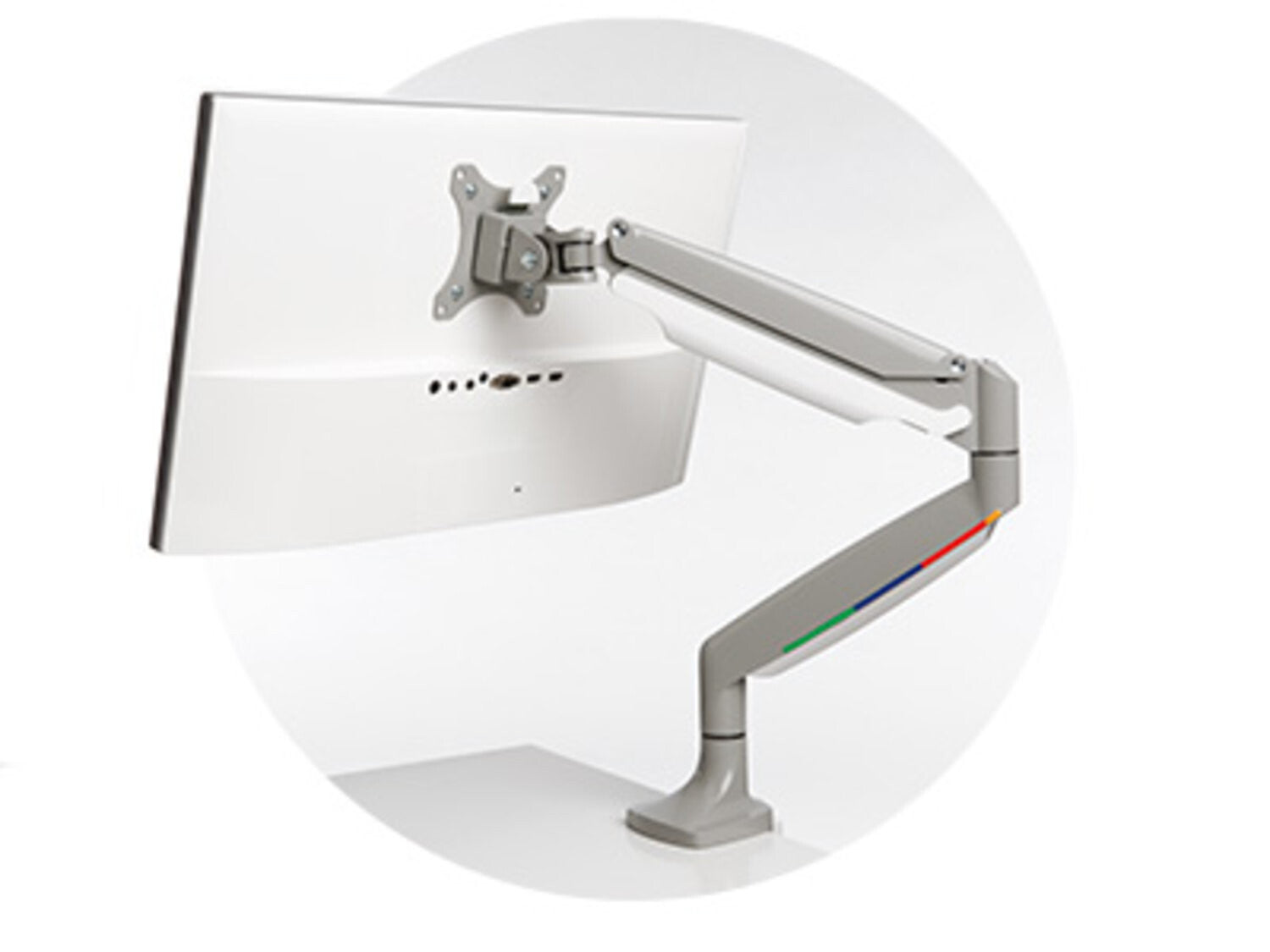

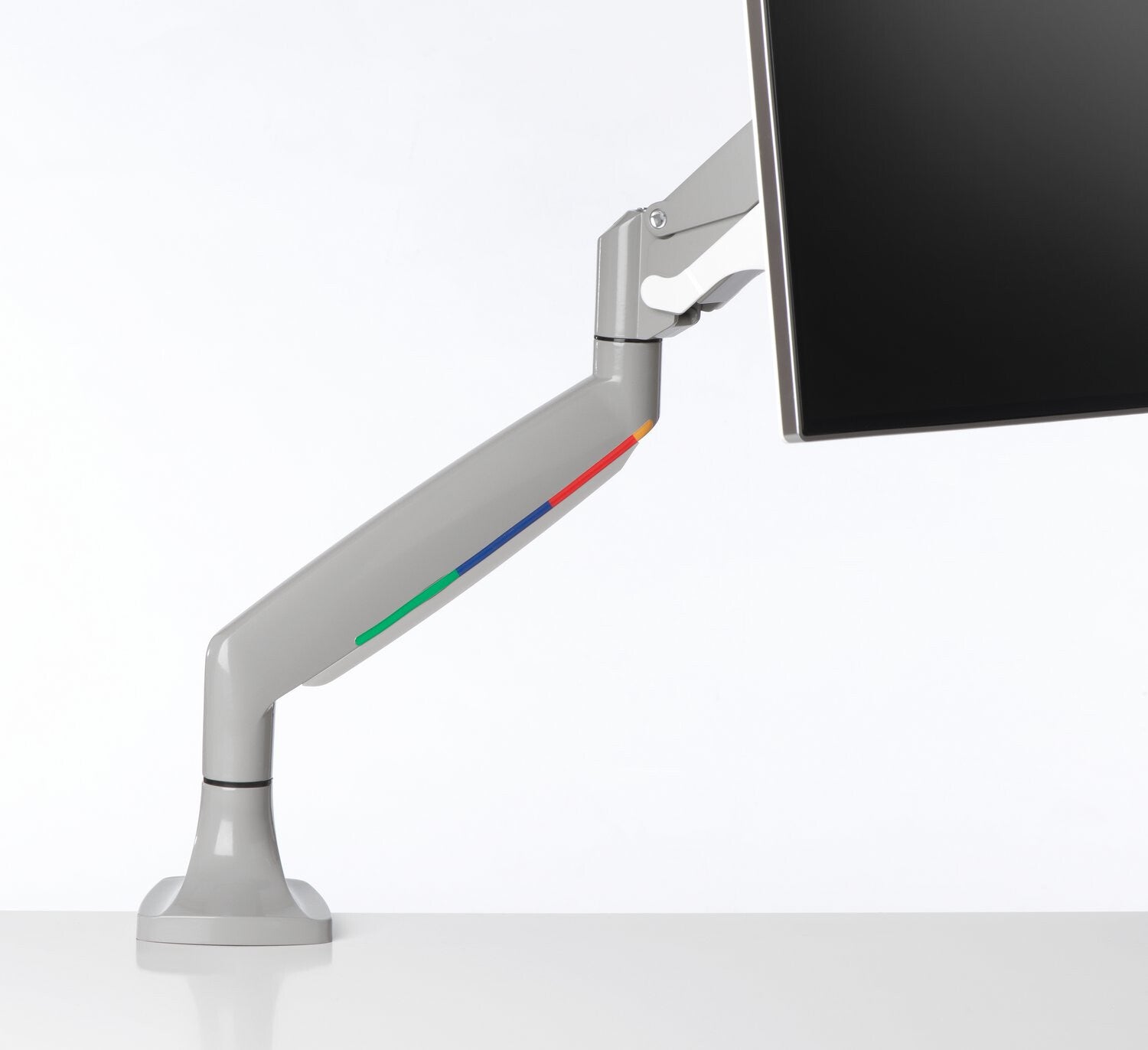

SmartFit® system simplifies ideal ergonomic height positioning using scientifically proven research to support proper fit.

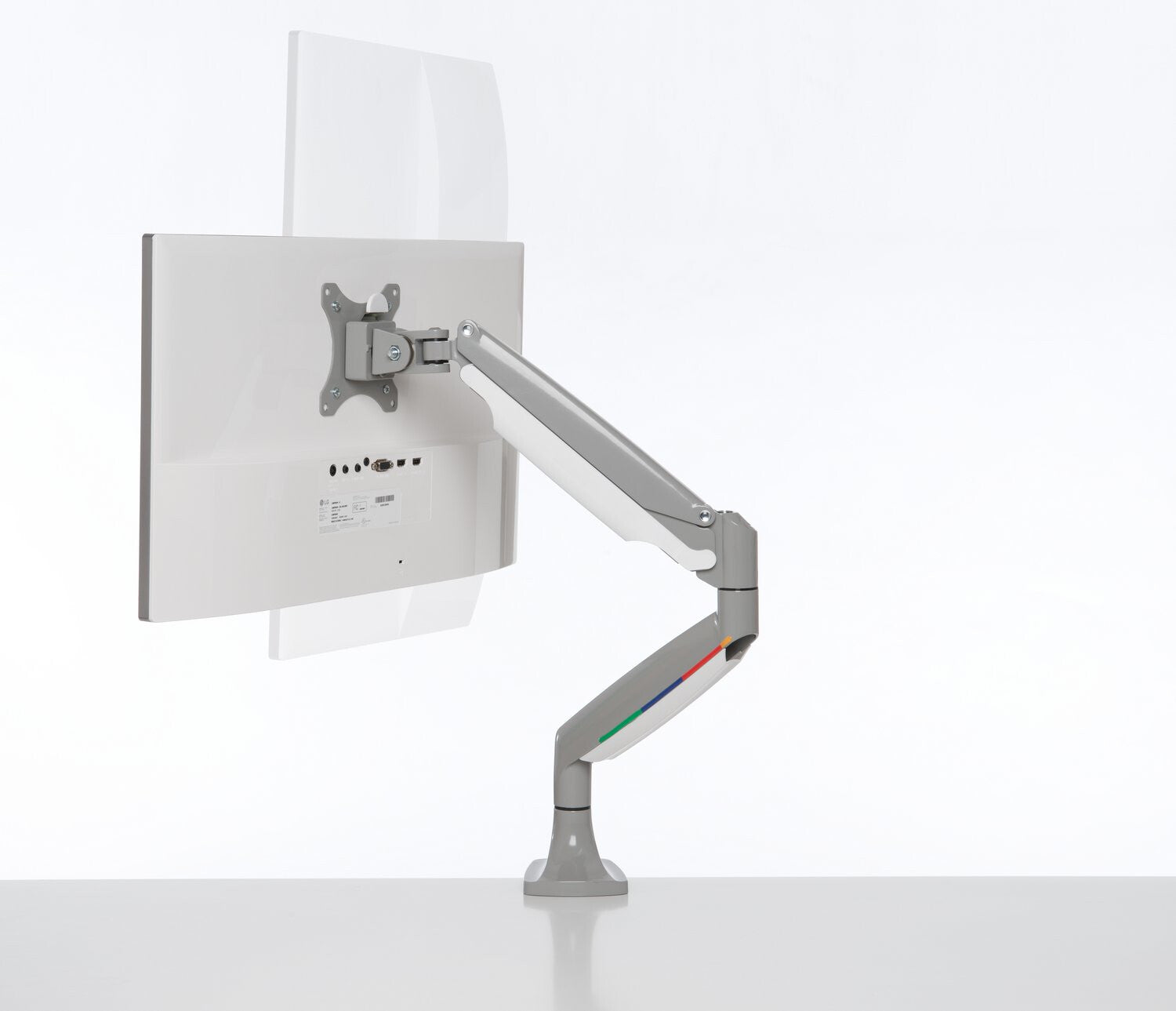

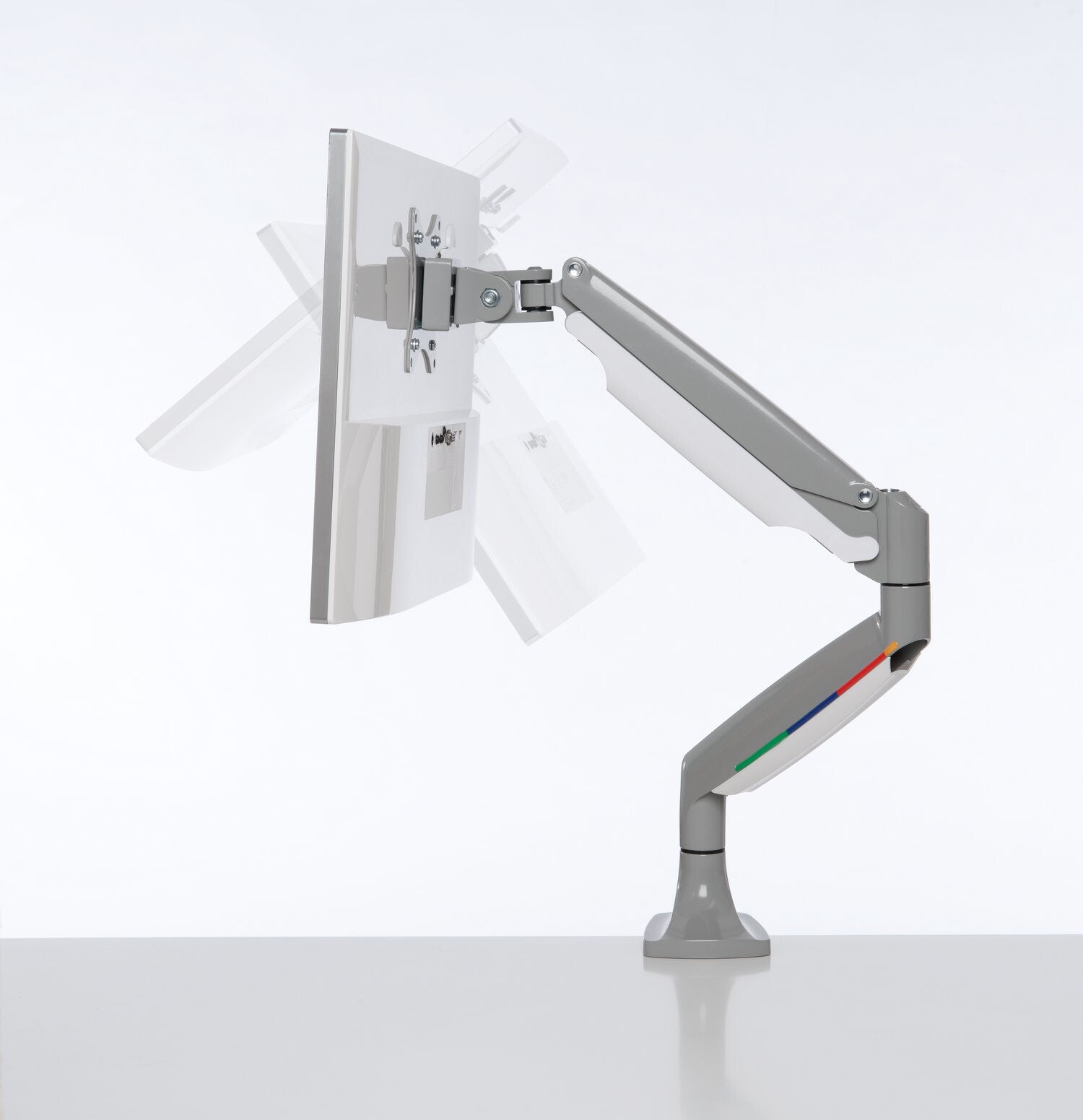

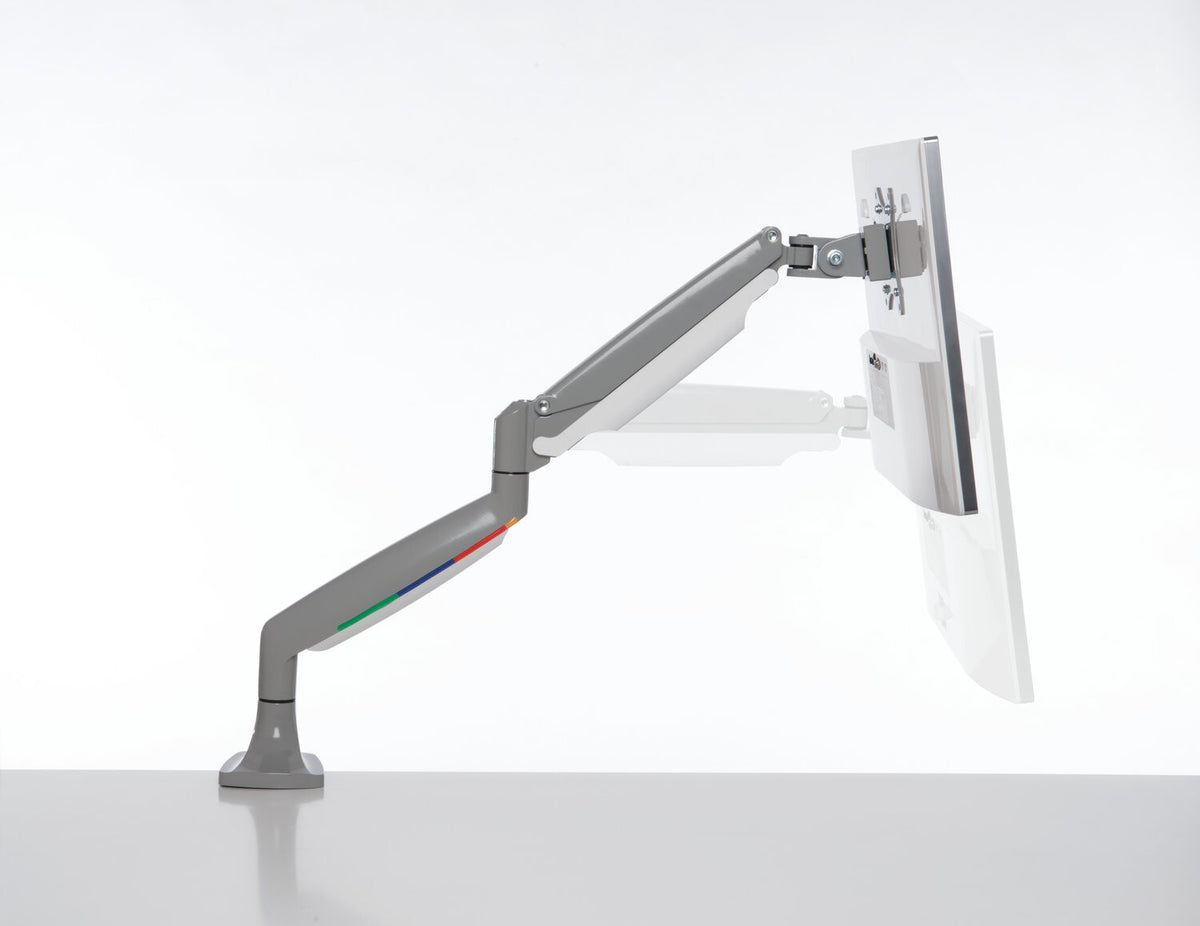

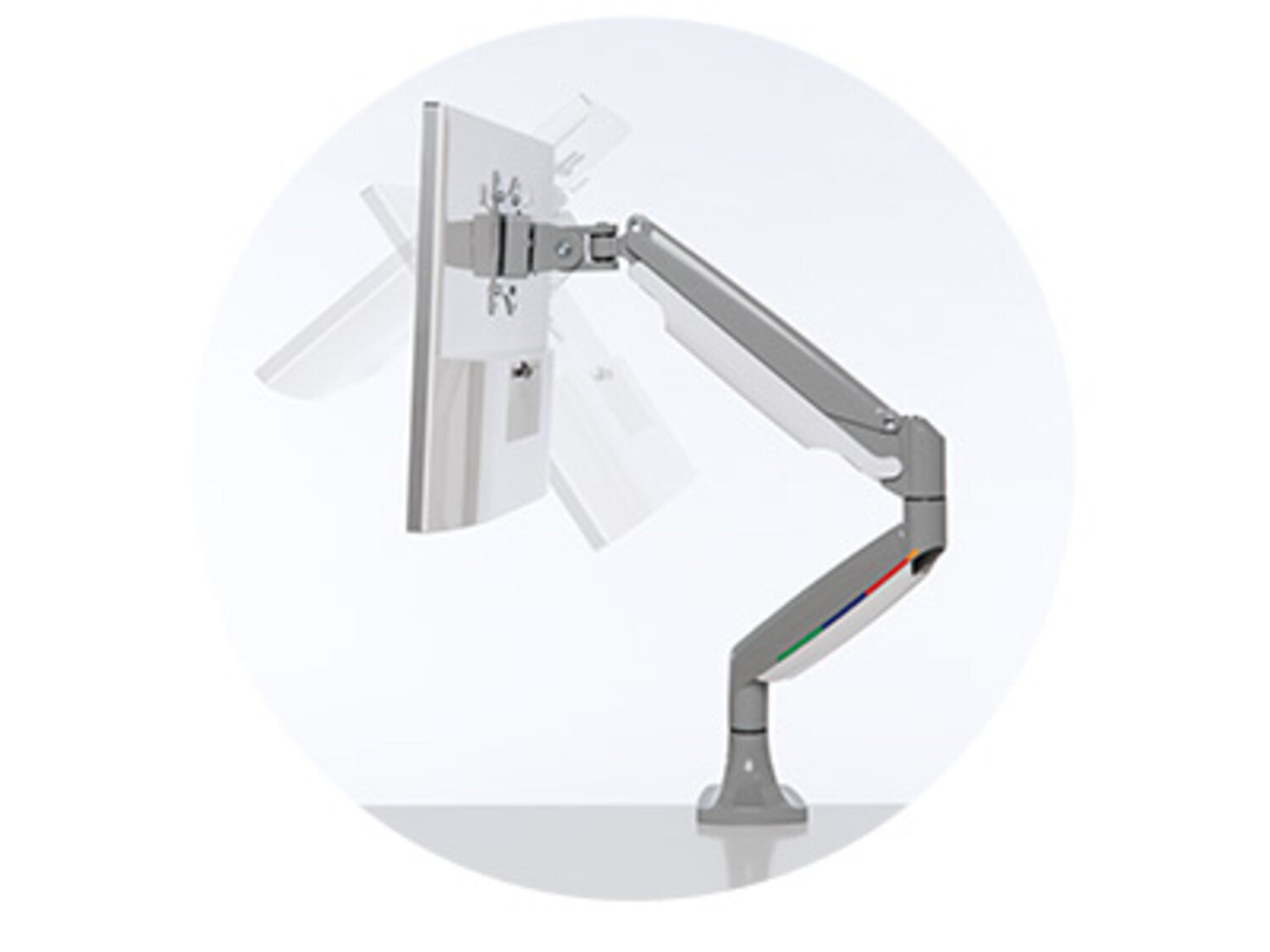

One-touch adjustable arm with built-in gas spring simplifies height adjustment (170-505mm), provides 180° swivel and monitor rotation, +/- 90° tilt adjustment, and allows monitor to smoothly move up, down, forward and back for full motion articulation
Stability focused design supports 13”-32” flat or curved monitors weighing up to 9kg (19.8lbs) and ensures monitor is stable and steady in any position

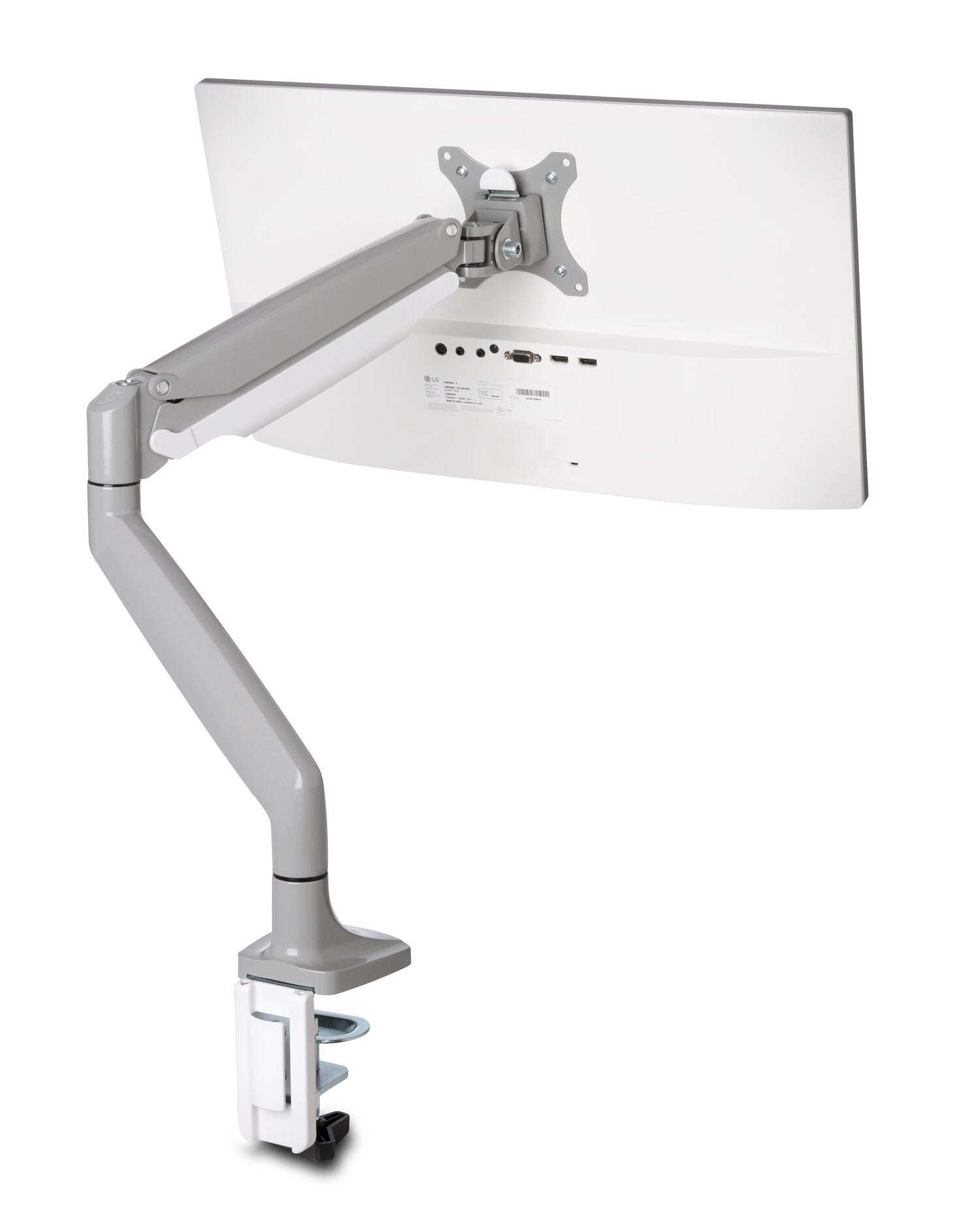

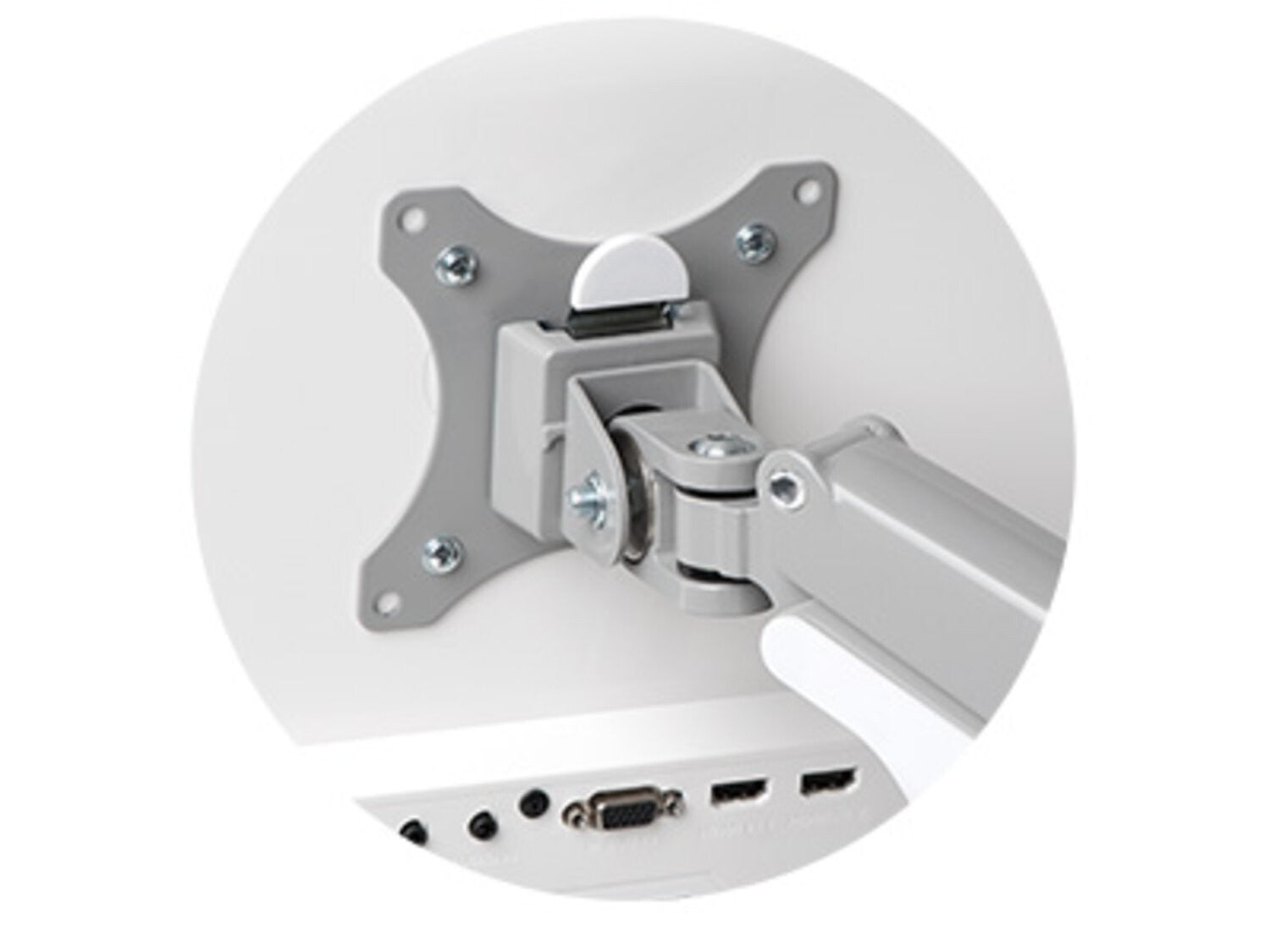

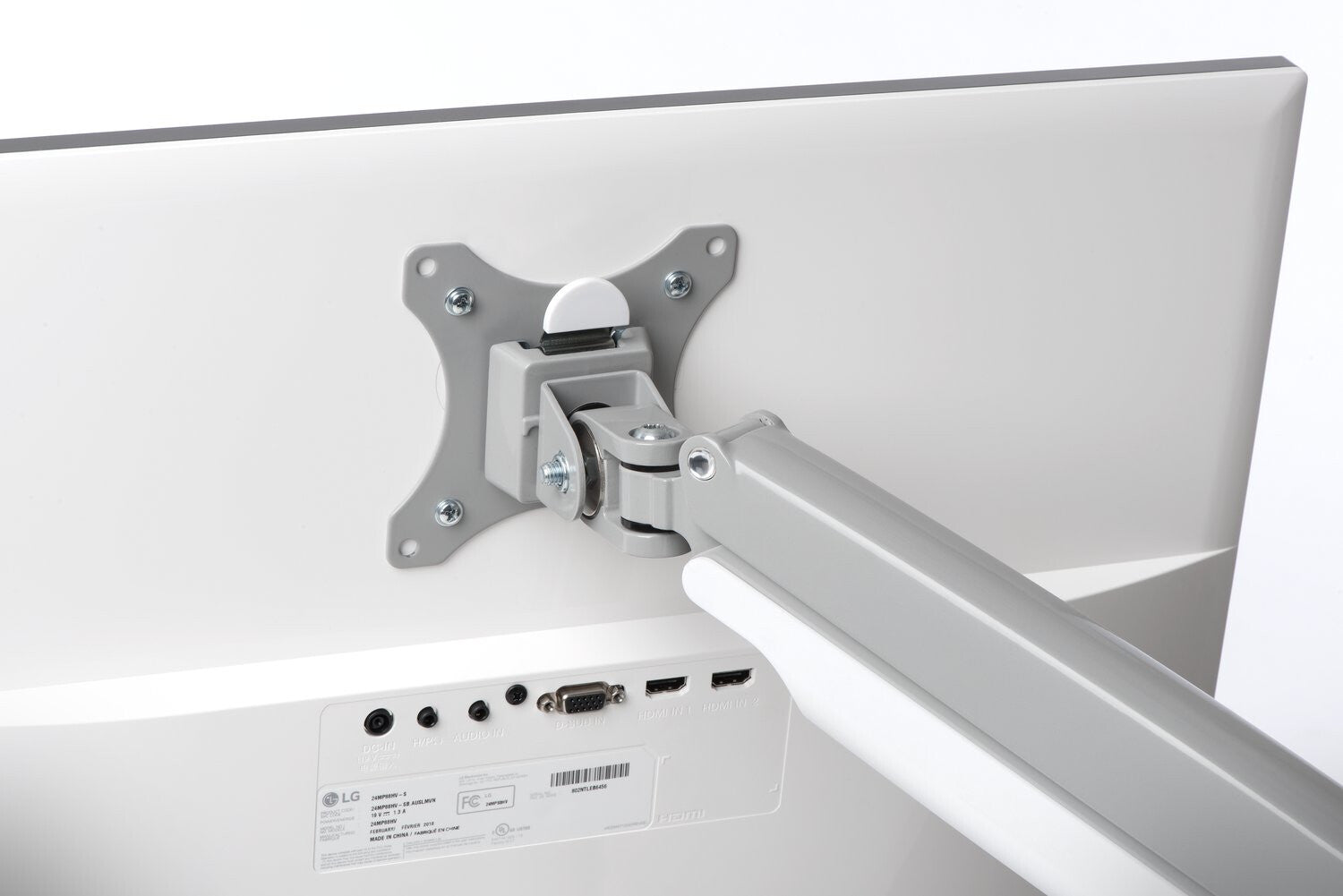

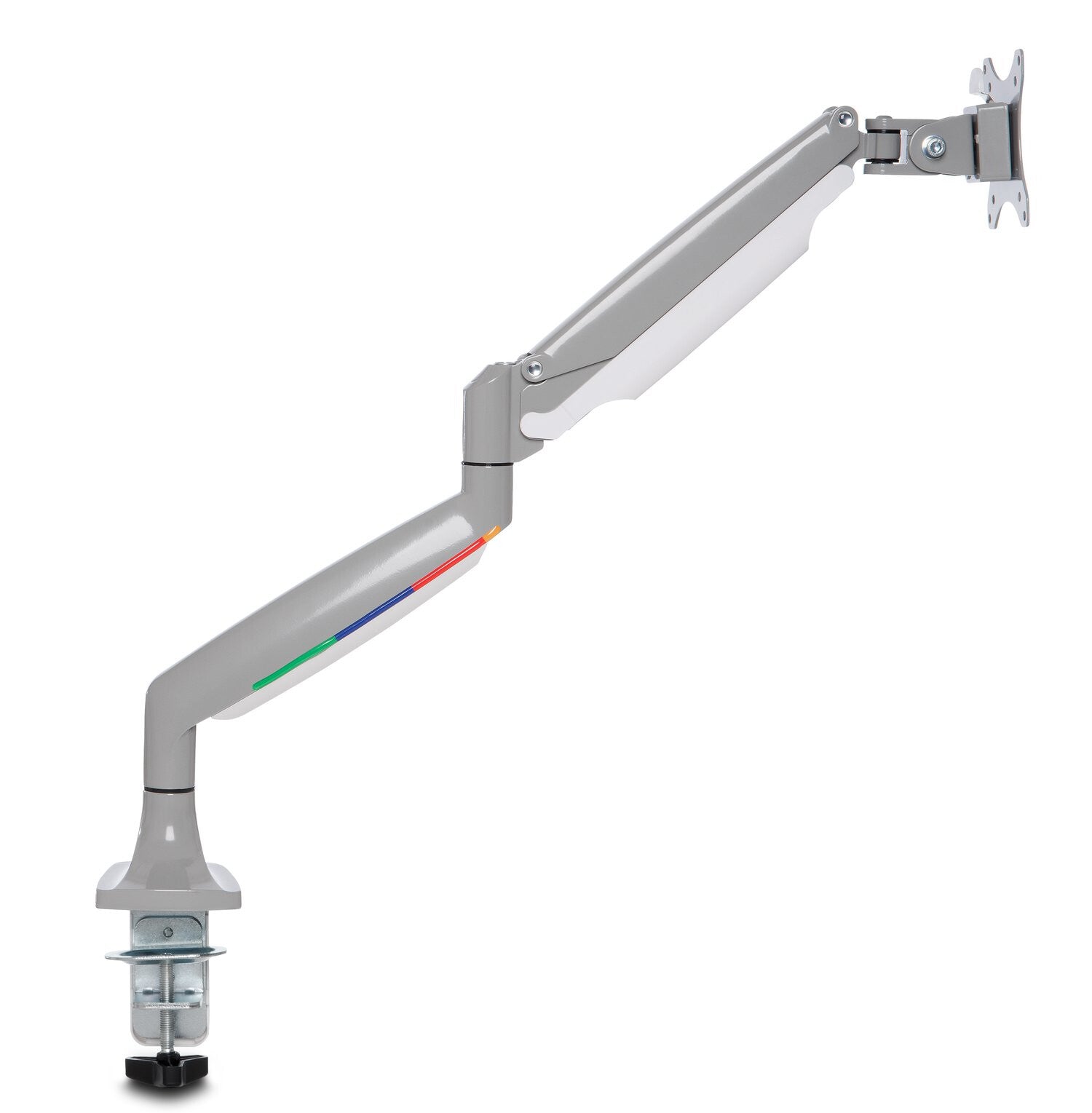

Easy to install with included quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range: 10-85mm and grommet (diameter range: 10.5-50mm) installation options and included tool kit to simplify removal

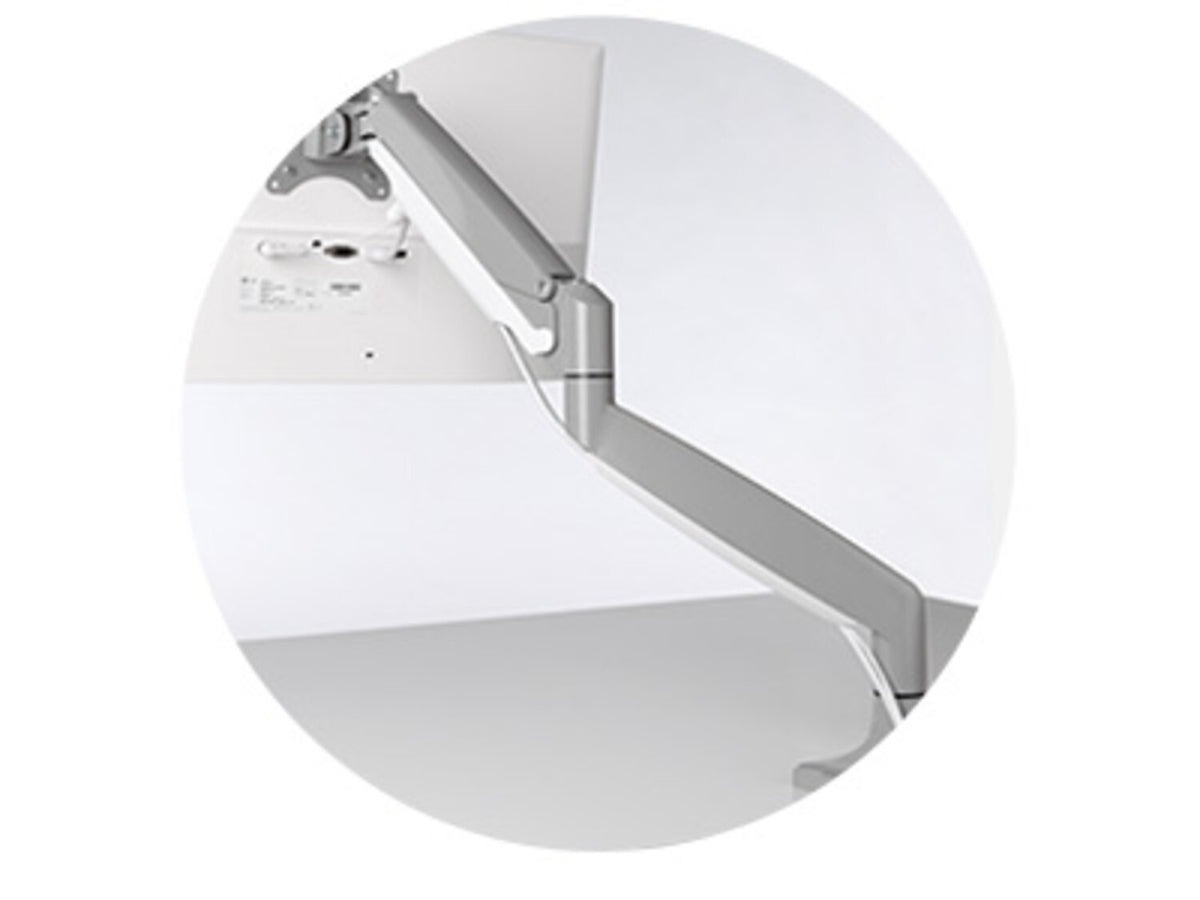

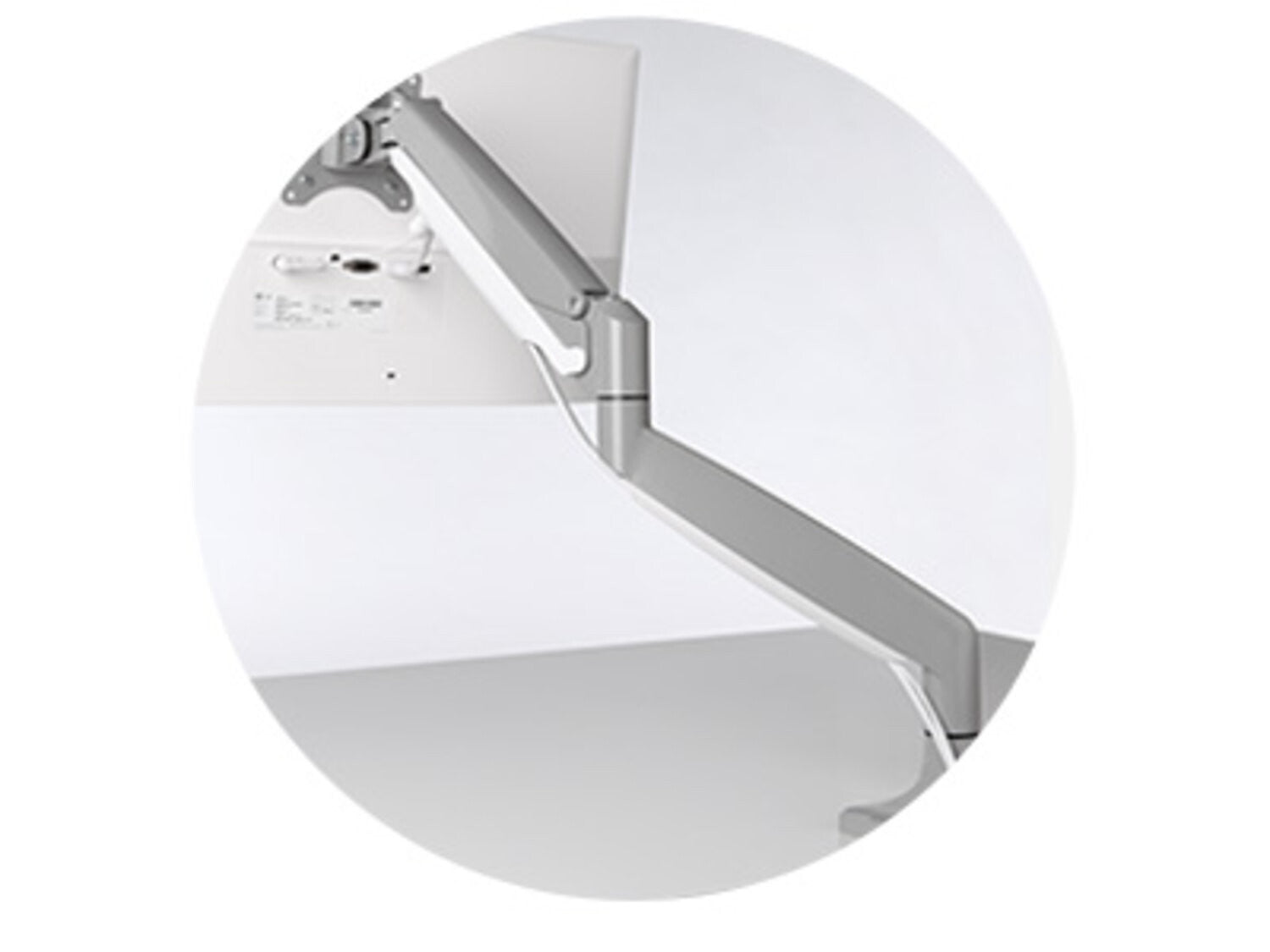

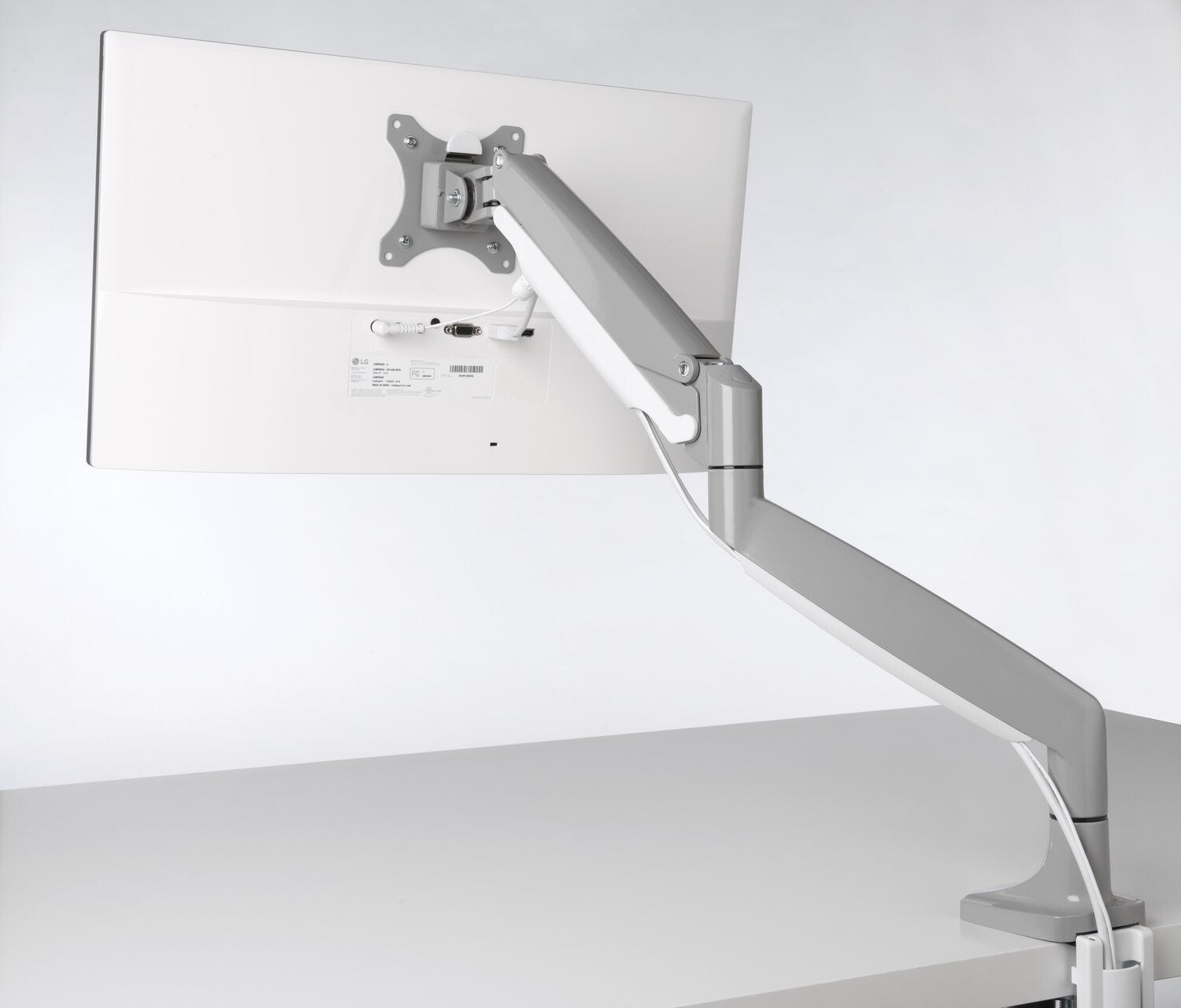

Cable management system keeps monitor cables organised for a tidier workspace
Kensington durability meets ANSI/BIFMA performance and safety standards
Mounting | |
---|---|
Desk thickness (max) | 8.5 cm |
Desk thickness (min) | 1 cm |
Extension arm (max) | 52.5 cm |
Number of displays supported | 1 |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Mounting type | Desk |
Maximum screen size | 81.3 cm (32") |
Minimum screen size | 33 cm (13") |
Maximum weight capacity | 9 kg |
Ergonomics | |
---|---|
Cable management | Yes |
Pan range | -90 - 90° |
Angle of rotation | 90° |
Swivel angle range | -180 - 180° |
Tilt angle range | -90 - 90° |
Height adjustment range | 170 - 505 mm |
Height adjustment | Yes |
Design | |
---|---|
Certification | Prop 65, BIFMA |
Housing material | Aluminium, Plastic, Steel |
Product colour | Grey, Silver |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Package type | Box |
Package weight | 4.22 kg |
Package height | 114.3 mm |
Package depth | 315 mm |
Package width | 485.9 mm |
Weight | 3.34 kg |
Height | 665 mm |
Depth | 115 mm |
Width | 590 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 85299097 |
Products per master (outer) case | 4 pc(s) |
Master (outer) case gross weight | 17.8 kg |
Master (outer) case height | 479.6 mm |
Master (outer) case length | 514.4 mm |
Master (outer) case width | 333.5 mm |
