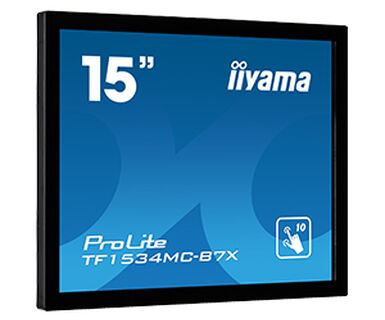

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1). TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. TOUCH THROUGH-GLASS This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. IP The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction. OPEN FRAME BRACKETS This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
Display | |
---|---|
Screen shape | Flat |
Display number of colours | 16.2 million colours |
Native aspect ratio | 4:3 |
HD type | XGA |
Display technology | LED |
Viewing angle, horizontal | 170° |
Viewing angle, vertical | 170° |
Pixel pitch | 0.297 x 0.297 mm |
Display resolution | 1024 x 768 pixels |
Response time | 8 ms |
Display diagonal | 38.1 cm (15") |
Contrast ratio (typical) | 700:1 |
Surface hardness | 7H |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Panel type | TN |
Display diagonal (metric) | 38 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 370 cd/m² |
Management features | |
On Screen Display (OSD) | Yes |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Performance | |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Design | |
Product colour | Black |
International Protection (IP) code | IP65 |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDMI | Yes |
USB Touch port | Yes |
Technical details | |
Height (without stand) | 26.6 cm |
Depth (without stand) | 4.45 cm |
Width (without stand) | 33.8 cm |
HDMI | Yes |
Display viewable area (HxV) | 304 x 228 mm |
Product colour | Black |
Power supply type | DC |
Surface hardness | 7H |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
On Screen Display (OSD) | Yes |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Power | |
Power supply type | DC |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 8 W |
Power consumption (off) | 0.3 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 10 kWh |
Packaging content | |
Cables included | AC, DisplayPort, HDMI, USB |
Weight & dimensions | |
Height (without stand) | 26.6 cm |
Depth (without stand) | 4.45 cm |
Width (without stand) | 33.8 cm |
Weight (without stand) | 2.7 kg |
Package width | 435 mm |
Package depth | 165 mm |
Package height | 335 mm |
Package weight | 4 kg |
Packaging data | |
Package width | 435 mm |
Package depth | 165 mm |
Package height | 335 mm |
Package weight | 4 kg |
Cables included | AC, DisplayPort, HDMI, USB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 26.6 cm |
Depth (without stand) | 4.45 cm |
Width (without stand) | 33.8 cm |
HDMI | Yes |
Surface hardness | 7H |
Energy efficiency scale | A to G |
Power supply type | DC |
Display viewable area (HxV) | 304 x 228 mm |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
