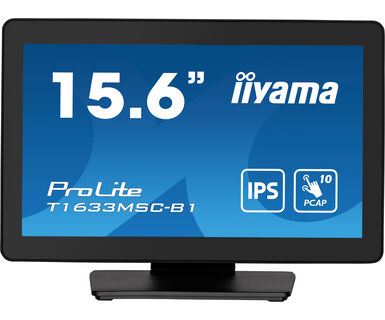

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.
Display | |
---|---|
Viewable size, vertical | 19.4 cm |
Viewable size, horizontal | 34.4 cm |
Horizontal scan range | 30 - 68 kHz |
Pixel pitch | 0.179 x 0.179 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Response time | 5 ms |
Display brightness (typical) | 450 cd/m² |
Touchscreen technology | Projected capacitive system |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LCD |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 39.6 cm (15.6") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 4 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
International Protection (IP) code | IP54 |
Product colour | Black |
Market positioning | Home |
Ports & interfaces | |
---|---|
HDCP | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Number of OSD languages | 12 |
On Screen Display (OSD) languages | Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
On Screen Display (OSD) | Yes |
Tilt angle range | 90 - 5° |
Height adjustment | No |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | External |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.5 W |
Power consumption (standby) | 8 W |
Power consumption (typical) | 12 W |
Energy consumption (SDR) per 1000 hours | 8 kWh |
Energy efficiency class (SDR) | C |
Packaging content | |
---|---|
Quick start guide | Yes |
Power adapter included | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
---|---|
Weight (with stand) | 3.4 kg |
Height (with stand) | 284 mm |
Depth (with stand) | 200 mm |
Width (with stand) | 389 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 5.3 kg |
Package height | 343 mm |
Package depth | 169 mm |
Package width | 475 mm |
General | |
---|---|
Product Family | ProLite |
