| Design |
|---|
| Product type |

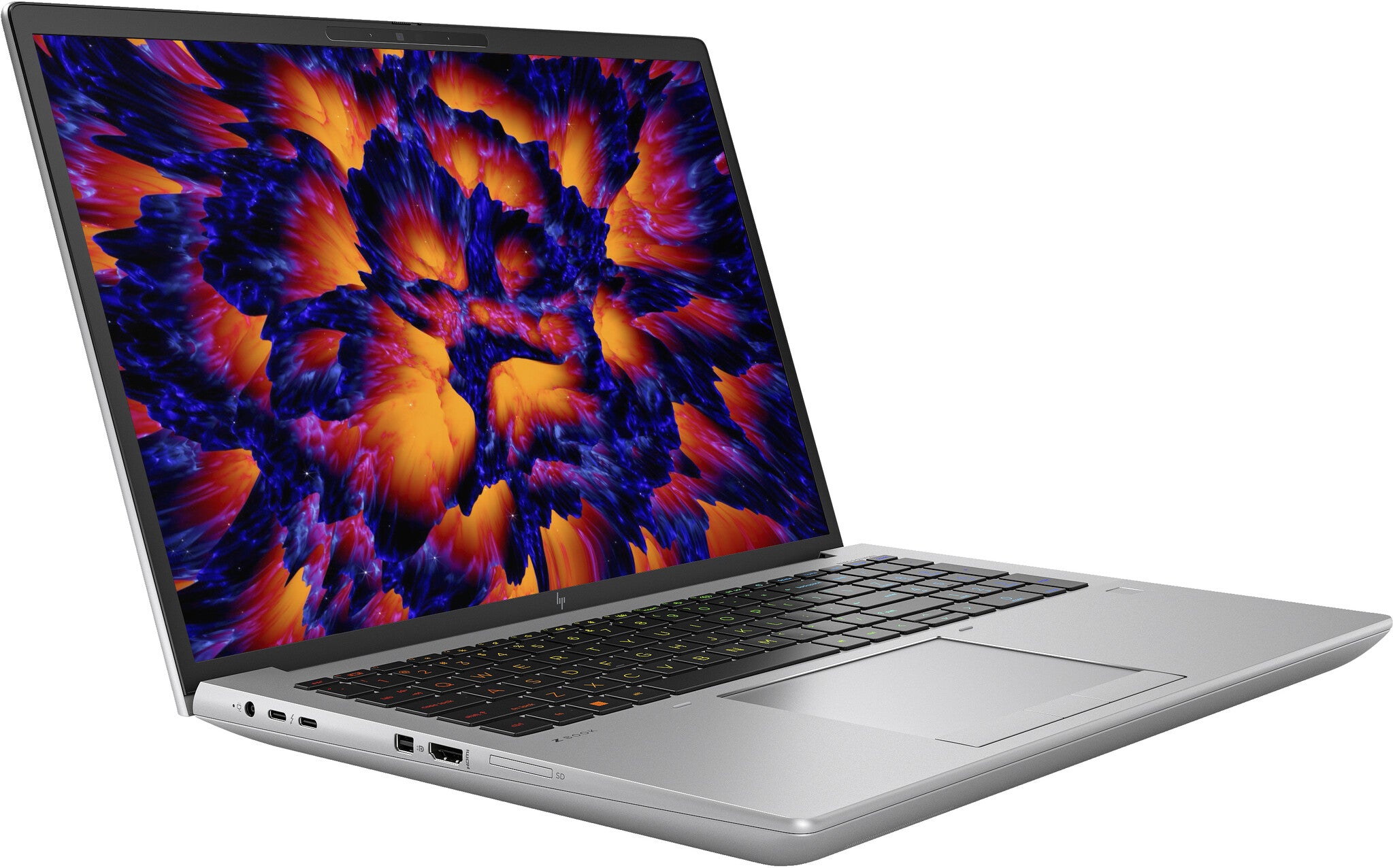

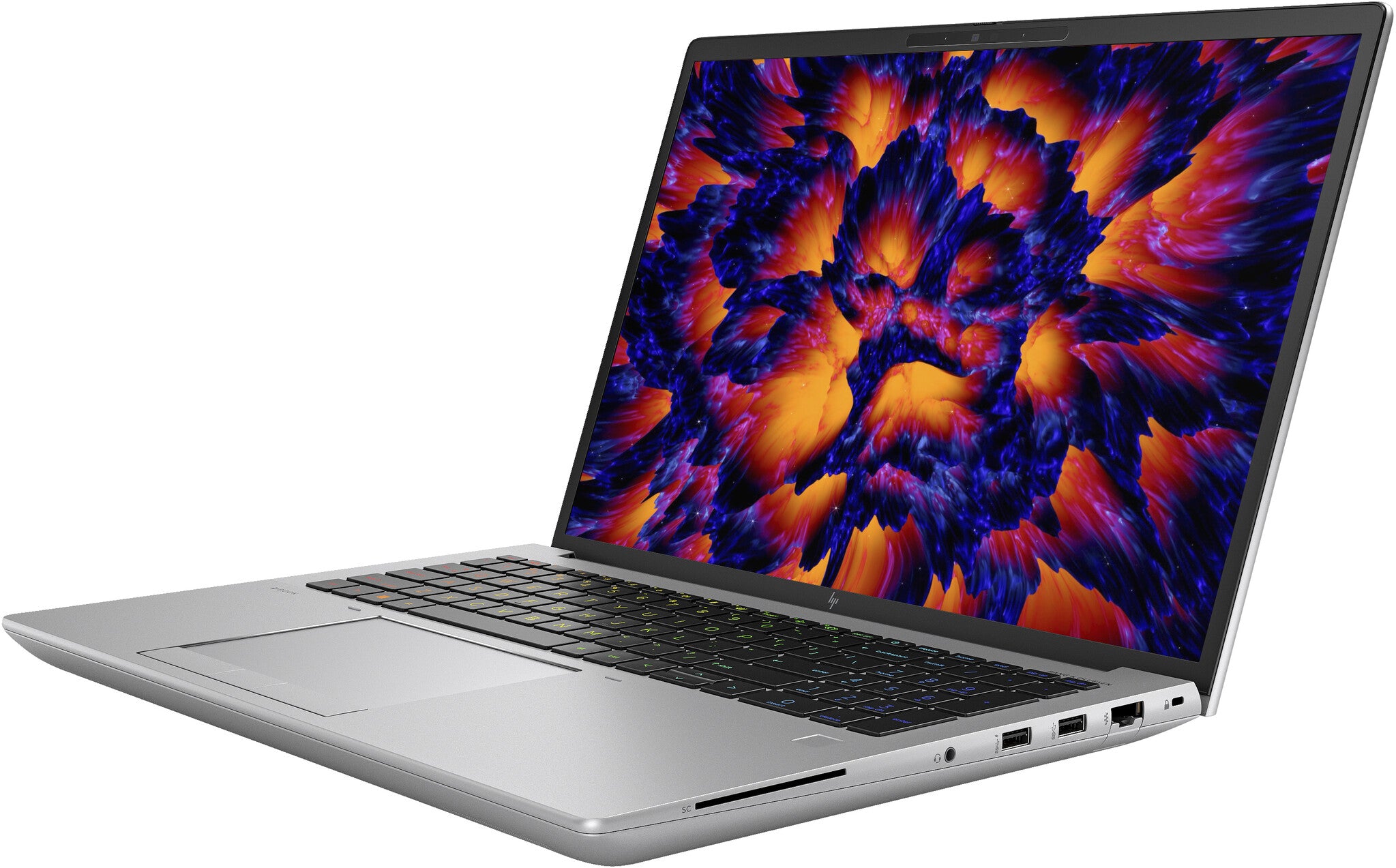

Mobile workstation |
| Market positioning |
Performance |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Country of origin |
China |
| Introduction year |
2022 |
| Introduction month |
8 |

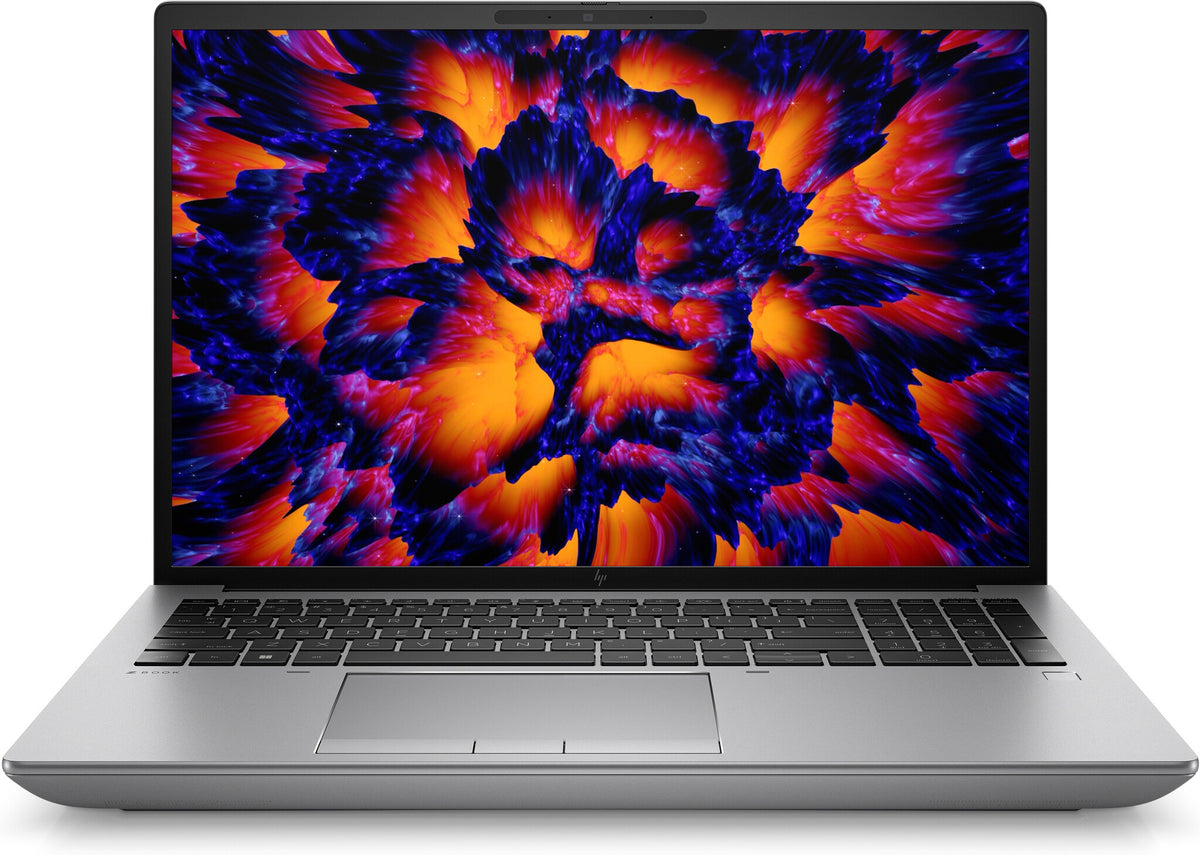

| Display |
|---|
| HD type |
WQXGA |
| Panel type |
IPS |
| LED backlight |
Yes |
| Display brightness |
500 cd/m� |
| Display diagonal (metric) |
40.6 cm |
| Touchscreen |
No |
| Display resolution |
3840 x 2400 pixels |
| Display diagonal |
40.6 cm (16") |
| Anti-glare screen |
Yes |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Processor |
|---|
| Processor generation |
12th gen Intel Core i9 |
| Bus type |
DMI4 |
| Configurable TDP-down |
45 W |
| Processor cache type |
L3 |
| Processor cache |
30 MB |
| Processor model |
i9-12950HX |
| Processor boost frequency |
5 GHz |
| Processor cores |
16 |
| Processor threads |
24 |
| Motherboard chipset |
Intel WM690 |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core i9 |
| Memory |
|---|
| ECC |
No |
| Memory form factor |
SO-DIMM |
| Internal memory |
32 GB |
| Memory layout (slots x size) |
2 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
4800 MHz |
| Memory slots |
4x SO-DIMM |
| Maximum internal memory |
128 GB |
| Number of free internal memory expansion slots |
2 |
| Memory channels |
Dual-channel |
| Storage |
|---|
| SSD form factor |
M.2 |
| Storage media |
SSD |
| Optical drive type |
No |
| Number of SSDs installed |
1 |
| SSD capacity |
1000 GB |
| SSD interface |
PCI Express, NVMe |
| Card reader integrated |
No |
| Total storage capacity |
1000 GB |
| SSD memory type |
TLC |
| Total SSDs capacity |
1000 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
Yes |
| Discrete graphics card memory |
12 GB |
| On-board graphics card family |
Intel UHD Graphics |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel UHD Graphics |
| Discrete graphics card model |
NVIDIA RTX A3000 |
| Discrete graphics memory type |
GDDR6 |
| Number of discrete graphics cards |
1 |
| Discrete GPU manufacturer |
NVIDIA |
| Audio |
|---|
| Number of microphones |
2 |
| Audio system |
B&O PLAY |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| Speakers manufacturer |
Bang & Olufsen |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Front camera HD type |
HD |
| Infrared (IR) camera |
Yes |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |

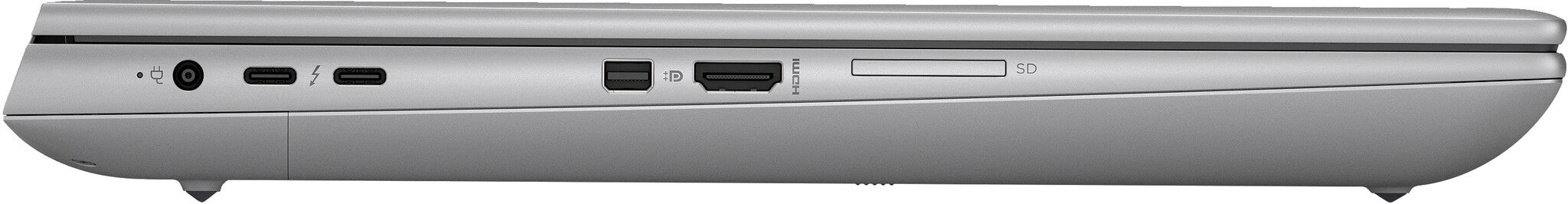

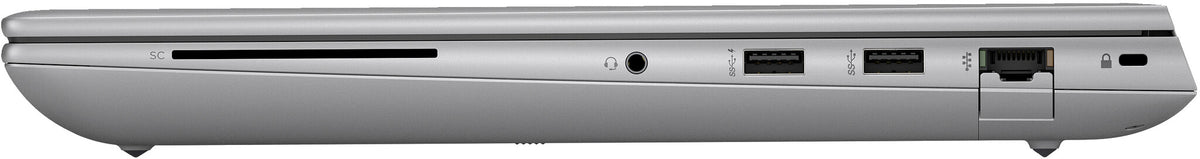

| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Sleep-and-Charge ports |
2 |
| USB Sleep-and-Charge |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| Mini DisplayPorts quantity |
1 |
| USB Power Delivery |
Yes |
| Thunderbolt 4 ports quantity |
2 |

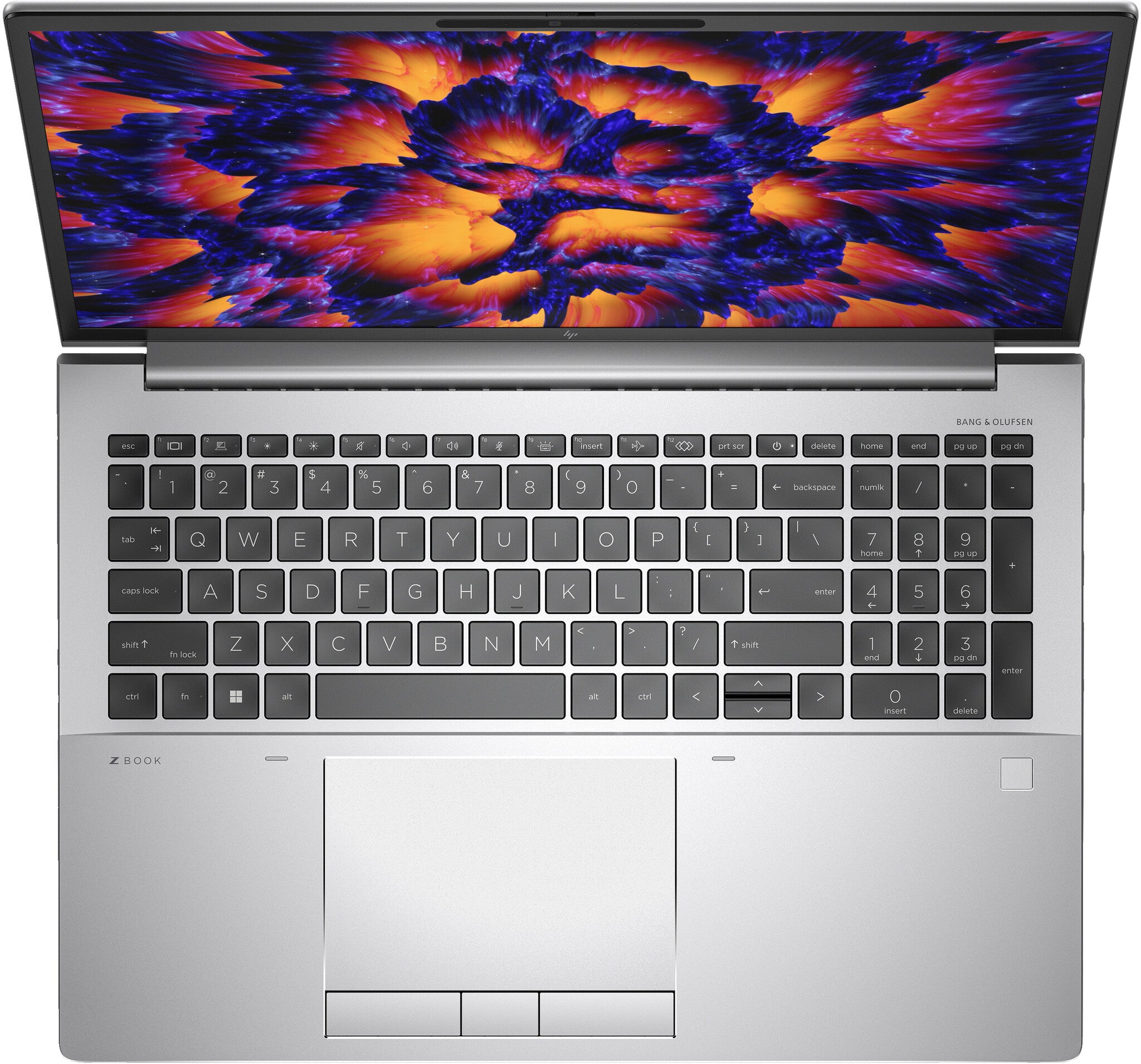

| Keyboard |
|---|
| Pointing device |
Clickpad |
| Numeric keypad |
Yes |
| Full-size keyboard |
Yes |
| Spill-resistant keyboard |
Yes |
| Keyboard backlit |
Yes |
| Keyboard special features |
Spill-resistant |
| Input device model |
HP Premium Keyboard |
| Software |
|---|
| Pre-installed software |
Bing search for IE11; Buy Office; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP Support Assistant; HP JumpStart; Native Miracast support; HP Connection Optimizer; Adobe Creative Cloud; HP Cloud Recovery; HP Admin; HP Privacy Settings; HP QuickDrop; Data Science Stack; HP Easy Clean; HP PC Hardware Diagnostics; HP ZCentral Remote Boost 2020 Software for Z workstation; Tile Application |
| Operating system installed |
Windows 11 Pro |
| Technical details |
|---|
| Market positioning |
Performance |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Discrete graphics card memory |
12 GB |
| Number of speakers |
2 |
| Sustainable technologies and materials |
Low Halogen; 40% post-consumer recycled plastic; Bulk packaging available; External power supply 90% efficiency; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure(s) |
| Sustainability compliance |
Yes |
| Sustainability certificates |
TCO |
| Processor special features |
|---|
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Brand-specific features |
|---|
| HP JumpStart |
Yes |
| HP Security tools |
Absolute persistence module; HP Device Access Manager; HP Power On Authentication; HP Security Manager; Integrated smart card reader; Master Boot Record security; Pre-boot authentication; HP Sure Click; Windows Defender; HP Secure Erase; HP Manageability Integration Kit; HP Sure Sense; HP Secure Platform; HP Sure Recover Gen3; HP BIOSphere Gen6; HP Sure Start Gen6; HP Sure Run Gen3; HP Sure View Reflect; HP Tamper Lock; Nano Security Lock Slot; HP Client Security Suite Gen7; Trusted Platform Module TPM 2.0; Windows Secured Core; Camera privacy shutter |
| HP Management tools |
HP Power Manager |
| HP speaker type |
HP Dual Speakers |
| HP Support Assistant |
Yes |
| HP front camera |
HP Webcam |
| HP Connection Optimizer |
Yes |
| HP segment |
Business |
| HP special features |
|---|
| HP JumpStart |
Yes |
| HP Security tools |
Absolute persistence module; HP Device Access Manager; HP Power On Authentication; HP Security Manager; Integrated smart card reader; Master Boot Record security; Pre-boot authentication; HP Sure Click; Windows Defender; HP Secure Erase; HP Manageability Integration Kit; HP Sure Sense; HP Secure Platform; HP Sure Recover Gen3; HP BIOSphere Gen6; HP Sure Start Gen6; HP Sure Run Gen3; HP Sure View Reflect; HP Tamper Lock; Nano Security Lock Slot; HP Client Security Suite Gen7; Trusted Platform Module TPM 2.0; Windows Secured Core; Camera privacy shutter |
| HP Management tools |
HP Power Manager |
| HP speaker type |
HP Dual Speakers |
| HP Support Assistant |
Yes |
| HP front camera |
HP Webcam |
| Battery |
|---|
| Battery technology |
Lithium Polymer (LiPo) |
| Number of battery cells |
8 |
| Battery capacity |
95 Wh |
| Power |
|---|
| AC adapter power |
230 W |
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| Security |
|---|
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Password protection type |
BIOS, Power on, User |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Smart card reader |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Certificates |
|---|
| Low halogen |
Yes |
| Sustainability |
|---|
| Sustainable technologies and materials |
Low Halogen; 40% post-consumer recycled plastic; Bulk packaging available; External power supply 90% efficiency; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure(s) |
| Sustainability compliance |
Yes |
| Sustainability certificates |
TCO |
| Weight & dimensions |
|---|
| Width |
363 mm |
| Depth |
250.6 mm |
| Height |
286.5 mm |
| Weight |
2.39 kg |
| Features |
|---|
| Country of origin |
China |
| Supplier features |
|---|
| Country of origin |
China |
| Packaging content |
|---|
| Keyboard included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
8471300000 |
| Other features |
|---|
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| On-board graphics card |
Yes |
| Audio system |
B&O PLAY |
| Number of speakers |
2 |
| Display diagonal (metric) |
40.6 cm |
| Anti-glare screen |
Yes |
| Country of origin |
China |
| Harmonized System (HS) code |
8471300000 |
