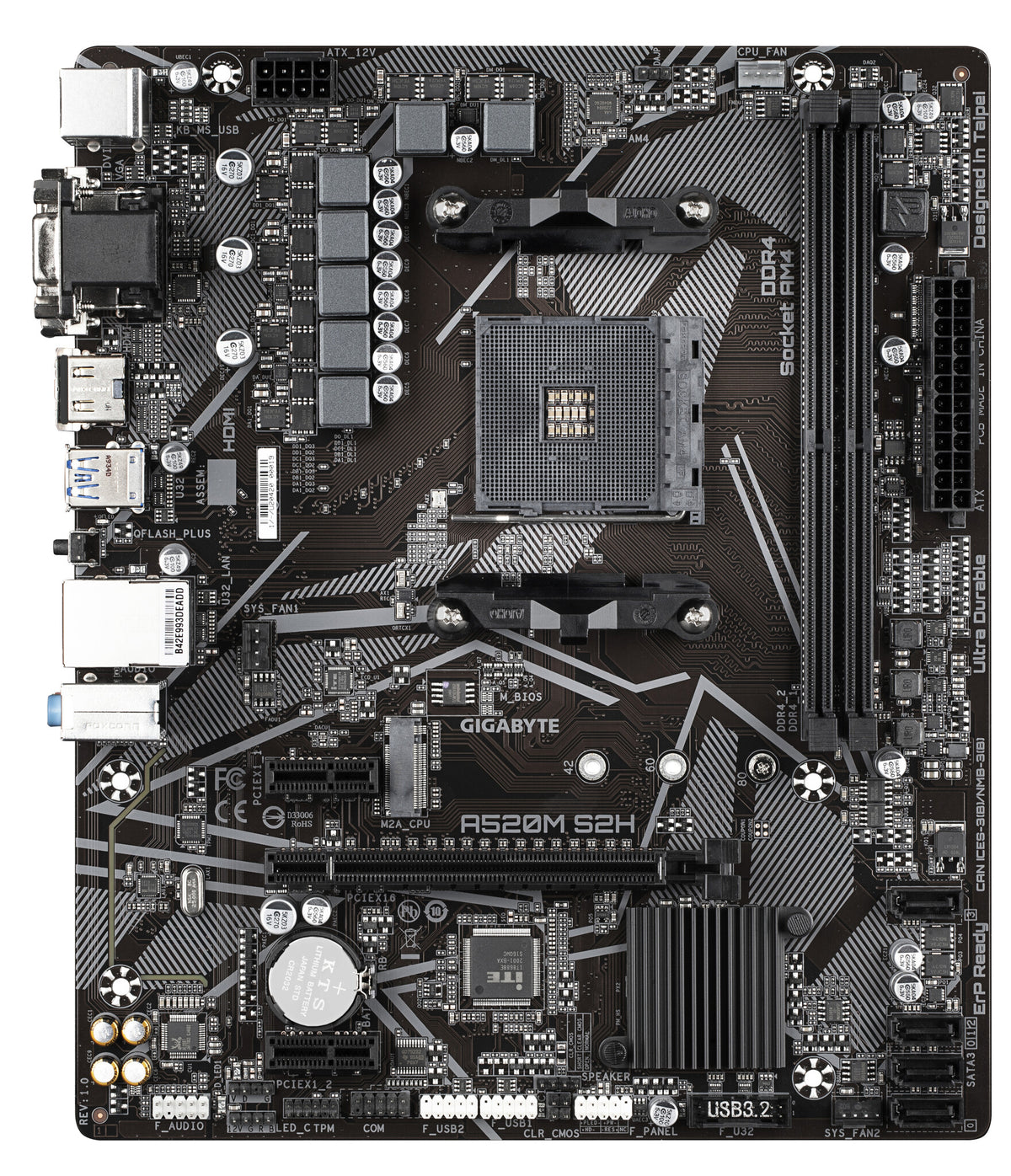

    Gigabyte A520M S2H Micro ATX motherboard - AMD A520 Socket AM4

    Gigabyte A520M S2H Micro ATX motherboard - AMD A520 Socket AM4

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
    • 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
    • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • HDMI, DVI-D, D-sub Ports for Multiple Display
    • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
    • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    • Anti-Sulfur Resistors Design

    AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

    GIGABYTE UD series motherboards use a 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

    Processor
    Maximum internal memory supported by processor 64 GB
    Supported processor sockets Socket AM4
    Maximum number of SMP processors 1
    Compatible processor series 3rd Generation AMD Ryzen™ 3
    Processor socket Socket AM4
    Processor manufacturer AMD
    Memory
    Maximum internal memory 64 GB
    Supported memory clock speeds 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 2
    Supported memory types DDR4-SDRAM
    Storage controllers
    RAID levels 0, 1, 10
    RAID support Yes
    Supported storage drive interfaces M.2, PCI Express 3.0, SATA
    Graphics
    HDCP Yes
    Internal I/O
    RGB LED pin header Yes
    Number of chassis fan connectors 2
    CPU fan connector Yes
    Power fan connector Yes
    ATX Power connector (24-pin) Yes
    Number of SATA III connectors 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 2

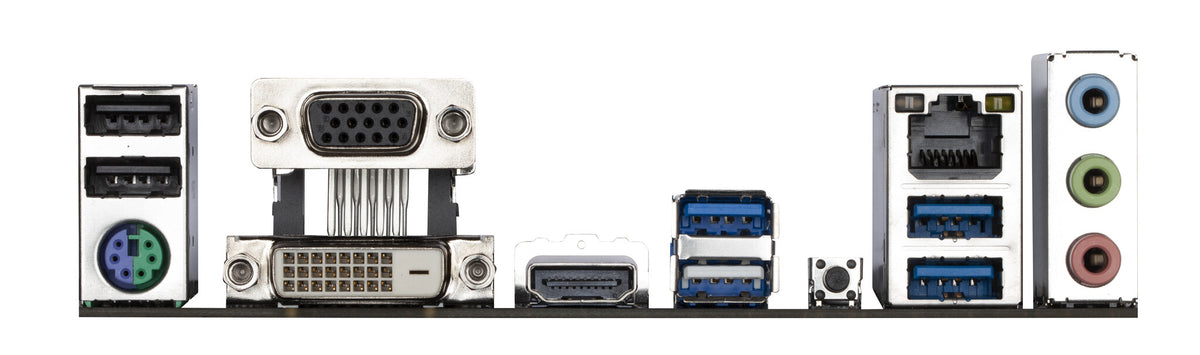

    Rear panel I/O ports
    DVI-D ports quantity 1
    HDMI ports quantity 1
    VGA (D-Sub) ports quantity 1
    PS/2 ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 2.0 ports quantity 2
    Network
    Ethernet LAN Yes
    Features
    Audio output channels 7.1 channels
    Motherboard chipset AMD A520
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Component for PC
    BIOS
    Desktop Management Interface (DMI) version 2.7
    System Management BIOS (SMBIOS) version 2.7
    Clear CMOS button Yes
    Clear CMOS jumper Yes
    ACPI version 5.0
    BIOS memory size 128 Mbit
    BIOS type UEFI AMI
    Logistics data
    Harmonized System (HS) code 84733020
    Country of origin China
    Products per shipping (inner) case 1 pc(s)
    Packaging data
    Package weight 740 g
    Package height 52 mm
    Package depth 235 mm
    Package width 265 mm
    Battery
    Battery type CR2032
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Number of battery cells 1
    Battery weight 3 g
    Lithium weight per battery 0.07 g
    Weight & dimensions
    Height 35 mm
    Depth 205 mm
    Width 244 mm
    Packaging content
    Batteries included Yes
    Technical details
    Warranty period 3 year(s)
