The Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures your PC runs stably without unexpected resets interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors so you can squeeze the last juices out of it without a hitch. No wonder it is 80 PLUS® Gold certified ;)

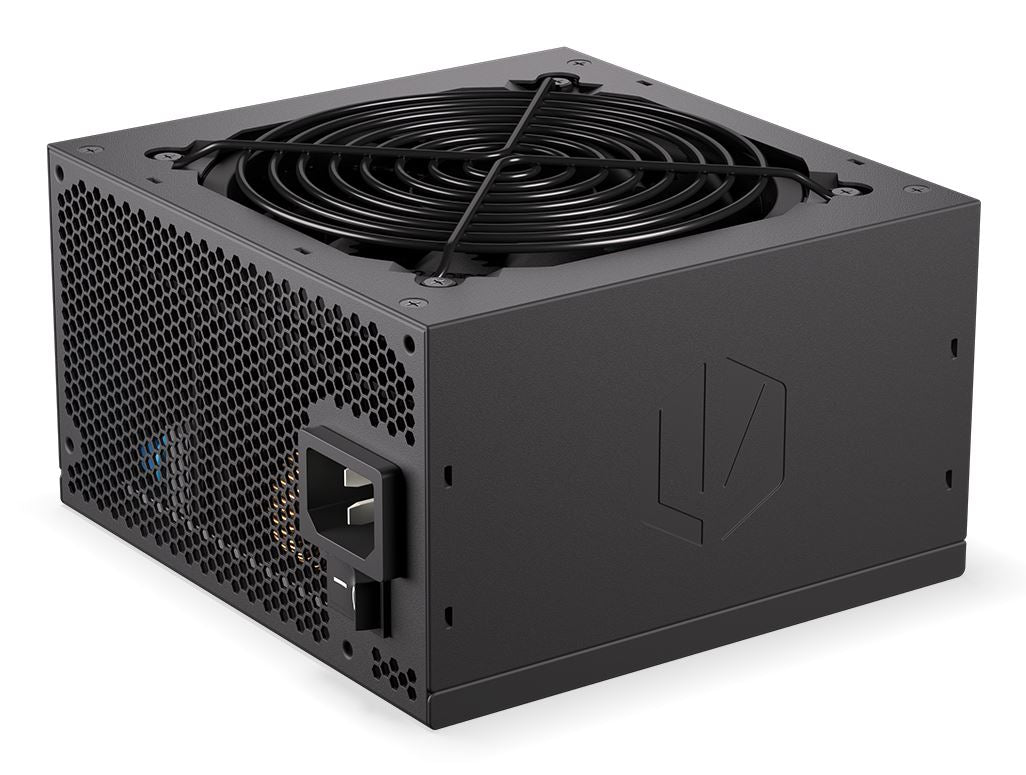

Supremo FM5 Gold 650W
When you've spent half your life by the computer, you know that stable component operation = trouble-free boss battles (including those in the office). And that's why we created the Supremo FM5 Gold 650W.
It's an efficient and relatively small (14 cm long) power supply with DC-DC topology dedicated to special tasks demanding components. We're serious – we've packed in everything we think you need to fine-tune the voltage and deliver continuous 650W of power without unexpected resets or a blue screen. We also fit a 12 cm 120 mm Fluctus fan, which will stay cool (literally!) and take care of the right temperature inside the PSU. No wonder our Supremo got the 80 PLUS® Gold certification :)
Cooling | |
---|---|
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
Cooling type | Active |
Performance | |
On/off switch | Yes |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
Mean time between failures (MTBF) | 100000 h |
Supported motherboard form factors | ATX |
Design | |
80 PLUS certification | 80 PLUS Gold |
Product colour | Black |
Fan diameter | 12 cm |
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan location | Top |
Cooling type | Active |
Power | |
Total power | 650 W |
AC input voltage | 115 - 230 V |
AC input frequency | 50/60 Hz |
Combined power (+3.3V) | 100 W |
Combined power (+12V) | 648 W |
Combined power (+5V) | 100 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 54 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces | |
Motherboard power connector | 18+10 pin ATX |
Number of SATA power connectors | 3 |
PCI Express power connectors (8-pin) | 6 |
Cabling type | Fully-Modular |
Packaging content | |
Cables included | AC |
Weight & dimensions | |
Width | 140 mm |
Depth | 150 mm |
Height | 87 mm |
Packaging data | |
Cables included | AC |
Package type | Box |
Certificates | |
80 PLUS certification | 80 PLUS Gold |
