NO COMPROMISE SILENCE AND PERFORMANCE

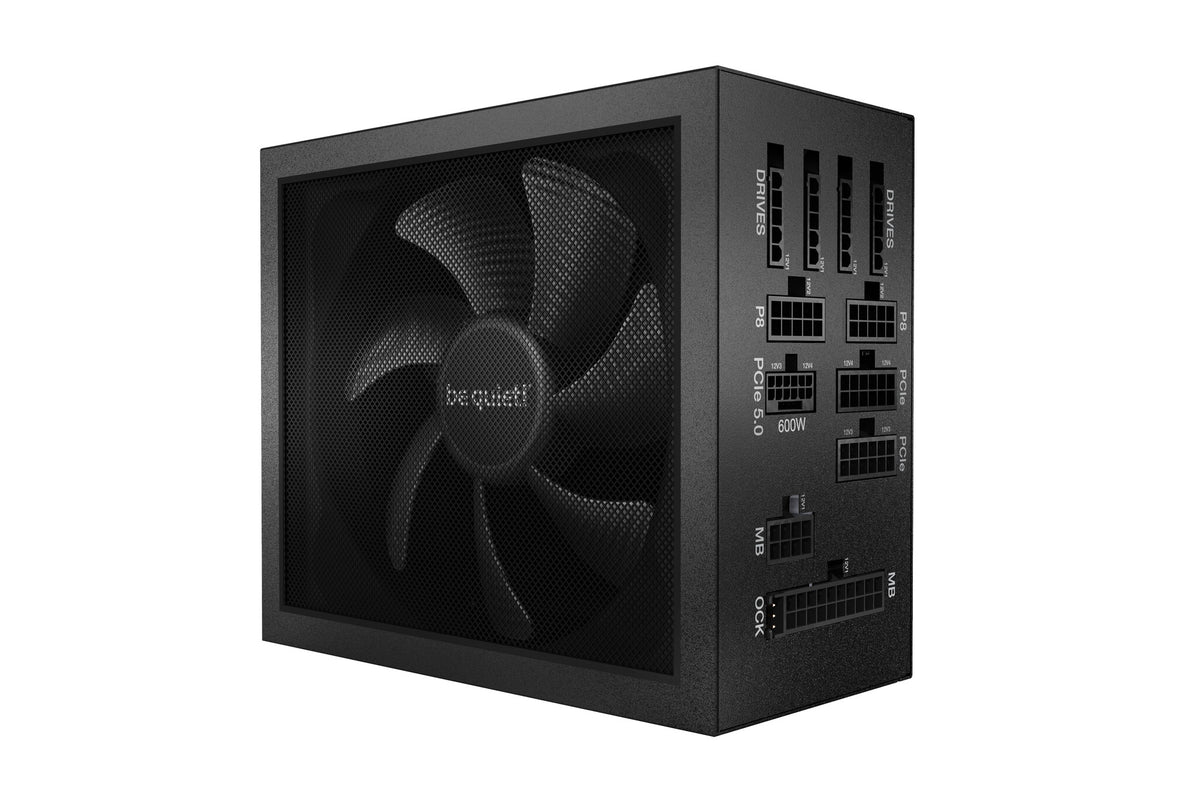

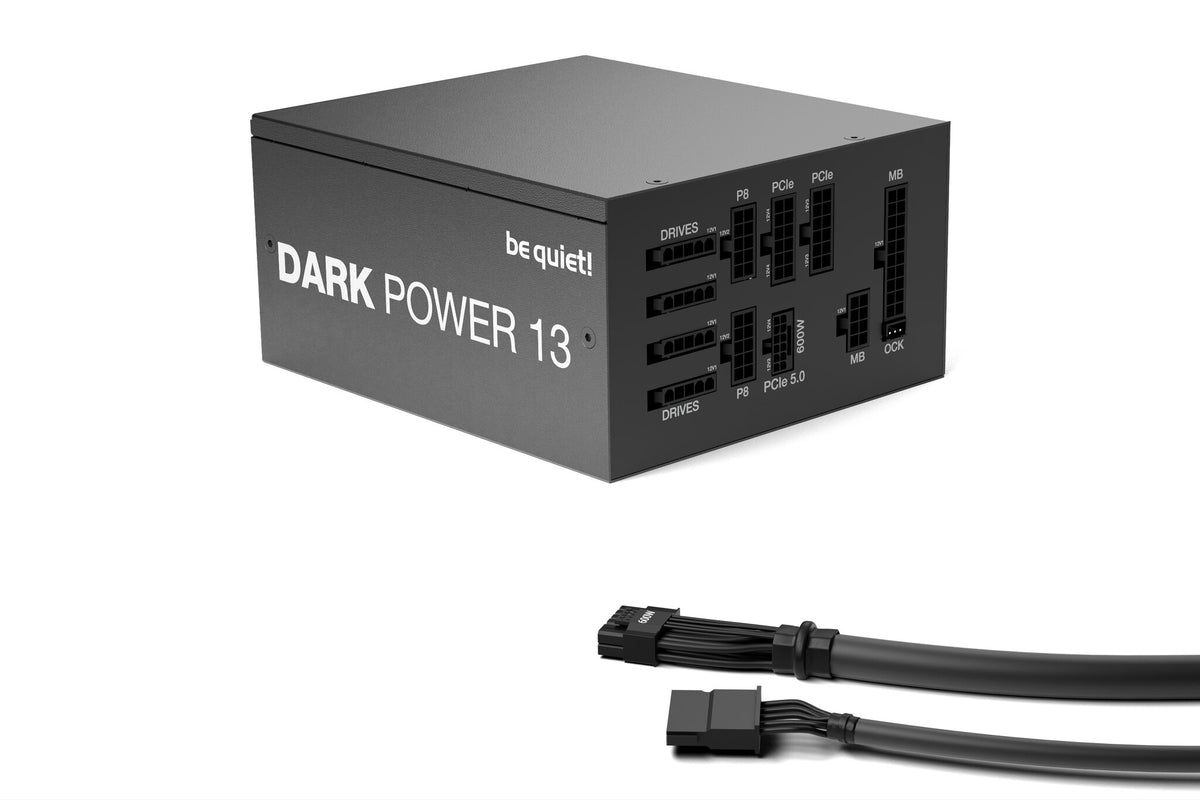

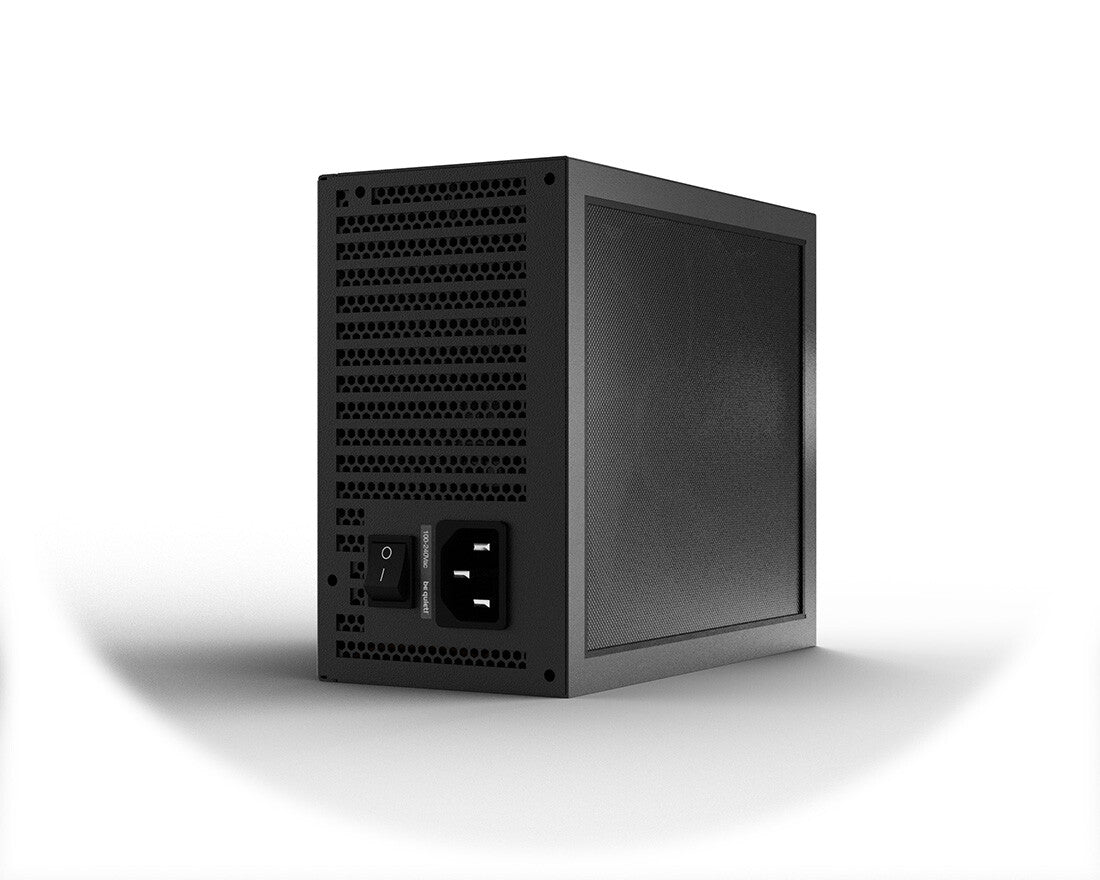

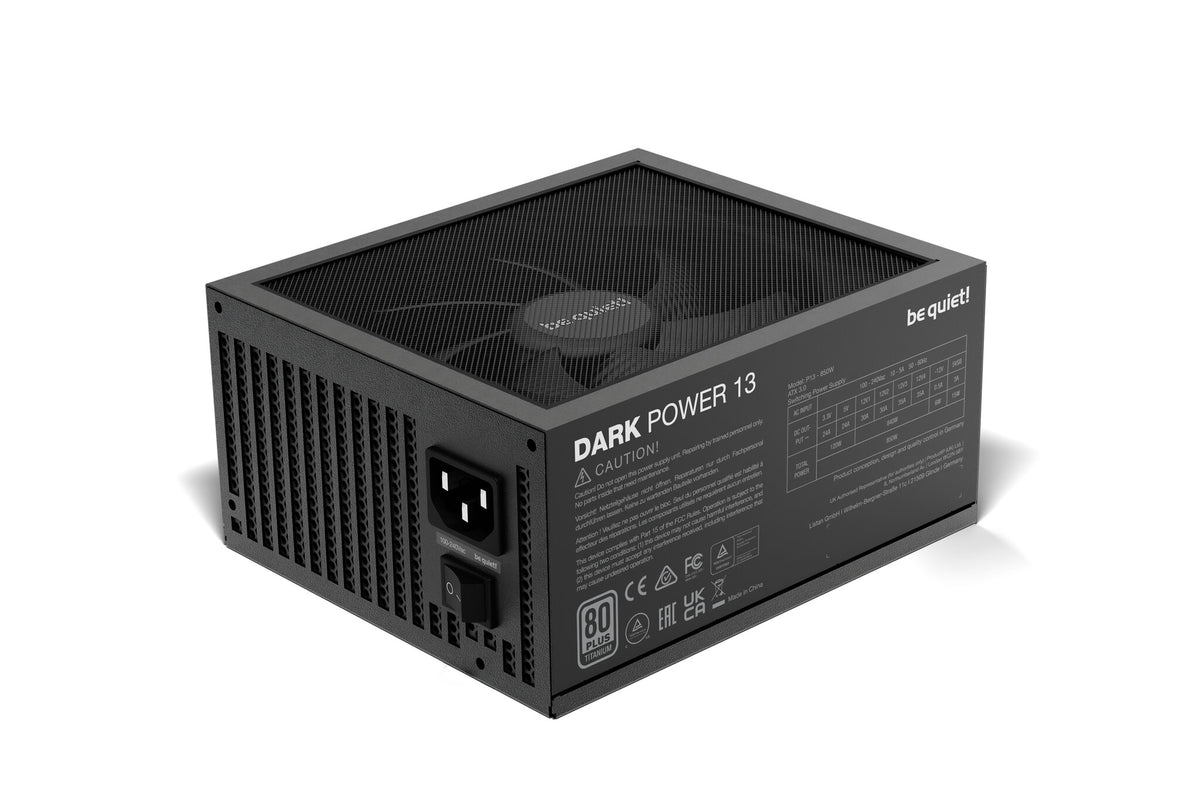

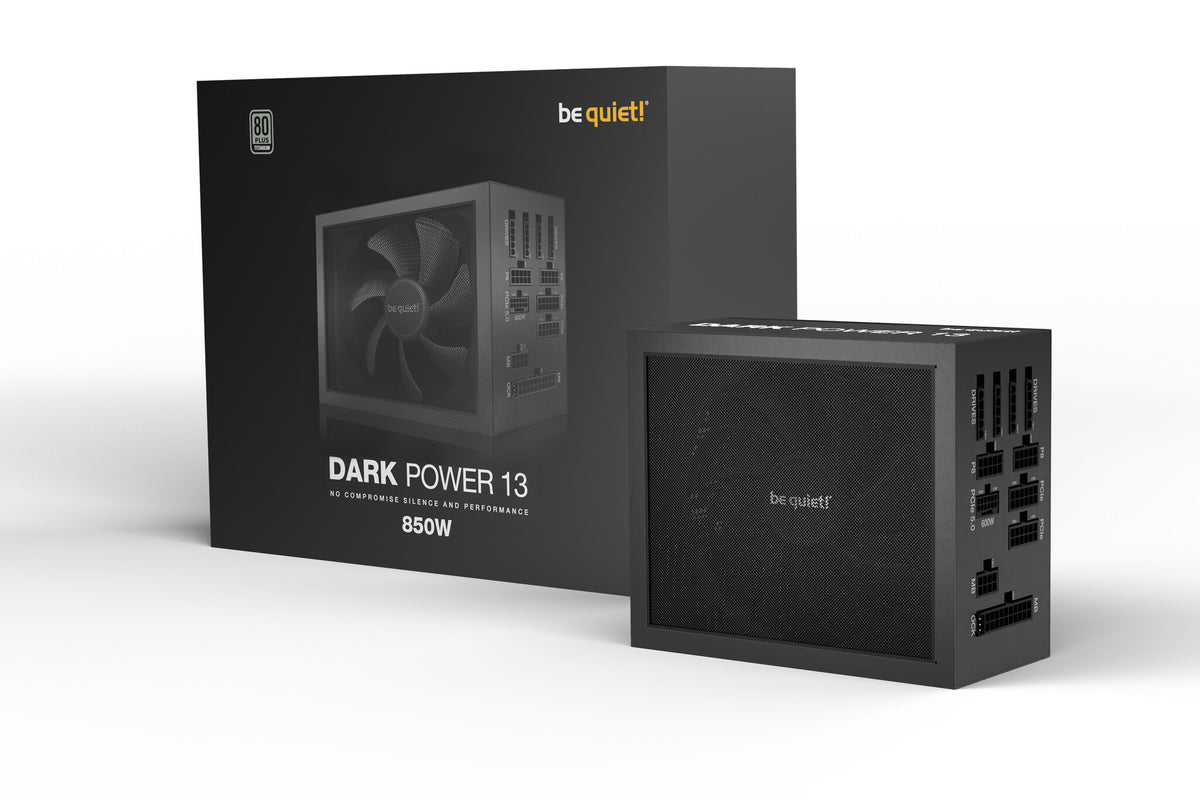

The be quiet! Dark Power 13 850W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power 13 850W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.4%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power 13 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Dark Power 13 offers 850W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

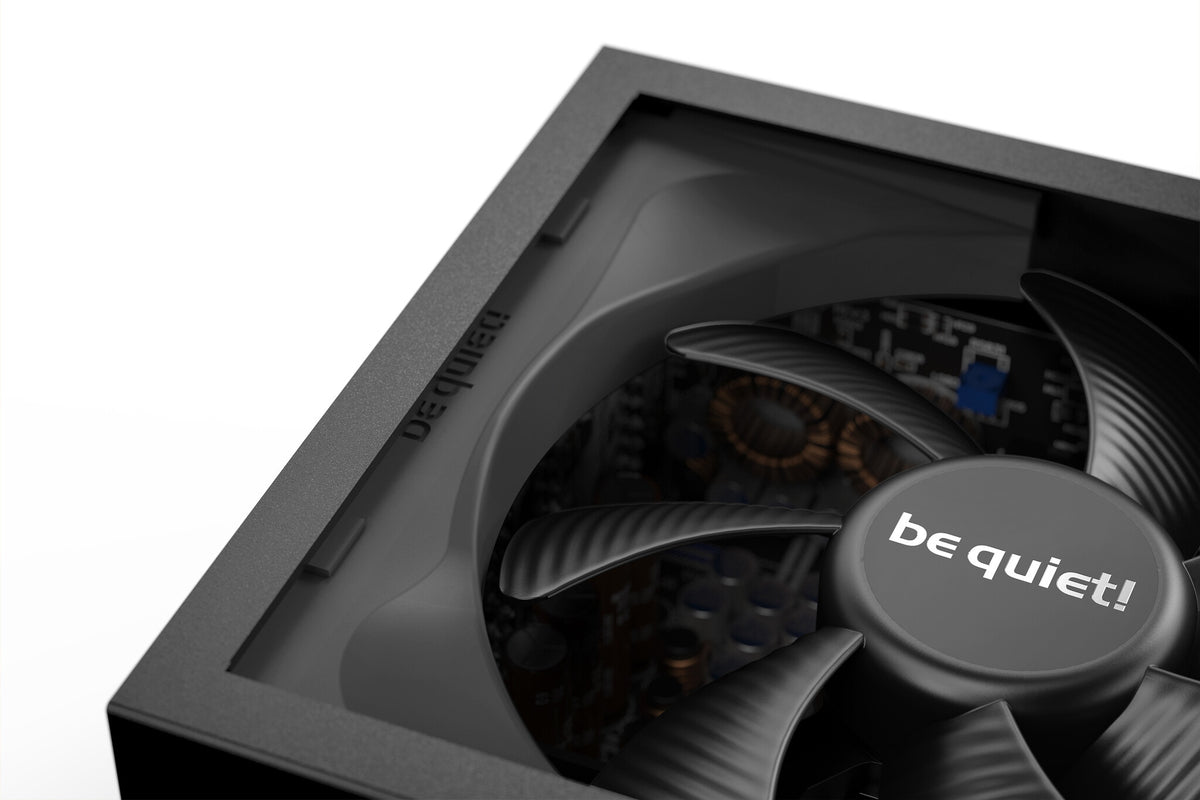

FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power 13 850W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan
READY FOR OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power 13 850W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive
single-rail operation.
WORLD CLASS TOPOLOGY
State-of-the-art technology for extremely
high efficiency

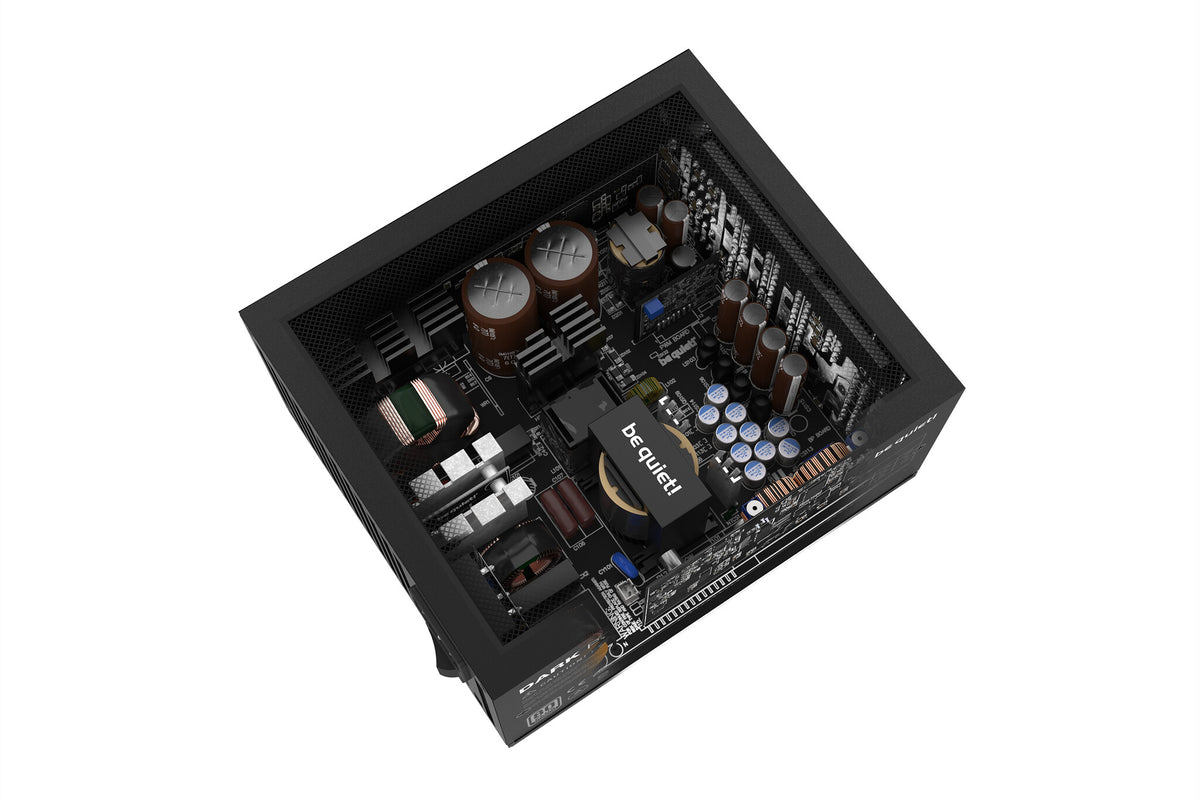

With an active rectifier and full bridge LLC technology Dark Power 13 850W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably
stable operation.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Dark Power 13 850W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.
HIGHEST CONVENIENCE AND BEST CONNECTIVITY

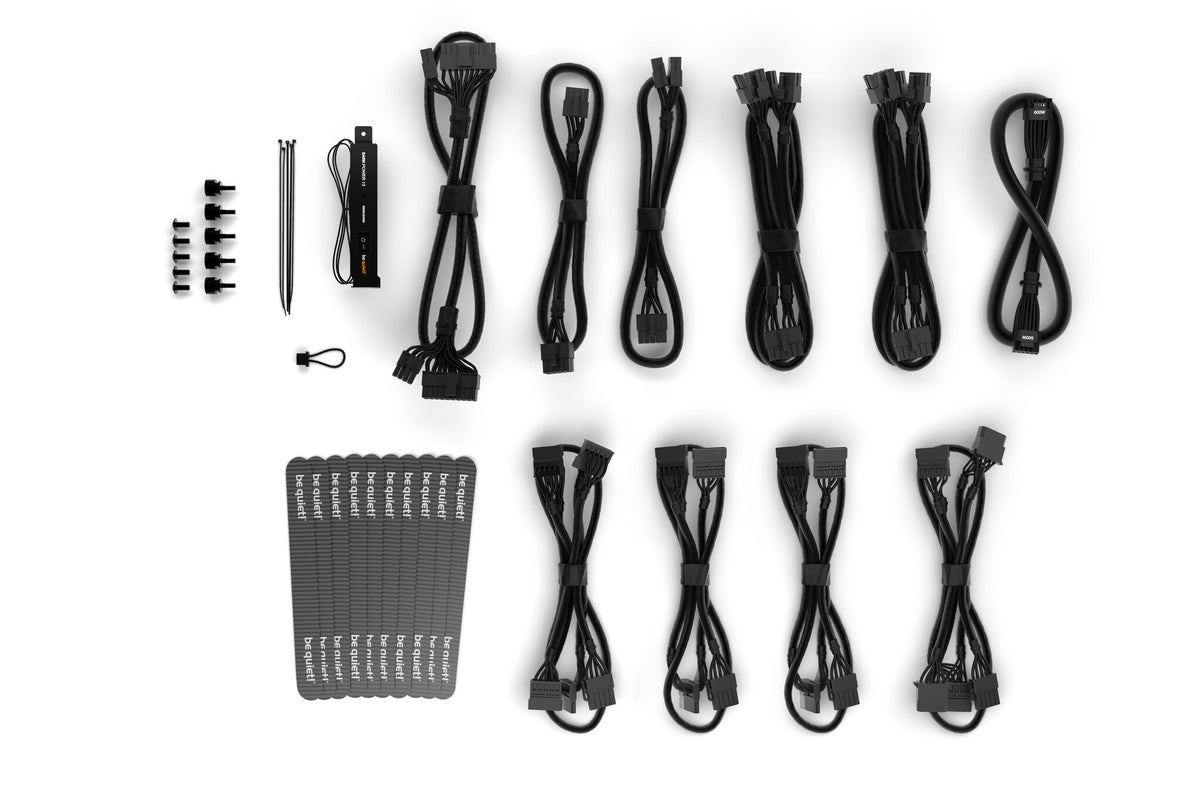

Modular cables
Modular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 22.6 ms |
Efficiency | 95.4% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.5 A |
Max output current (+5V) | 24 A |
Max output current (+12V3) | 35 A |
Max output current (+12V4) | 35 A |
Max output current (+12V2) | 30 A |
Max output current (+12V1) | 30 A |
Max output current (+3.3V) | 24 A |
Maximum input current (@220V) | 10 A |
Maximum input current (@110V) | 5 A |
Input current | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 950 W |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
SATA power cable length | 1050 mm |
Number of SATA power connectors | 12 |
Number of PATA power connectors | 3 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | BSMI, CB, CCC, CE, cRUus, CU, FCC, cTUVus, RCM, TUV, UKCA, Triman |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Noise level | 19.8 dB |
EPS version | 2.92 |
ATX version | 3.0 |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
80 PLUS certification | 80 PLUS Titanium |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Illumination | No |
Built-in display | No |
Fan location | Top |
Fan speed | 0 - 1800 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | SATA |
Weight & dimensions | |
---|---|
Weight | 1.97 kg |
Height | 86 mm |
Depth | 175 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 4.25 kg |
Package height | 270 mm |
Package depth | 350 mm |
Package width | 120 mm |
Technical details | |
---|---|
Sustainability certificates | ENERGY STAR, ErP |
Warranty period | 10 year(s) |
Compliance certificates | CB, CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
Logistics data | |
---|---|
Shipping (inner) case length | 50.4 cm |
Shipping (inner) case width | 30.5 cm |
Shipping (inner) case height | 36.8 cm |
Shipping (inner) case net weight | 18.3 kg |
