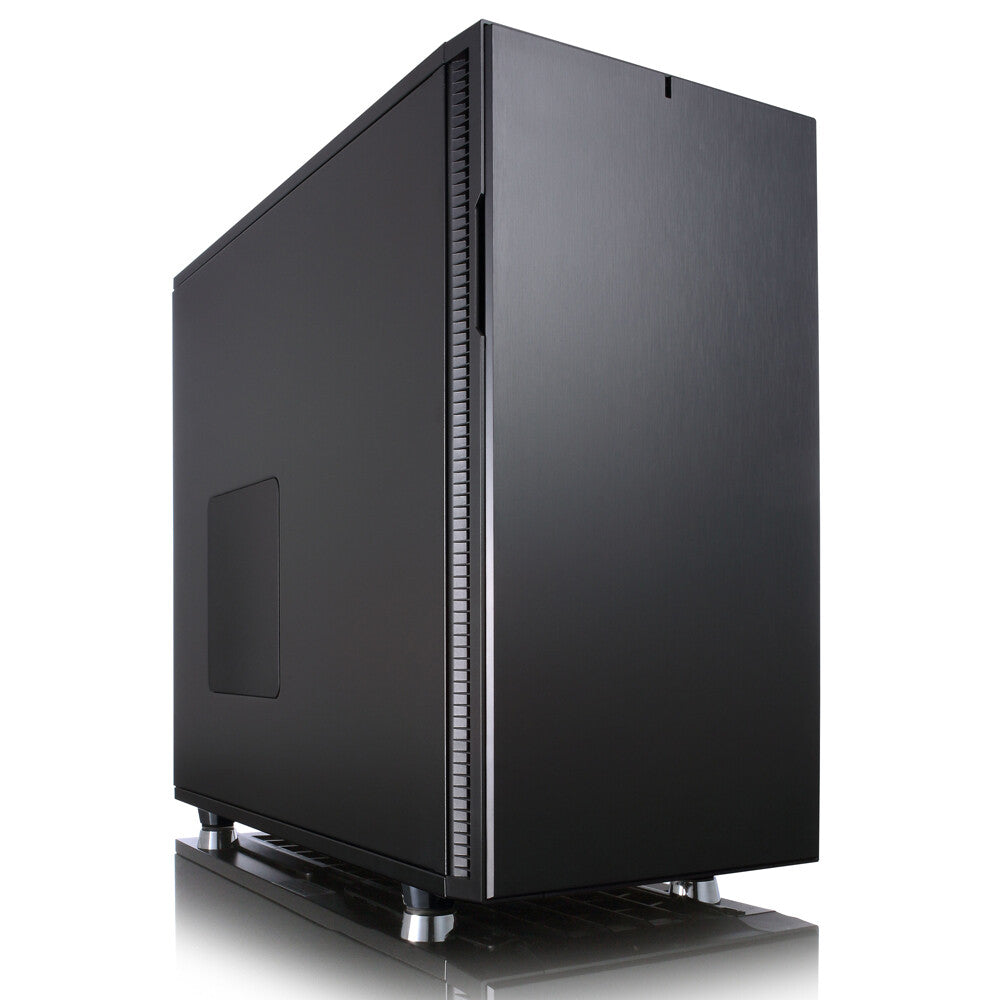

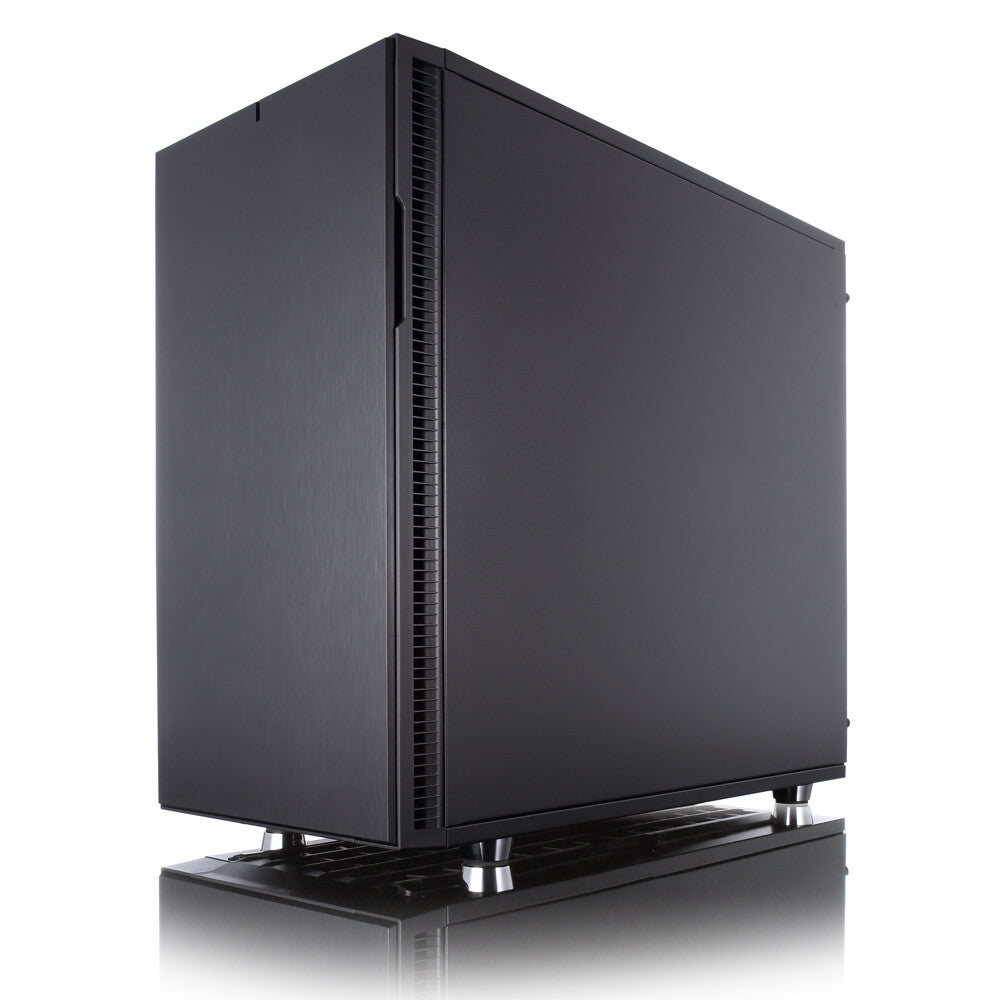

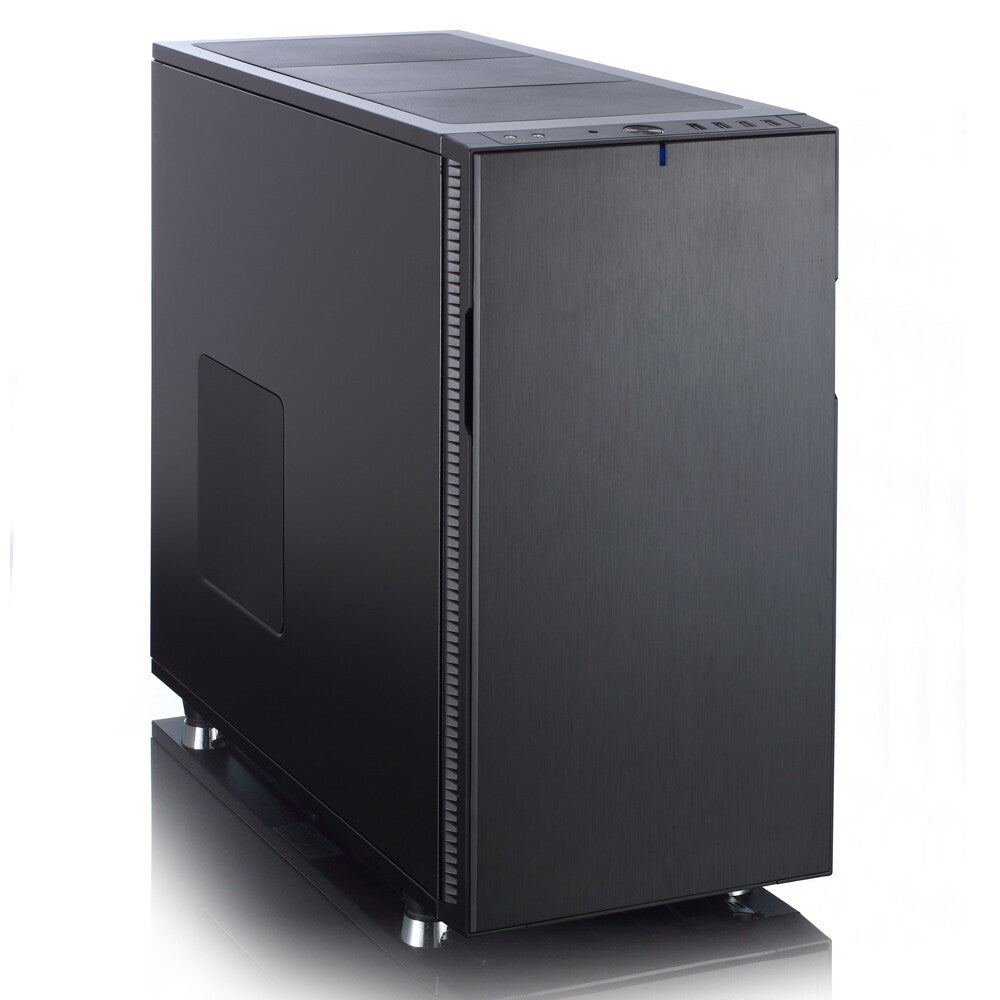

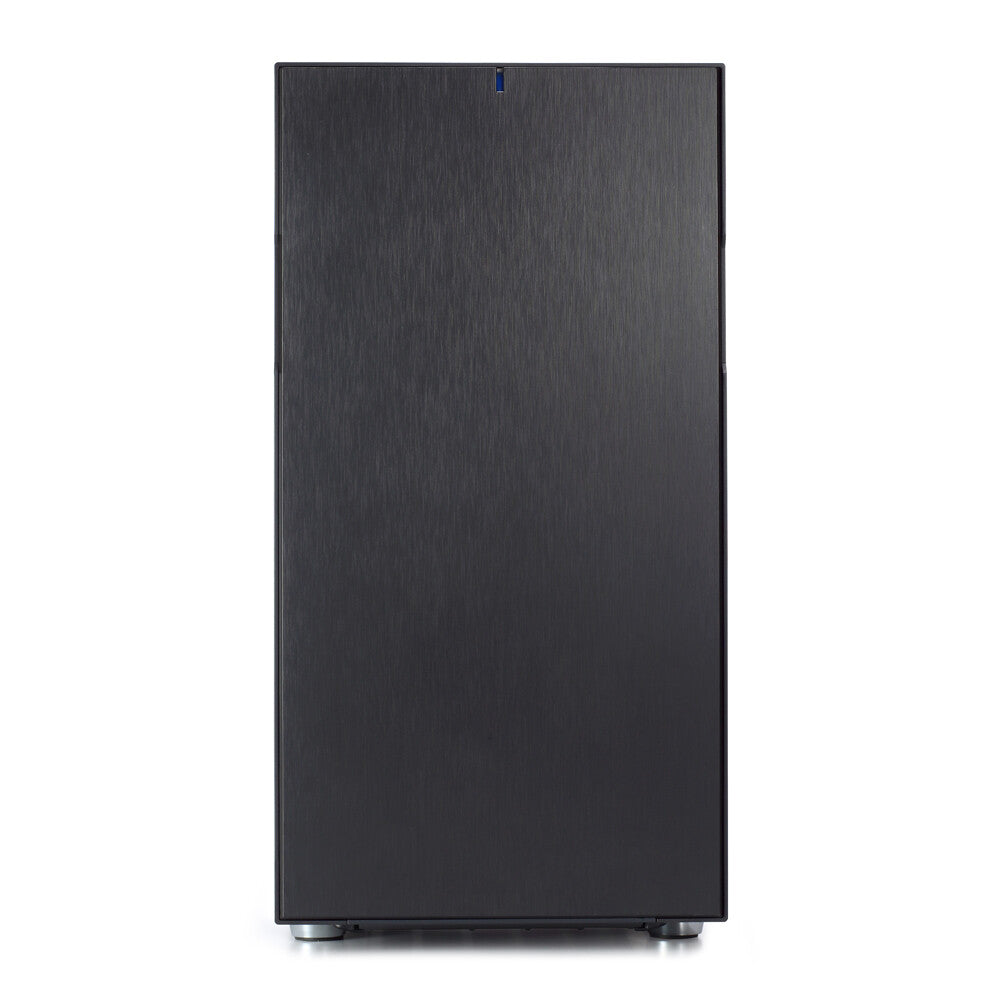

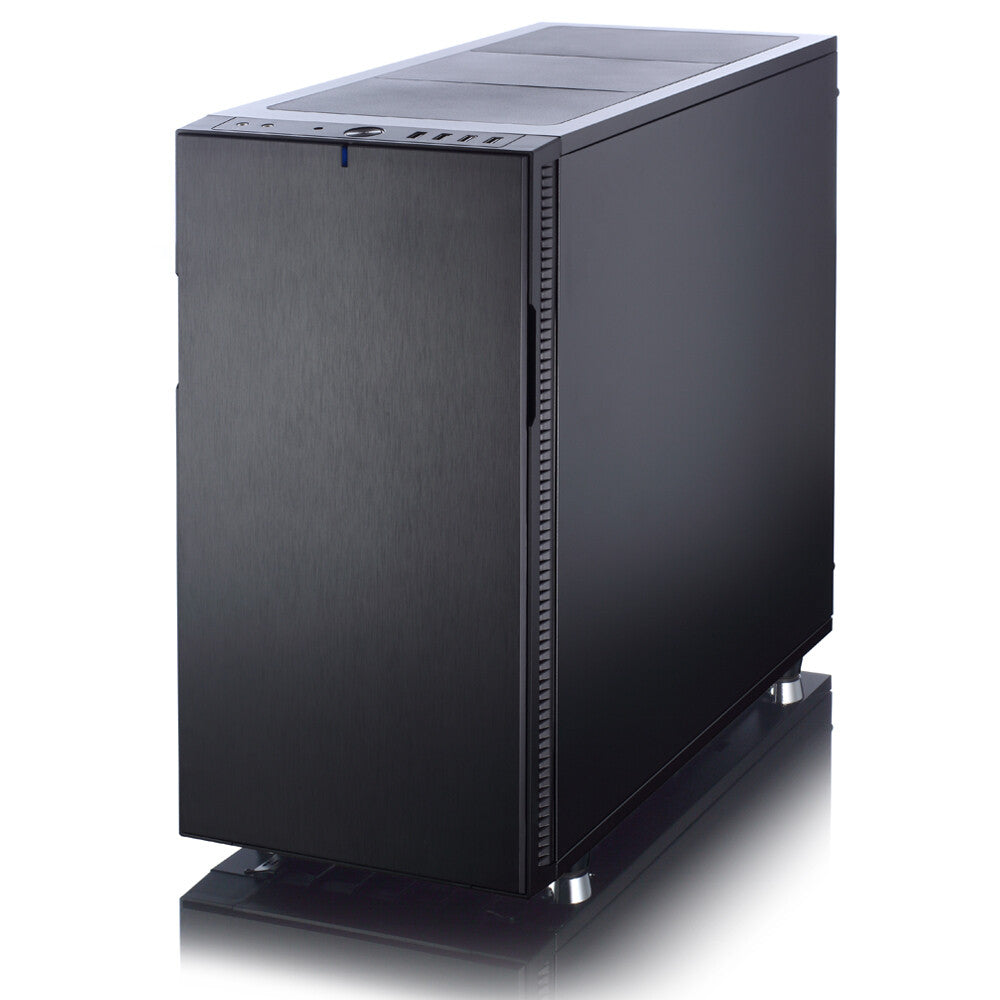

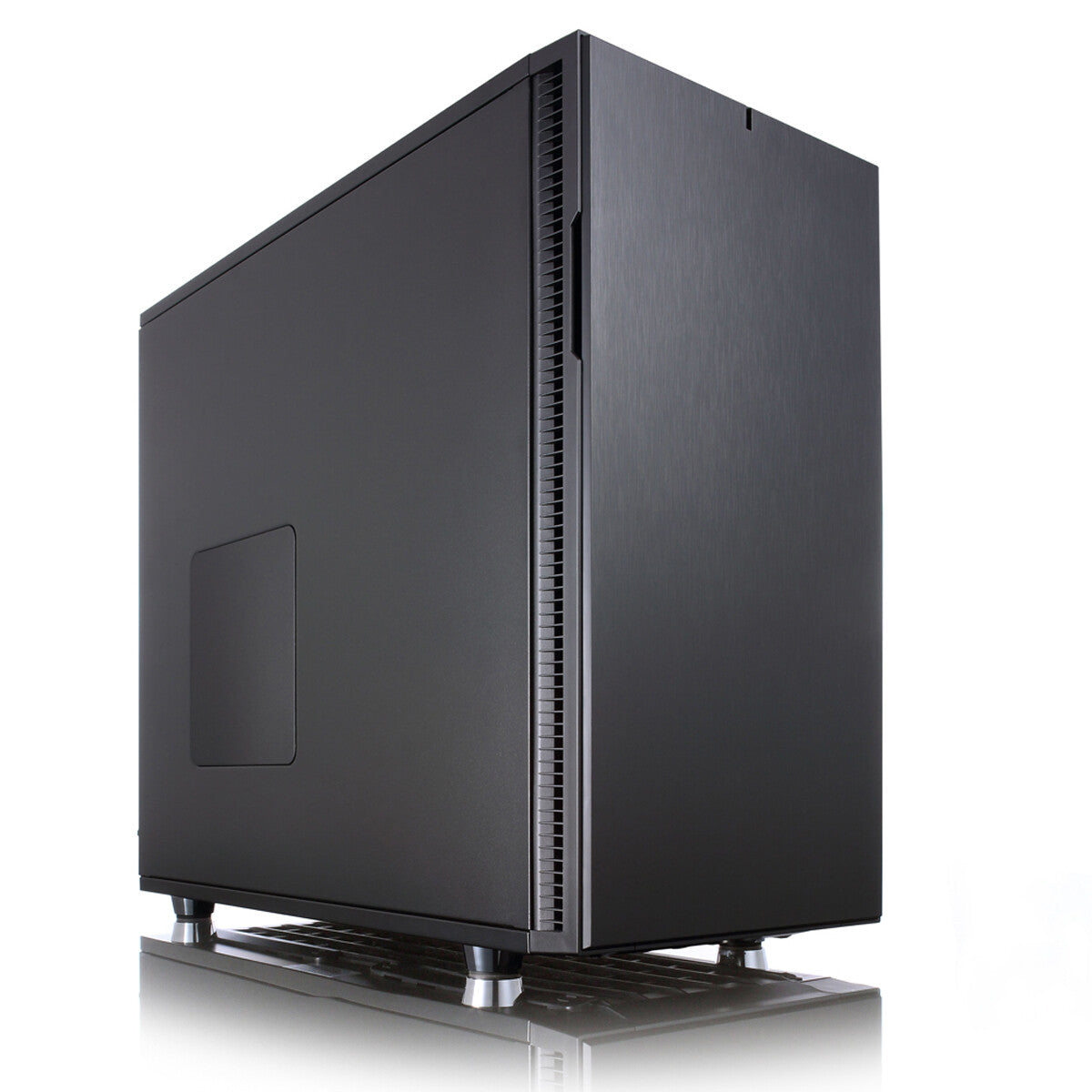

The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

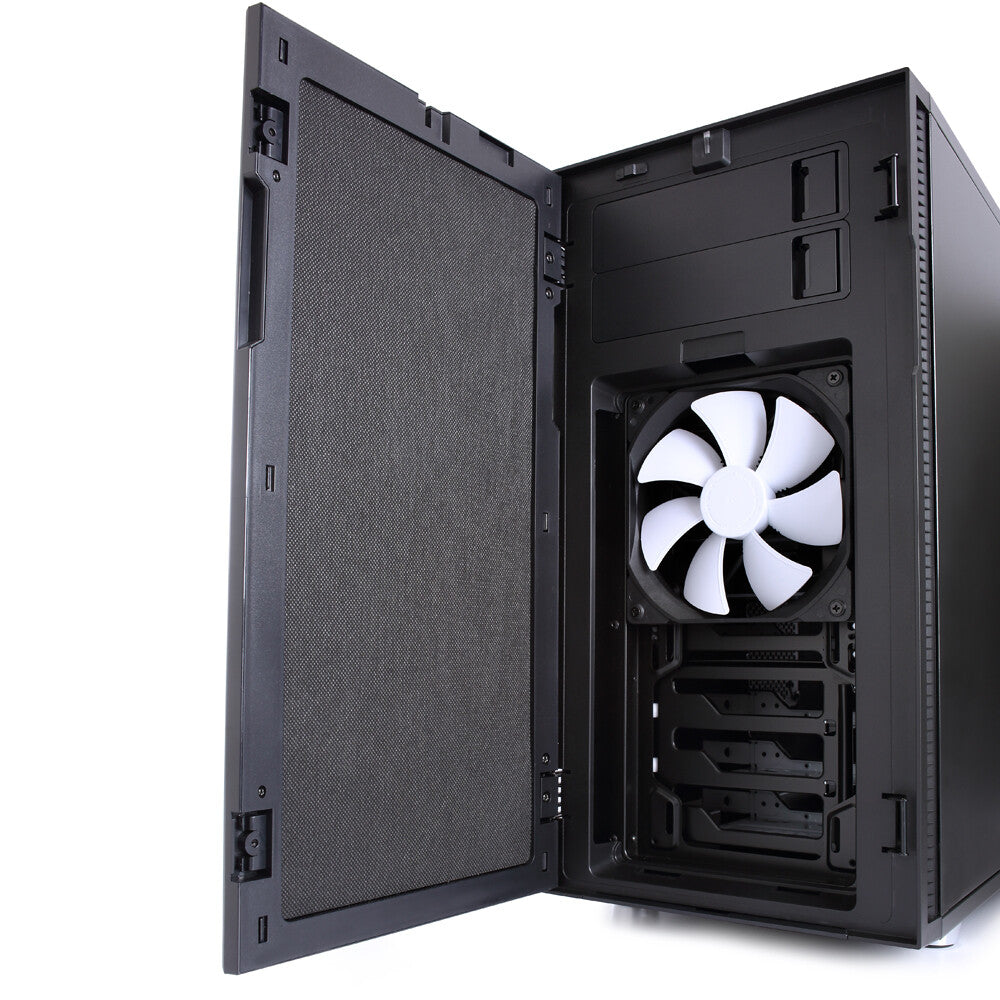

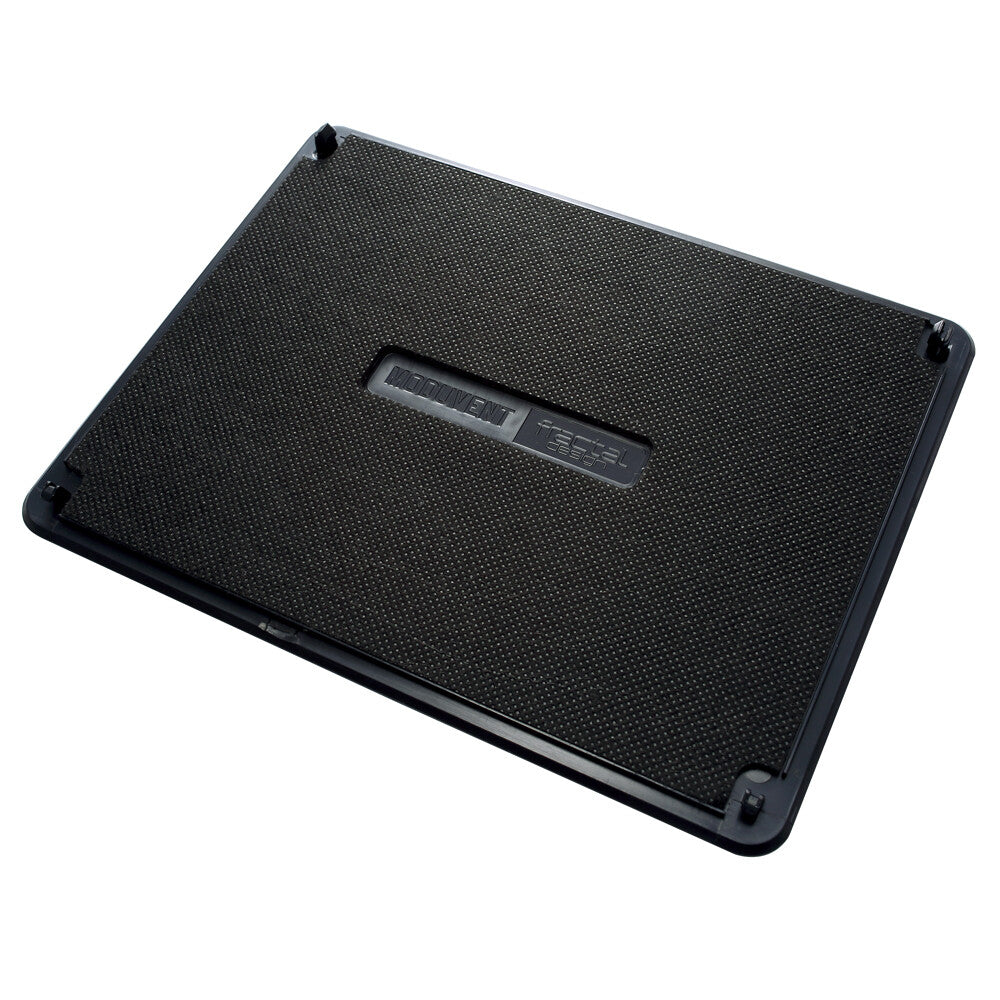

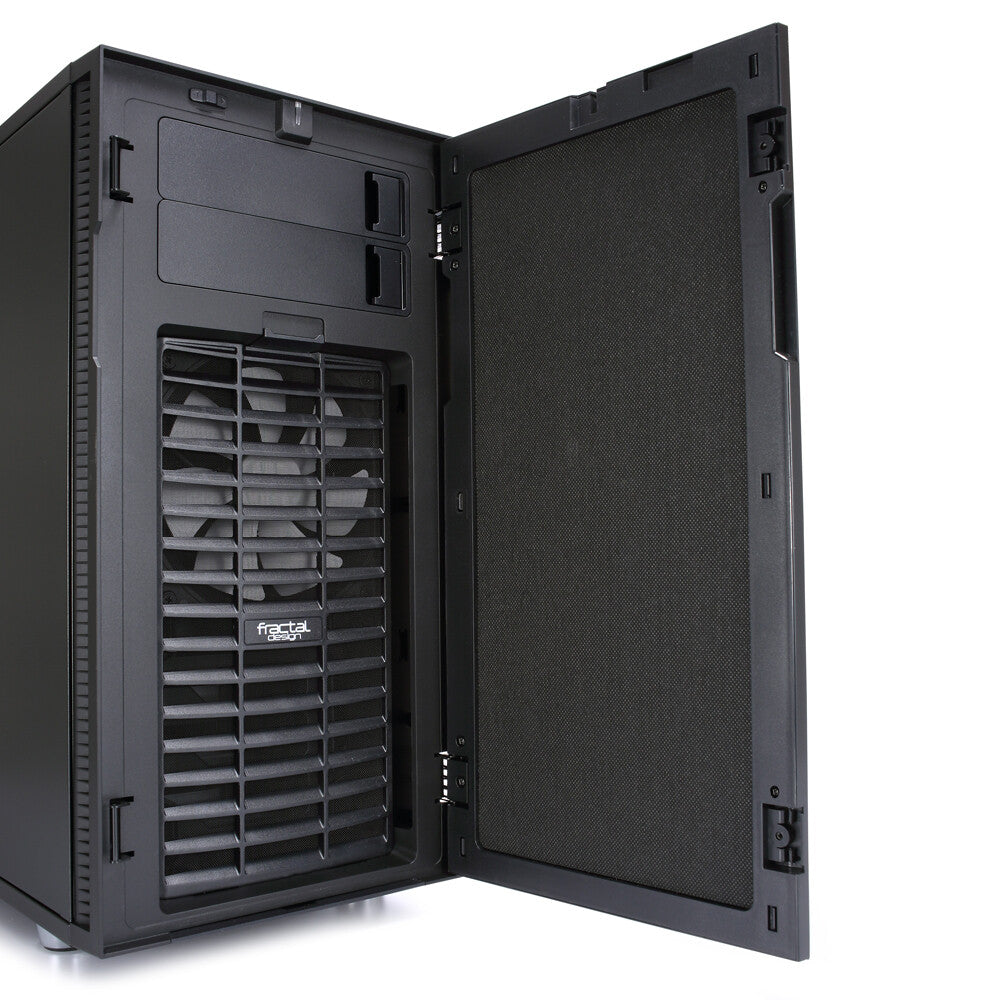

The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, ModuVent™ fan vent covers and finely tuned Dynamic Series fans.

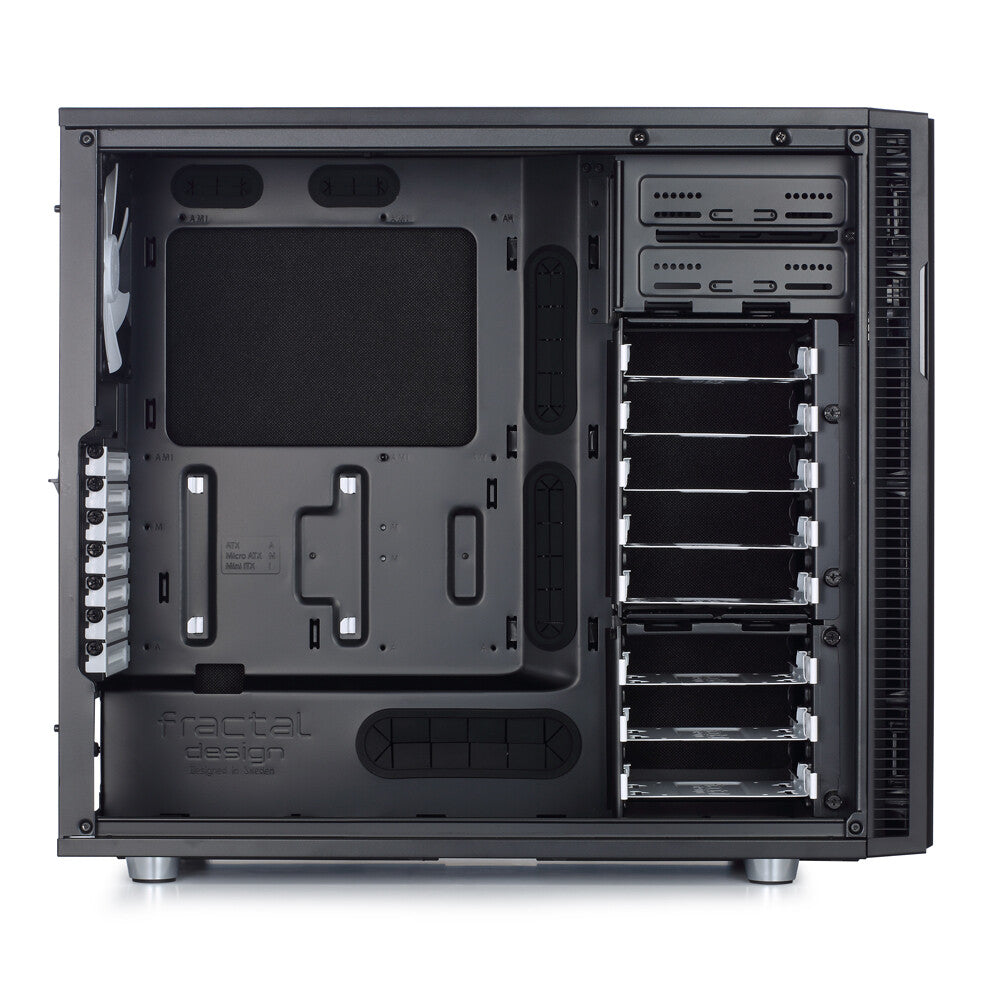

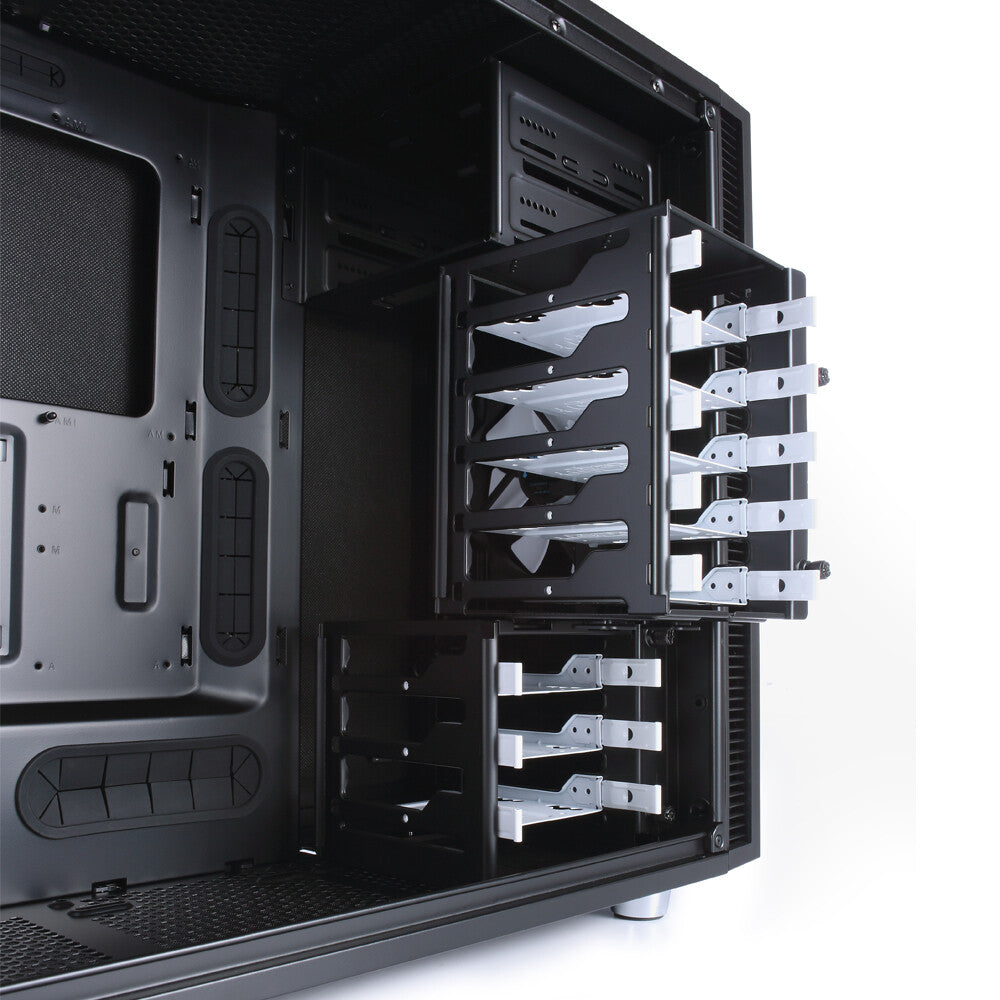

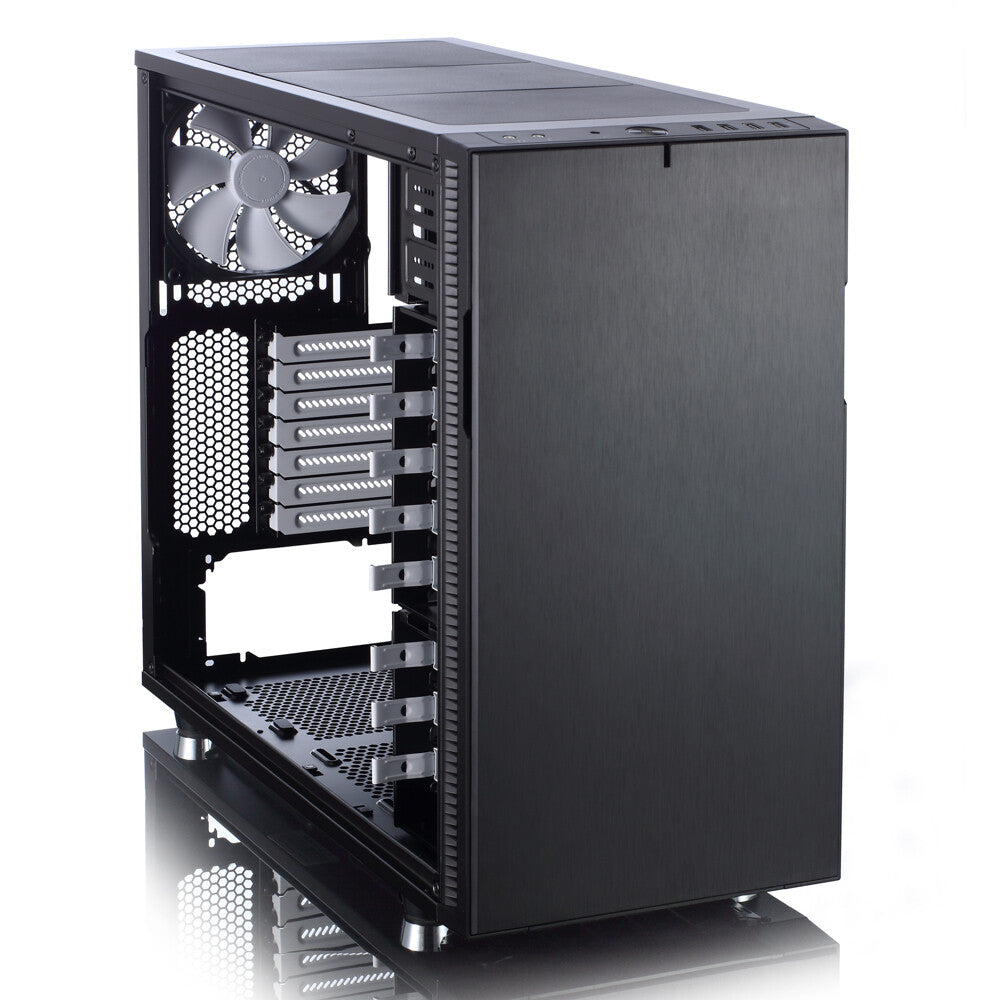

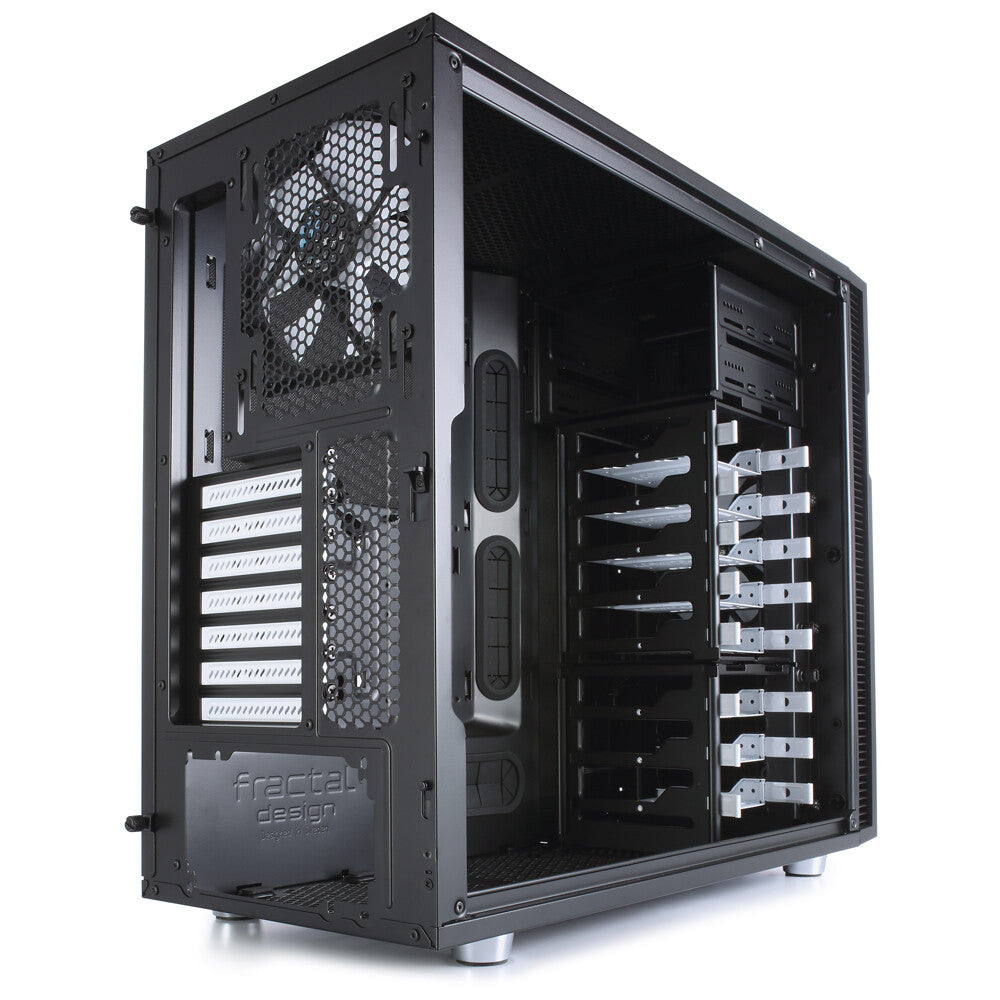

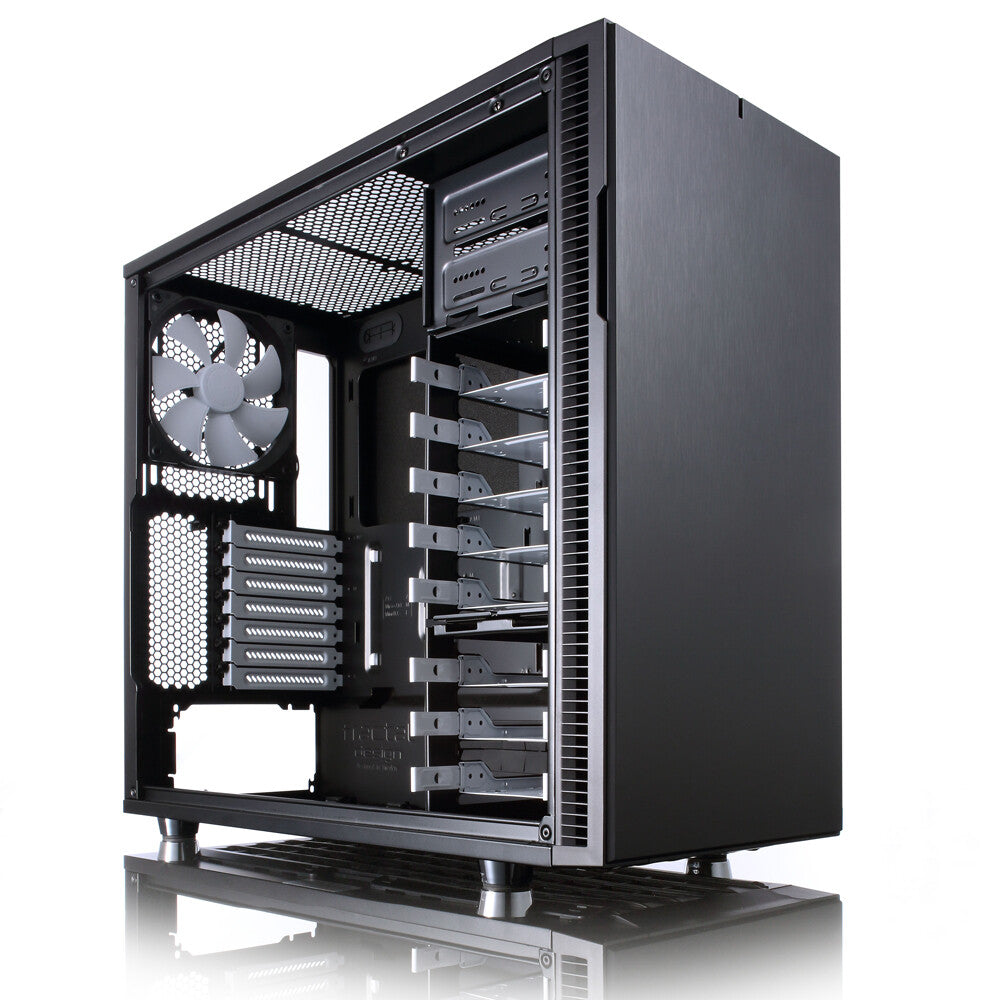

The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your demand.
Design | |
---|---|
Maximum PSU length | 30 cm |
Maximum graphics card length | 44 cm |
Maximum CPU cooler height | 18 cm |
LED indicators | Yes |
Reset button | Yes |
Cable management | Yes |

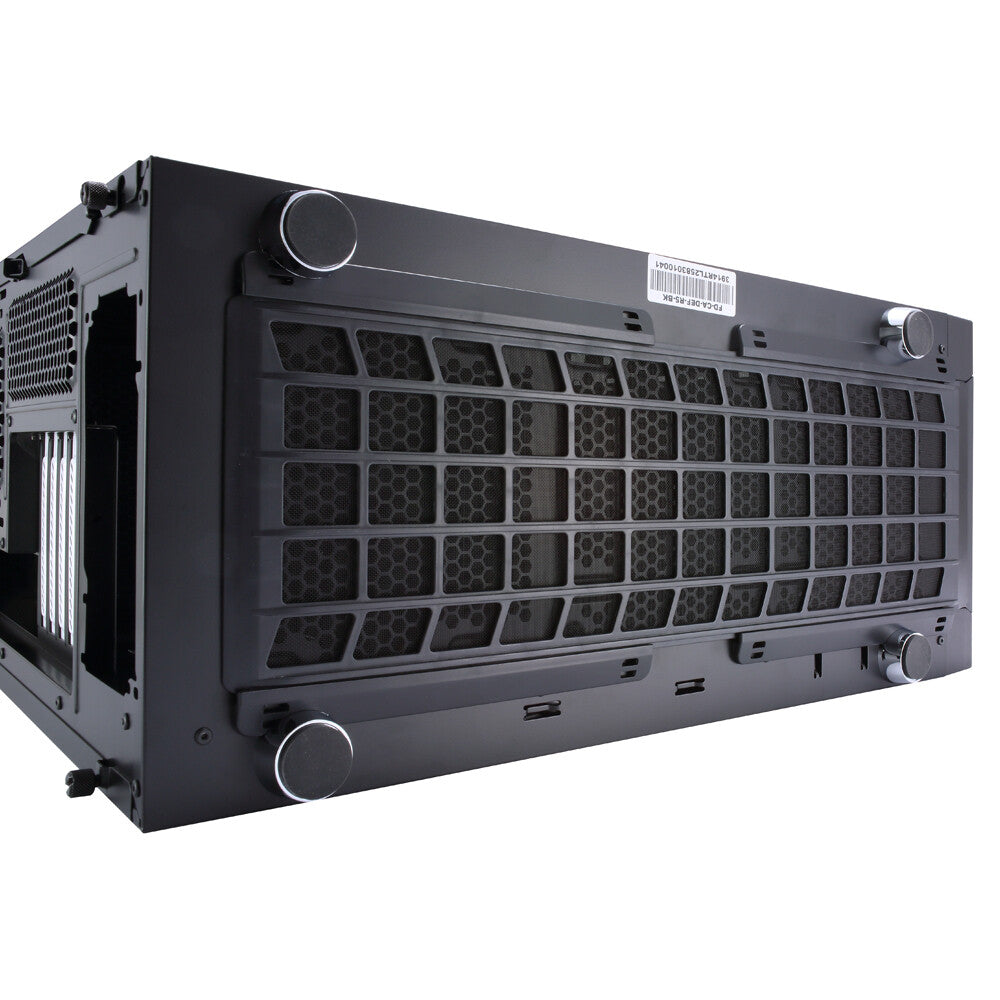

Anti-dust filter | Yes |
Built-in speaker(s) | No |
Side window | No |

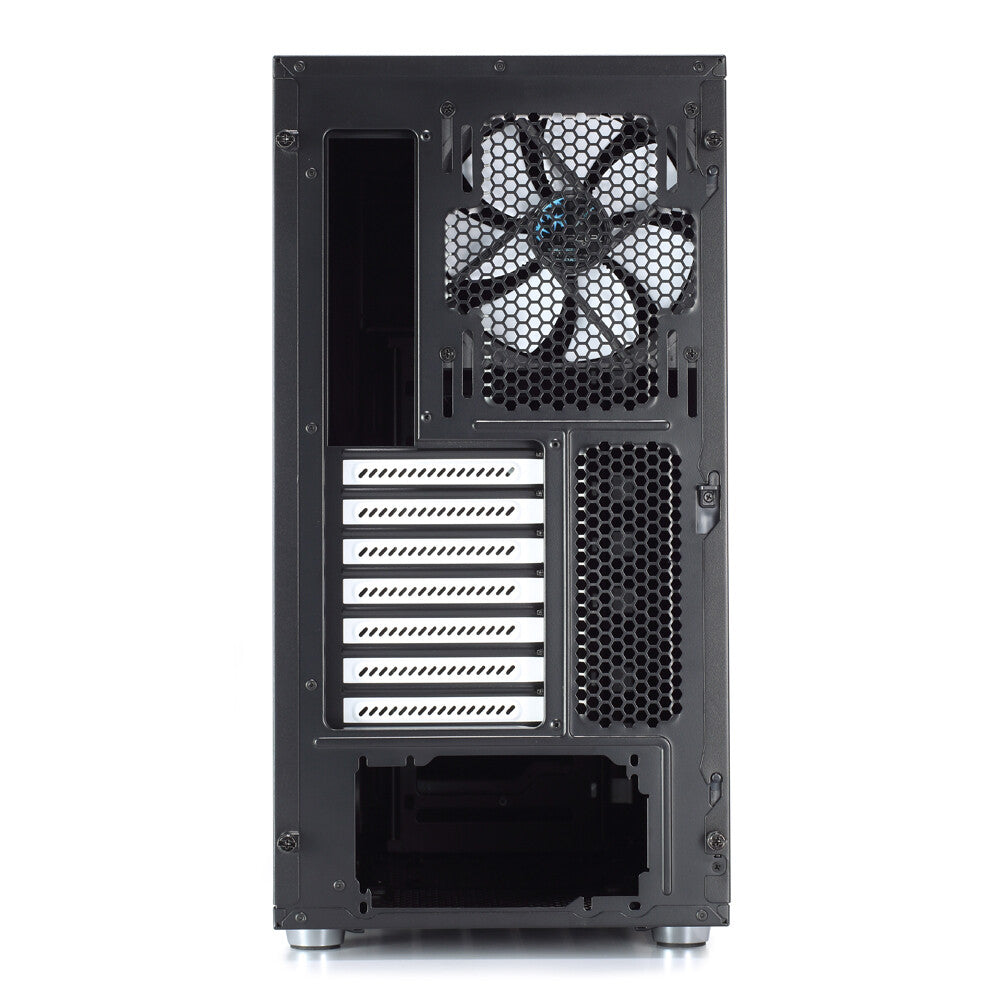

Number of expansion slots | 7 |
Number of internal 5.25" bays | 2 |
Number of internal 3.5" bays | 8 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 8 |
Number of 5.25" bays | 2 |

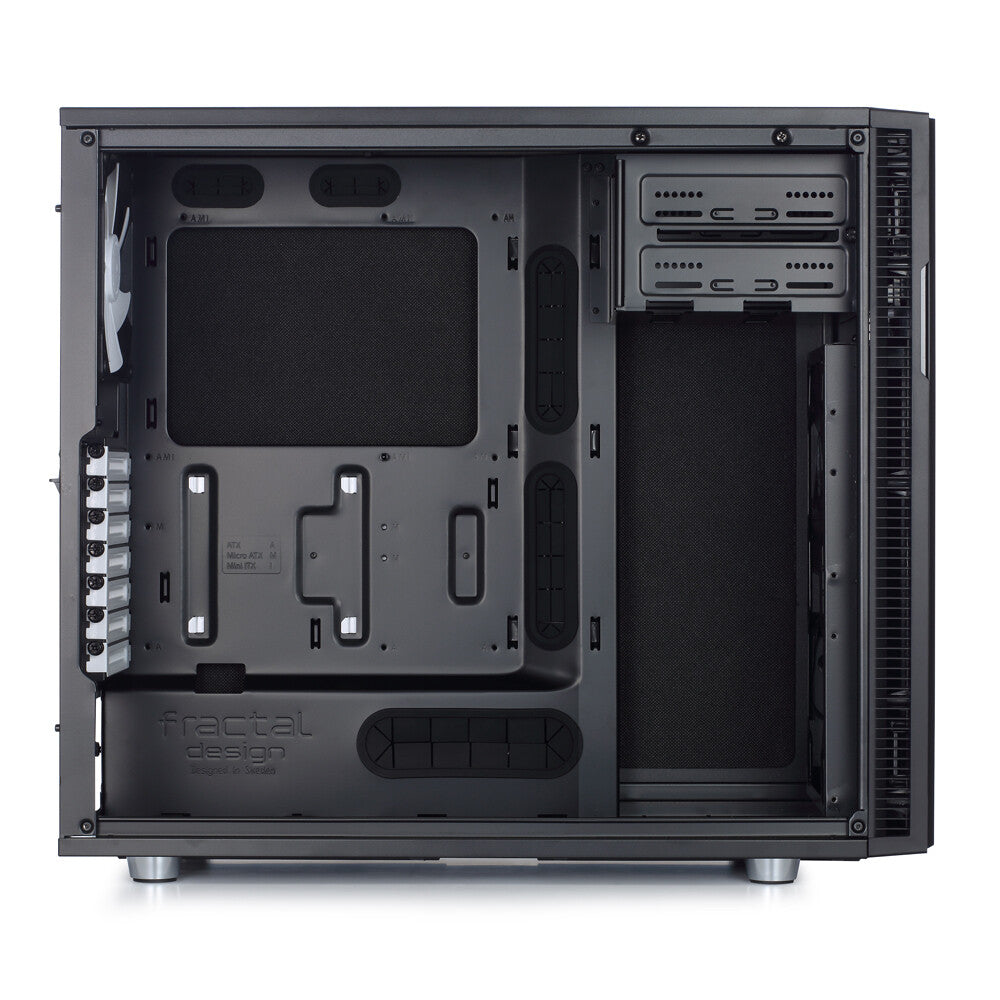

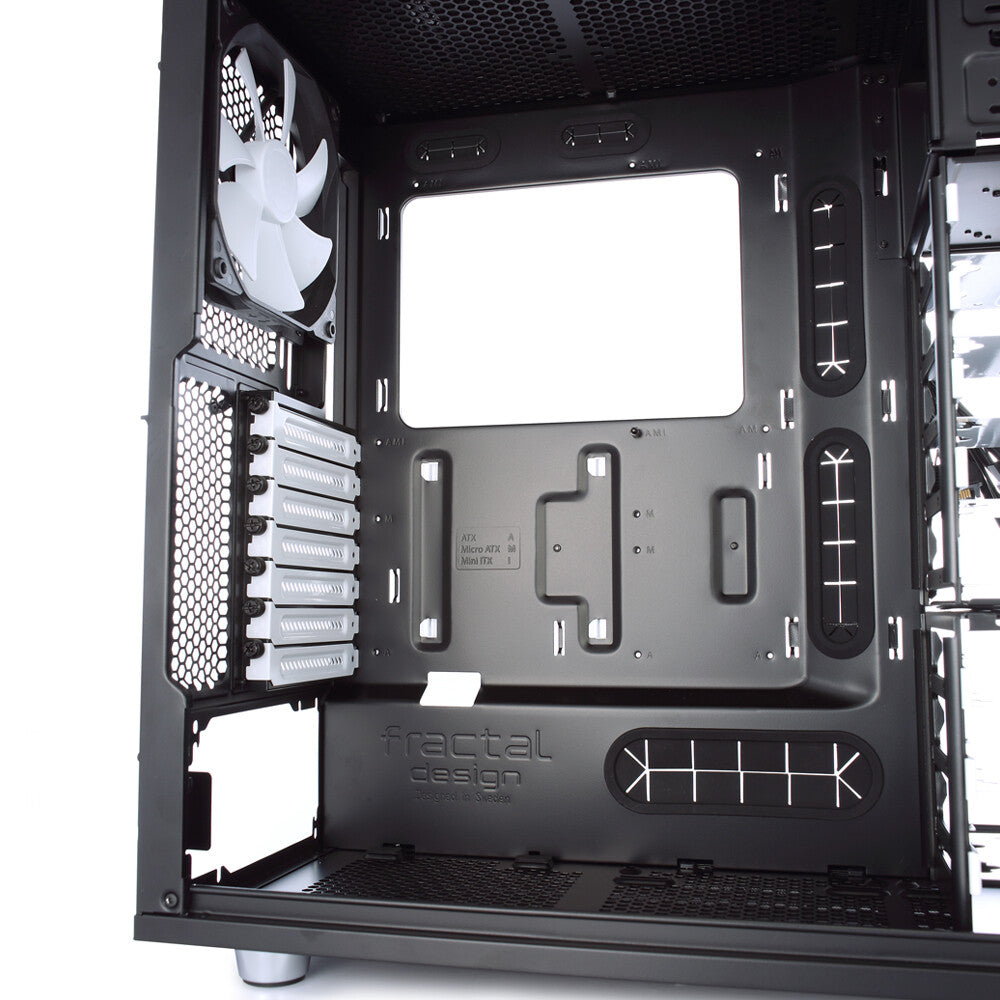

Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply location | Bottom |
Power supply included | No |

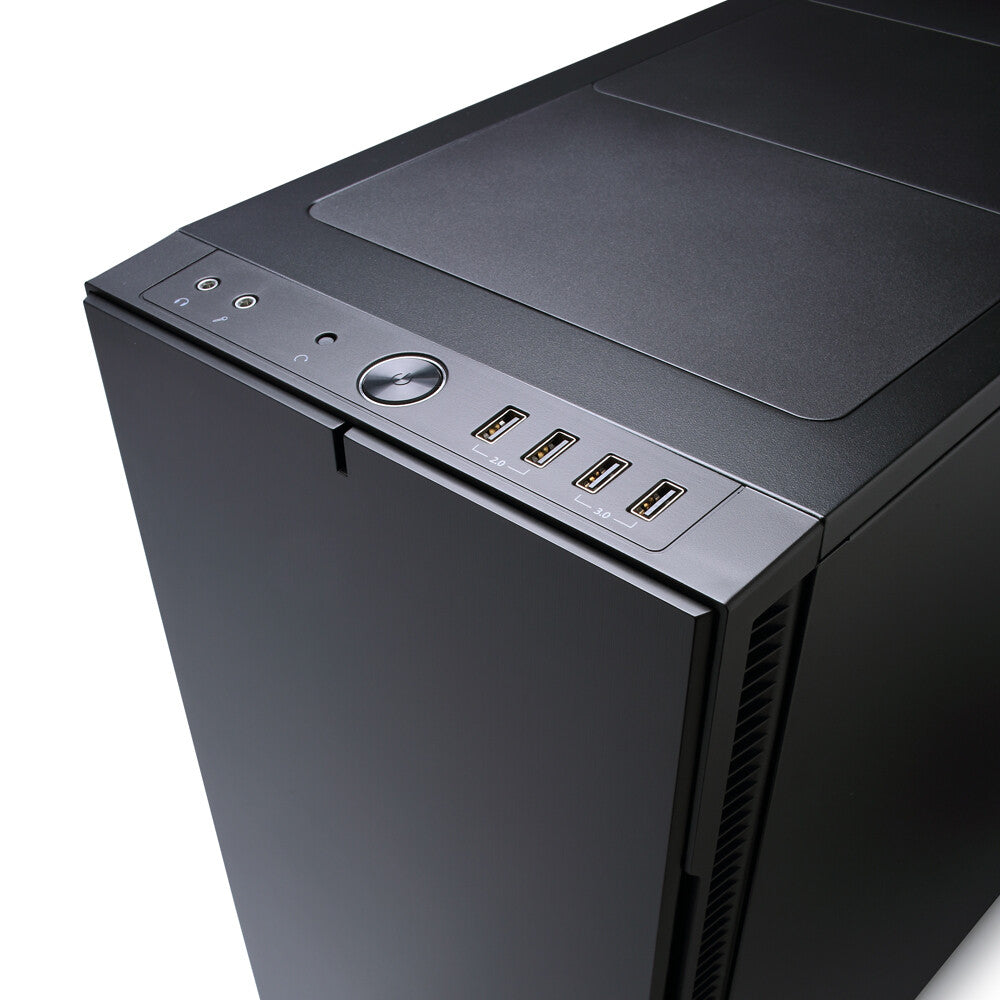

Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,240,280,360,420 mm |
Rear radiator sizes supported | 120,140 mm |
Front radiator sizes supported | 120,140,240,280,360 mm |
Liquid cooling capability | Yes |
Bottom fans diameters supported | 120,140 mm |
Number of bottom fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |

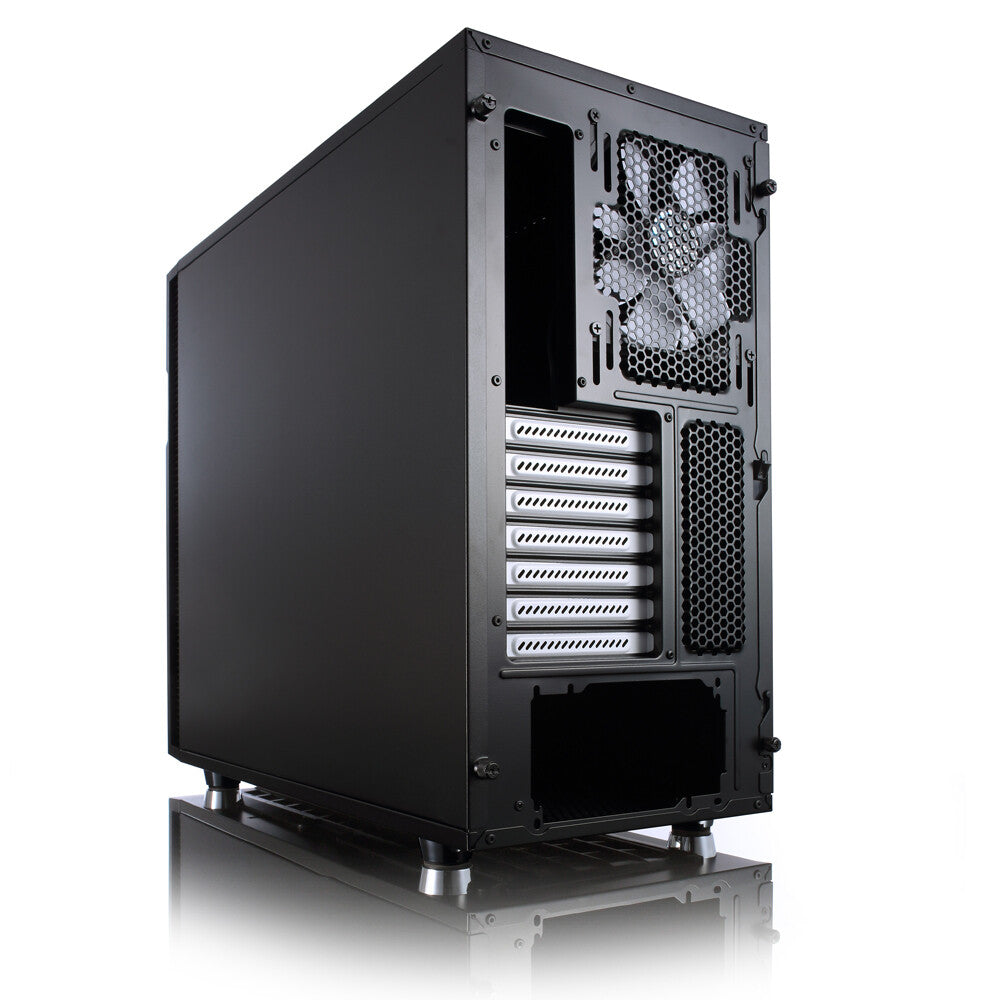

Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 140 mm |
Side fans diameters supported | 120,140 mm |
Number of side fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 1x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5,5.25" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 10.7 kg |
Height | 462 mm |
Depth | 531 mm |
Width | 232 mm |
Packaging data | |
---|---|
Package weight | 12.5 kg |
Package height | 615 mm |
Package depth | 540 mm |
Package width | 327 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
