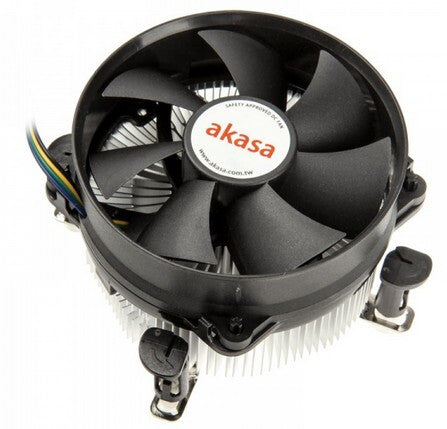

The low noise AK-959 uses a high engineered multi directional heatsink with copper core and bi-ped fins providing cost effective efficient CPU and motherboard cooling. The PWM fan is regulated automatically by CPU usage so under normal PC work load the fan speed is low ensuring quiet computing but extra performance is available when needed.
Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA115X platforms without any mounting adjustment, pushpins will automatically slide into correct position.
AK-959CU is designed to work with CPU’s up to 115W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

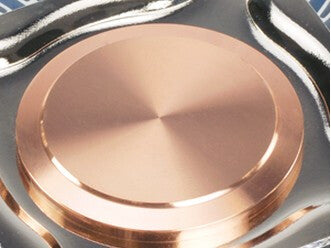

- High engineered aluminium heatsink with copper core.
- Dual Intel mounting (LGA775 & LGA115X).
- Bi-ped fins maximise heat dissipation.

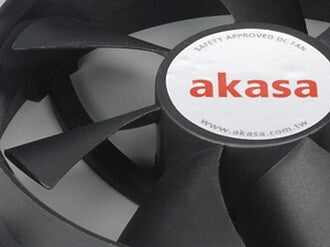

- Low noise PWM fan.

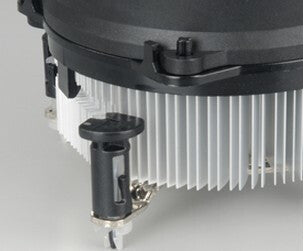

- Push pins provide reliable retention and easy mounting.
- High performance thermal interface pre-applied.
Performance | |
---|---|
Mean time between failures (MTBF) | 40000 h |
Maximum air pressure | 4.05 mmH2O |
Maximum airflow | 56.81 cfm |
Noise level (high speed) | 30.54 dB |
Noise level (low speed) | 17.2 dB |
Rotational speed (max) | 3000 RPM |
Rotational speed (min) | 600 RPM |
Compatible processor series | Intel® Core™ i5, Intel® Core™ i7 |
Supported processor sockets | LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1150 (Socket H3) |
Fan diameter | 9.2 cm |
Type | Cooler |
Suitable location | Processor |
Design | |
---|---|
Material | Aluminium, Copper |
Product colour | Black, Silver |
Power | |
---|---|
Maximum current | 0.26 A |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Weight | 317 g |
Height | 62 mm |
Depth | 95 mm |
Width | 95 mm |
Technical details | |
---|---|
Bearing technology | EBR |
Other features | |
---|---|
Connector(s) | 4-pin |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
