Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 600W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 89% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 15 A |
Max output current (+12V2) | 22 A |
Max output current (+12V1) | 28 A |
Max output current (+3.3V) | 24 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 576 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.95 |
Input current | 6 A |
AC input frequency | 50 Hz |
AC input voltage | 200 - 240 V |
Total power | 600 W |
Ports & interfaces | |
---|---|
Cabling type | Semi-Modular |
Floppy drive power connector | 1 |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 50 cm |
PCI Express power connectors (6+2 pin) | 4 |
SATA power cable length | 550,670 mm |
Number of SATA power connectors | 10 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Compatible products | Intel C6/C7 |
Certification | CE, CB, TÜV, RCM, CU |
Bearing technology | Sleeve |
EPS version | 2.92 |
ATX version | 2.51 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | PCIe, SATA |
Weight & dimensions | |
---|---|
Weight | 1.66 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.42 kg |
Package height | 195 mm |
Package depth | 268 mm |
Package width | 97 mm |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | RoHS, ENERGY STAR |
Logistics data | |
---|---|
Products per master (outer) case | 6 pc(s) |
Master (outer) case gross weight | 15.2 kg |
Harmonized System (HS) code | 84733020 |
Master (outer) case height | 556 mm |
Master (outer) case length | 215 mm |
Master (outer) case width | 311 mm |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 28.1 dB |
Noise level (quiet mode, 50%) | 11.5 dB |
Noise level (silent mode, | 9.7 dB |
Screws included | Yes |
PROVEN RELIABILITY, QUIET OPERATION
System Power 10 550W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 550W offers even at entry-level.
VERY QUIET OPERATION
High-quality fan for low noise
System Power 10 550W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 550W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of System Power 10 550W Bronze with an efficiency rating of up to 89.1% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics support
System Power 10 550W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 89.1% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 45.83 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 550 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.95 |
Input current | 4 A |
AC input frequency | 50 Hz |
AC input voltage | 200 - 240 V |
Total power | 550 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
CPU P4 connector (4-pin) | 1 |
PCI Express power cable length | 65 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 790 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 450,550,570,670,690 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 1 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Country of origin | Germany |
Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
Noise level | 25.7 dB |
EPS version | 2.92 |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 0 - 1800 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 0 - 90% |
Storage temperature (T-T) | -20 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.83 kg |
Height | 150 mm |
Depth | 86 mm |
Width | 140 mm |
Packaging data | |
---|---|
Package weight | 2.2 kg |
Package height | 97 mm |
Package depth | 268 mm |
Package width | 195 mm |
Manual languages | German, English, Spanish, French, Polish, Russian |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE |
Warranty period | 5 year(s) |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 25.7 dB |
Noise level (quiet mode, 50%) | 9.4 dB |
Noise level (silent mode, | 8.6 dB |
Screws included | Yes |
MAGNETIC LEVITATION COOLING MEETS HIGH EFFICIENCY
CORSAIR RMx Series fully modular power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC with the cooling power of potent Magnetic Levitation fans.
135MM MAGNETIC LEVITATION FAN
Utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low bearing noise, and superior reliability.
HIGH EFFICIENCY
With upwards of 90% peak efficiency, RMx produces less noise and less heat, which means less time worrying and more time gaming.
FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS
Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.
Also compatible with the 12-pin GPU Power Cable for the hottest new GPUs.
ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for near-silent operation, but once the action picks up, the fan activates, ensuring critical component temps stay in check.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMx Series power supply features a robust resonant LLC topology with DC-DC conversion, and 105°C rated 100% Japanese capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
CERTIFICATIONS
The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations.
The "Gold" efficiency rating is defined as ≥87% to <91% (depending on input voltage).
The "A-" noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.
TEN-YEAR WARRANTY
Ten-year warranty backed by the CORSAIR global technical support team.
YOUR BUILD, YOUR WAY
Every fully modular CORSAIR PSU is compatible with a wide range of CORSAIR accessories. From individually sleeved cables in a variety of color combinations to 12-pin micro-fit GPU cables and 12VO motherboard cables, complete your build your way.
Power | |
---|---|
Input current | 10 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX Power connector (24-pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 10 |
Number of PATA power connectors | 4 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | MLB |
Noise level | 25 dB |
EPS version | 2.92 |
ATX version | 2.4 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan diameter | 13.5 cm |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 1.5 kg |
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 3.55 kg |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |

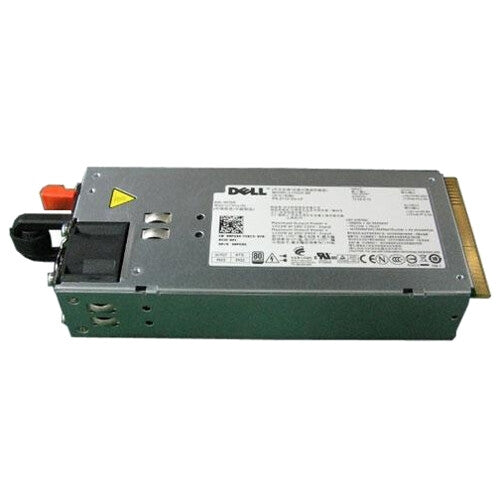

Power | |
---|---|
AC input voltage | 110 - 240 V |
Total power | 600 W |
Performance | |
---|---|
Purpose | NAS/storage server |
Design | |
---|---|
Cooling type | Active |
Product colour | Silver |
GO AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
The MPG power supply showcases unique styles and color schemes with laser-like lines to create a masterful art piece with indivuality, fully expressing the charm of MPG.
ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
level up your GAME
With native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
100% JAPANESE 105°C CAPACITORS
Aiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors.
FULLY MODULAR
The power supply's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.
COMPACT SIZING
Smaller than typical PSUs on the market, the power supply’s compact sizing makes it an excellent fit for most PC cases.
ALL THE MORE ORGANIZED
All of the power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V) | 83.5 A |
Max output current (+3.3V) | 22 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 1000 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy disk drive connector | Yes |
PCI Express power cable length | 75 cm |
PCI Express power connectors (16-pin) | 1 |
PCI Express power connectors (6+2 pin) | 6 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | No |
Peripheral (Molex) power cable length | 1100,500,650,700,850 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 500,650,700,850 mm |
Number of SATA power connectors | 12 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Bearing technology | FDB |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC/Server |
Design | |
---|---|
Illumination | No |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 150 mm |
Other features | |
---|---|
EPS cable length | 70 cm |

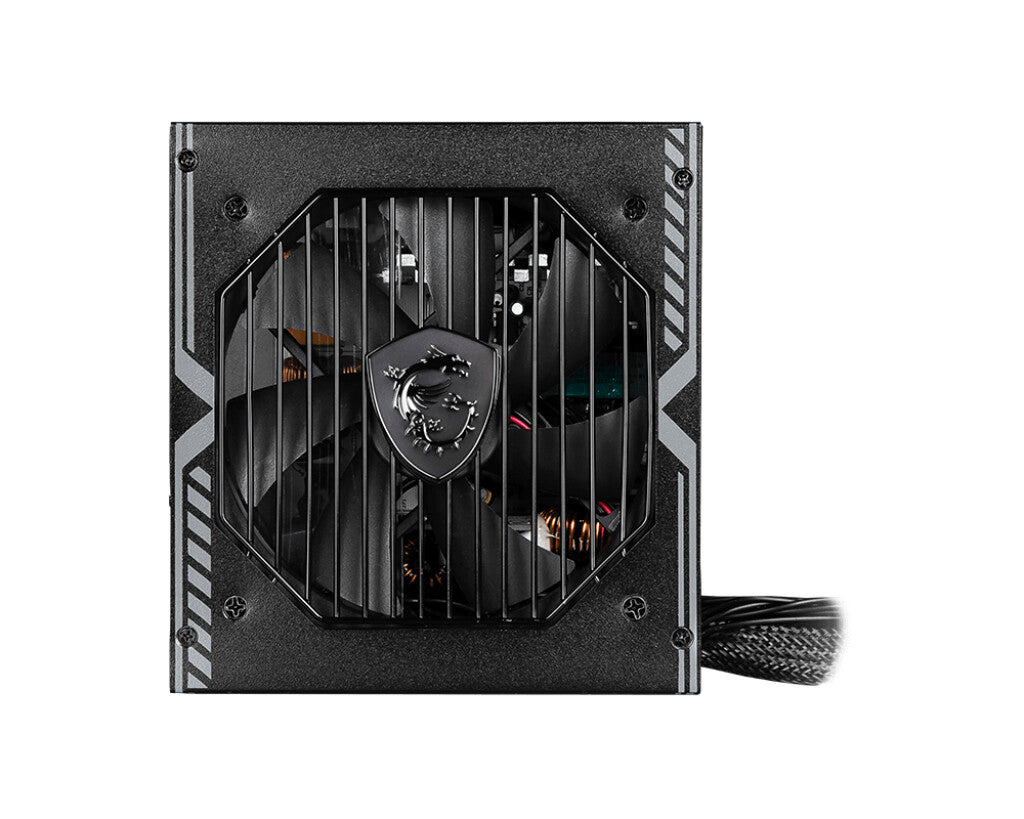

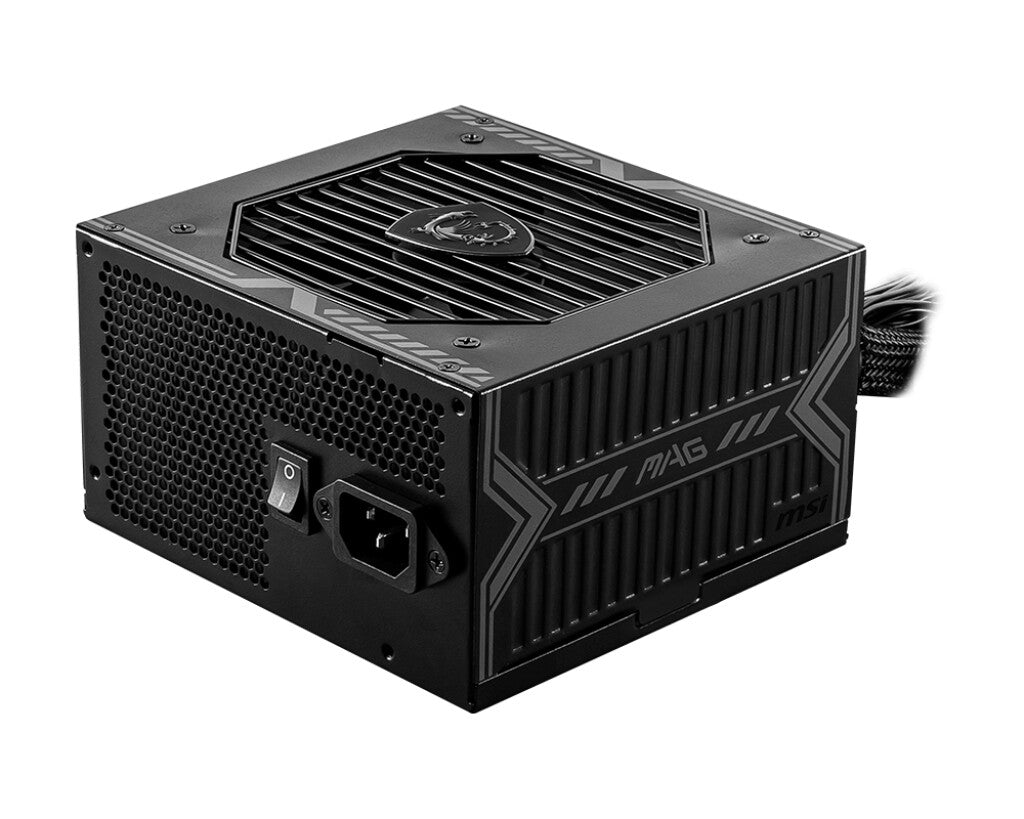

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Short circuit |
Efficiency | 90% |
Max output current (+5Vsb) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 54 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 648 W |
Combined power (+3.3V) | 100 W |
Power Factor Correction (PFC) type | Active |
Maximum input current (@220V) | 5 A |
Maximum input current (@110V) | 10 A |
AC input voltage | 100 - 240 V |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy disk drive connector | No |
ATX power connector (20+4 pin) | Yes |
ATX Power connector (24-pin) | No |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | No |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 6 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | No |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 400W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 89% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 15 A |
Max output current (+12V2) | 18 A |
Max output current (+12V1) | 22 A |
Max output current (+3.3V) | 24 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 103 W |
Combined power (+12V) | 384 W |
Combined power (+3.3V) | 103 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.95 |
Input current | 4 A |
AC input frequency | 50 Hz |
AC input voltage | 200 - 240 V |
Total power | 400 W |
Ports & interfaces | |
---|---|
Cabling type | Semi-Modular |
Floppy drive power connector | 1 |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 50 cm |
PCI Express power connectors (6+2 pin) | 2 |
SATA power cable length | 550,670 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 45 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Compatible products | Intel C6/C7 |
Certification | CE, CB, TÜV, RCM, CU |
Bearing technology | Sleeve |
ATX version | 2.51 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | PCIe, SATA |
Weight & dimensions | |
---|---|
Weight | 1.49 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.11 kg |
Package height | 195 mm |
Package depth | 268 mm |
Package width | 97 mm |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | RoHS, ENERGY STAR |
Logistics data | |
---|---|
Products per master (outer) case | 6 pc(s) |
Master (outer) case gross weight | 13.4 kg |
Harmonized System (HS) code | 84733020 |
Master (outer) case height | 556 mm |
Master (outer) case length | 215 mm |
Master (outer) case width | 311 mm |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 15 dB |
Noise level (quiet mode, 50%) | 9.7 dB |
Noise level (silent mode, | 9.3 dB |
Screws included | Yes |
80 Plus Bronze Certified
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.
Reliable Mesh Braided Cable
P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.
100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.
120mm Hydraulic Bearing (HYB) Fan
120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
Power | |
---|---|
Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
Efficiency | 85% |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 15 A |
Max output current (+12V) | 0.3 A |
Max output current (+3.3V) | 18 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 108 W |
Combined power (+12V) | 648 W |
Combined power (+3.3V) | 108 W |
Power Factor Correction (PFC) type | Active |
Input current | 9, 4 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
PCI Express connector | Yes |
Floppy disk drive connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 6 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE |
Mean time between failures (MTBF) | 100000 h |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Product colour | Black |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 140 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Exude Power
The ROG Strix 750W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.
COOLING
Aluminum Case
Built to run cool
The ROG Strix 750W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 60% or below.
ENGINEERING
80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
Lambda A++ Certification
Effortlessly quiet
On average, ROG Strix 750W Gold Aura Edition emits less than 15 dB of noise – earning a coveted Cybenetics Lambda A++ certification.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.
EXPERIENCE
Aura Sync
Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 750W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
*If the connector cable is not used, the default color effect is rainbow.
*To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
10-year Warranty
A decade of power
We're so confident about the reliability of the ROG Strix 750W Gold Aura Edition that we back it with a 10-year worldwide warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
Power | |
---|---|
Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 22 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 120 W |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 65 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (8-pin) | 3 |
PCI Express power connectors (16-pin) | 1 |
Peripheral (Molex) power cable length | 150,400 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 120,400 mm |
Number of SATA power connectors | 5 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Bearing technology | Ball bearing |
Silent mode | Yes |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 2.69 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 180 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 3.19 kg |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | RoHS |
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
80 PLUS® GOLD
The FOCUS GX achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
DIGITAL HYBRID FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS
- Reduced noise without increase in temperature;
- Extended fan life due to the reduced number of fan rotations;
- Optimized heat dissipation at all times;
- Unsurpassed silent performance in Fanless Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 25 A |
Max output current (+12V) | 83 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 125 W |
Combined power (+12V) | 996 W |
Combined power (+3.3V) | 125 W |
Input current | 13 - 6.5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
Number of EPS connectors | 2 |
ATX power connector (12+4 pin) | Yes |
CPU power cable length | 70 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 75 cm |
PCI Express power connectors (6+2 pin) | 3 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 690 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 550,950 mm |
Number of SATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 50000 h |
Bearing technology | FDB |
Silent mode | Yes |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | No |
Built-in display | No |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | BSMI, CB, CCC, CE, EAC, ENERGY STAR, ErP, REACH, RoHS, TUV, WEEE, cTUVus |
Warranty period | 10 year(s) |
RM850e POWER SUPPLY
FULLY MODULAR LOW-NOISE ATX POWER SUPPLIES
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.
STEADY POWER FOR YOUR SYSTEM
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.
Includes Zero RPM Fan Mode for near-silent operation at lower loads.
LOW NOISEFAN MODE
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Power | |
---|---|
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 850 W |
Combined power (+3.3V) | 150 W |
Input current | 10 - 5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (12+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 3 |
EPS power connector (4+4 pin) | Yes |
SATA power cable length | 800 mm |
Number of SATA power connectors | 7 |
Number of PATA power connectors | 4 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Silent mode | Yes |
ATX version | 3.0 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.52 kg |
Depth | 150 mm |
Width | 140 mm |
A PSU THAT'S ON YOUR SIDE
NO MORE FUMBLING AROUND
SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.
140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.
80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Power | |
---|---|
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 849.6 W |
Combined power (+3.3V) | 150 W |
Input current | 10A-5A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
ATX Power connector (24-pin) | Yes |
CPU power cable length | 65 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
SATA power cable length | 115,455 mm |
Number of SATA power connectors | 12 |
Number of PATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Silent mode | Yes |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | No |
Fan location | Rear |
Number of fans | 1 fan(s) |
Fan diameter | 14 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | CPU, PATA, SATA |
Weight & dimensions | |
---|---|
Weight | 1.7 kg |
EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1000W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1000W offers the best combination of features with outstanding compatibility.
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 1000W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 1000W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Efficiency | 93.2% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V2) | 42 A |
Max output current (+12V1) | 46 A |
Max output current (+12V) | 83.4 A |
Max output current (+3.3V) | 22 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 1000 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.98 |
Input current | 12 / 6 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 1050 W |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
PCI Express power cable length | 65 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 550 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 500,600,650,800,950 mm |
Number of SATA power connectors | 6 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Noise level | 31.7 dB |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Fan speed | 0 - 2000 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 160 mm |
Packaging data | |
---|---|
Package type | Box |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Warranty period | 10 year(s) |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 31.7 dB |
Noise level (quiet mode, 50%) | 9.6 dB |
Noise level (silent mode, | 9.3 dB |
Cable ties included | Yes |
Number of screws | 5 |
Screws included | Yes |
Power Up
The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great mid-tier computing experience, you can't go wrong with the MWE Bronze V2.
80 Plus Bronze Certified
It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
120mm HDB Fan
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze's solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system's temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.
Single +12V Rail
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading.
The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system's overall performance. That's why the MWE Bronze only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.
DC-TO-DC Circuit Design
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White's DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected components.
Flat Black Cables
For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
Power | |
---|---|
Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Hold time | 14 ms |
Efficiency | 88% |
Power Good signal delay range | 100 - 500 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 19 A |
Max output current (+12V) | 54 A |
Max output current (+3.3V) | 19 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 648 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Input current | 5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 200 - 240 V |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX Power connector (24-pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 6 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.27 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 42.5 dB |
Noise level (quiet mode, 50%) | 26.5 dB |
Noise level (silent mode, | 16.54 dB |
ROG Loki 750W Platinum
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 750W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
Power | |
---|---|
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.8 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 9.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 110 W |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (8-pin) | 3 |
PCI Express power connectors (16-pin) | 1 |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 6 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | OPP/OVP/UVP/SCP/OCP/OTP |
Silent mode | Yes |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | SFX |
Purpose | PC |
Design | |
---|---|
Illumination | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Product colour | Black, Silver |
Weight & dimensions | |
---|---|
Weight | 1.81 kg |
Height | 63.5 mm |
Depth | 125 mm |
Width | 125 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.5 kg |
Package height | 100 mm |
Package depth | 190 mm |
Package width | 285 mm |
Technical details | |
---|---|
Sustainability certificates | RoHS |
FOCUS GX (ONESEASONIC)
The newly upgraded FOCUS PX and GX series are the successor to the FOCUS PLUS Series, which became an instant the top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements on the popular series, removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.
80 PLUS® GOLD
The FOCUS GX achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
CABLE-FREE CONNECTION DESIGN
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
HYBRID SILENT FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
THE FAN CONTROL BUTTON
The fan control button can be found on the back of the FOCUS PLUS power supply, next to the power switch. The image here illustrates how to select different fan control modes to suit your need.
DO NOT press the button if you wish to include the Fanless Mode, which means the fan in the power supply will not spin when the power supply is under light loads. Press the button if you wish to have the fan spin at all times, even at lower loads.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 744 W |
Combined power (+3.3V) | 100 W |
Input current | 5 - 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power cable length | 65 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 75 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 690 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 450,570,810,860 mm |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | WEEE, ErP Lot 6, REACH |
Safety | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Technical details | |
---|---|
Sustainability certificates | ENERGY STAR, RoHS |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Deliver impressive compute power per watt with hot-swap High Efficiency 80 PLUS Platinum redundant power supplies. Option DOES NOT ship with power/line cord, remember to add country appropriate cord.
Power | |
---|---|
AC input voltage | 115 - 230 V |
Total power | 750 W |
Performance | |
---|---|
Compatible products | ThinkSystem |
80 PLUS certification | 80 PLUS Platinum |
Purpose | Server |
Design | |
---|---|
Product colour | Stainless steel |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Thor II platinum EVA edition wears an EVA-inspired skin and wields component and cooling upgrades that enable the lowest noise levels – even during the most demanding skirmishes with the opposition.
THE QUIETEST 1000W POWER SUPPLY
ROG THOR 1000W Platinum II EVA EDITION
Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 25 A |
Max output current (+12V) | 83 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 125 W |
Combined power (+12V) | 996 W |
Combined power (+3.3V) | 125 W |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 65 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 67.5 cm |
PCI Express power connectors (6+2 pin) | 8 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 120,450 mm |
Peripheral (Molex) power connectors (4-pin) | 6 |
SATA power cable length | 120,400 mm |
Number of SATA power connectors | 12 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | Cybenetics Noise Level CertificationA++ |
Silent mode | Yes |
80 PLUS certification | 80 PLUS Platinum |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
General | |
---|---|
Product Family | ROG |
Weight & dimensions | |
---|---|
Weight | 2.35 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 190 mm |
Packaging data | |
---|---|
Package weight | 4.9 kg |
Package height | 135 mm |
Package depth | 287 mm |
Package width | 339 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | RoHS |
DARK POWER 13 1000W
NO COMPROMISE SILENCE AND PERFORMANCE
The be quiet! Dark Power 13 1000W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power 13 1000W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.2%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power 13 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Dark Power 13 offers 1000W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power 13 1000W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power 13 1000W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.
WORLD CLASS TOPOLOGY
State-of-the-art technology for extremely high efficiency
With an active rectifier and full bridge LLC technology Dark Power 13 1000W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Dark Power 13 1000W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.
HIGHEST CONVENIENCE AND BEST CONNECTIVITY
Modular cables
Modular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases
Power | |
---|---|
Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 23.2 ms |
Efficiency | 93.3% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.5 A |
Max output current (+12V3) | 40 A |
Max output current (+12V4) | 40 A |
Max output current (+12V2) | 32 A |
Max output current (+12V1) | 32 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 6 W |
Combined power (+5V) | 125 W |
Combined power (+12V) | 996 W |
Combined power (+3.3V) | 125 W |
Power Factor Correction (PFC) type | Active |
Power factor | 3 |
Maximum input current (@220V) | 13 A |
Maximum input current (@110V) | 6 A |
Input current | 13/6 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 1100 W |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy disk drive connector | No |
ATX power connector (20+4 pin) | Yes |
CPU power connector (4+4 pin) | Yes |
CPU P4 connector (4-pin) | 1 |
PCI Express power connectors (6+2 pin) | 4 |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 1050 mm |
Number of SATA power connectors | 13 |
Number of PATA power connectors | 3 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | BSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman |
Bearing technology | FDB |
ECC | Yes |
Noise level | 25.8 dB |
Silent mode | Yes |
EPS version | 2.92 |
ATX version | 3.0 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Titanium |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
LED indicators | No |
Illumination | No |
Built-in display | No |
Fan location | Top |
Fan speed | 0 - 1800 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | DC, SATA |
Certificates | |
---|---|
Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Weight & dimensions | |
---|---|
Weight | 2.03 kg |
Height | 175 mm |
Depth | 86 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 4.48 kg |
Package height | 270 mm |
Package depth | 350 mm |
Package width | 120 mm |
Technical details | |
---|---|
Sustainability certificates | CCC, CE, ENERGY STAR, ErP, RoHS, WEEE |
Warranty period | 10 year(s) |
Logistics data | |
---|---|
Shipping (inner) case length | 50.4 cm |
Shipping (inner) case width | 30.5 cm |
Shipping (inner) case height | 36.8 cm |
Pallet gross weight (air) | 19.3 kg |
Battery - Battery life is determined by the number of cells in it. For example, a 8 cell battery will last longer than a 6 cell battery. A battery is either a primary or a secondary battery. In some laptops, primary and secondary batteries are interchangeable. If they are not, you will need to know the battery type to make the right choice. There are also some special types of batteries known as Reserve/CMOS batteries that maintain your computer’s internal settings. Please use the System Drill Down or the Service Tag look up feature for buying a battery. This will allow us to identify physically compatible batteries for your PC.
Power Supply -Typically, power supplies are a direct replacement for the original part. Please use the Service Tag Lookup feature in the Parts For Your Dell tool. This will allow us to identify your PC’s power limits and chassis requirements and make recommendations. There are some power supply units called redundant power supplies that can be removed without shutting down the computer. Redundancy is available only for some servers.
Adapters - For adapters, you can use either the System Drill Down or the Service Tag look up functionality. This will allow us to identify the voltage limits and physical compatibility requirements of your system.
Please note that some of our replacement products are provided as kits or assemblies. These kits may contain additional parts required for installation; these parts will be listed separately as 'Component Parts' in the Highlights section of this page. In case a product is not sold as a kit or assembly, it may require complementary parts for ease of installation.
Please note that this replacement product is refurbished. Dell™ provides a warranty of 90 days on all refurbished products. For more information about warranties, please click here: www.dell.com/warranty.
Power | |
---|---|
Total power | 235 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
Performance | |
---|---|
Compatible products | Dell OptiPlex 780 DT/ 780 MT/ 780 SFF/ 780 USFF |
Purpose | PC |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Exceptionally Quiet, Superior Reliability, Great Value
Pure Power 11 400W offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, building a multi-GPU gaming system, or upgrading an existing PC, your build will benefit from this PSU that simply has the best combination of features at a very popular price.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
Pure Power 11 400W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.
POWER AND COMPATIBILITY FOR YOUR SYSTEM
The best combination of features and performance at a very popular price
Pure Power 11 offers 400W of continuous power with 2 independent 12V rails for signal stability and 2 PCI express connectors for multi-GPU systems. It is suited to very quiet systems, for upgrading or building multimedia or multi-GPU gaming systems.
INNOVATIVE TECHNOLOGIES
DC-to-DC, Active Clamp and Synchronous Rectifier
The use of Active Clamp and Synchronous Rectifier technologies provides very stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This ensures secure operation for next generation processors and graphics cards.
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
HIGH-QUALITY SLEEVED CABLES
Keeping your system tidy and good-looking
Pure Power 400W is equipped with high-quality sleeved cables that simplify component installation, increase airflow and improve cooling. The All-in-one cable has a convenient easy-plug HDD connector.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 29 ms |
Efficiency | 92% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 15 A |
Max output current (+12V2) | 20 A |
Max output current (+12V1) | 24 A |
Max output current (+3.3V) | 24 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 384 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.99 |
Input current | 6 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 450 W |
Total power | 400 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
Floppy disk drive connector | Yes |
CPU power cable length | 6 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 50 cm |
PCI Express power connectors (6+2 pin) | 2 |
SATA power cable length | 450,600,750 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 45 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | ErP, WEEE |
Safety | CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC |
Bearing technology | Rifle |
ATX version | 2.4 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.93 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.22 kg |
Package height | 96 mm |
Package depth | 240 mm |
Package width | 210 mm |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | RoHS, ENERGY STAR |
Logistics data | |
---|---|
Products per master (outer) case | 6 pc(s) |
Master (outer) case gross weight | 14.5 kg |
Harmonized System (HS) code | 84733020 |
Master (outer) case height | 241 mm |
Master (outer) case length | 514 mm |
Master (outer) case width | 326 mm |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 14.9 dB |
Noise level (quiet mode, 50%) | 11.4 dB |
Noise level (silent mode, | 10.5 dB |
Cable ties included | Yes |
Screws included | Yes |
EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 850W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 850W offers the best combination of features with outstanding compatibility.
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 850W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.2%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 850W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 850W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 850W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 850W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Efficiency | 93.2% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V2) | 36 A |
Max output current (+12V1) | 40 A |
Max output current (+12V) | 70.9 A |
Max output current (+3.3V) | 22 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 850 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.98 |
Input current | 12 / 6 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 900 W |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 550 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 500,600,650,800,950 mm |
Number of SATA power connectors | 6 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Noise level | 25.7 dB |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 160 mm |
Packaging data | |
---|---|
Package type | Box |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Warranty period | 10 year(s) |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 25.7 dB |
Noise level (quiet mode, 50%) | 9.5 dB |
Noise level (silent mode, | 9.4 dB |
Cable ties included | Yes |
Number of screws | 5 |
Screws included | Yes |
PROVEN RELIABILITY, QUIET OPERATION
System Power 10 650W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 650W offers even at entry-level.
VERY QUIET OPERATION
High-quality fan for low noise
System Power 10 650W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 650W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of System Power 10 650W with an efficiency rating of up to 88.5% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics support
System Power 10 650W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 88.5% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 54.17 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 650 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.95 |
Input current | 5 A |
AC input frequency | 50 Hz |
AC input voltage | 200 - 240 V |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
CPU P4 connector (4-pin) | 1 |
PCI Express power cable length | 50 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 790 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 450,550,570,670,690,790 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 1 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Country of origin | Germany |
Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
Noise level | 30.7 dB |
EPS version | 2.92 |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 0 - 2100 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 0 - 90% |
Storage temperature (T-T) | -20 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.86 kg |
Height | 150 mm |
Depth | 86 mm |
Width | 140 mm |
Packaging data | |
---|---|
Package weight | 2.3 kg |
Package height | 97 mm |
Package depth | 268 mm |
Package width | 195 mm |
Manual languages | German, English, Spanish, French, Polish, Russian |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE |
Warranty period | 5 year(s) |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 30.7 dB |
Noise level (quiet mode, 50%) | 11.2 dB |
Noise level (silent mode, | 8.9 dB |
Screws included | Yes |
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
Power | |
---|---|
Power protection features | Over current, Over voltage, Short circuit |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 744 W |
Combined power (+3.3V) | 100 W |
Input current | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Semi-Modular |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 70 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 690 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 6 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | AC, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
