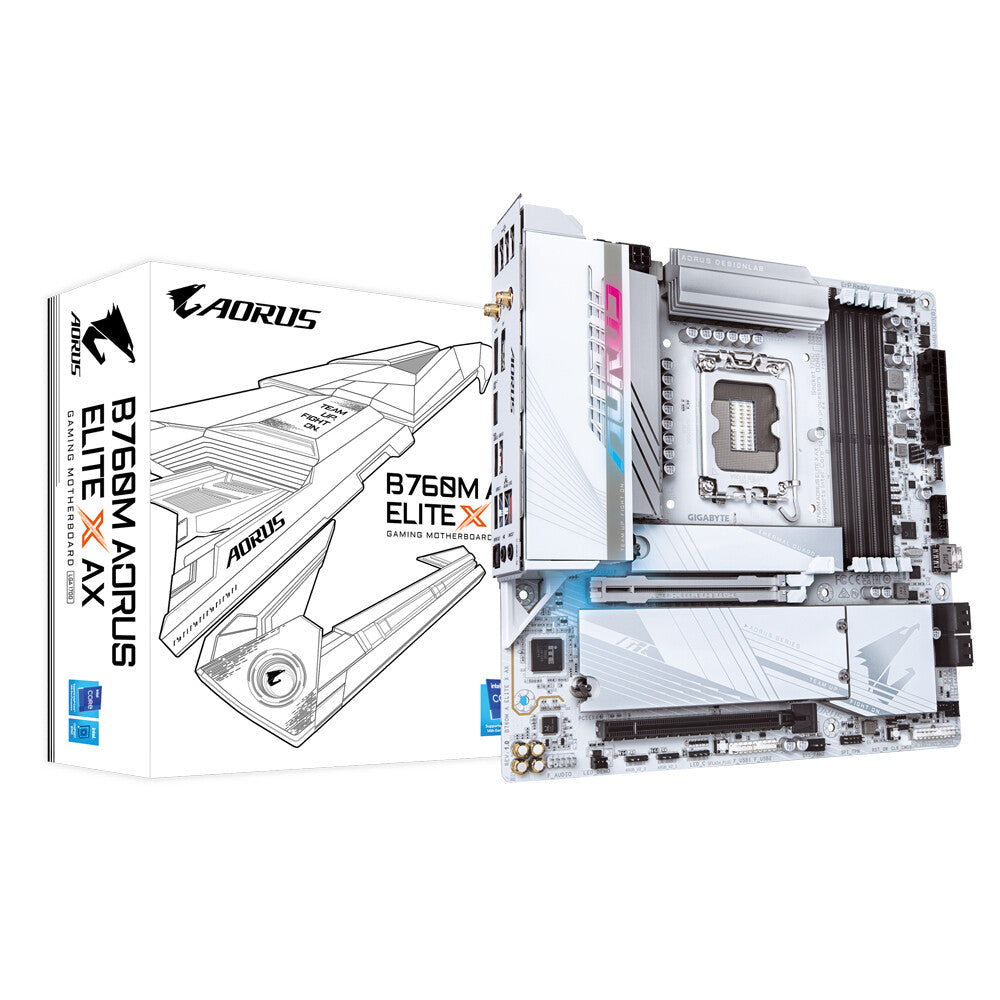

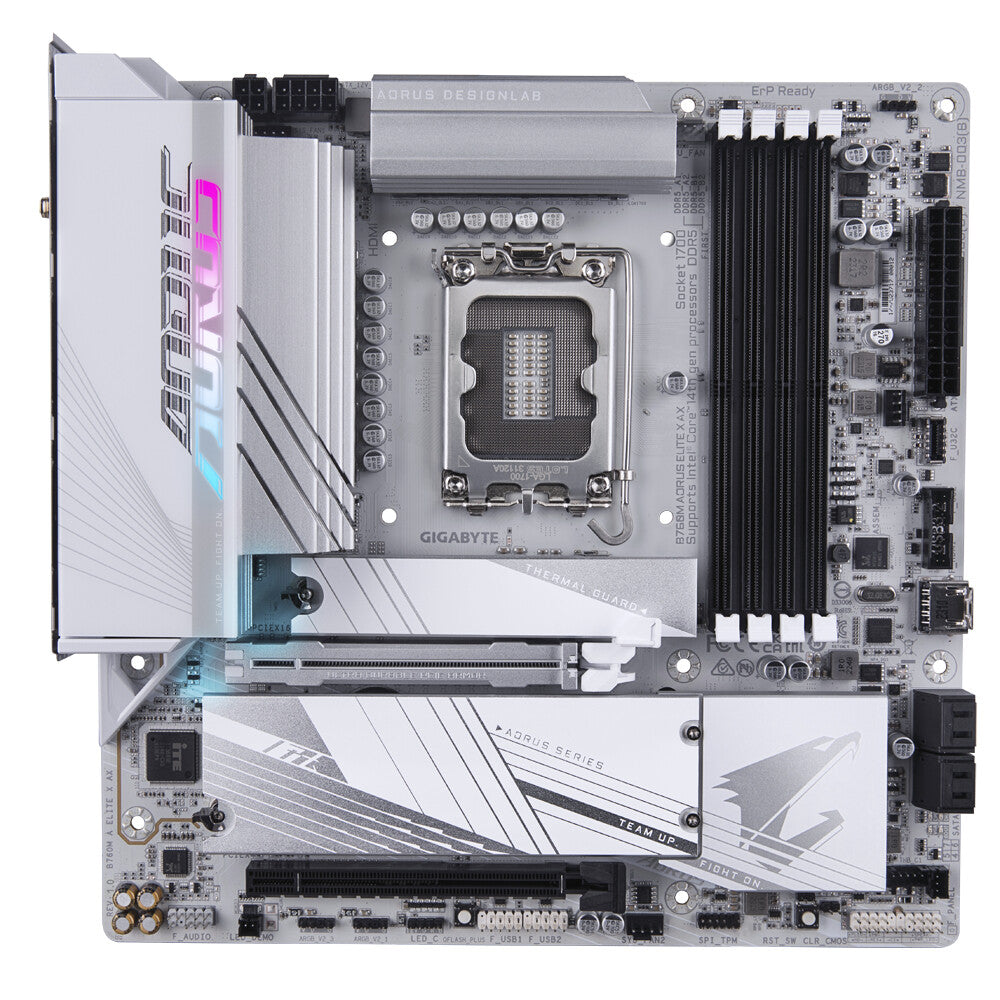

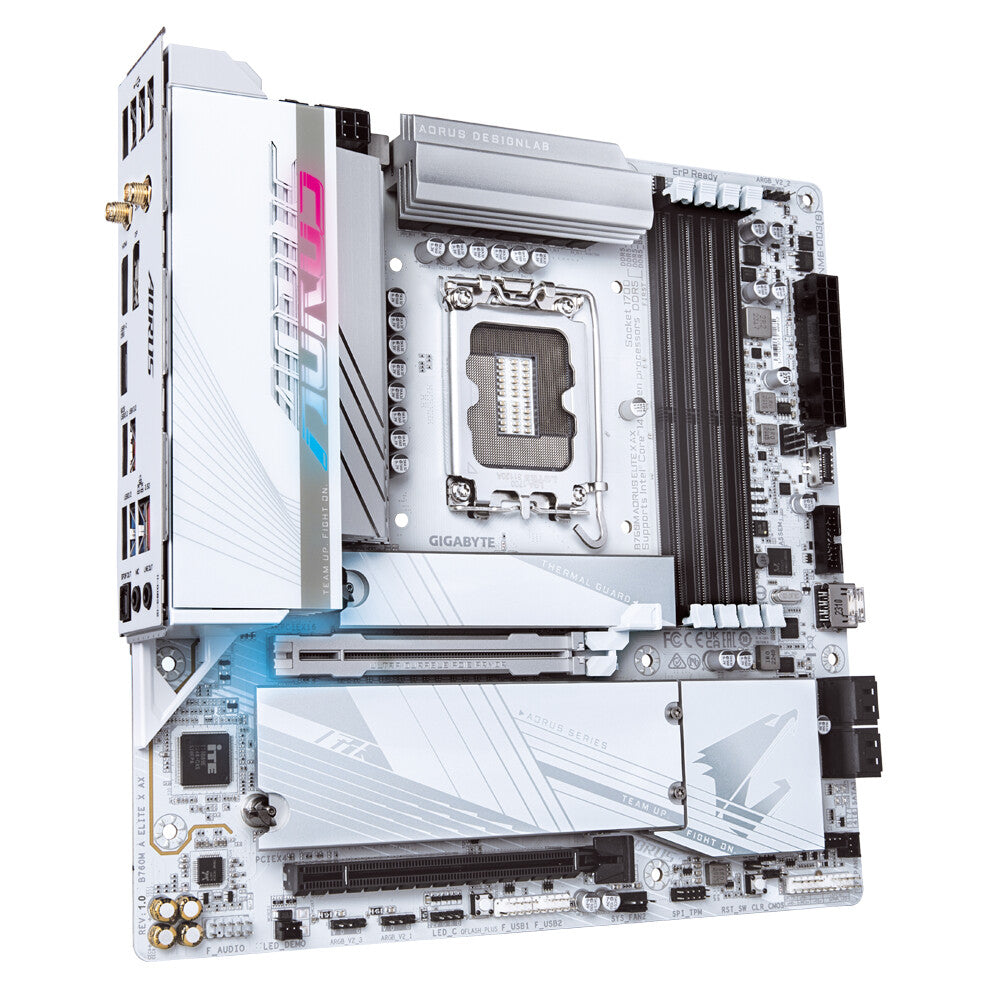

    Gigabyte B760M AORUS ELITE X AX ATX motherboard - Intel B760 LGA 1700

    Gigabyte B760M AORUS ELITE X AX ATX motherboard - Intel B760 LGA 1700

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports Intel® Core™ 14th and 13th processors
    • Digital twin 14+1+1 phases VRM solution
    • Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support
    • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
    • EZ-Latch Click:M.2 heatsinks with screwless design
    • EZ-Latch Plus:PCIe 5.0 x16 slot & M.2 slots with quick release design
    • Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
    • UC BIOS:User-Centred intuitive UX with Quick Access function
    • Ultra-Fast Storage:2*M.2 PCIe 4.0 x4
    • Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
    • Fast Networking:2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
    • Extended Connectivity:DP,Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
    • Reliable Audio:8-Ch HD Audio & Audiophile Grade Capacitors

    Intel B760, LGA1700 socket, 4 x DDR5, 1 x HDMI, 1 x DisplayPort, Wi-Fi, Micro ATX

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

    Processor
    Maximum internal memory supported by processor 192 GB
    Supported processor sockets LGA 1700
    Maximum number of SMP processors 1
    Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
    Processor socket LGA 1700
    Processor manufacturer Intel
    Memory
    Unbuffered memory Yes
    Maximum internal memory 128 GB
    Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
    Supported memory clock speed (max) 8266 MHz
    Supported memory clock speeds 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 4
    Supported memory types DDR5-SDRAM
    Storage controllers
    RAID levels 0, 1, 5, 10
    RAID support Yes
    Number of HDDs supported 4
    Number of storage drives supported 6
    Supported storage drive interfaces M.2, SATA III
    Supported storage drive types HDD & SSD
    Graphics
    Discrete graphics support Yes
    DirectX version 12.0
    HDCP Yes
    Maximum resolution 4096 x 2304 pixels
    Parallel processing technology support Not supported
    Internal I/O
    RGB LED pin header Yes
    Thunderbolt headers 2
    TPM connector Yes
    12V power connector Yes
    EPS power connector (8-pin) Yes
    Peripheral (Molex) power connectors (4-pin) 1
    Number of chassis fan connectors 3
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel connector Yes
    Front panel audio connector Yes
    S/PDIF out connector Yes
    Total number of SATA connectors 4
    Number of SATA III connectors 4
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 2

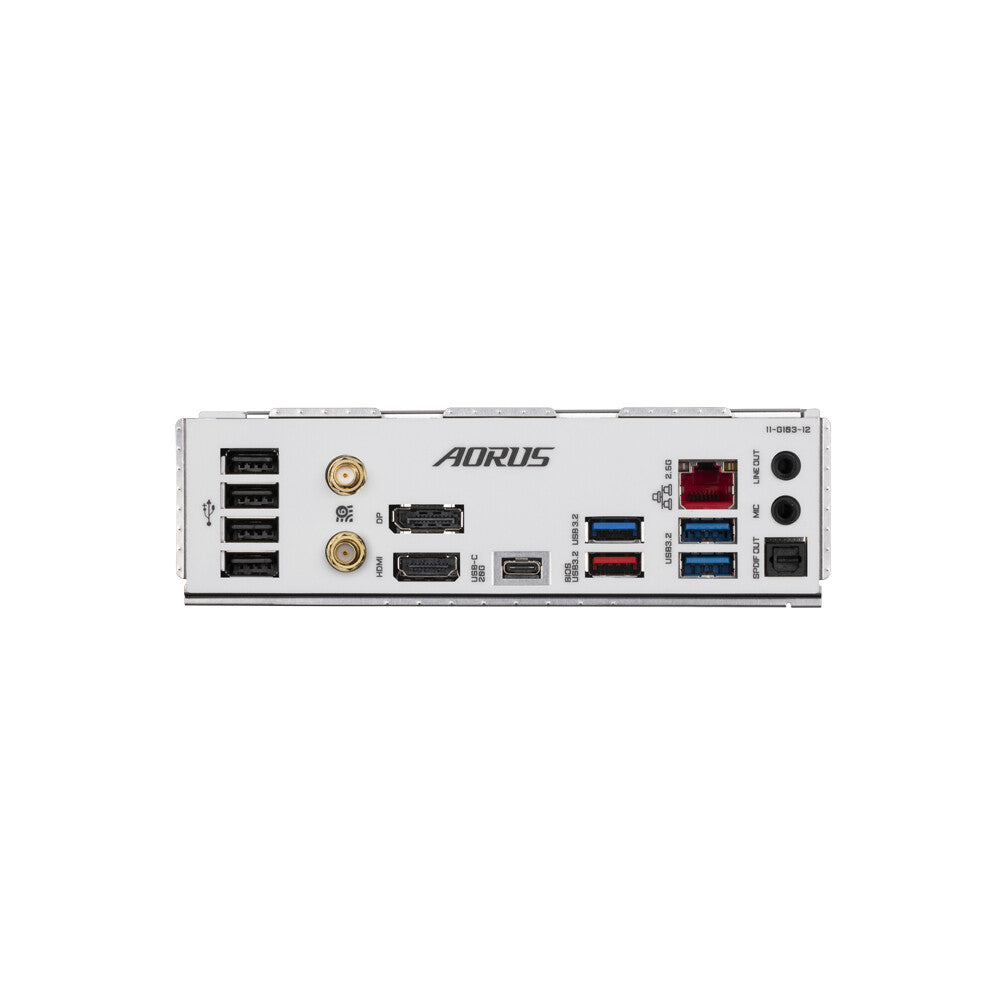

    Rear panel I/O ports
    USB connector type USB Type-A, USB Type-C
    WiFi-AP antenna jack 2
    S/PDIF out port Yes
    Microphone in Yes
    Headphone outputs 1
    DisplayPort version 1.2
    DisplayPorts quantity 1
    HDMI ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2x2 Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
    USB 2.0 ports quantity 4
    Network
    Bluetooth version 5.3
    Bluetooth Yes
    WLAN controller model Intel Wi-Fi 6E AX211
    Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
    Top Wi-Fi standard Wi-Fi 6E (802.11ax)
    Wi-Fi Yes
    Ethernet interface type 5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 11 x64
    Power source type ATX
    PC health monitoring Fan, Temperature, Voltage, Water cooling
    Product colour White
    Audio output channels 7.1 channels
    Audio chip Realtek ALC897
    Motherboard chipset Intel B760 Express
    Motherboard chipset family Intel
    Motherboard form factor micro ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 2
    PCI Express x16 (Gen 5.x) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    BIOS
    Desktop Management Interface (DMI) version 2.7
    System Management BIOS (SMBIOS) version 2.7
    Clear CMOS button Yes
    Clear CMOS jumper Yes
    ACPI version 5.0
    BIOS memory size 256 Mbit
    BIOS type UEFI AMI
    Packaging data
    Package weight 1.66 kg
    Package height 68 mm
    Package depth 268 mm
    Package width 270 mm
    Battery
    Battery type CR2032
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Number of battery cells 1
    Battery weight 3 g
    Lithium weight per battery 0.07 g
    Logistics data
    Country of origin China
    Products per shipping (inner) case 1 pc(s)
    Weight & dimensions
    Height 35 mm
    Depth 244 mm
    Width 244 mm
    Packaging content
    Bundled software Norton Internet Security
    Cables included SATA
    Batteries included Yes
    Antenna included Yes
    Technical details
    Warranty period 3 year(s)
