Addressable RGB fan blades with black anodised aluminum heatsink cooler illuminates your PC and cools the CPU. Supports up to 95W TDP.
Supports 5V addressable LED pin headers
RGB fan blades illuminates PC with 16.8 million colour options
Sync lighting to music, gameplay and more with compatible RGB lighting control software
Funnel fan frame delivers focused airflow to CPU and MB components. PWM intelligent fan speed control provides silent, powerful cooling
Supports 5V addressable LED pin headers
Performance | |
---|---|
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 51.3 cfm |
Noise level (high speed) | 32.5 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | Socket AM3+, Socket AM4 |
Fan diameter | 12 cm |
Type | Cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Product colour | Black, White |
Power | |
---|---|
Thermal Design Power (TDP) | 95 W |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 340 g |
Height | 63 mm |
Depth | 120 mm |
Width | 120 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
The ARCTIC Freezer 34 eSports DUO is a Tower CPU cooler with two 120 mm BioniX P-series fans in push-pull ®configuration. It is a powerful cooling solution for AMD & ®Intel CPU and recommended for CPU with a TDP up to 210 W. The push.pull-configuration allows ideal airflow.The pressure-optimised fans create a focused airstream for increased performance. A broad RPM range enables highest performance as well as low noise levels. With high-quality bearings and a new motor-generation, the fans are very quiet, efficient and durable.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level | 0.5 sone |
Noise level (high speed) | 20 dB |
Rotational speed (max) | 2100 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Cooler |
Suitable location | Processor |
Design | |
---|---|
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fins | 54 |
Number of fan blades | 5 |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Product colour | Grey, White |
Power | |
---|---|
Rated current | 0.13 A |
Weight & dimensions | |
---|---|
Package weight | 955 g |
Package height | 187 mm |
Package depth | 107 mm |
Package width | 129 mm |
Fins thickness | 0.4 mm |
Heat pipes diameter | 6 mm |
Weight | 764 g |
Height | 157 mm |
Depth | 124 mm |
Width | 103 mm |
Packaging content | |
---|---|
Number of screws | 2 |
Screws included | Yes |
Mounting kit | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Thermal grease | Yes |
Fan rated voltage | 12 V |
Number of fans supported | 2 |
Cooling capacity in watts (max) | 210 W |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

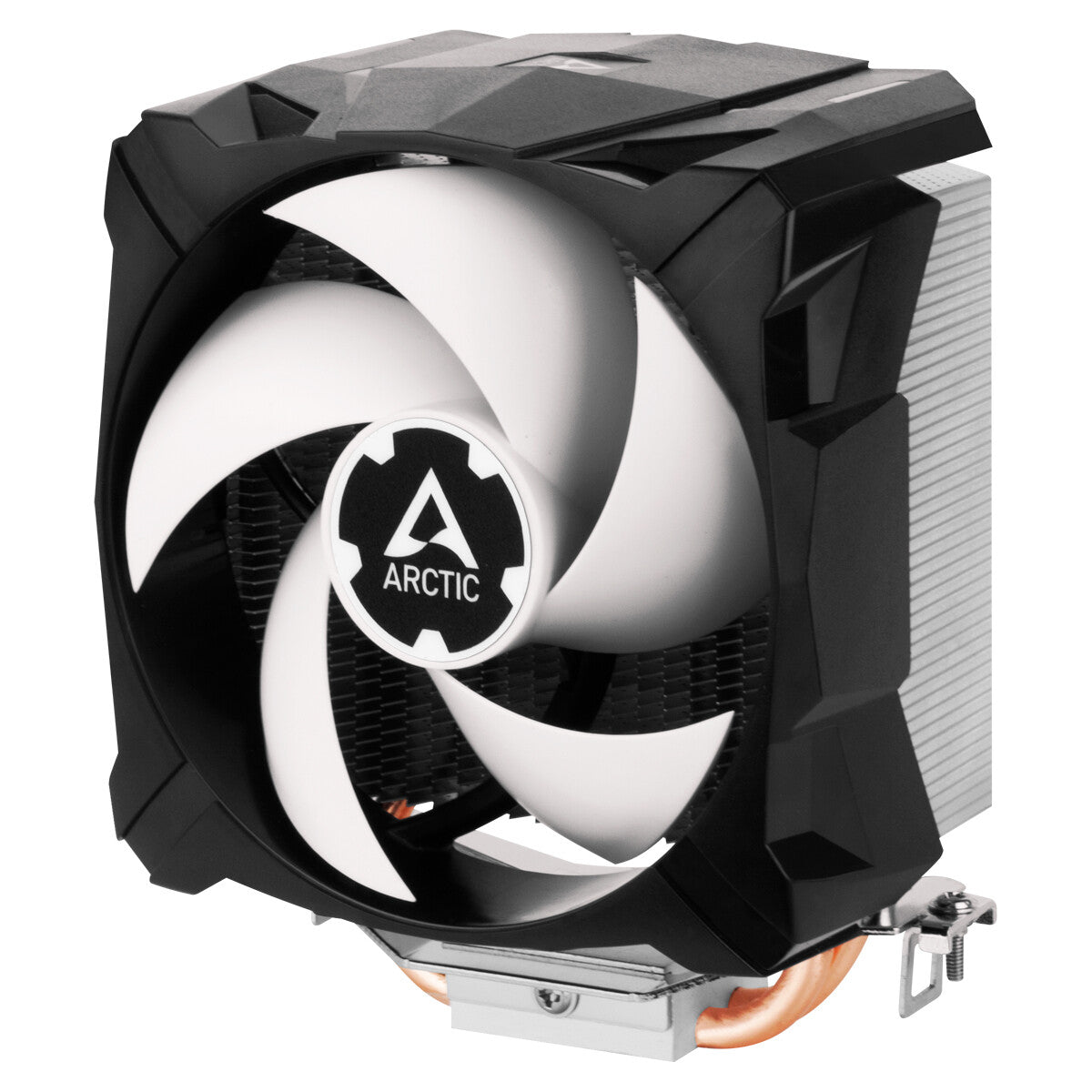

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives; to boxed coolers to completely silent passive radiators. Broad compatibility and innovative features are part of our standard repertoire.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level | 0.3 sone |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1567 (Socket LS), LGA 1700 |
Fan diameter | 11.3 cm |
Type | Cooling set |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fins | 54 |
Product colour | Black, White |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.12 A |
Weight & dimensions | |
---|---|
Package weight | 993.75 g |
Package height | 168 mm |
Package depth | 113 mm |
Package width | 144 mm |
Cable length | 0.2 m |
Fins thickness | 0.4 mm |
Heat pipes diameter | 6 mm |
Fan dimensions (W x D x H) | 133 x 91 x 135 mm |
Weight | 734 g |
Height | 158.5 mm |
Depth | 91 mm |
Width | 133 mm |
Packaging content | |
---|---|
Mounting kit | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

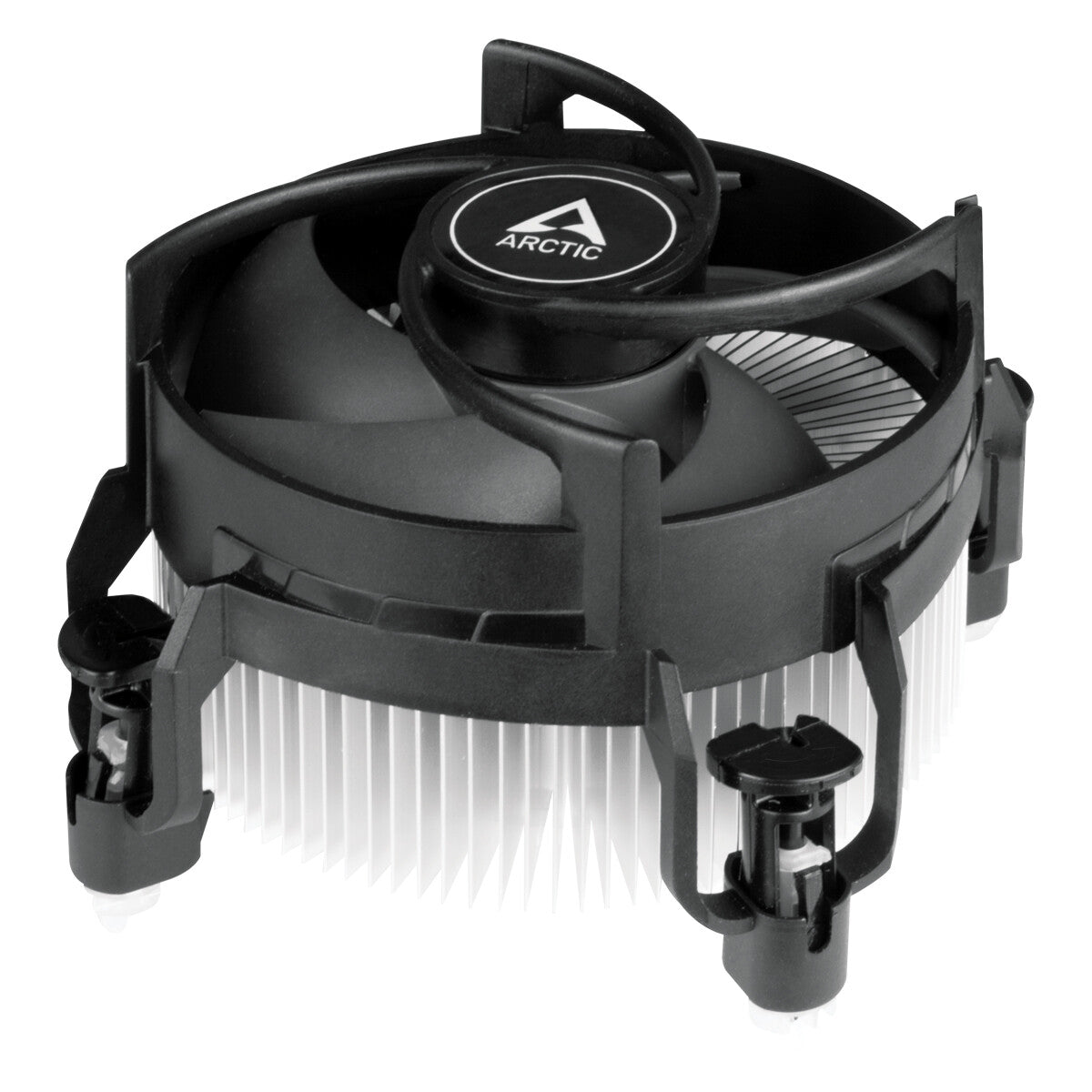

CPU Air Cooler

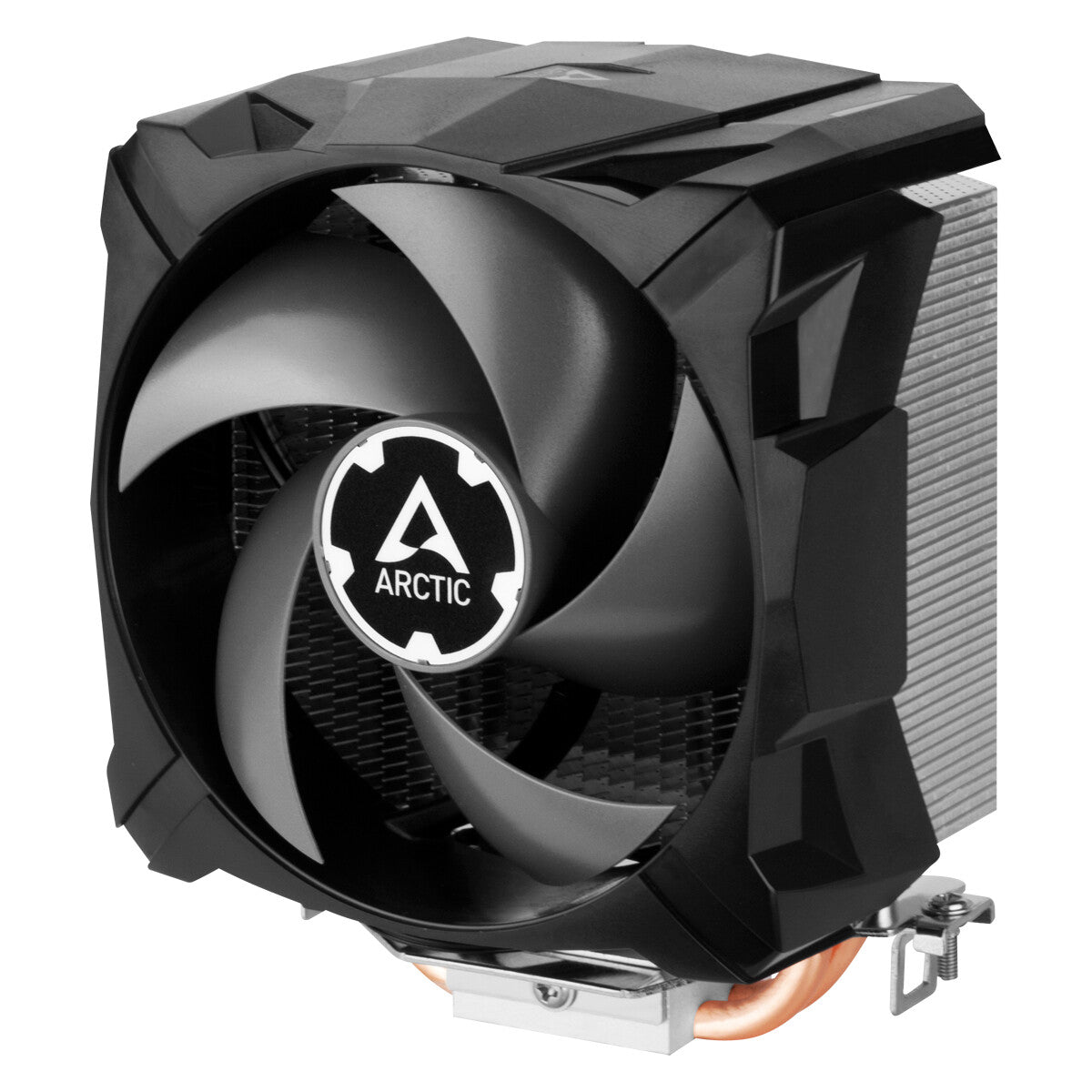

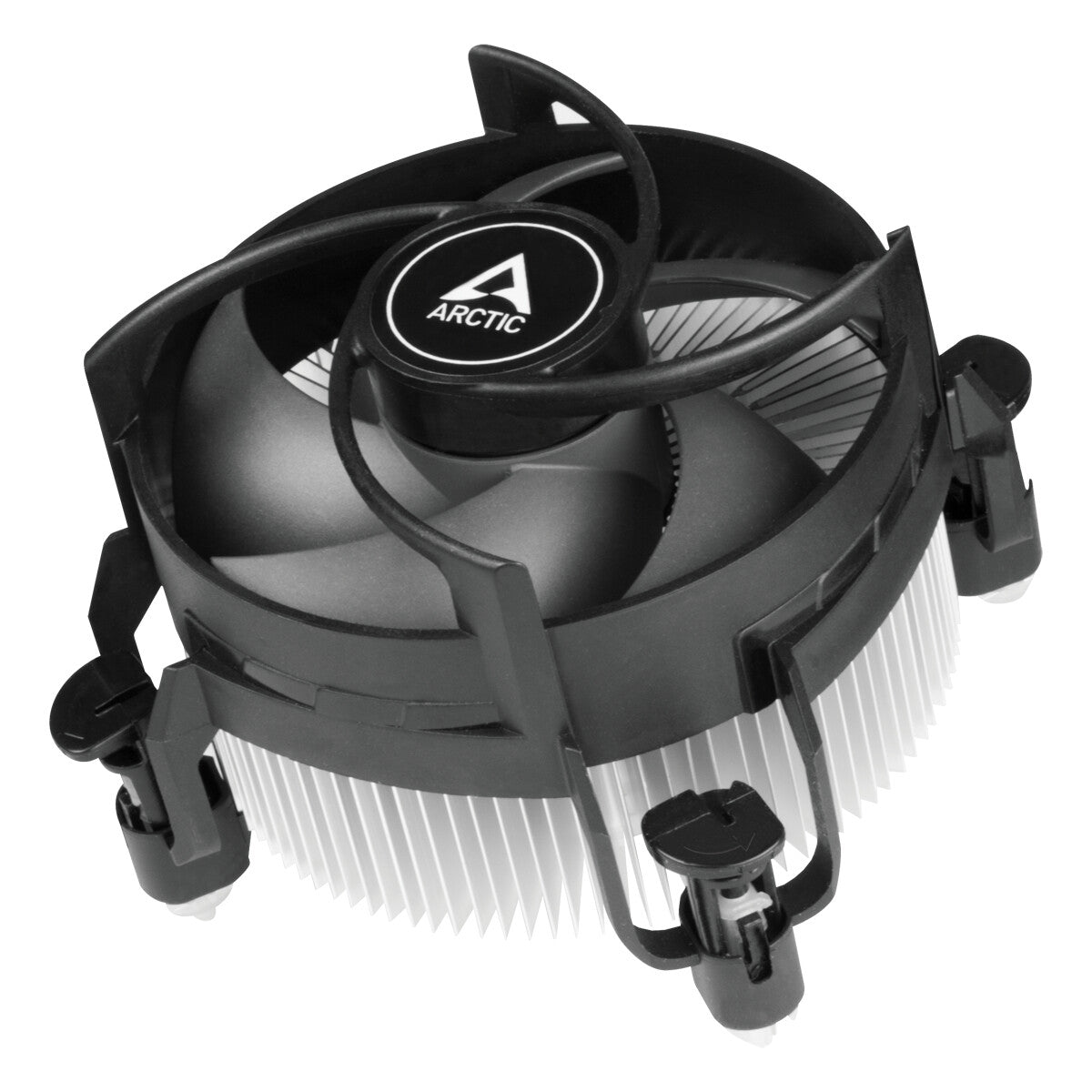

ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives; to boxed coolers to completely silent passive radiators. Broad compatibility and innovative features are part of our standard repertoire.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level | 0.3 sone |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 100 RPM |
Supported processor sockets | LGA 1700 |
Fan diameter | 9.2 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Radiator material | Aluminum |
Material | Aluminium |
Product colour | Black, Silver |
Power | |
---|---|
Thermal Design Power (TDP) | 95 W |
Rated current | 0.06 A |
Voltage | 12 V |
Power supply | 0.72 W |
Weight & dimensions | |
---|---|
Package weight | 319 g |
Package height | 82 mm |
Package depth | 99 mm |
Package width | 99 mm |
Cable length | 0.2 m |
Weight | 288 g |
Height | 77 mm |
Depth | 95 mm |
Radiator height | 3.27 cm |
Width | 95 mm |
Packaging content | |
---|---|
Package type | Box |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

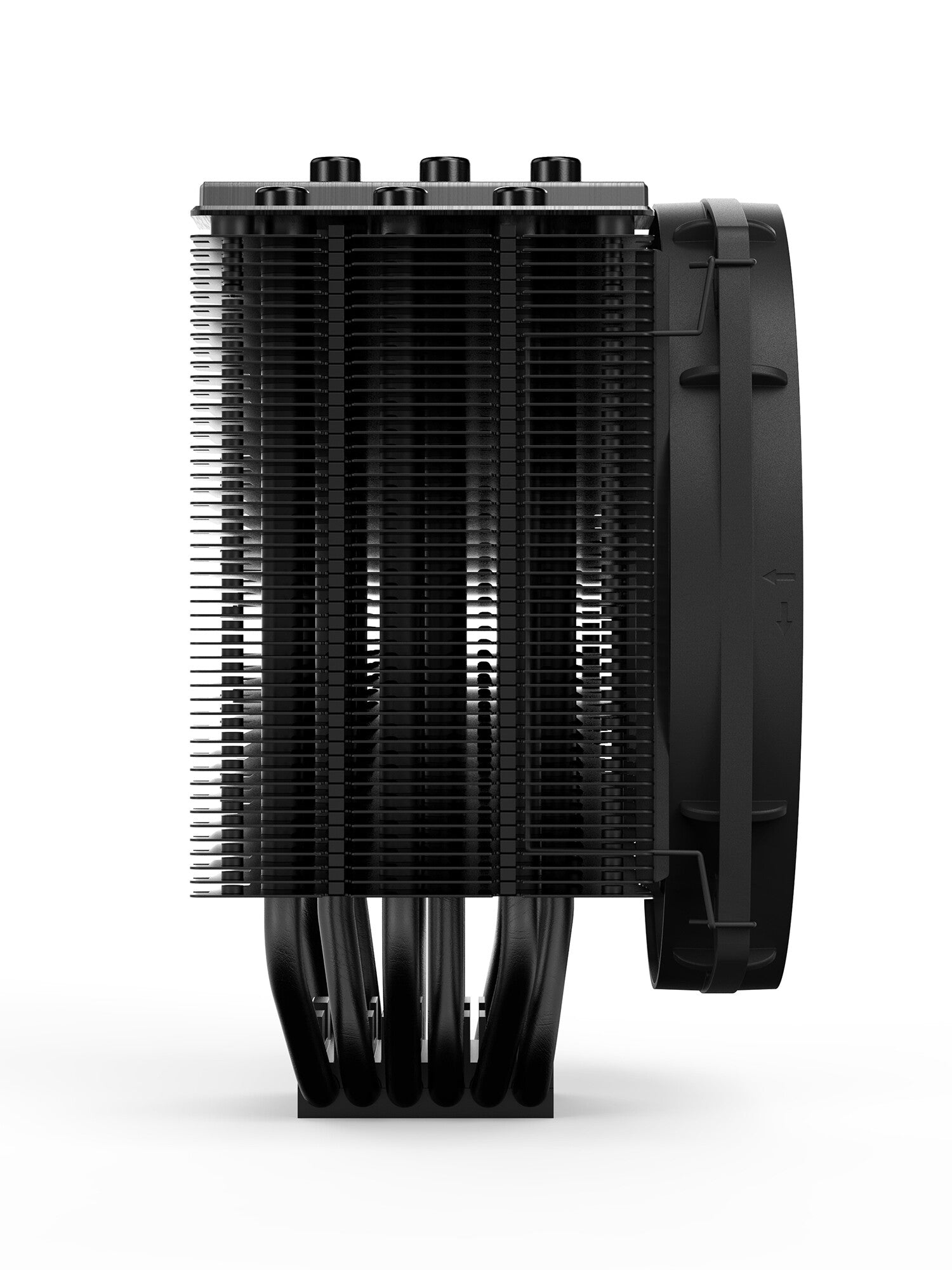

Pure Rock 2 Black is be quiet!’s CPU cooler for silent multimedia and graphics systems. It provides an excellent price-to-performance ratio with 150W TDP cooling efficiency, four 6mm heat pipes, a Pure Wings 2 120mm PWM fan and convenient design for mounting from atop the motherboard. Among the features that give it such an excellent price-to-performance ratio are:
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Rifle bearing |
Noise level (high speed) | 26.8 dB |
Noise level (low speed) | 19.1 dB |
Rotational speed (max) | 1500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 2011 (Socket R), LGA 1151 (Socket H4), LGA 2011-v3 (Socket R), LGA 1155 (Socket H2), LGA 2066, Socket AM4, LGA 1200 (Socket H5), Socket AM5, LGA 1700 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fins | 55 |
Number of fans | 1 fan(s) |
Base plate material | Copper |
Product colour | Black |
Power | |
---|---|
Thermal Design Power (TDP) | 150 W |
Rated current | 0.12 A |
Rated voltage | 12 V |
Power consumption (typical) | 1.44 W |
Weight & dimensions | |
---|---|
Package weight | 976 g |
Package height | 180 mm |
Package depth | 180 mm |
Package width | 130 mm |
Cable length | 0.22 m |
Heat pipes diameter | 6 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 575 g |
Height | 155 mm |
Depth | 87 mm |
Width | 121 mm |
Packaging content | |
---|---|
Package type | Box |
Other features | |
---|---|
Heatsink dimensions (W x D x H) | 121 x 62 x 155 mm |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 16.1 kg |
Shipping (inner) case height | 36 cm |
Shipping (inner) case length | 65.5 cm |
Shipping (inner) case width | 33 cm |
Harmonized System (HS) code | 84733080 |
The Quiet Assassin
Defeat heat created by your processor and allow for improved operation with the A40 PRO by Antec. Designed for compatibility with leading desktop processor sockets, the A40 PRO supports Intel® Core™ i7 Extreme, and AMD™ Sempron, among others. This performance CPU cooler features a whisper-quiet 92 mm LED pulse width modulation (PWM) fan and a large, aluminum heat fin structure with four embedded heat pipes, allowing your CPU to cool off efficiently.
Performance | |
---|---|
Maximum airflow | 38 cfm |
Noise level (high speed) | 23 dB |
Noise level (low speed) | 16 dB |
Rotational speed (max) | 2200 RPM |
Rotational speed (min) | 800 RPM |
Compatible processor series | AMD A, Intel® Celeron®, Intel® Celeron® G, Intel Pentium G |
Supported processor sockets | Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+, LGA 1151 (Socket H4) |
Fan diameter | 9.2 cm |
Type | Cooler |
Suitable location | Processor |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
Weight | 570 g |
Height | 136 mm |
Depth | 75 mm |
Width | 100 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
SHADOW ROCK LP
Exceptional Cooling, Significant Quiet
Fitting everything you want into a HTPC or Small Form Factor PC can be tough, quietly cooling those cramped components is far tougher. Shadow Rock LP is the ultra-compact CPU cooler from be quiet! that solves that problem.
Featuring four 6mm heat pipes, a Pure Wings 2 120mm PWM fan with airflow-optimized fan blades as well as an user-friendly mounting solution, Shadow Rock LP generates only 25.5dB(A) noise under maximum load yet boasts generous 130W TDP cooling capacity.
Shadow Rock LP is a space-saving wonder that brings be quiet!’s premium cooling technology to restricted spaces at a very attractive price point.
HIGH COOLING EFFICIENCY
Quiet and reliable cooling of your components
Shadow Rock LP offers a high cooling capacity of 130W TDP and is especially perfect for use in compact systems.
HIGH-PERFORMANCE HEAT PIPES
Offering fast and reliable heat transfer
Four 6mm heat pipes carry the heat efficiently and quickly to optimum locations on the cooling fins. This way the cooler achieves the best possible mixture of premium cooling performance in a restricted space and remarkably quiet operation.
WHISPER-SILENT PURE WINGS 2 FAN
Even at 100% fan speed, overall noise is a mere 25.5dB(A)
The Pure Wings 2 120mm PWM fan supports the best balance of perfect cooling and quiet operation. Nine silence-optimized fan blades generate high airflow characteristics that reduce noise-generating turbulences. The fan’s durable rifle-bearing technology contributes to a long lifespan of up to 80,000 hours.
EASY ACCESS, EVEN IN COMPACT PC ENCLOSURES
Highly convenient and compact design
Low-profile is a space-saving design that allows you easy access to components even in the very tight confines of compact PCs. This cooler also makes it possible to mount it from atop the motherboard, which adds further convenience.
Performance | |
---|---|
Mean time between failures (MTBF) | 80000 h |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.25 mmH2O |
Airflow | 87 m³/h |
Maximum airflow | 51.4 cfm |
Noise level (high speed) | 25.5 dB |
Noise level (low speed) | 14.8 dB |
Rotational speed (max) | 1500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fins | 88 |
Number of fan blades | 9 |
Number of fans | 1 fan(s) |
Material | Aluminium, Copper |
Product colour | Black, Copper, Silver |
Power | |
---|---|
Thermal Design Power (TDP) | 130 W |
Rated current | 0.2 A |
Voltage | 12 V |
Power supply | 2.4 W |
Weight & dimensions | |
---|---|
Package weight | 820 g |
Package height | 170 mm |
Package depth | 160 mm |
Package width | 140 mm |
Cable length | 0.22 m |
Heat pipes diameter | 6 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 395 g |
Height | 75.4 mm |
Depth | 134 mm |
Width | 122 mm |
Packaging content | |
---|---|
Screws included | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.
Caution: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.
Performance | |
---|---|
Mean time between failures (MTBF) | 150000 h |
Maximum air pressure | 2.11 mmH2O |
Minimum air pressure | 1.06 mmH2O |
Airflow | 57.5 m³/h |
Noise level (high speed) | 23.6 dB |
Noise level (low speed) | 14.8 dB |
Rotational speed (max) | 2500 RPM |
Rotational speed (min) | 600 RPM |
Supported processor sockets | Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 9.2 cm |
Type | Cooler |
Suitable location | Processor |
Power | |
---|---|
Voltage | 12 V |
Weight & dimensions | |
---|---|
Heatsink weight | 340 g |
Fan dimensions (W x D x H) | 92 x 14 x 92 mm |
Weight | 413 g |
Height | 95 mm |
Depth | 65 mm |
Width | 95 mm |
Other features | |
---|---|
Heatsink dimensions (W x D x H) | 95 x 51 x 95 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

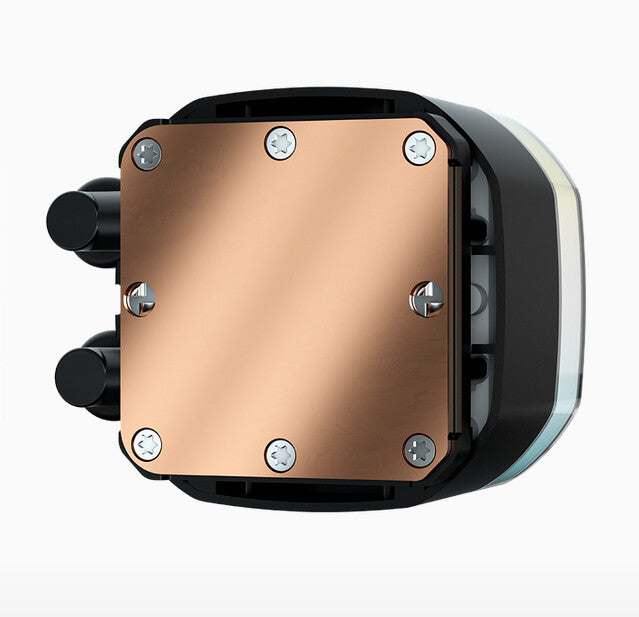

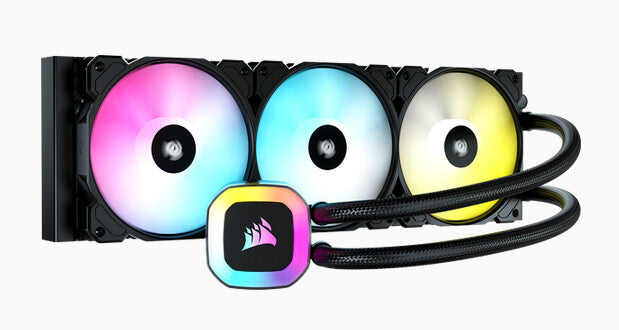

ELITE CAPELLIX XT SERIES
LIQUID CPU COOLER
NEW CHAMPION OF COOLING
EFFICIENT AND SILENT CPU COOLING
All-in-one liquid coolers don't dissipate processor heat inside the case like traditional air coolers, but instead guide it to the edge of the case and blow it out with dedicated fans. This results in cooler components and less noise. The ELITE CAPELLIX XT is an upgrade to our most powerful CPU cooler:
- Includes our best performing AF RGB ELITE fans.
- Uses extreme performance XTM70 thermal paste.
- Provides superior lighting effects with CAPELLIX LEDs.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
Anti-vortex vanes ensure more uniform airflow over radiator fins and more optimal heat dissipation.
EXTREME PERFORMANCE THERMAL PASTE
All ELITE CAPELLIX XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
PERFORMANCE NEVER LOOKED BETTER
The ELITE CAPELLIX XT cooler pump head houses 33 ultra-bright CAPELLIX LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great and will run even better.
ZERO RPM MODE
Reduce fan noise to a minimum. When your computer doesn’t need active cooling, Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely.
UPGRADE TO LCD ANYTIME
When you want to take it to the next level, you can upgrade your CPU cooler by swapping the original pump cap with the ELITE LCD Upgrade Kit.
SMARTER COOLING WITH iCUE CONTROL
An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.
EXTENDED TUBING AND EASY INSTALLATION
Extended tubing length of 400mm (H100i, H115i) / 450mm (H150i, H170i), modular tool-free mounting brackets, and pre-applied XTM70 thermal paste make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
AVAILABLE IN FOUR RADIATOR SIZES AND PERFORMANCE LEVELS
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Maximum air pressure | 2.68 mmH2O |
Minimum air pressure | 0.17 mmH2O |
Maximum airflow | 65.57 cfm |
Minimum airflow (imperial) | 13.8 cfm |
Rotational speed (max) | 2100 RPM |
Rotational speed (min) | 550 RPM |
Compatible processor series | AMD A, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2066, Socket AM4, Socket sTR4, Socket sTRX4 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Illumination colour | Multi |
Number of LEDs | 33 |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Weight & dimensions | |
---|---|
Fan thickness | 2.5 cm |
Weight | 2.61 kg |
Tube length | 45 cm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 39.7 cm |
Packaging content | |
---|---|
Thermal pad included | Yes |
Screws included | Yes |
Mounting kit | Yes |
Package type | Box |
POWERED BY MSI
Create and establish the most powerful setup with Powered by MSI products, including PC case, motherboard, liquid cooler, graphics card, and power supply unit.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
LGA 1700 COMPATIBLE
The MAG CORELIQUID V2 Series liquid cooler provides out of box support for LGA 1700.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 240R V2 WHITE’s noise level is significantly lower than that of competitor's by 10%
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Fan bearing technology | Ball bearing |
Pump noise level | 18 dB |
Bearing type | Dual ball bearing |
Maximum air pressure | 2.39 mmH2O |
Minimum air pressure | 0.23 mmH2O |
Maximum airflow | 78.73 cfm |
Minimum airflow (imperial) | 21.63 cfm |
Noise level (high speed) | 34.3 dB |
Noise level (low speed) | 14.3 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 2.5 cm |
Type | Cooler |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Product colour | White |
Power | |
---|---|
Pump current | 0.34 mA |
Fan current | 0.15 A |
Pump power consumption | 4.08 W |
Fan power consumption | 1.8 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.31 kg |
Height | 137 mm |
Depth | 317 mm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 27.4 cm |
Width | 205 mm |
Packaging content | |
---|---|
Package type | Box |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

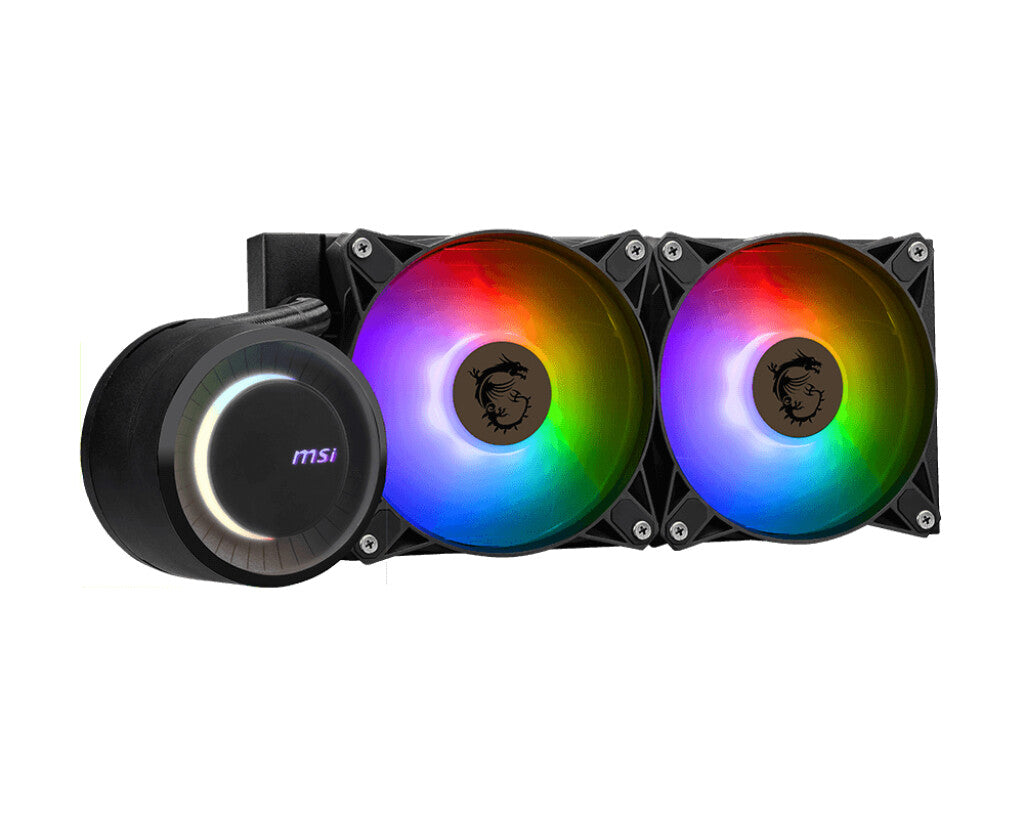

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Performance | |
---|---|
Pump motor speed | 4200 RPM |
Fan speed (min) | 500 RPM |
Fan speed (max) | 2000 RPM |
Bearing type | Dual ball bearing |
Maximum airflow | 78.73 cfm |
Minimum airflow (imperial) | 21.63 cfm |
Noise level (high speed) | 34.3 dB |
Noise level (low speed) | 14.3 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 12 cm |
Type | Cooler |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Blue, Green, Red |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Rated voltage | 12 V |
Power consumption (typical) | 5.88 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Height | 48.6 mm |
Depth | 66.8 mm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 27.4 cm |
Width | 80.6 mm |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Cooling Uncompromised
Cooler Master’s Flux is the new embodiment of enhanced performance cooling. The dual chamber pump has further honed flow and pressure to target hot spots for rapid and precise heat dissipation.
Performance Dual Chamber
New Compact Performance Dual Chamber pump delivers the perfect balance of water flow and pressure for impressive cooling.
Superior Performance Ratio
Precision engineered ultra-thin spaded fins maximizes microchannels accurately targets heat spots. Enlarged copper base surface area optimized with ideal base thickness accelerates heat transfer.
Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
PL-Flux Specific Fans
Inter-conneting air balance fan blades increased sturdiness and stability operating steadily at high speed. Angled inner rim of fan frame increasing intake of air, at the same time gap between from and blades creating greater air pressure.
Dual Loop ARGB Pump Lighting
Addressable Gen 2 RGB ready for independent implemented customization.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 160000 h |
Pump's mean time to failure (MTTF) | 210000 h |
Pump connector | 4-pin |
Pump noise level | 15 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.96 mmH2O |
Maximum airflow | 72.37 cfm |
Noise level (high speed) | 32 dB |
Rotational speed (max) | 2300 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+, Socket TR4 |
Fan diameter | 12 cm |
Type | Liquid cooling kit |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Radiator material | Aluminum |
Product colour | White |
Power | |
---|---|
Pump voltage | 12 V |
Rated current | 0.15 A |
Safety current | 0.3 Ah |
Pump power consumption | 6 W |
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 3.01 kg |
Package height | 144 mm |
Package depth | 437 mm |
Package width | 232 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.98 kg |
Pump height | 4 cm |
Pump depth | 7.5 cm |
Pump width | 8.9 cm |
Radiator height | 2.72 cm |
Radiator depth | 12 cm |
Radiator width | 39.4 cm |
General | |
---|---|
Product Family | MasterLiquid |
Logistics data | |
---|---|
Products per master (outer) case | 4 pc(s) |
Master (outer) case height | 265 mm |
Master (outer) case length | 570 mm |
Master (outer) case width | 455 mm |

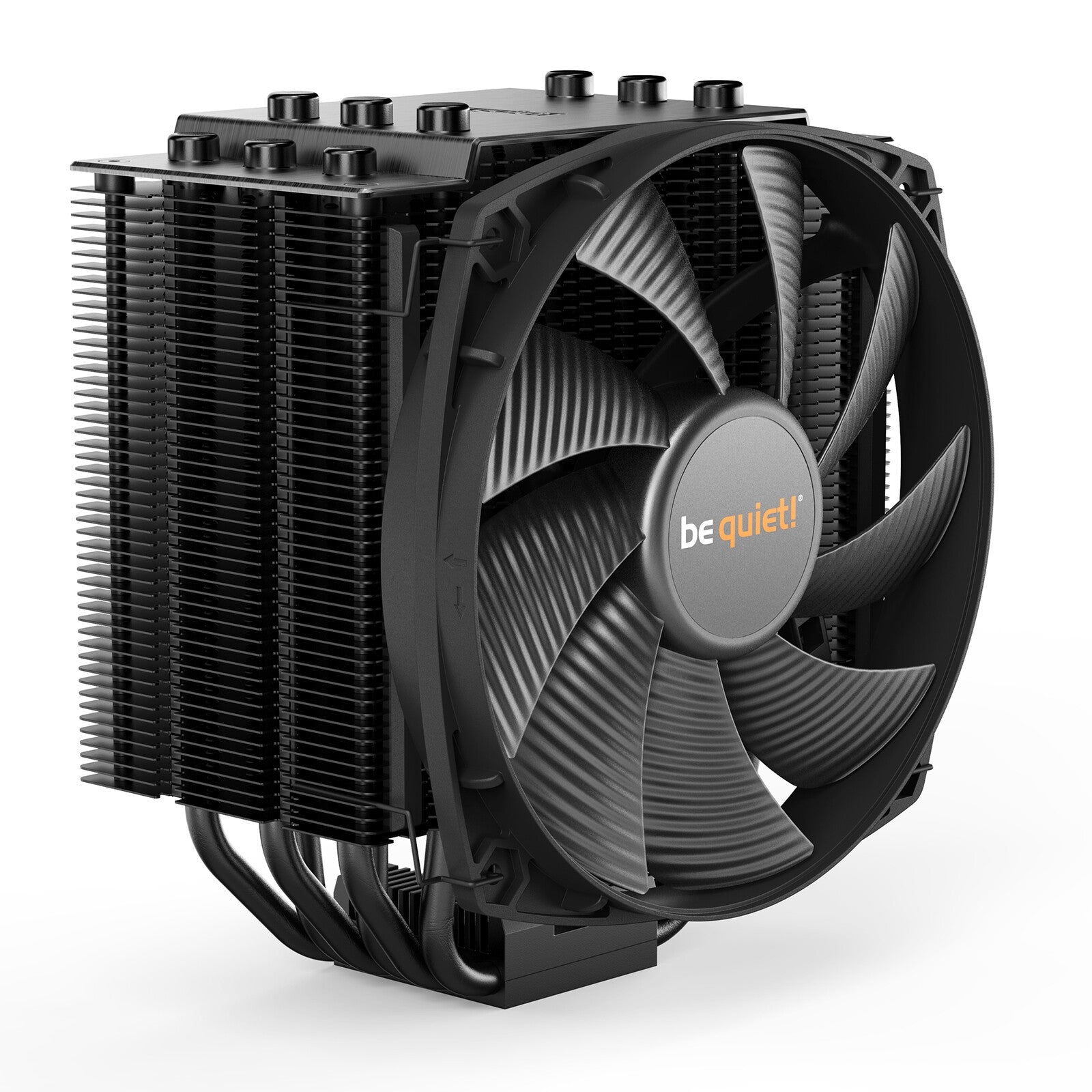

No Compromise Performance and Silence
Dark Rock Pro 5 offers an immense cooling performance and virtually inaudible operation. Excellent for heavily overclocked systems and demanding workstations. Dark Rock Pro 5 aims for users that have highest claims on performance but do not want to dispense on virtually inaudible operation at the same time.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 300000 h |
Fan speed (min) | 1300 RPM |
Fan speed (max) | 1500 RPM |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Fan 2 rotational speed (max) | 2000 RPM |
Fan 2 rotational speed (min) | 1700 RPM |
Noise level (high speed) | 23.3 dB |
Noise level (low speed) | 8.9 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 120/135 mm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 7 |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Product colour | Black |
Power | |
---|---|
Thermal Design Power (TDP) | 270 W |
Fan voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 1.74 kg |
Package height | 220 mm |
Package depth | 202 mm |
Package width | 180 mm |
Heat pipes diameter | 6 mm |
Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan thickness | 2.5 cm |
Fan dimensions (W x D x H) | 135 x 135 x 25 mm |
Weight | 1.29 kg |
Height | 168 mm |
Depth | 145 mm |
Radiator height | 16.8 cm |
Radiator depth | 11.9 cm |
Radiator width | 13.6 cm |
Width | 136 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, TUV, Triman, UKCA, UL ECOLOGO, WEEE |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 22.1 kg |
Shipping (inner) case height | 46.7 cm |
Shipping (inner) case length | 62.5 cm |
Shipping (inner) case width | 38 cm |
Products per shipping (inner) case | 12 pc(s) |
ELITE CAPELLIX XT SERIES
LIQUID CPU COOLER
NEW CHAMPION OF COOLING
EFFICIENT AND SILENT CPU COOLING
All-in-one liquid coolers don't dissipate processor heat inside the case like traditional air coolers, but instead guide it to the edge of the case and blow it out with dedicated fans. This results in cooler components and less noise. The ELITE CAPELLIX XT is an upgrade to our most powerful CPU cooler:
- Includes our best performing AF RGB ELITE fans.
- Uses extreme performance XTM70 thermal paste.
- Provides superior lighting effects with CAPELLIX LEDs.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
Anti-vortex vanes ensure more uniform airflow over radiator fins and more optimal heat dissipation.
EXTREME PERFORMANCE THERMAL PASTE
All ELITE CAPELLIX XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
PERFORMANCE NEVER LOOKED BETTER
The ELITE CAPELLIX XT cooler pump head houses 33 ultra-bright CAPELLIX LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great and will run even better.
ZERO RPM MODE
Reduce fan noise to a minimum. When your computer doesn’t need active cooling, Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely.
UPGRADE TO LCD ANYTIME
When you want to take it to the next level, you can upgrade your CPU cooler by swapping the original pump cap with the ELITE LCD Upgrade Kit.
SMARTER COOLING WITH iCUE CONTROL
An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.
EXTENDED TUBING AND EASY INSTALLATION
Extended tubing length of 400mm (H100i, H115i) / 450mm (H150i, H170i), modular tool-free mounting brackets, and pre-applied XTM70 thermal paste make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
AVAILABLE IN FOUR RADIATOR SIZES AND PERFORMANCE LEVELS
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.68 mmH2O |
Minimum air pressure | 0.17 mmH2O |
Maximum airflow | 65.57 cfm |
Minimum airflow (imperial) | 13.8 cfm |
Rotational speed (max) | 2100 RPM |
Rotational speed (min) | 550 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1356 (Socket B2), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Illumination colour | Multi |
Number of LEDs | 33 |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | White |
Weight & dimensions | |
---|---|
Fan thickness | 2.5 cm |
Weight | 2.61 kg |
VRM fan diameter | 12 cm |
Depth | 56 mm |
Tube length | 45 cm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 39.7 cm |
Width | 56 mm |
Packaging content | |
---|---|
Thermal pad included | Yes |
Screws included | Yes |
Mounting kit | Yes |
Package type | Box |
The T120 is a direct mounted high-performance air cooler. It's as cool as it is cool-looking thanks to a sleek aluminum heat pipe cover. It provides excellent thermal performance in a small package.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.7 mmH2O |
Minimum air pressure | 0.75 mmH2O |
Maximum airflow | 78.02 cfm |
Minimum airflow (imperial) | 21.67 cfm |
Noise level (high speed) | 30.6 dB |
Noise level (low speed) | 17.9 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 4 |
Number of fans | 1 fan(s) |
Base plate material | Copper |
Product colour | White |
Power | |
---|---|
Rated current | 0.23 A |
Fan power consumption | 2.76 W |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
Height | 120 mm |
Depth | 159 mm |
Width | 66 mm |
Packaging content | |
---|---|
Thermal pad included | Yes |
Mounting kit | Yes |

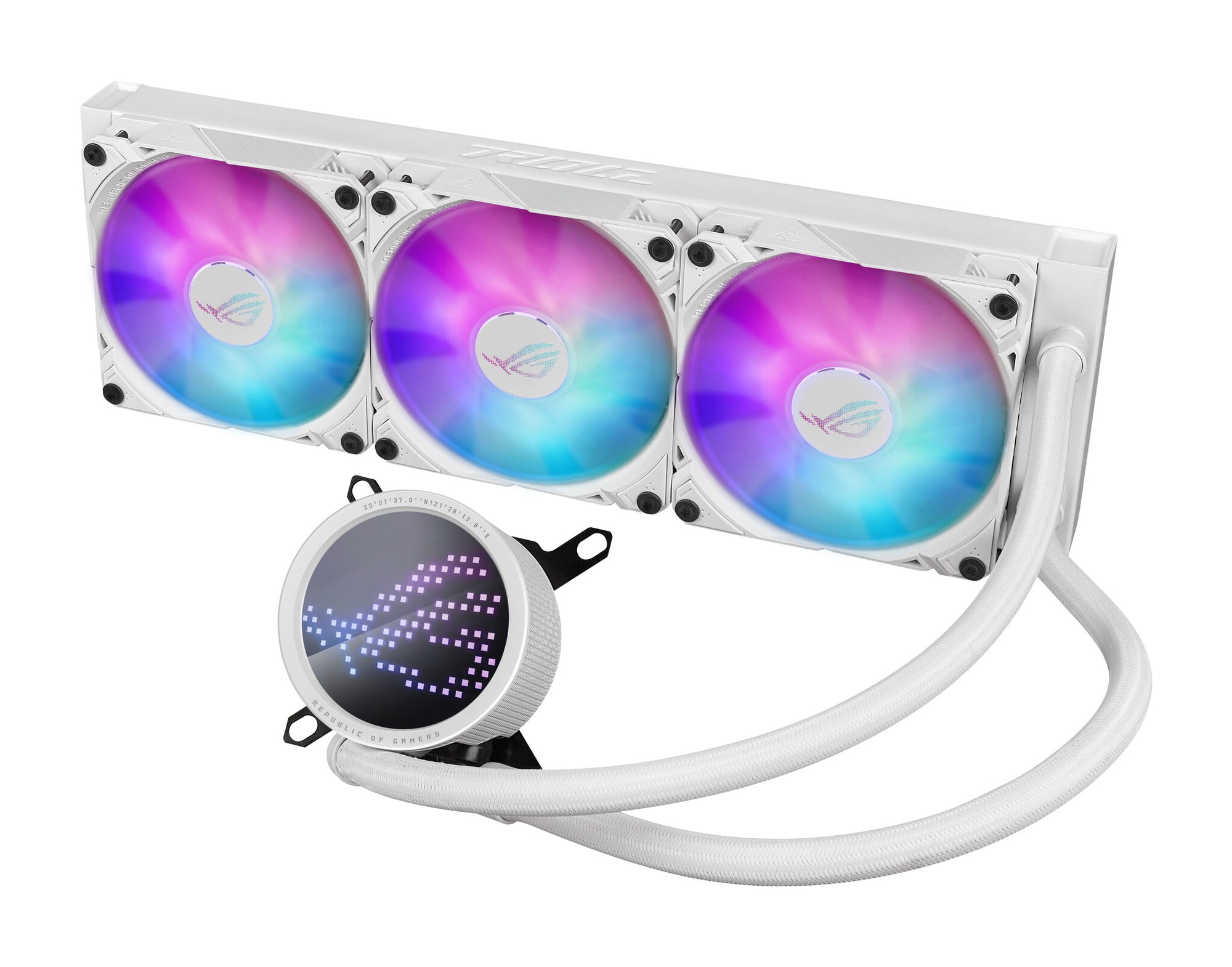

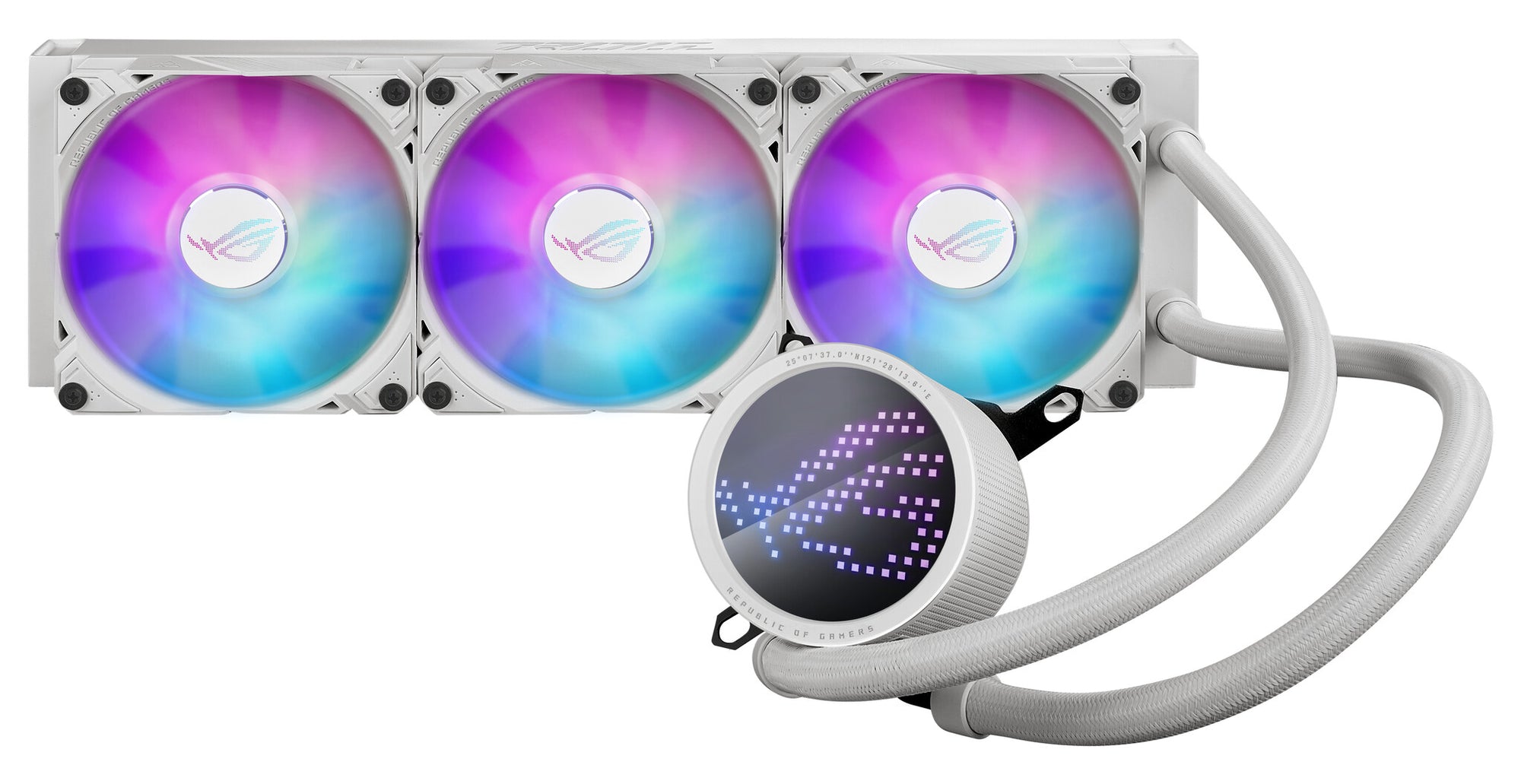

COOLER THAN COOL
Go cooler than cool with the Ryujin III White Edition. Its pristine frame houses an expansive 3.5-inch LCD screen that displays live system stats, animated GIFs, or even your own custom artwork. Underneath, a new 8th Gen Asetek pump quietly keeps the latest processors from Intel and AMD cool, while an embedded Axial-tech fan helps control motherboard VRM temps. And the coolant within flows through 400mm of reinforced tubing and a higher capacity radiator chilled by three magnetic ROG 120 mm ARGB fans, making installation and customization a snap.
Magnetic Daisy-Chainable Fans
The customizable ARGB fans snap together with a magnetic connector that links the fans and transmits control signals and power. Only one cable is required for all three fans, making installation and cable management a breeze.
Full Color 3.5” LCD Display
Internal memory has also been doubled to support clearer default animations and longer videos.
System Monitoring
The industry-leading 3.5-inch LCD built into the pump block delivers instant monitoring of clock frequencies, voltages, temperatures, fan speeds and water flow, or your custom GIFs.
Personalized Animation
Choose a pre-designed animation from the ROG gallery, or easily add one of your own.
Custom Wallpaper
Do you prefer banners or clan logos? Choose one designed by ROG, or put your own text or JPEG file on proud display at the heart of your rig.
Exploded View
The 8th Gen Asetek pump sports a 3-phase motor for higher flow and quieter operation, riding on a larger cold plate ideally sized for the latest Intel and AMD processors.
Cool Upgrades
New Cold Plate
The contact surface is now 32% larger to keep the chill on power hungry processors.
Enhanced Tubing
The sleeved rubber is wrapped in braided mesh, and the inner diameter has been enlarged from 5 mm to 7 mm to reduce flow resistance.
Thicker Radiator
399.5mm x 120mm x 30mm radiator — 3mm thicker than previous gen, for improved cooling performance.
Embedded VRM Fan
A larger embedded Axial-tech fan improves airflow, reducing motherboard VRM temperatures by up to 35 Celsius.
Software Personalization
Fan Control
This generation of ROG all-in-one coolers now includes software that lets you control the speeds of your pump and embedded fan, in a way that should be instantly recognizable to FanXpert veterans.
AIDA64 Extreme
The ROG Ryujin III ARGB also comes with a one-year subscription to AIDA 64 Extreme, whose data can be fed live onto the cooler’s LCD screen to get even more info on the state of your system.
EXTENSIVE COMPATIBILITY
The ROG Ryujin III series features 400 mm of tubing and is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.
Performance | |
---|---|
Fan static pressure | 3.88 mmH2O |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 3600 RPM |
Fan speed (min) | 600 RPM |
Fan speed (max) | 2200 RPM |
Quantity per pack | 1 pc(s) |
Fan noise level (max) | 36.45 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 70.07 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Display type | LCD |
Water block material | Copper |
Illumination colour | Multi |
Illumination LED | Yes |
Number of heat pipes | 2 |
Number of fan blades | 9 |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | White |
Weight & dimensions | |
---|---|
Package weight | 3.23 kg |
Package height | 132 mm |
Package depth | 217 mm |
Package width | 427 mm |
Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.78 kg |
Waterblock height | 10.1 cm |
Waterblock depth | 9.1 cm |
Waterblock width | 8.9 cm |
Tube length | 40 cm |
Radiator height | 3 cm |
Radiator depth | 12 cm |
Radiator width | 40 cm |
Technical details | |
---|---|
Warranty period | 6 year(s) |
Packaging content | |
---|---|
Installation instruction | Yes |
Screws included | Yes |
Mounting kit | Yes |
Peak Performance, Legendary Cooling
Dark Rock Elite offers unprecedented performance and cooling power with cutting edge fan technology and an iconic design. Despite its distinctive look, Dark Rock Elite offers high RAM compatibility with an innovative rail system. The detachable top cover contributes to the convenient handling of this high-end cooler. It also features elegant ARGB lighting with endless illumination options. Join the Elite.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 300000 h |
Fan speed (min) | 1500 RPM |
Fan speed (max) | 2000 RPM |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Fan 2 rotational speed (max) | 2000 RPM |
Fan 2 rotational speed (min) | 1500 RPM |
Fan diameter 2 | 13.5 cm |
Noise level (high speed) | 25.8 dB |
Noise level (low speed) | 11 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 13.5 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 7 |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Product colour | Black |
Power | |
---|---|
Thermal Design Power (TDP) | 280 W |
Fan voltage | 12 V |
Fan current | 0.4 A |
Weight & dimensions | |
---|---|
Package weight | 1.78 kg |
Package height | 220 mm |
Package depth | 202 mm |
Package width | 180 mm |
Heat pipes diameter | 6 mm |
Fan 2 dimensions (W x D x H) | 135 x 135 x 25 mm |
Fan thickness | 2.5 cm |
Fan dimensions (W x D x H) | 135 x 135 x 25 mm |
Weight | 1.34 kg |
Height | 168 mm |
Depth | 145 mm |
Radiator height | 16.8 cm |
Radiator depth | 12 cm |
Radiator width | 13.6 cm |
Width | 136 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, TUV, Triman, UKCA, UL ECOLOGO, WEEE |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 22.8 kg |
Shipping (inner) case height | 46.7 cm |
Shipping (inner) case length | 62.5 cm |
Shipping (inner) case width | 38 cm |
Products per shipping (inner) case | 12 pc(s) |
As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.
The right configuration for everyone
Outstanding cooling performance through liquid cooling. The Liquid Freezer range offers impressively high performance at moderate prices.
Uncompromisingly quiet
Powerful fans for every need. Low noise levels and high airflow.
Multiple award-winning
Easy-to-use thermal paste and thermal pads with excellent thermal conductivity.
Perfect complements
The right accessories to fit our product range — SLI bridges, PST cables, case fan hubs, and more.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated current | 0.1 A |
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 1.23 kg |
Package height | 117 mm |
Package depth | 190 mm |
Package width | 186 mm |
Cable length | 0.28 m |
Heat pipes diameter | 6 mm |
Weight | 890 g |
Height | 159 mm |
Depth | 104 mm |
Width | 126 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, UKCA |
Packaging content | |
---|---|
Package type | Box |
Quiet and superior cooling
Pure Loop 2 120mm is the high-performing and silent All-in-One water cooling unit of be quiet! with elegant ARGB illumination. Its all-black design and ARGB on the cooling block makes Pure Loop 2 120mm a true eye-catcher in every PC case. Function, style and usability go hand in hand with Pure Loop 2 120mm, as the refill port and included coolant bottle allow easy maintenance for a long lifespan.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 80000 h |
Pump motor speed | 5500 RPM |
Pump motor speed (min) | 4000 RPM |
Pump motor speed (max) | 5500 RPM |
Fan speed (max) | 2100 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Noise level (high speed) | 32.1 dB |
Noise level (low speed) | 13 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.45 A |
LED voltage | 5 V |
Fan power consumption | 5.4 W |
Weight & dimensions | |
---|---|
Package weight | 1.64 kg |
Package height | 140 mm |
Package depth | 321 mm |
Package width | 240 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 800 g |
Waterblock height | 9.45 cm |
Waterblock depth | 4.2 cm |
Waterblock width | 8.3 cm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 15.2 cm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS, Triman, UKCA, UL ECOLOGO, WEEE |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 14.6 kg |
Shipping (inner) case height | 50.8 cm |
Shipping (inner) case length | 65.8 cm |
Shipping (inner) case width | 29.6 cm |
Products per shipping (inner) case | 8 pc(s) |
Versatile Multi-Compatible Server Cooler
The Freezer 4U-M stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel's LGA 4189 and LGA 4677, as well as AMD's SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. Remarkably, despite its impressive cooling capabilities, the Freezer 4U consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 64 cores and a TDP of up to 350 watts.
RAM Compatibility and Clearance
The Freezer 4U offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants.
Compact Design and Dual Socket Compatibility
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Designed for continuous operation
Both fans of the Freezer 4U-M are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Premium Thermal Paste Included
The Freezer 4U-M comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Bearing type | Dual ball bearing |
Pulse-width modulation (PWM) support | Yes |
Fan 2 maximum air pressure | 3.3 mmH2O |
Fan 2 maximum airflow | 71.9 cfm |
Fan 2 rotational speed (max) | 2300 RPM |
Fan 2 rotational speed (min) | 400 RPM |
Fan diameter 2 | 12 cm |
Maximum air pressure | 3.3 mmH2O |
Airflow | 122.16 m³/h |
Maximum airflow | 71.9 cfm |
Rotational speed (max) | 2300 RPM |
Rotational speed (min) | 400 RPM |
Supported processor sockets | LGA 4189, LGA 4677 (Socket E), Socket SP3, Socket TR4, Socket sTR4, Socket sTRX4, Socket sWRX8 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Rack capacity | 4U |
Fan connector | 4-pin + 4-pin |
Number of heat pipes | 8 |
Fins material | Aluminium |
Number of fins | 57 |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Material | Aluminium, Plastic |
Product colour | Aluminium, Black |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.12 A |
Weight & dimensions | |
---|---|
Package weight | 1.55 kg |
Package height | 141 mm |
Package depth | 211 mm |
Package width | 160 mm |
Cable length | 0.2 m |
Heat pipes diameter | 6 mm |
Weight | 1.27 kg |
Height | 145 mm |
Depth | 124 mm |
Width | 156 mm |
Technical details | |
---|---|
Sustainability certificates | CE |
Packaging content | |
---|---|
Screws included | Yes |
Package type | Box |

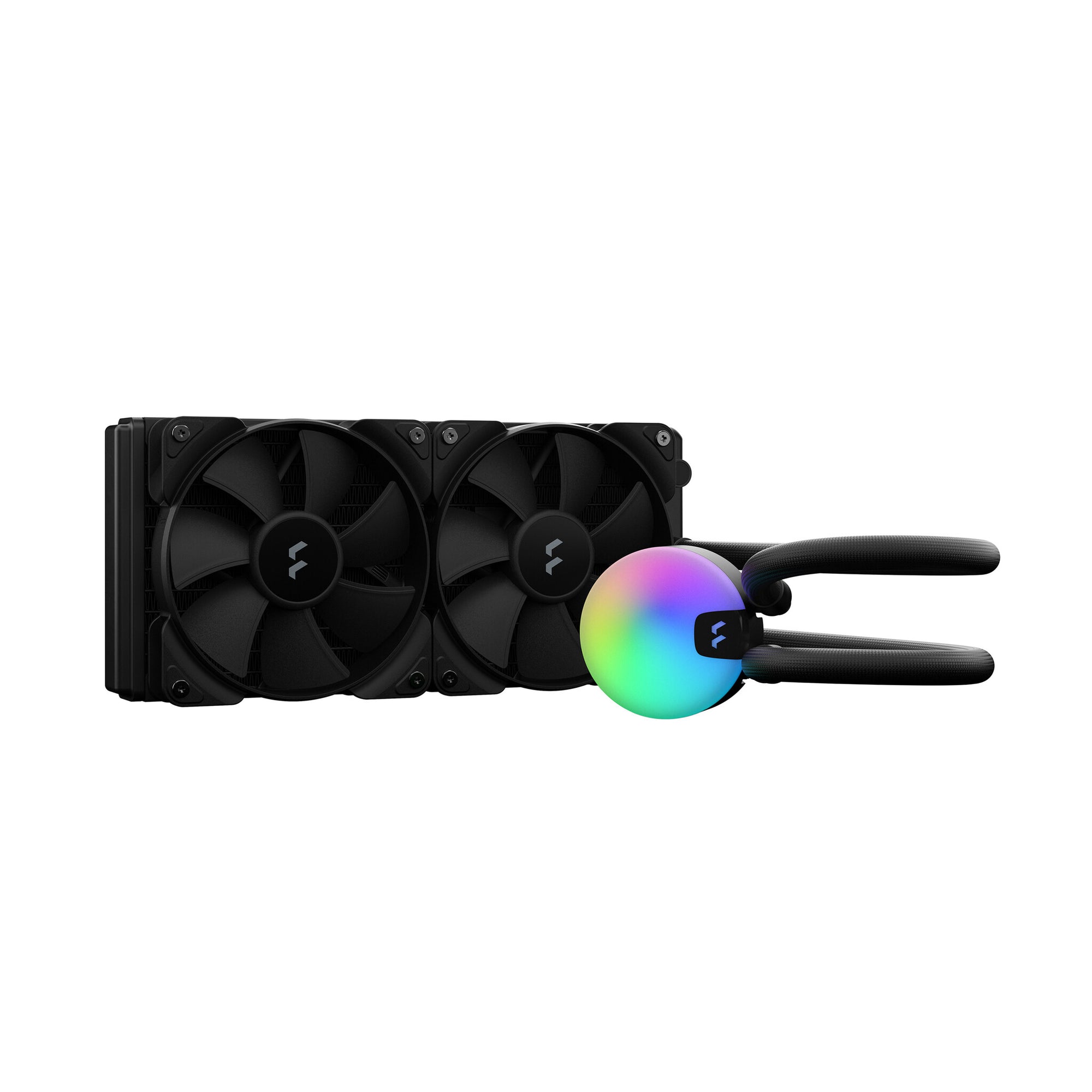

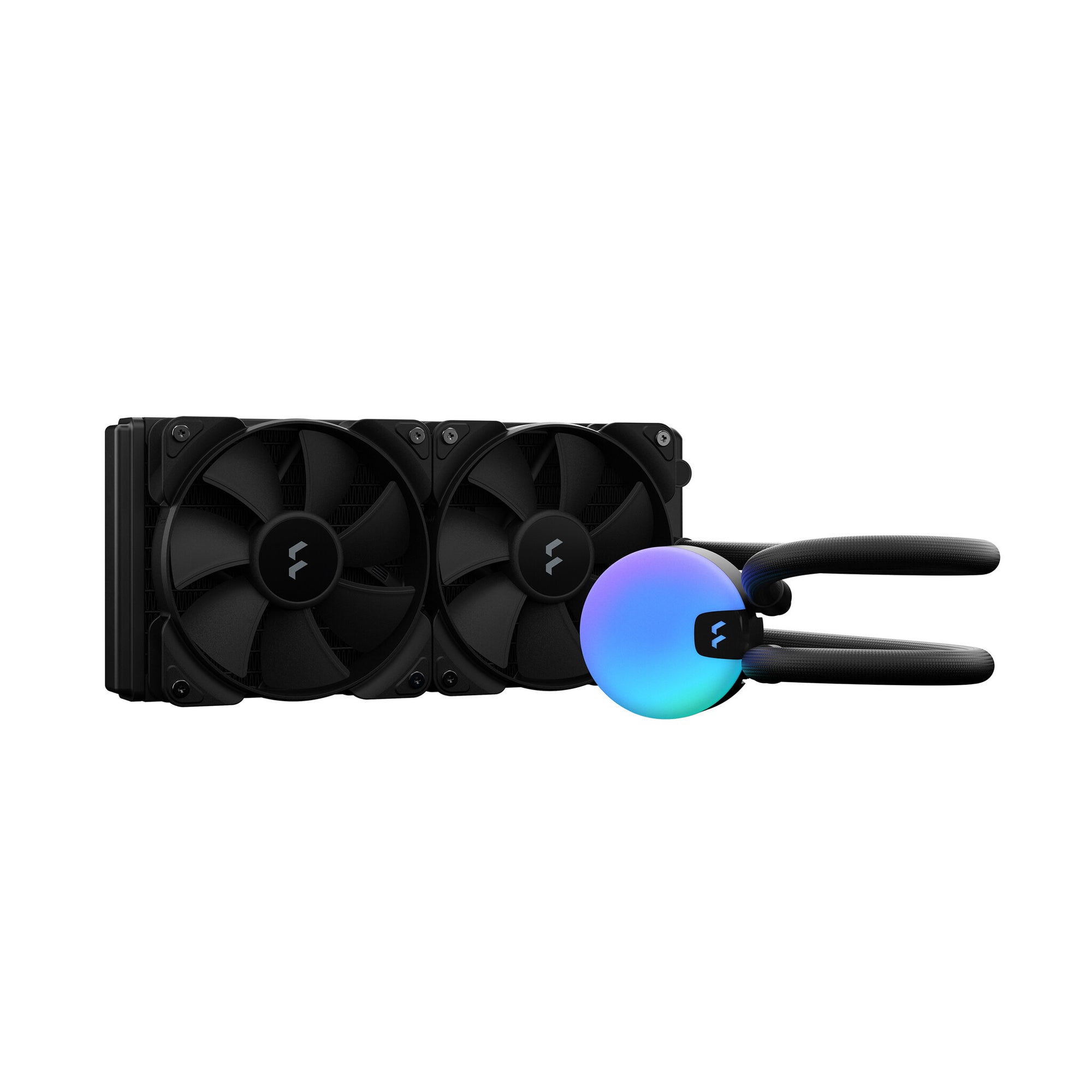

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
- Compatible with LGA 1700 and AM5
- Supports the most common sockets for both Intel and AMD
Powerful aspects
Aspect fans for low turbulence and chaining support
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 90000 h |
Pump's mean time to failure (MTTF) | 50000 h |
Pump motor speed | 4000 RPM |
Quantity per pack | 1 pc(s) |
Pump bearing technology | Ceramic bearing |
Fan bearing technology | Rifle bearing |
Pump noise level | 22 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.05 mmH2O |
Minimum air pressure | 0.3 mmH2O |
Maximum airflow | 78 cfm |
Minimum airflow (imperial) | 20 cfm |
Noise level (high speed) | 35.5 dB |
Noise level (low speed) | 10 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Illumination colour | Multi |
Number of LEDs | 6 |
Illumination LED | Yes |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 340 mA |
Fan voltage | 12 V |
Fan current | 0.24 A |
Weight & dimensions | |
---|---|
Package weight | 2 kg |
Package height | 183 mm |
Package depth | 369 mm |
Package width | 171 mm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 31.3 cm |
Radiator width | 14 cm |
Packaging content | |
---|---|
Mounting kit | Yes |
Package type | Box |
iCUE LINK H170i LCD Liquid CPU Cooler
A powerful all-in-one CPU cooler with an ultra-bright 2.1" IPS LCD screen, leveraging revolutionary iCUE LINK technology for easier, faster, and cleaner building than ever before.
iCUE LINK H170i LCD
420mm ALL-IN-ONE CPU COOLER
SIMPLICITY AT ITS BEST
BUILD BETTER. BUILD SMARTER.
Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
BRILLIANT IPS LCD DISPLAY
A custom 2.1" IPS LCD screen with 480x480 resolution and an ultra-bright 600cd/m² backlight displays real-time CPU temperature, your favorite animated GIF, funniest meme, or your team’s logo at 30 FPS in over 16.7 million colors.
LIGHT YEARS AHEAD
- EFFICIENT AND QUIET CPU COOLING
High-performance pump head and split-flow copper cold plate
- EFFORTLESS INSTALLATION
Single cable connects to included hub with automatic installation
- UNPARALLELED LIGHTING
QX RGB fans with 34 LEDs per fan and exclusive Time Warp lighting mode
NEXT-GEN AIO CPU COOLING
Boost your processor's performance with a split-flow copper cold plate with pre-applied CORSAIR XTM70 thermal paste. QX140 RGB fans ramp up to 2,000 RPM, complete with stunning lighting and next to no wiring for a flawless look.
- IN THE SPOTLIGHT
24 RGB LEDs encircling the screen and 20 LEDs on the pump base provide a brilliant backdrop, with hidden connections to ensure no distractions from the view.
- YOUR SETUP AT YOUR COMMAND
Adjust fan and pump speeds, control and synchronize RGB lighting, and monitor CPU and coolant temperatures in iCUE.
- iCUE LINK SYSTEM HUB INCLUDED
Included CORSAIR iCUE LINK System Hub - connect up to 14 iCUE LINK devices (seven per port) in any order.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads.
EXTREME PERFORMANCE THERMAL PASTE
All iCUE LINK LCD AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
LOOK YOUR BEST
Stand out with the perfect blend of performance
and aesthetics.
Don't just build a PC, create a masterpiece.
Performance | |
---|---|
Fan static pressure | 3.5 mmH2O |
Quantity per pack | 3 pc(s) |
Maximum airflow | 82.5 cfm |
Minimum airflow (imperial) | 12.1 cfm |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 400 RPM |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
Supported processor sockets | Socket AM4, Socket AM5 |
Fan diameter | 14 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan controller | Yes |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 3.03 kg |
Tube length | 45 cm |
Radiator height | 2.7 cm |
Radiator depth | 14 cm |
Radiator width | 45.7 cm |
COOLER THAN COOL
Go cooler than cool with the ROG Ryujin III. Its roomy 3.5-inch LCD screen displays live system stats or your custom artwork and animated GIFs. Underneath, an embedded fan upgraded with Axial-tech improves motherboard VRM thermals by up to 35 Celsius, and an 8th Gen Asetek pump and coldplate combine to deliver even lower CPU temperatures. Liquid is piped in through generously long braided tubing and chilled by a higher capacity radiator and three famously quiet 120 mm Noctua fans.
Full Color 3.5” LCD Display
System Monitoring
The industry-leading 3.5-inch LCD built into the pump block delivers instant monitoring of clock frequencies, voltages, temperatures, fan speeds and water flow, or your custom GIFs.
Full Color 3.5” LCD Display
Personalized Animation
Choose a pre-designed animation from the ROG gallery, or easily add one of your own.
Full Color 3.5” LCD Display
Custom Wallpaper
Do you prefer banners or clan logos? Choose one designed by ROG, or put your own text or JPEG file on proud display at the heart of your rig.
Embedded VRM Fan
A larger embedded Axial-tech fan improves airflow, reducing motherboard VRM temperatures by up to 35 Celsius.
Noctua
IndustrialPPC Fan
To overcome the thermal challenges of the latest multi-core CPUs, ROG Ryujin III offers industrial-grade Noctua PPC-2000 PWM radiator fans that deliver high performance and minimal-noise operation.
Fan Control
This generation of ROG all-in-one coolers now includes software that lets you control the speeds of your pump and embedded fan, in a way that should be instantly recognizable to FanXpert veterans.
AIDA64 Extreme
The ROG Ryujin III ARGB also comes with a one-year subscription to AIDA 64 Extreme, whose data can be fed live onto the cooler’s LCD screen to get even more info on the state of your system.
EXTENSIVE COMPATIBILITY
The ROG Ryujin III series features 400 mm of tubing and is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.
Performance | |
---|---|
Fan static pressure | 3.94 mmH2O |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 3600 RPM |
Fan speed (min) | 450 RPM |
Fan speed (max) | 2000 RPM |
Quantity per pack | 1 pc(s) |
Fan noise level (max) | 29.7 dB |
Pulse-width modulation (PWM) support | Yes |
Airflow | 121.8 m³/h |
Maximum airflow | 71.6 cfm |
Minimum airflow (imperial) | 21.8 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Display type | LCD |
Water block material | Copper |
Number of fans | 3 fan(s) |
Radiator material | Aluminum |
Product colour | Black |
Weight & dimensions | |
---|---|
Package weight | 3.31 kg |
Package height | 132 mm |
Package depth | 217 mm |
Package width | 427 mm |
Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.7 kg |
Waterblock height | 10.1 cm |
Waterblock depth | 9.1 cm |
Waterblock width | 8.9 cm |
Tube length | 40 cm |
Radiator height | 3 cm |
Radiator depth | 12 cm |
Radiator width | 40 cm |
Packaging content | |
---|---|
Installation instruction | Yes |
Screws included | Yes |
Mounting kit | Yes |
