IMPRESSIVE LIGHTING, SUPERIOR COOLING

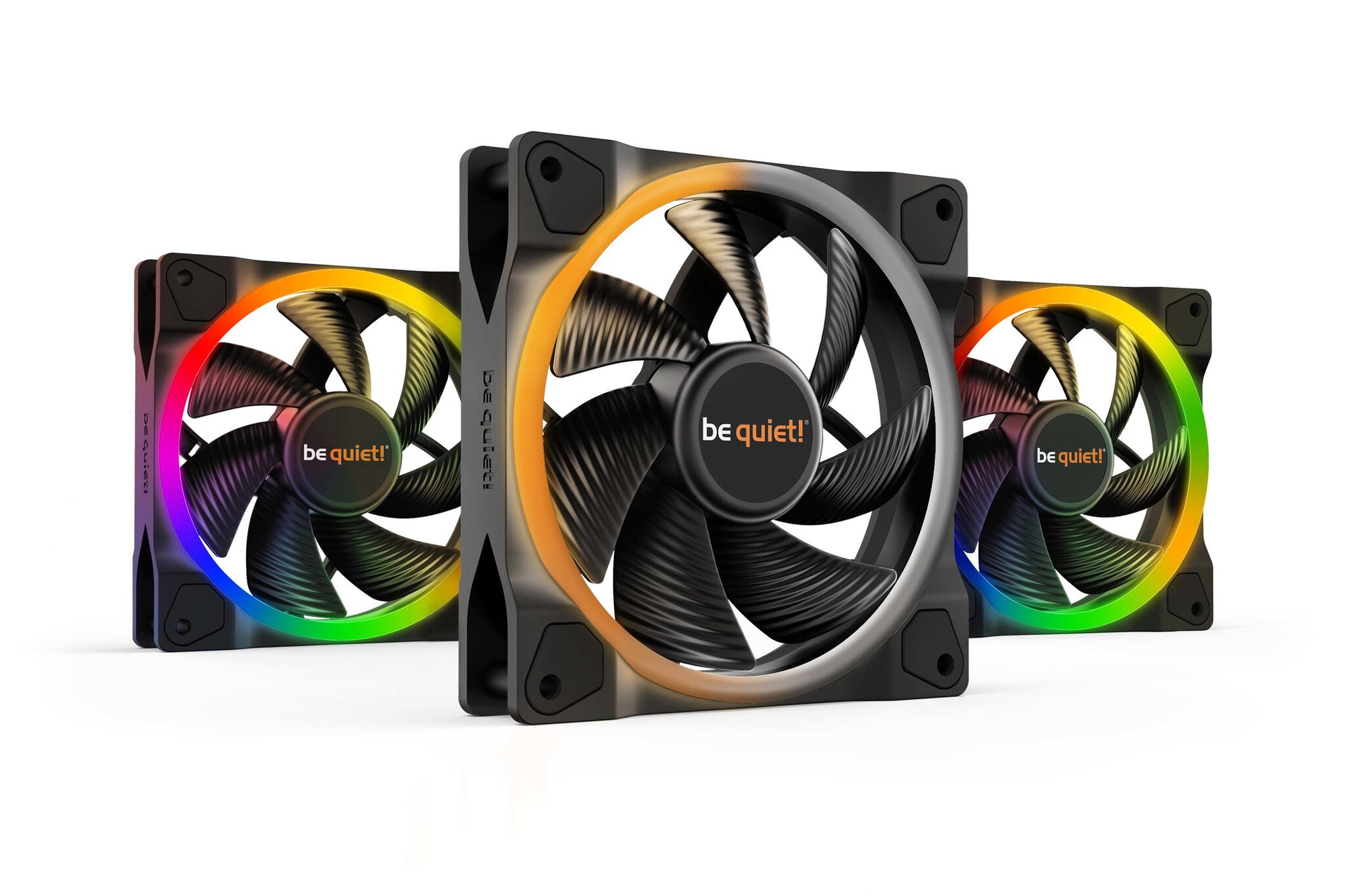

Three Light Wings 120mm PWM offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
If you are looking for quiet case fans with an impressive look from every angle, these three Light Wings 120mm PWM are your fans of choice. Not only a visual highlight, they’re also reliable and performant. These fans hit the sweet spot between performance, noise and ARGB lighting.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.66 mmH2O |
Airflow | 70.53 m³/h |
Maximum airflow | 41.51 cfm |
Noise level (high speed) | 20.6 dB |
Rotational speed (max) | 1700 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.38 A |
Rated current | 0.07 A |
Safety current | 0.38 Ah |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Power consumption (typical) | 4.56 W |
Weight & dimensions | |
---|---|
Package weight | 833 g |
Package height | 29.5 mm |
Package depth | 172 mm |
Package width | 133 mm |
Cable length | 0.5 m |
Fan weight | 200 g |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 200 g |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, WEEE |
Compliance certificates | CE, RoHS, WEEE |
Packaging content | |
---|---|
Hub included | Yes |
Number of screws | 16 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 8.91 kg |
Shipping (inner) case height | 20 cm |
Shipping (inner) case length | 45.4 cm |
Shipping (inner) case width | 28.3 cm |
Products per shipping (inner) case | 10 pc(s) |
Harmonized System (HS) code | 84733080 |

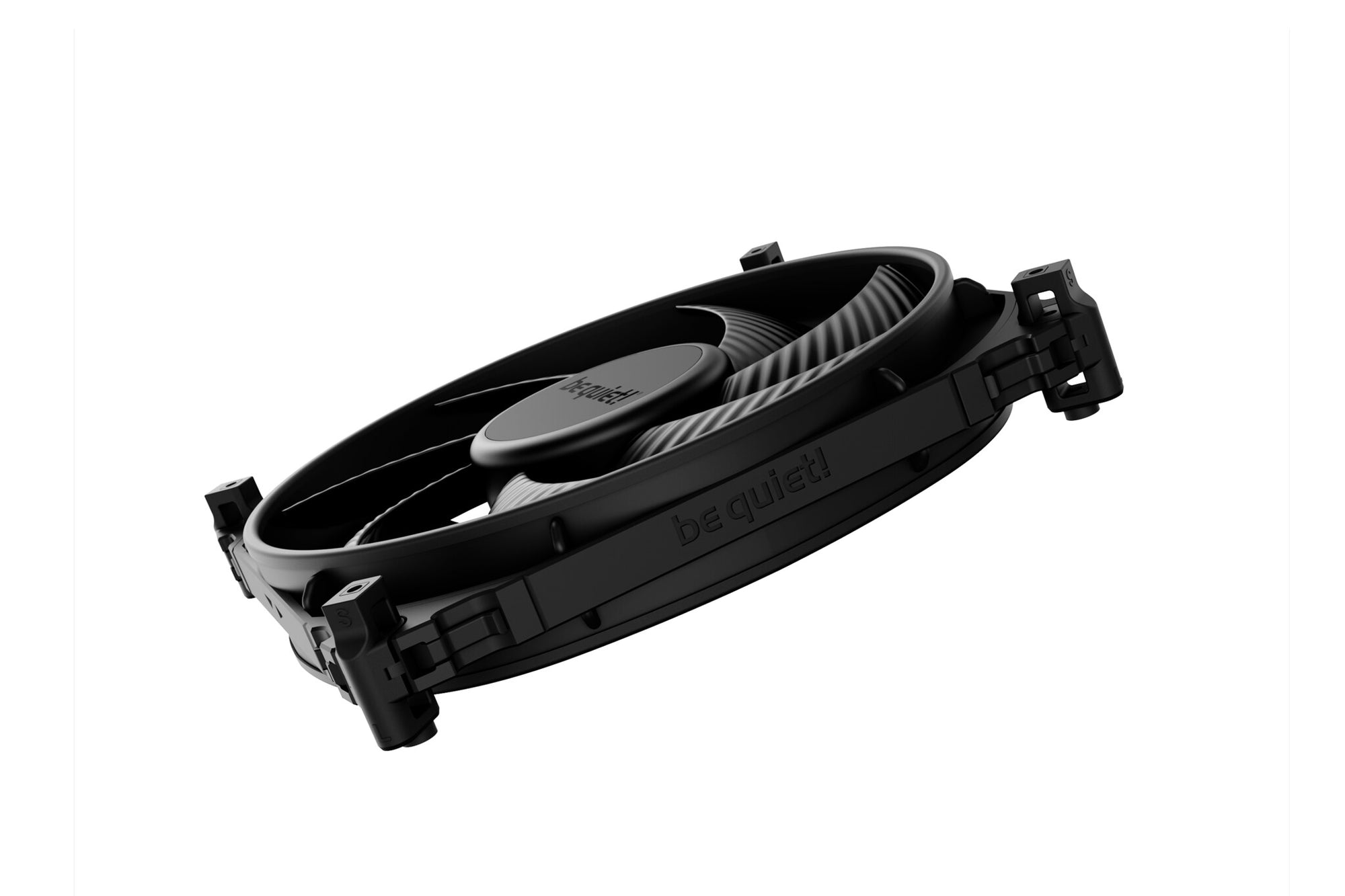

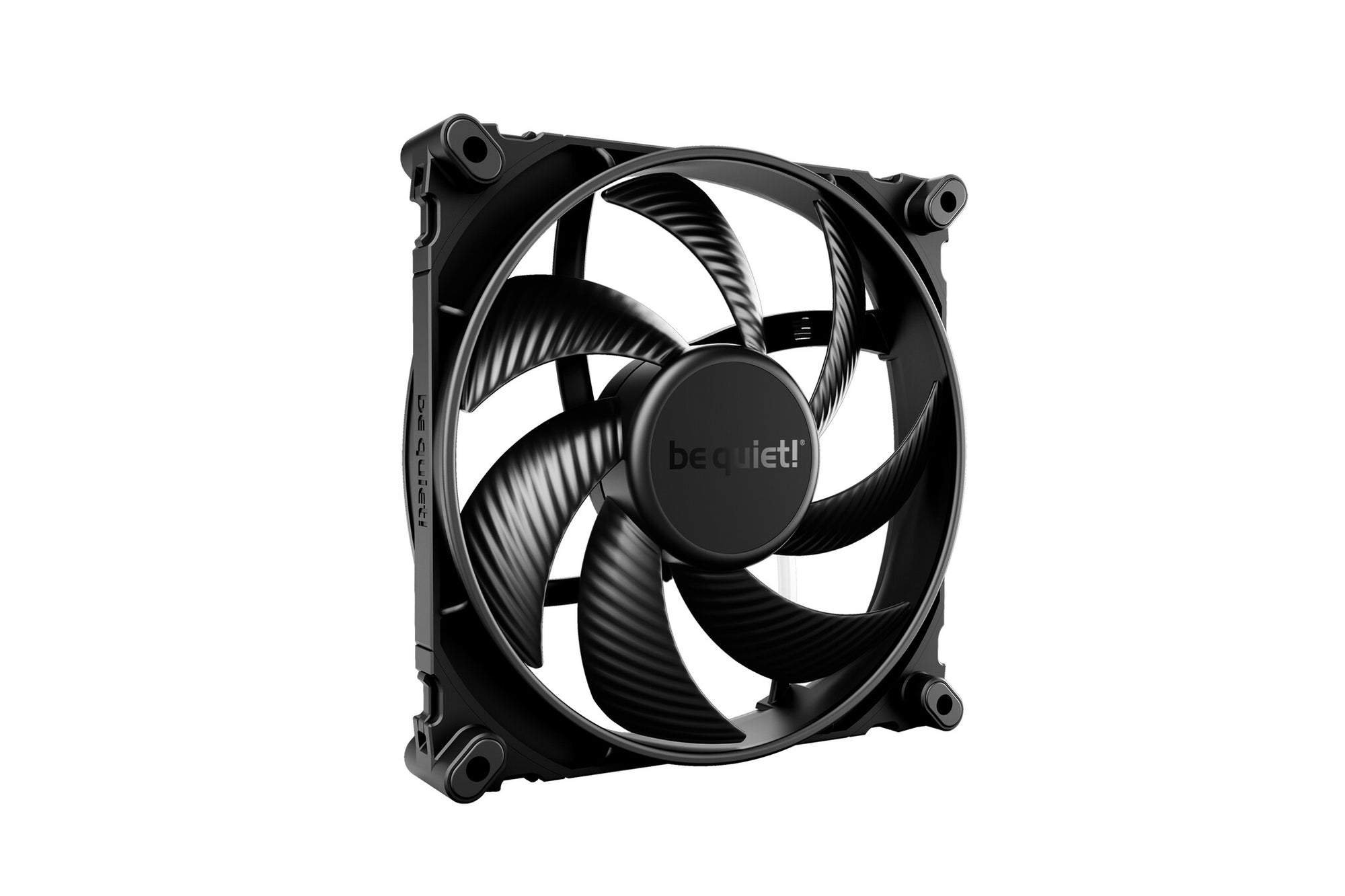

No compromise silence and performance
Silent Wings 4 140mm PWM combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 140mm PWM the perfect choice for the most demanding applications in high-end systems.
Performance | |
---|---|
Mean time between failures (MTBF) | 300000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 0.92 mmH2O |
Airflow | 87.16 m³/h |
Maximum airflow | 51.3 cfm |
Noise level (high speed) | 13.6 dB |
Rotational speed (max) | 1100 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |
Fan connector | 4-pin |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.33 A |
Rated current | 0.3 A |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Power consumption (typical) | 3.6 W |
Weight & dimensions | |
---|---|
Package weight | 387 g |
Package height | 31 mm |
Package depth | 206.5 mm |
Package width | 156 mm |
Cable length | 0.5 m |
Weight | 220 g |
Height | 25 mm |
Depth | 140 mm |
Width | 140 mm |
Packaging content | |
---|---|
Number of clips | 4 |
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 13.6 kg |
Shipping (inner) case height | 38.8 cm |
Shipping (inner) case length | 46.3 cm |
Shipping (inner) case width | 31.7 cm |
Products per shipping (inner) case | 32 pc(s) |
Harmonized System (HS) code | 84733080 |

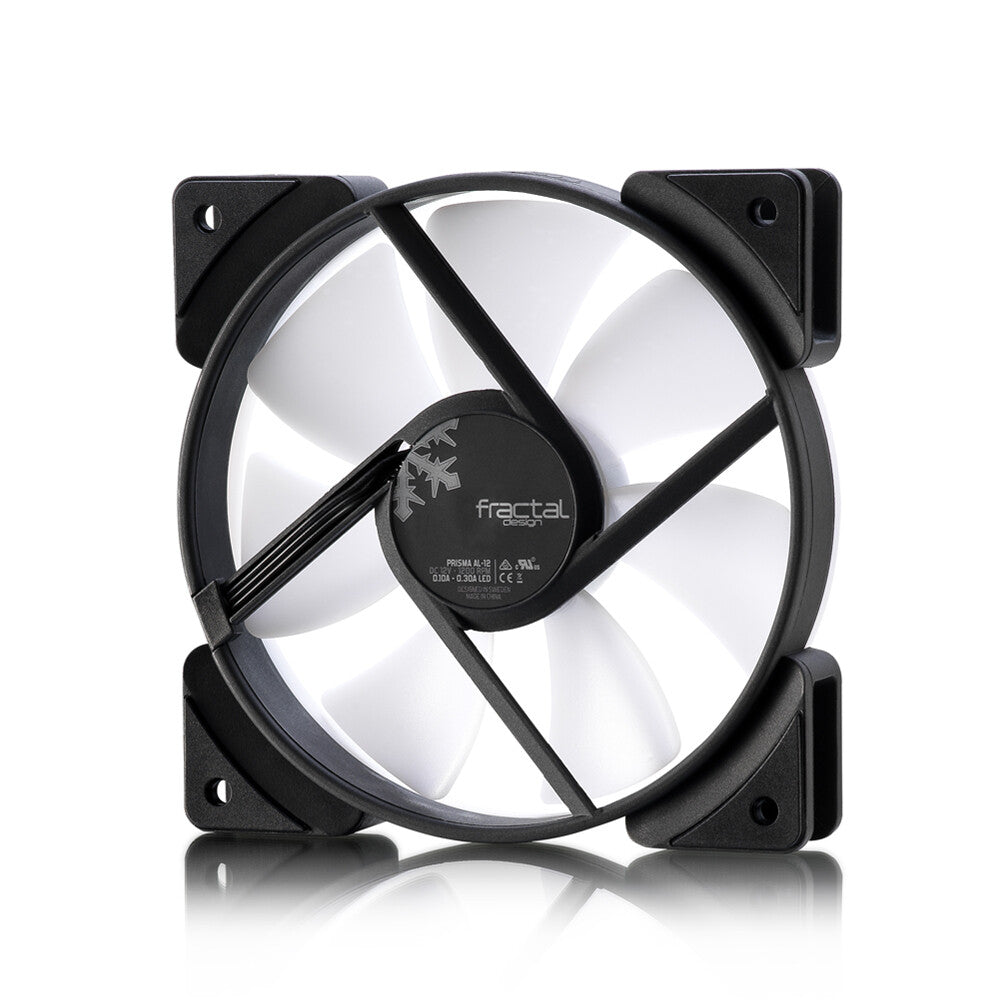

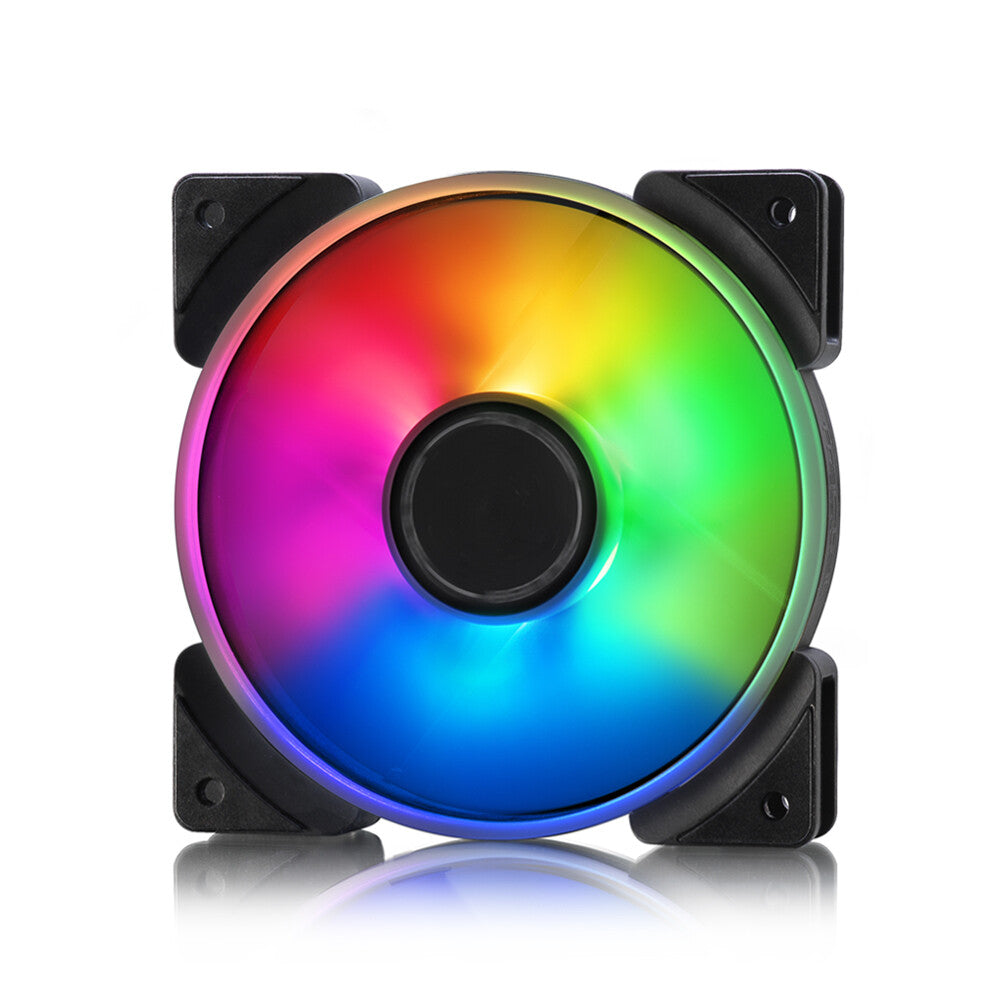

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Quantity per pack | 1 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.78 mmH2O |
Minimum air pressure | 0.36 mmH2O |
Airflow | 145.62 m³/h |
Maximum airflow | 85.71 cfm |
Minimum airflow (imperial) | 20.68 cfm |
Noise level (high speed) | 32.7 dB |
Noise level (low speed) | 14.8 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 6 |
Illumination LED | Yes |
Number of fan blades | 7 |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.18 A |
LED voltage | 5 V |
Starting voltage | 7 V |
Voltage | 12 V |
Power supply | 2.16 W |
Weight & dimensions | |
---|---|
Package weight | 592 g |
Package height | 30 mm |
Package depth | 122 mm |
Package width | 182 mm |
Cable length | 0.5 m |
Weight | 169 g |
Height | 120 mm |
Depth | 25 mm |
Width | 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

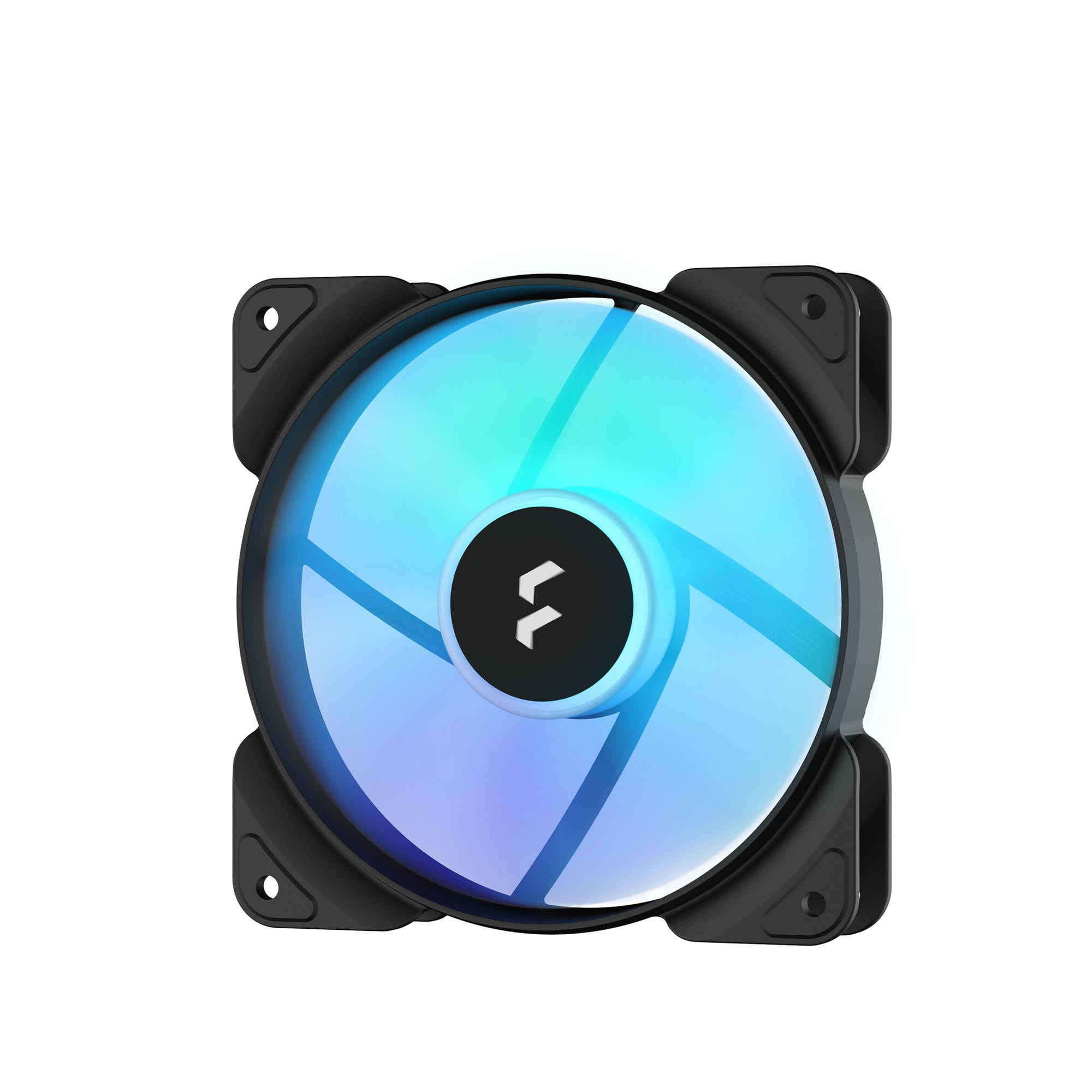

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
In living color
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than the standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Performance | |
---|---|
Mean time between failures (MTBF) | 90000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Rifle bearing |
Maximum air pressure | 2.05 mmH2O |
Minimum air pressure | 0.3 mmH2O |
Airflow | 132.5 m³/h |
Maximum airflow | 78 cfm |
Minimum airflow (imperial) | 20 cfm |
Noise level (high speed) | 35.5 dB |
Noise level (low speed) | 10 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 500 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fan blades | 7 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.24 A |
Starting voltage | 7 V |
Rated voltage | 5 V |
Voltage | 12 V |
Power consumption (typical) | 2.16 W |
Weight & dimensions | |
---|---|
Package weight | 185 g |
Package height | 30 mm |
Package depth | 212 mm |
Package width | 143 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Weight | 155 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
In living color
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain Feature
Simplify cable management by using the Aspect chain feature for multiple units
Performance | |
---|---|
Mean time between failures (MTBF) | 90000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Rifle bearing |
Maximum air pressure | 1.2 mmH2O |
Airflow | 54.4 m³/h |
Maximum airflow | 32 cfm |
Noise level (high speed) | 18.3 dB |
Rotational speed (max) | 1200 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fan blades | 7 |
Number of fans | 1 fan(s) |
Product colour | White |
Power | |
---|---|
Maximum current | 0.16 A |
Starting voltage | 7 V |
Rated voltage | 5 V |
Voltage | 12 V |
Power consumption (typical) | 0.96 W |
Weight & dimensions | |
---|---|
Package weight | 155 g |
Package height | 30 mm |
Package depth | 192 mm |
Package width | 123 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 135 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

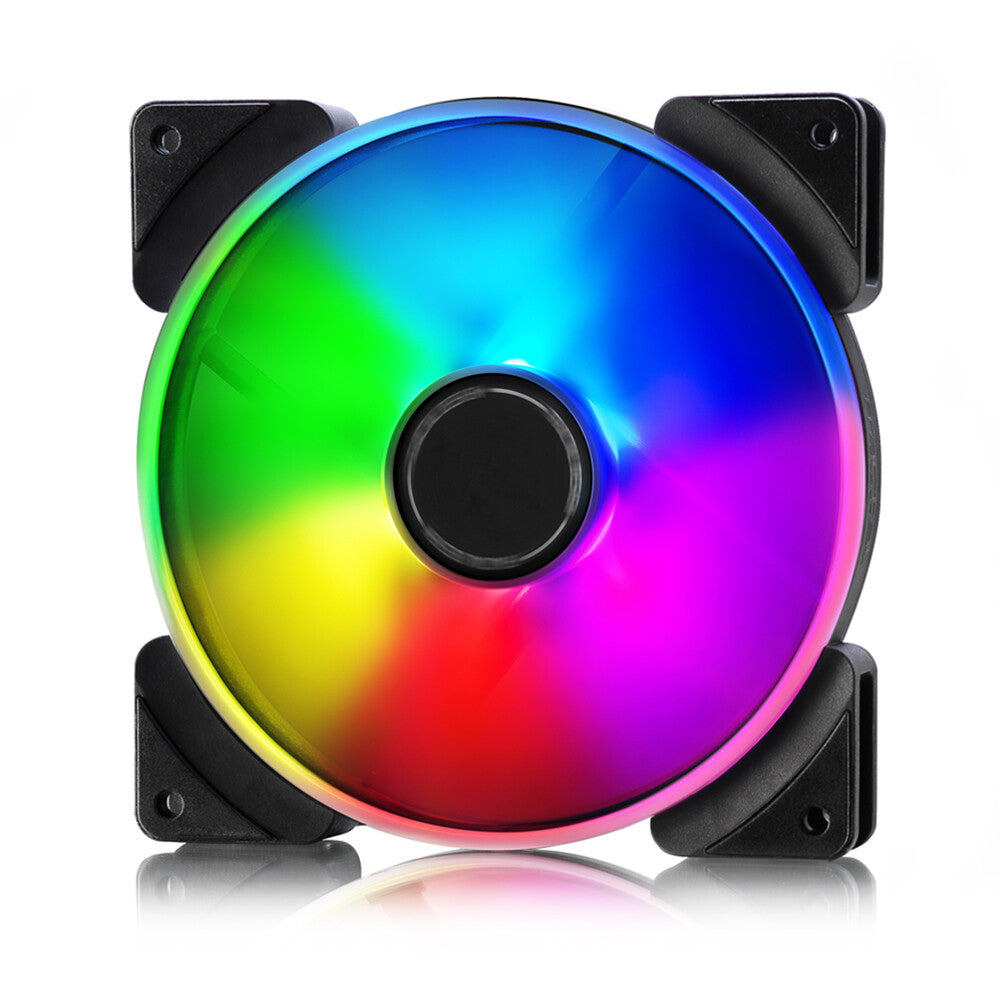

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Quantity per pack | 1 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.78 mmH2O |
Minimum air pressure | 0.36 mmH2O |
Airflow | 145.62 m³/h |
Maximum airflow | 85.71 cfm |
Minimum airflow (imperial) | 20.68 cfm |
Noise level (high speed) | 32.7 dB |
Noise level (low speed) | 14.8 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 6 |
Illumination LED | Yes |
Number of fan blades | 7 |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.18 A |
LED voltage | 5 V |
Starting voltage | 7 V |
Voltage | 12 V |
Power supply | 2.16 W |
Weight & dimensions | |
---|---|
Package weight | 212 g |
Package height | 30 mm |
Package depth | 122 mm |
Package width | 182 mm |
Cable length | 0.5 m |
Weight | 169 g |
Height | 120 mm |
Depth | 25 mm |
Width | 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

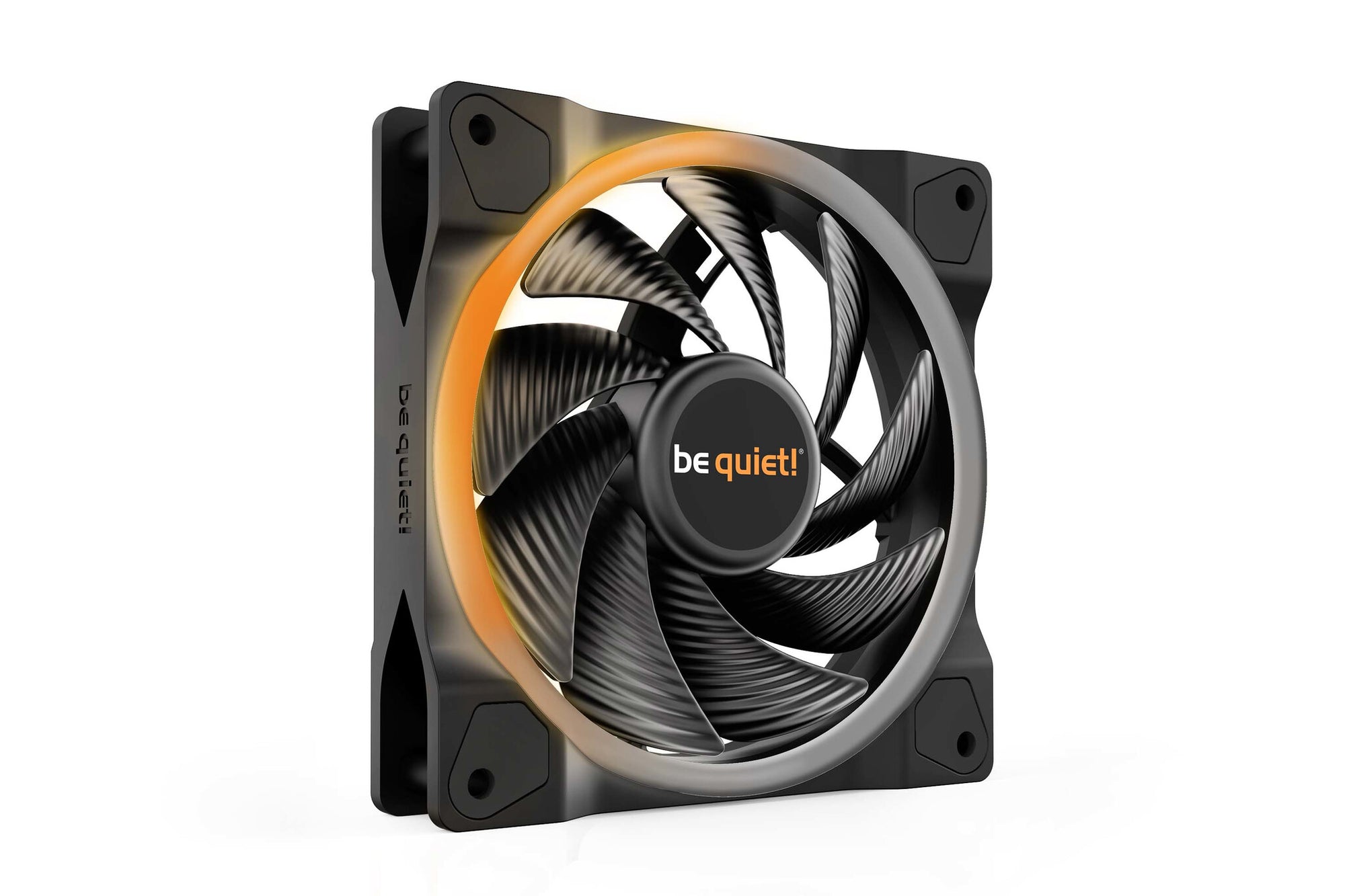

IMPRESSIVE LIGHTING, SUPERIOR COOLING

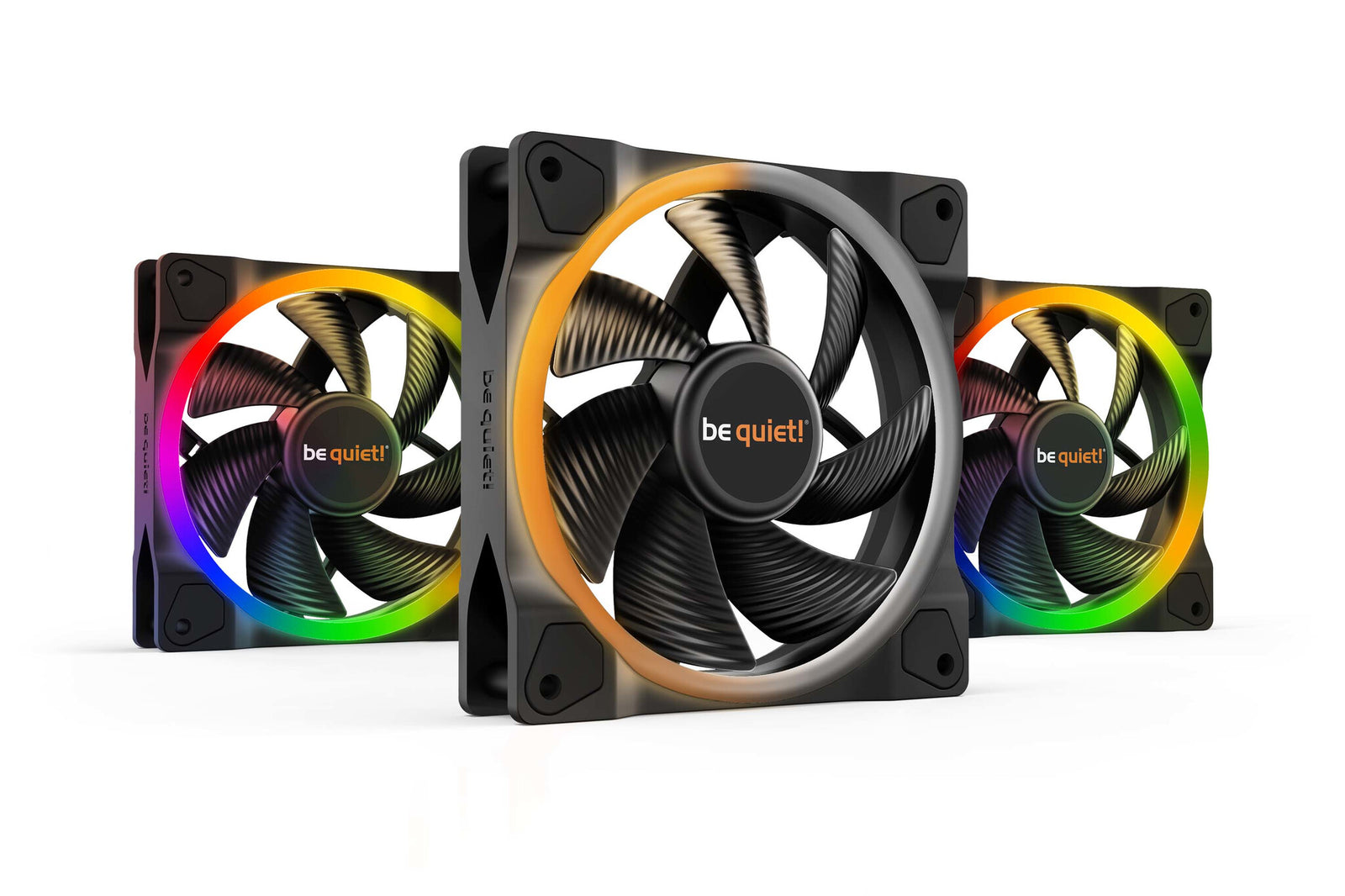

Light Wings 120mm PWM high-speed offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
If you are looking for a high performance fan with an impressive look from every angle, Light Wings 120mm PWM high-speed is your fan of choice. Not only a visual highlight in any PC case, it’s also reliable and performant. This fan hits the sweet spot between performance, noise and ARGB lighting.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.6 mmH2O |
Airflow | 88.86 m³/h |
Maximum airflow | 52.3 cfm |
Noise level (high speed) | 31 dB |
Rotational speed (max) | 2500 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Product colour | Black |
Power | |
---|---|
Rated current | 0.6 A |
Safety current | 0.45 Ah |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Power consumption (typical) | 5.4 W |
Weight & dimensions | |
---|---|
Package weight | 277 g |
Package height | 29.5 mm |
Package depth | 153 mm |
Package width | 133 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 210 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, WEEE |
Compliance certificates | CE, RoHS, WEEE |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 9.01 kg |
Shipping (inner) case height | 18.2 cm |
Shipping (inner) case length | 41.8 cm |
Shipping (inner) case width | 32.5 cm |
Products per shipping (inner) case | 30 pc(s) |
Harmonized System (HS) code | 84733080 |
F120 RGB fans provide some flair while keeping things cool. This fan is a high airflow fan that provides ideal airflow for cooling. Fan controls and lighting effects are compatible with NZXT CAM.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Maximum air pressure | 2.7 mmH2O |
Minimum air pressure | 0.75 mmH2O |
Maximum airflow | 50.18 cfm |
Minimum airflow (imperial) | 13.94 cfm |
Noise level (high speed) | 27.5 dB |
Noise level (low speed) | 17.2 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 18 |
Illumination LED | Yes |
Material | Plastic, Rubber |
Product colour | Black |
Power | |
---|---|
Rated current | 0.18 A |
Rated voltage | 12 V |
Power supply | 2.16 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
Other features | |
---|---|
Country of origin | China |
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
In living color
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Performance | |
---|---|
Mean time between failures (MTBF) | 90000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Rifle bearing |
Maximum air pressure | 2.34 mmH2O |
Minimum air pressure | 0.23 mmH2O |
Airflow | 95.1 m³/h |
Maximum airflow | 56 cfm |
Minimum airflow (imperial) | 13 cfm |
Noise level (high speed) | 33.2 dB |
Noise level (low speed) | 10 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fan blades | 7 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.37 A |
Starting voltage | 7 V |
Rated voltage | 5 V |
Voltage | 12 V |
Power consumption (typical) | 1.68 W |
Weight & dimensions | |
---|---|
Package weight | 155 g |
Package height | 30 mm |
Package depth | 192 mm |
Package width | 123 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 135 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

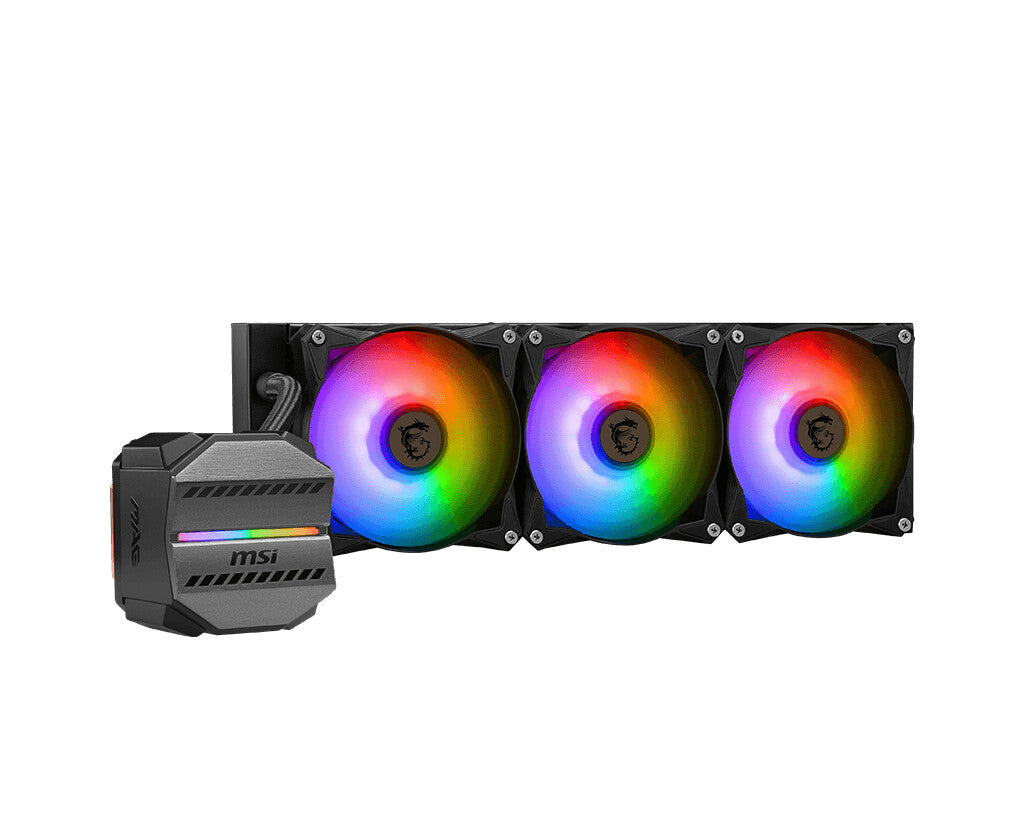

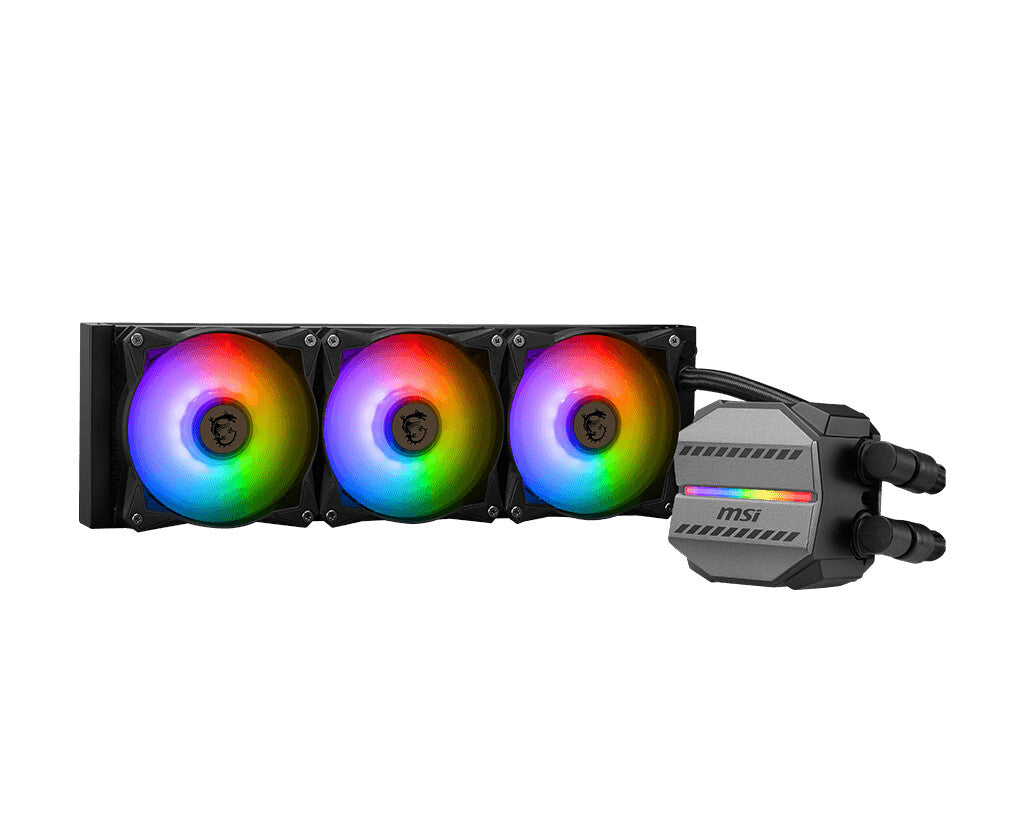

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ELEVATED COPPER PLATE
The unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
MYSTIC LIGHT COMPATIBLE
Show off your colors with full ARGB customization on the fans and cooling block.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID M360 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 2011/2011-3/2066
AMD Socket
AM5/AM4/TR4
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 70000 h |
Pump's mean time to failure (MTTF) | 100000 h |
Pump motor speed | 3100 RPM |
Pump connector | 3-pin |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 78.73 cfm |
Minimum airflow (imperial) | 21.63 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4 |
Type | All-in-one liquid cooler |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Blue, Green, Red |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Product colour | Black |
Power | |
---|---|
Fan power consumption | 4.2 W |
Weight & dimensions | |
---|---|
Height | 55.9 mm |
Depth | 60 mm |
Width | 67.3 mm |

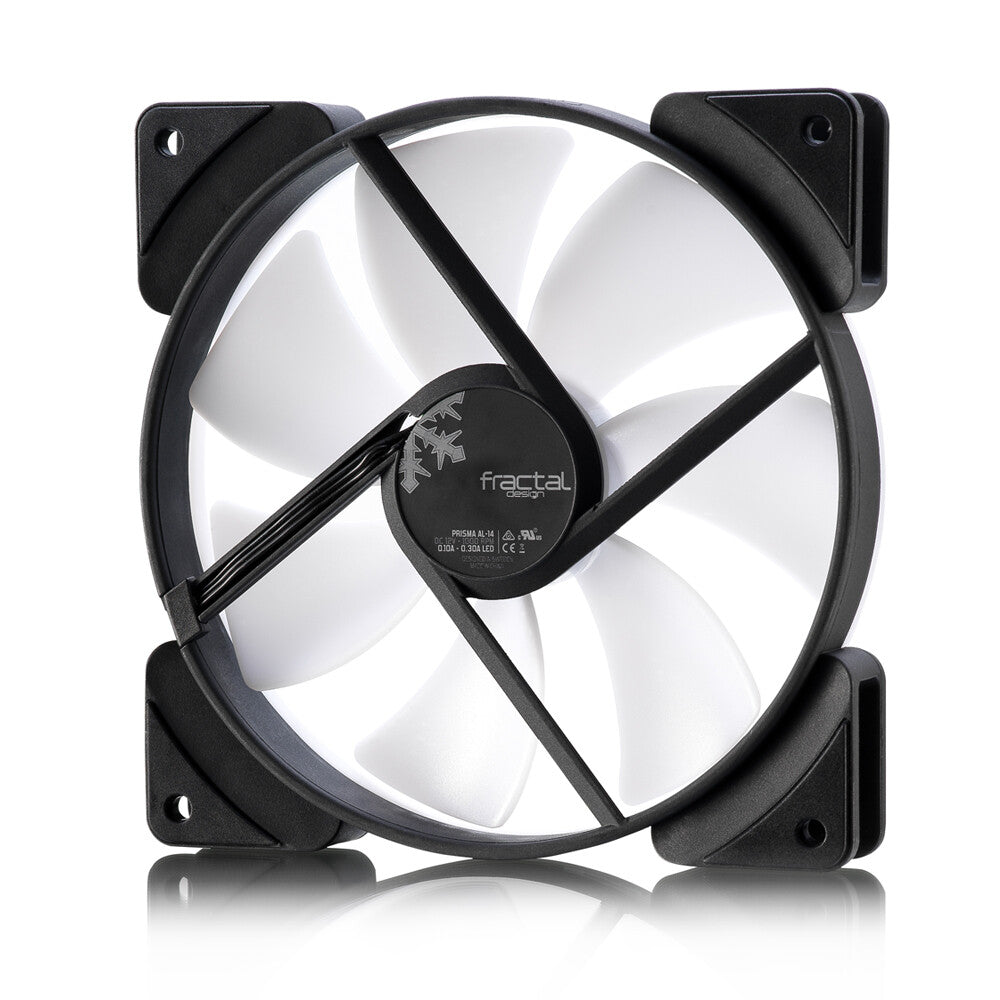

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
PWM and 3-pin versions are available in 120mm and 140mm sizes, each with single and 3-pack offerings to make your build shine brilliantly in any situation.
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Sleeve bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.38 mmH2O |
Airflow | 176.44 m³/h |
Maximum airflow | 103.85 cfm |
Minimum airflow (imperial) | 31.67 cfm |
Noise level (high speed) | 34.1 dB |
Noise level (low speed) | 15.1 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 6 |
Illumination LED | Yes |
Number of fan blades | 7 |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.3 A |
LED voltage | 5 V |
Starting voltage | 7 V |
Voltage | 12 V |
Power supply | 2.16 W |
Weight & dimensions | |
---|---|
Package weight | 248 g |
Package height | 30 mm |
Package depth | 142 mm |
Package width | 202 mm |
Cable length | 0.5 m |
Weight | 200 g |
Height | 140 mm |
Depth | 25 mm |
Width | 140 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

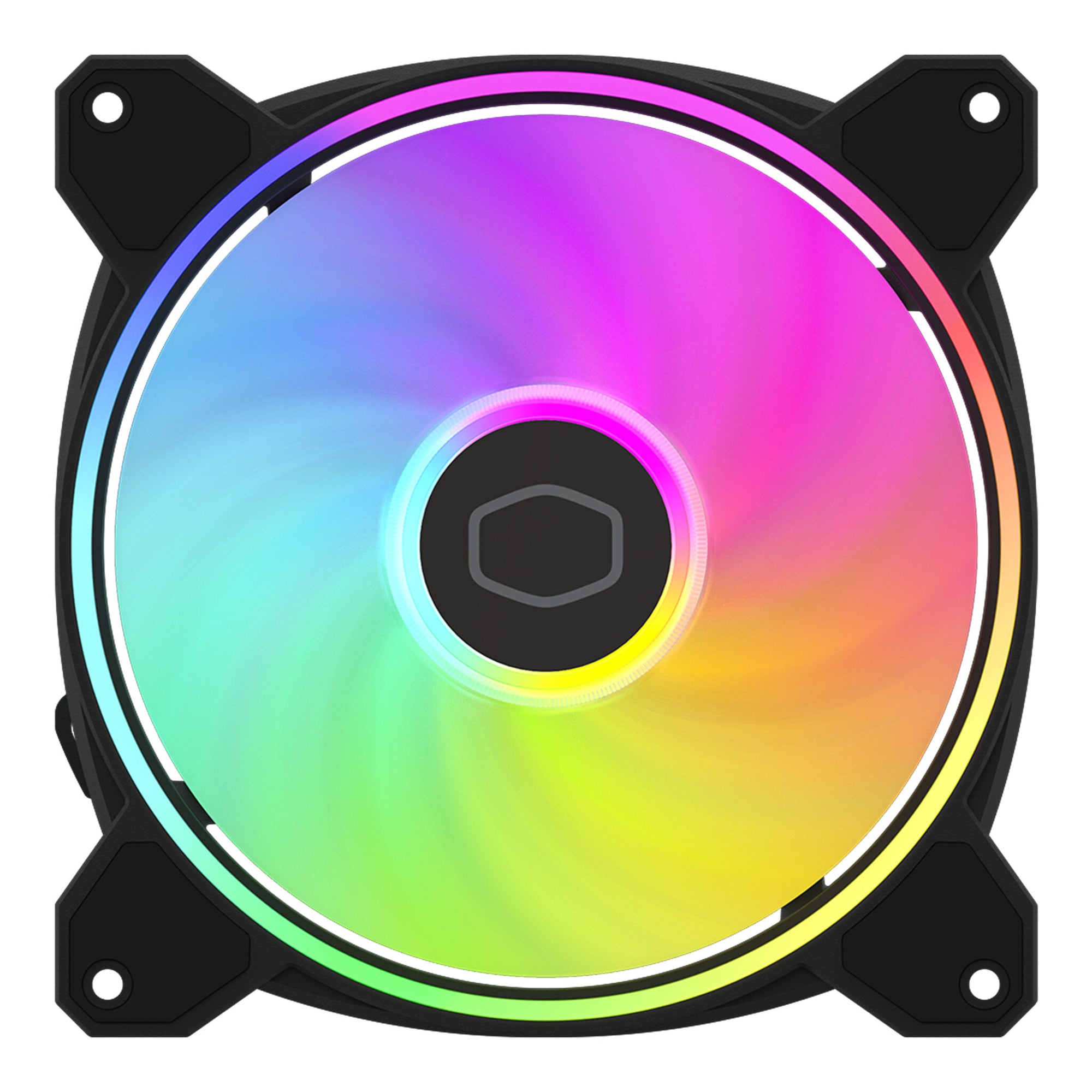

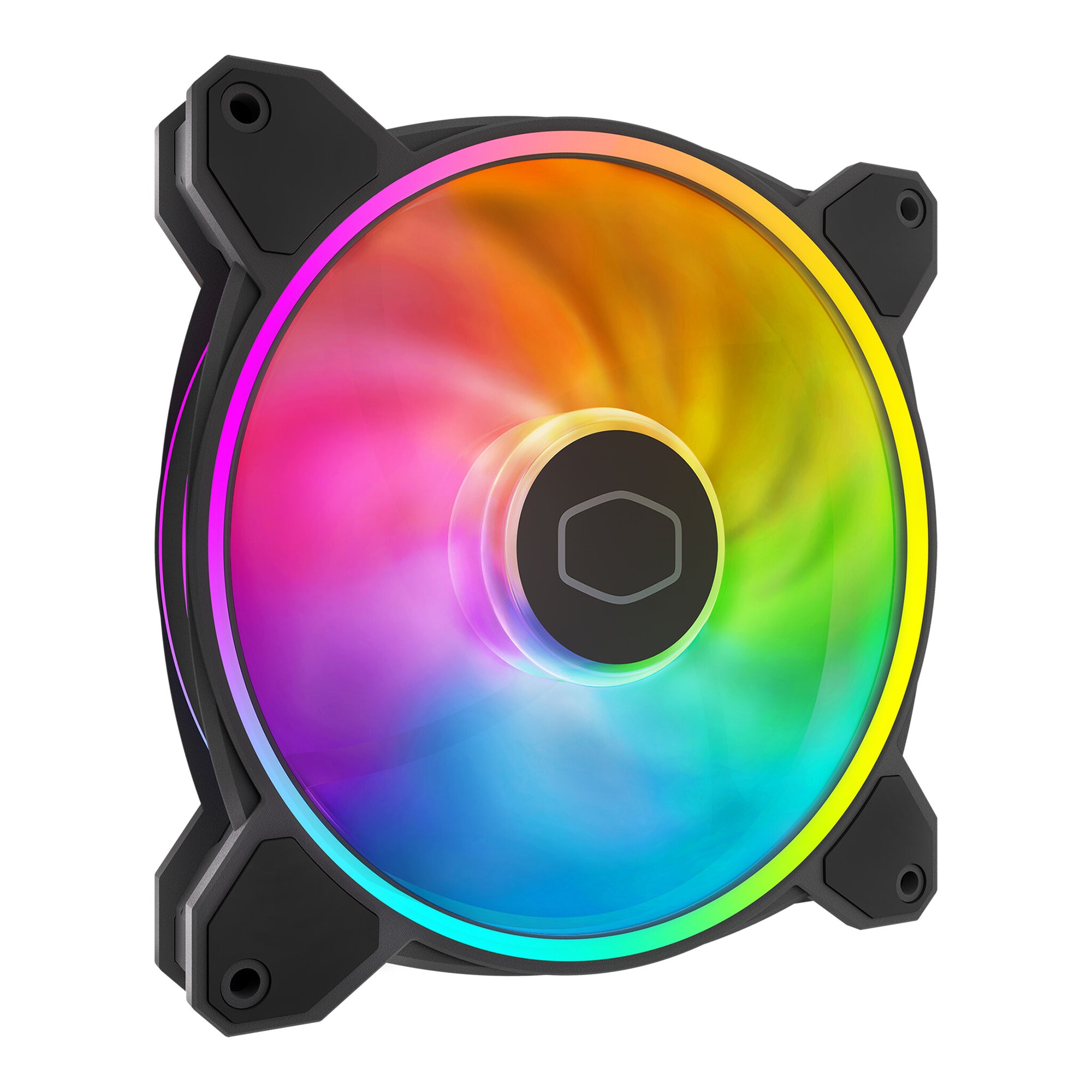

Bring On The Light
Vibrant Addressable Gen 2 RGB
Larger LED rings increase lighting by 50% for even more vibrant lighting.
Hybrid Frame Design
Redesigned frame structure and corner dampers maintain stability without sacrificing fan blade area for better performance.
Larger Fan Blades
Air Balance fan blades increased by 10% in size deliver stronger air flow and cooling performance.
Improved Cooling Performance
Fine tuned P-Q Curve increase air flow and pressure while being even more quiet than its predecessor.
MULTIPLE SIZE AND COLOR OPTIONS
Available in both 120mm and 140mm sizes, as well as in black and white color options.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 160000 h |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.53 mmH2O |
Maximum airflow | 59.51 cfm |
Noise level (high speed) | 27 dB |
Rotational speed (max) | 1600 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Product colour | Black |
Power | |
---|---|
Rated current | 0.13 A |
Safety current | 0.4 Ah |
LED voltage | 5 V |
Rated voltage | 12 V |
Power consumption (typical) | 1.56 W |
Weight & dimensions | |
---|---|
Package weight | 320 g |
Package height | 198 mm |
Package depth | 150 mm |
Package width | 28 mm |
Fan weight | 210 g |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
General | |
---|---|
Product Family | MasterFan |
Logistics data | |
---|---|
Products per master (outer) case | 20 pc(s) |
Master (outer) case height | 185 mm |
Master (outer) case length | 415 mm |
Master (outer) case width | 335 mm |

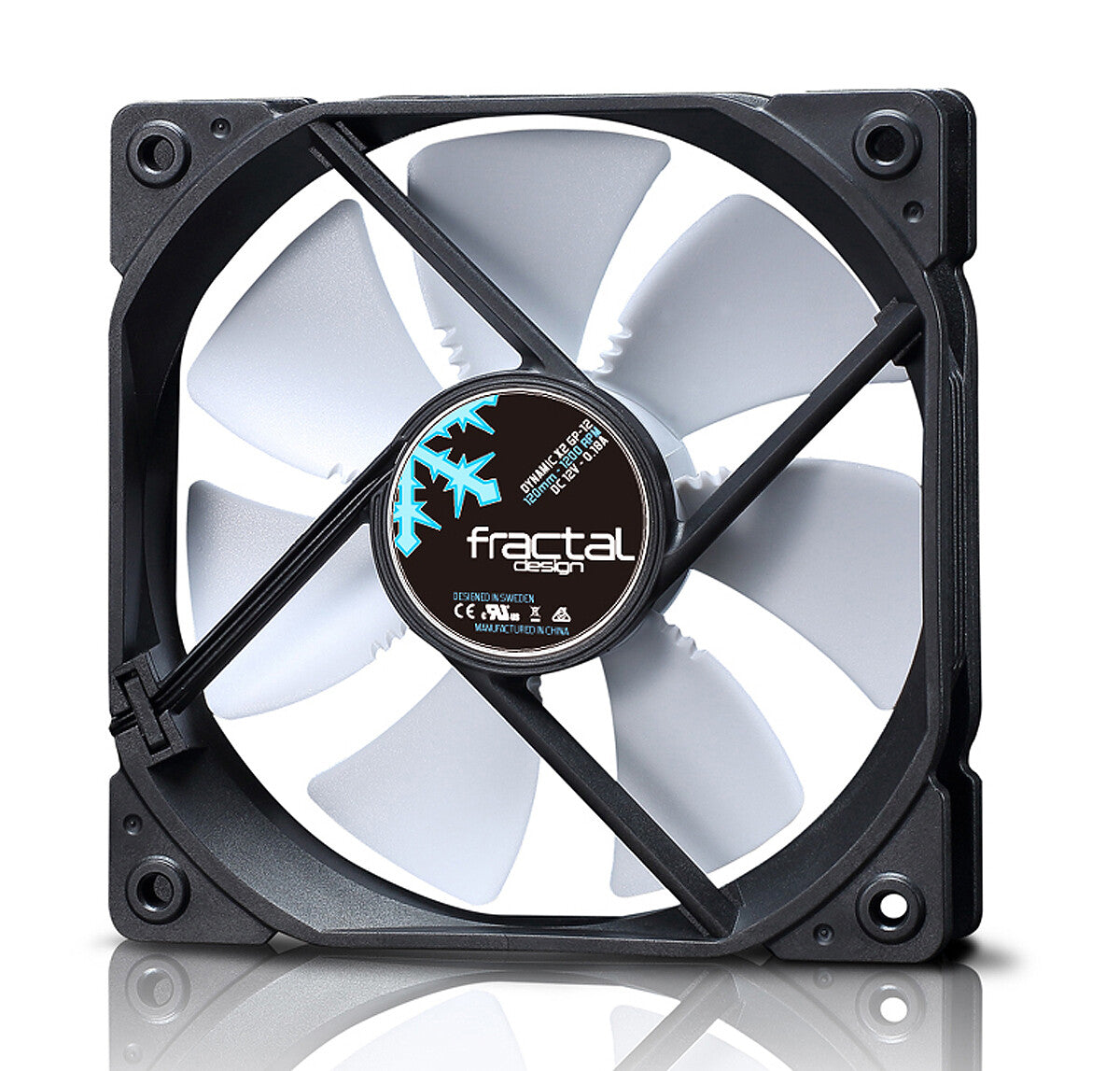

Fractal Design Dynamic X2 GP-12 and GP-14 are true all-purpose fans, offering good airflow and best in class 100,000 hours MTBF thanks to the new LLS bearing. Their customized design creates a beautifully aesthetic fan to help keep your system cool, yet quiet.
Designed together with our high-end Venturi Series, the Dynamic X2 Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements.
Available in two color combinations: pure black, or the classic Fractal Design signature color scheme with white blades and black frame. The Dynamic X2 series are the perfect companion for users looking to make use of an all-purpose fan with an exceptional lifespan.
Performance | |
---|---|
Mean time between failures (MTBF) | 10000 h |
Maximum air pressure | 0.71 mmH2O |
Noise level (low speed) | 18.9 dB |
Rotational speed (min) | 1000 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.2 A |
Voltage | 12 V |
Power supply | 1.32 W |
Weight & dimensions | |
---|---|
Package weight | 190 g |
Package height | 26 mm |
Package depth | 142 mm |
Package width | 200 mm |
Cable length | 0.5 m |
Weight | 142 g |
Height | 25 mm |
Depth | 140 mm |
Width | 140 mm |
Packaging content | |
---|---|
Screws included | Yes |
Other features | |
---|---|
Country of origin | Sweden |
Mounting hole pattern (W x D) | 125 x 125 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Sublime RGB Lighting
8 individually addressable RGB LEDs mounted on fan hub are diffused through the semi-translucent blades.
Optimized Design
Fan hub and blades deliver high airflow and static pressure for both intake or exhaust locations.
Fluid Dynamic Bearing
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Silent and Stable
Anti-vibration rubber corners and the sturdy frame provide quiet and stable operation.
PWM Control
Adjusts fan speed for optimal cooling only when needed for a quiet, efficient experience.
Customize with CAM
Control fan curves and speeds, personalize RGB lighting effects, and sync with other NZXT lighting products.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 60000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 3.22 mmH2O |
Maximum airflow | 90.79 cfm |
Noise level (high speed) | 34.48 dB |
Rotational speed (max) | 1500 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Illumination colour | Multi |
LED connector type | 4-pin |
Number of LEDs | 8 |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Material | Plastic, Rubber |
Product colour | Black |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.24 A |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 140 x 26 x 140 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Fan's mean time to failure (MTTF) | 500000 h |
Fan static pressure | 5.3 mmH2O |
Fan speed (min) | 500 RPM |
Fan speed (max) | 5000 RPM |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Double ball bearing |
Pulse-width modulation (PWM) support | Yes |
Airflow | 67.96 m³/h |
Maximum airflow | 40 cfm |
Noise level | 0.6 sone |
Fan diameter | 8 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Rack capacity | 2U |
Fan connector | 4-pin |
Number of fan blades | 5 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.19 A |
Starting voltage | 3.2 V |
Weight & dimensions | |
---|---|
Package weight | 89 g |
Package height | 26 mm |
Package depth | 82.5 mm |
Package width | 82.5 mm |
Cable length | 0.4 m |
Fan weight | 84 g |
Fan dimensions (W x D x H) | 80 x 80 x 25 mm |
Packaging content | |
---|---|
Screws included | Yes |
Mounting kit | Yes |

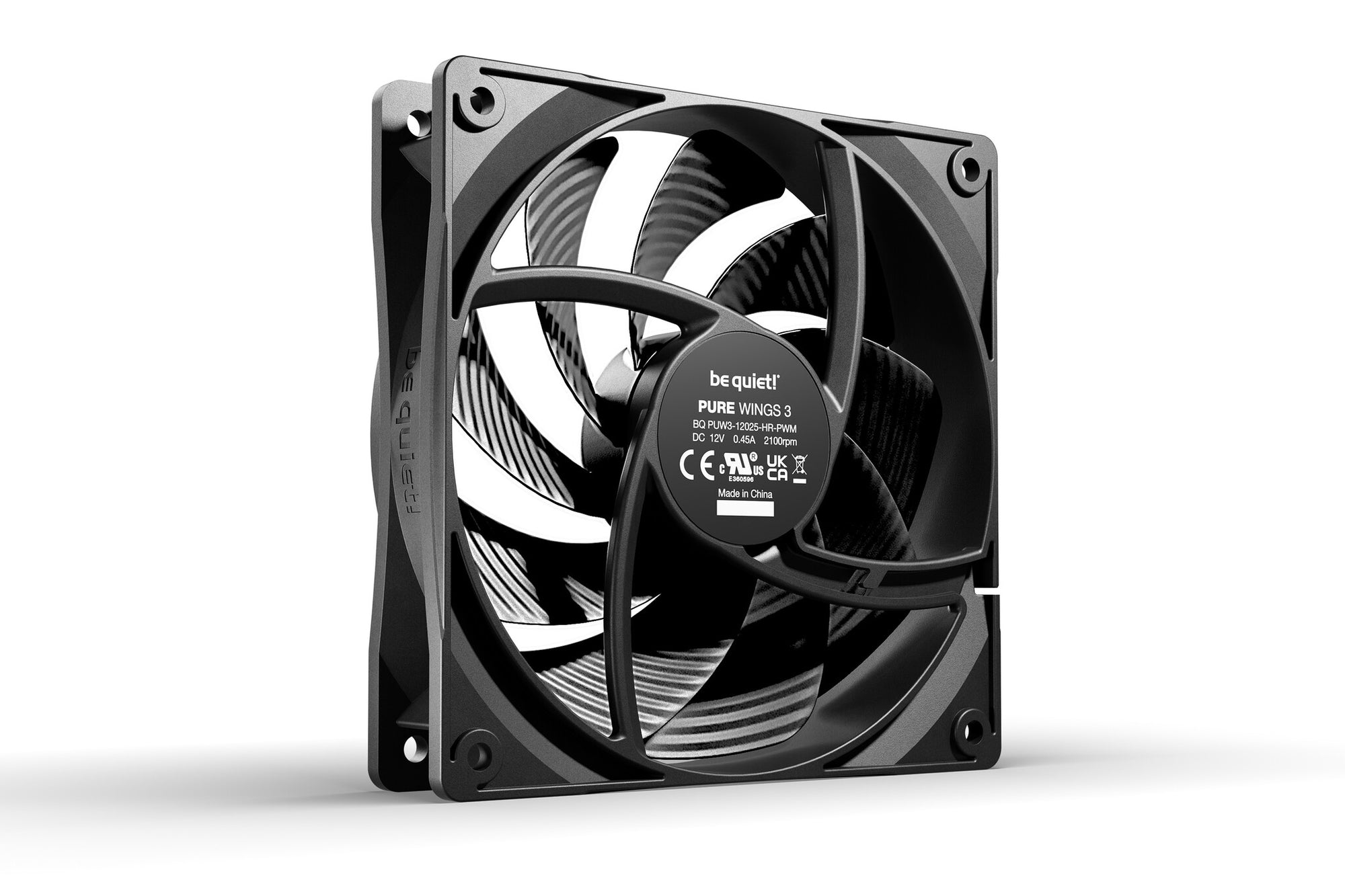

Performant, Progressive, Quiet
Pure Wings 3 120mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 80000 h |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.41 mmH2O |
Airflow | 101.2 m³/h |
Maximum airflow | 59.6 cfm |
Noise level (high speed) | 30.9 dB |
Rotational speed (max) | 2100 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Fan current | 0.13 A |
Fan power consumption | 3.6 W |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Weight & dimensions | |
---|---|
Package weight | 176 g |
Package height | 27 mm |
Package depth | 155 mm |
Package width | 122 mm |
Cable length | 0.46 m |
Weight | 149 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | Triman |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 11.8 kg |
Shipping (inner) case height | 33 cm |
Shipping (inner) case length | 42.7 cm |
Shipping (inner) case width | 35.5 cm |
Products per shipping (inner) case | 60 pc(s) |

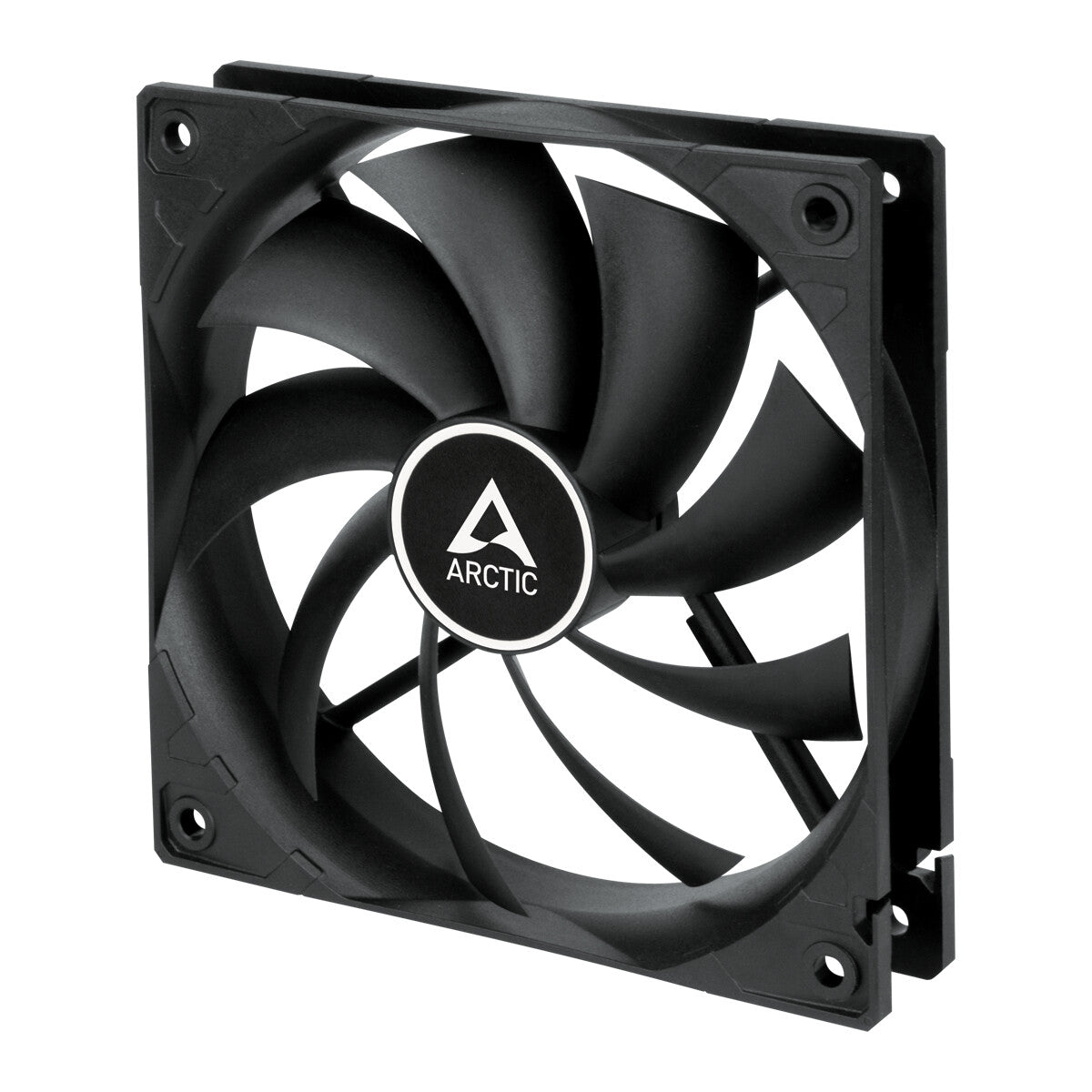

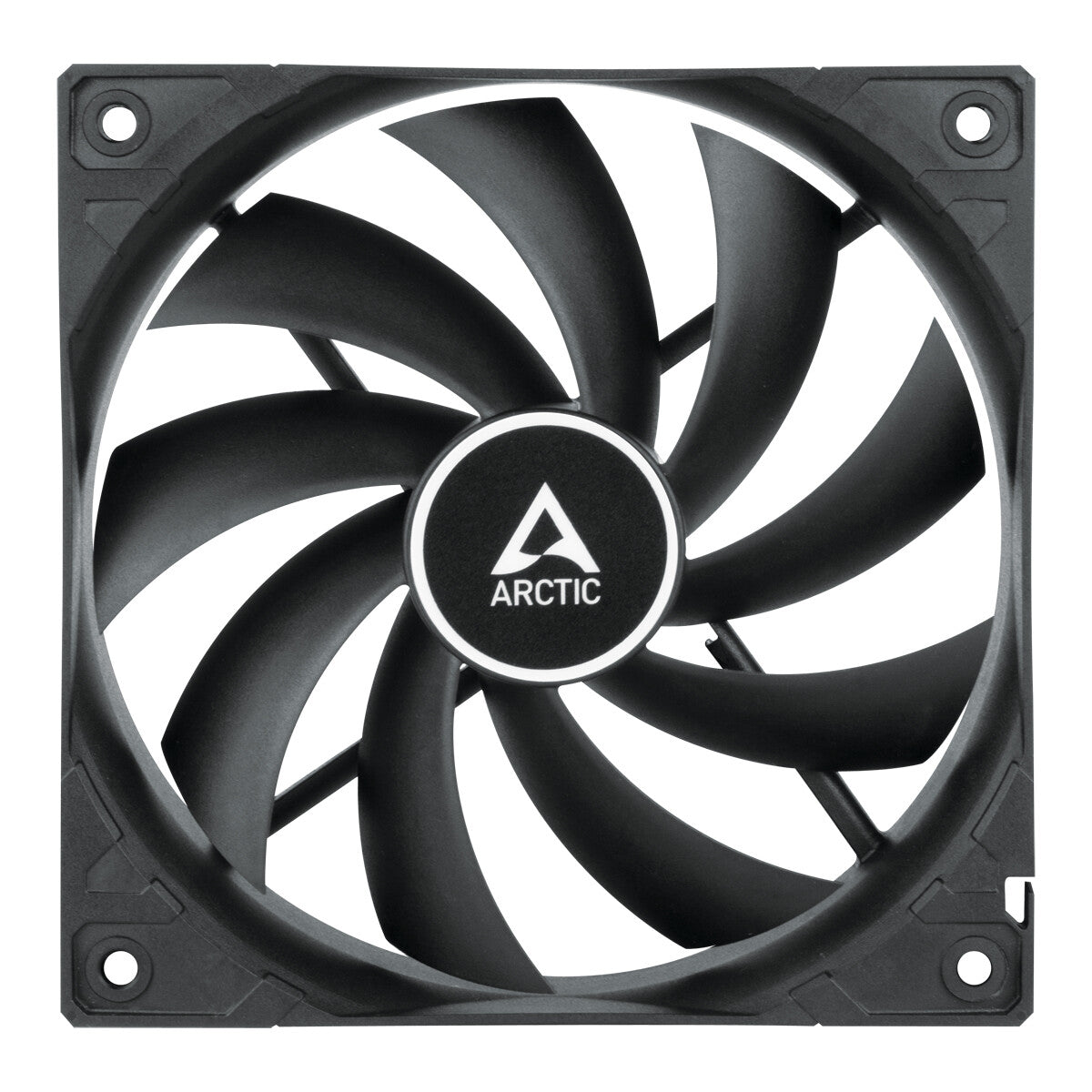

The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Minimum air pressure | 1 mmH2O |
Airflow | 90.1 m³/h |
Maximum airflow | 53 cfm |
Noise level | 0.3 sone |
Rotational speed (max) | 1350 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated current | 0.12 A |
Starting voltage | 2.7 V |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 130 g |
Package height | 123 mm |
Package depth | 27 mm |
Package width | 123 mm |
Cable length | 0.4 m |
Weight | 107 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Packaging content | |
---|---|
Package type | Box |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

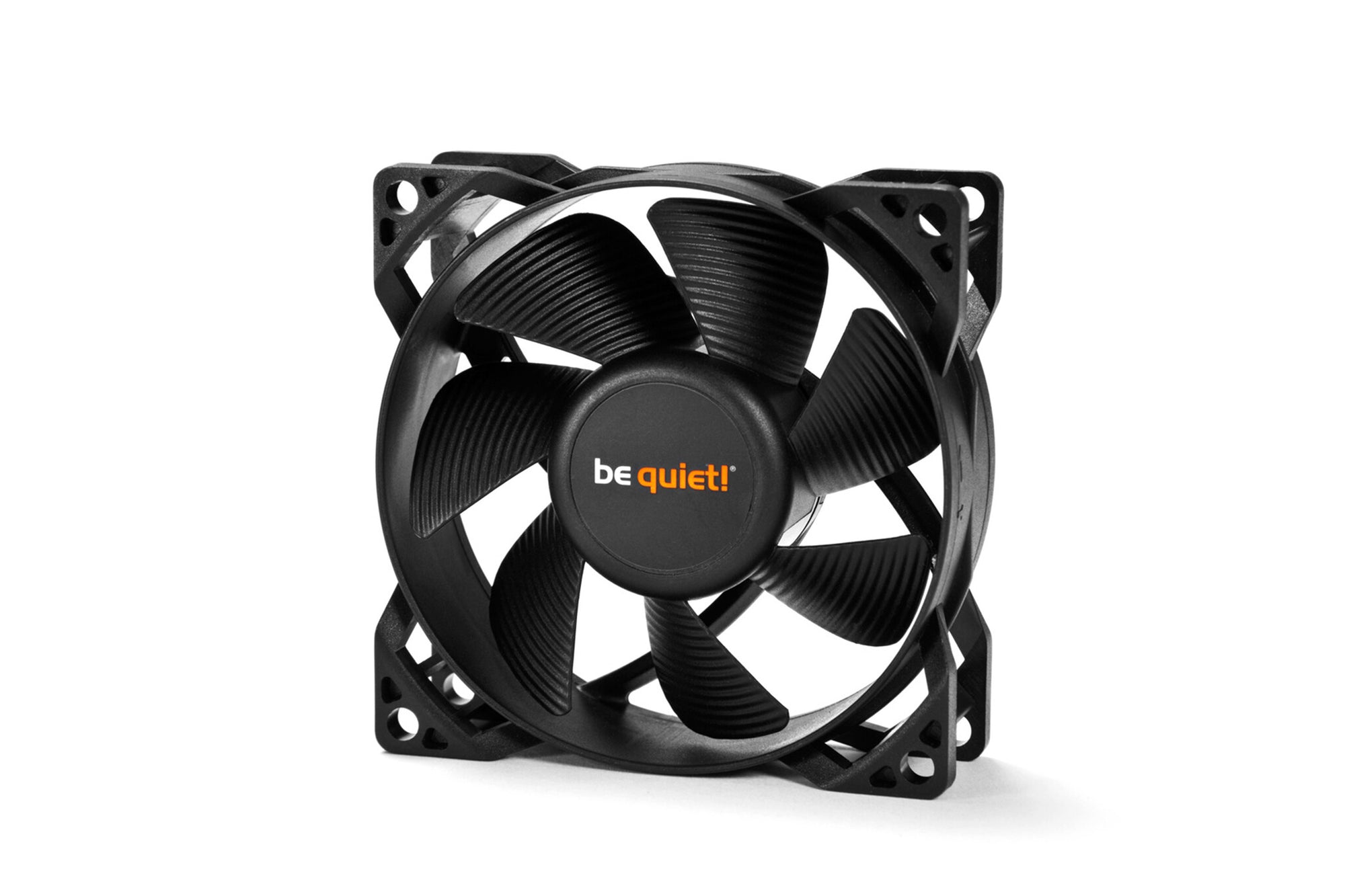

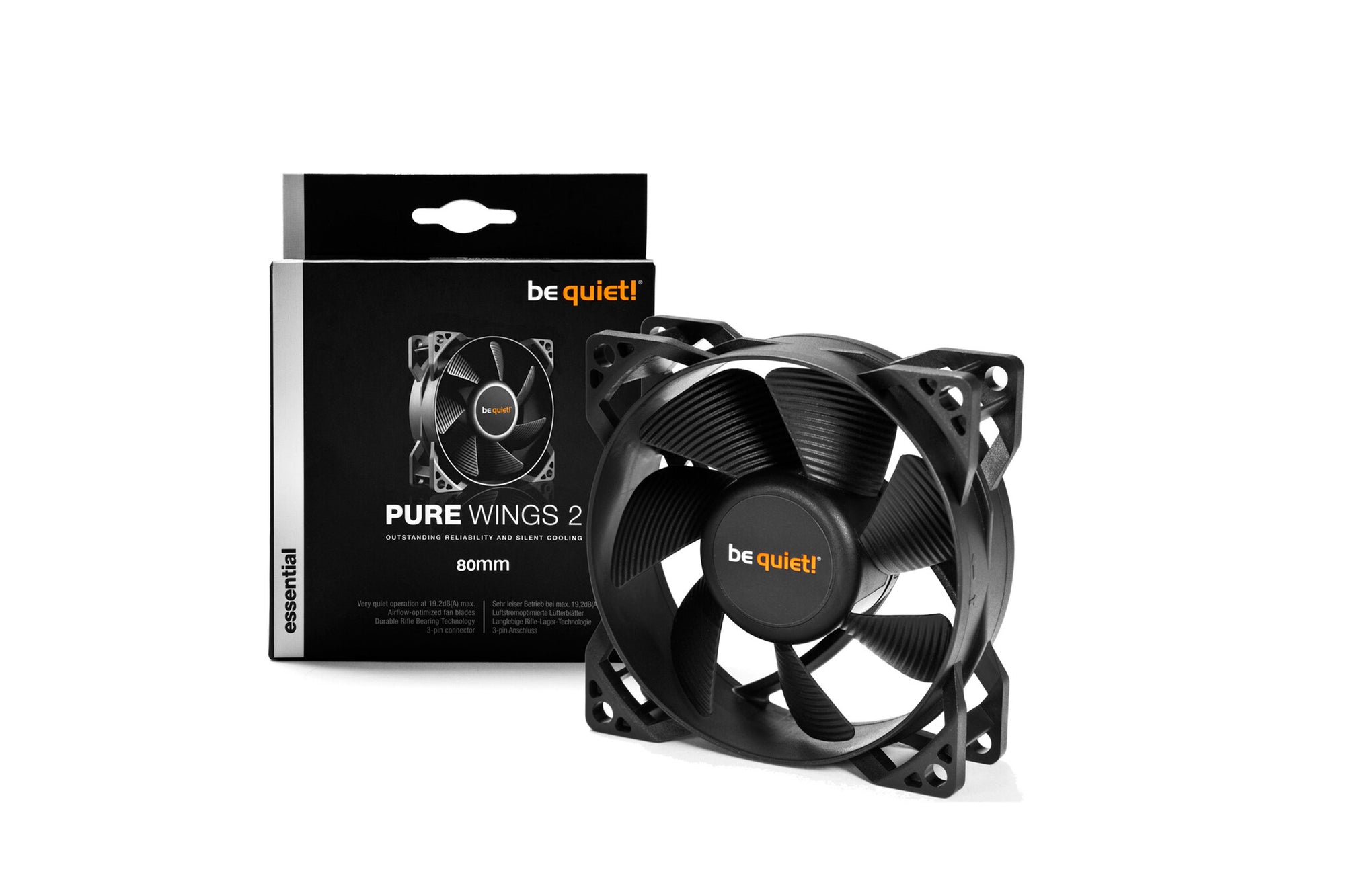

"Pure Wings 2 – Outstanding Reliability and Silent Cooling.
The Pure Wings 2 80mm fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems.
Combining outstanding reliability, quiet operation, and a great price-for-performance ratio, Pure Wings 2 80mm is unique in its class. They are the ultimate reason to put well-known be quiet! silent cooling in your PC."
VERY QUIET OPERATION
Achieves a great price-for-performance ratio
The Pure Wings 2 80mm fan operates at only 18.2dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.
SILENCE-OPTIMIZED FAN BLADES
For even better cooling
Thanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespan
The Pure Wings 2 80mm is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.
Performance | |
---|---|
Mean time between failures (MTBF) | 80000 h |
Maximum air pressure | 1.85 mmH2O |
Airflow | 44.45 m³/h |
Maximum airflow | 26.3 cfm |
Noise level (high speed) | 18.2 dB |
Rotational speed (max) | 1900 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 8 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Certification | CE, TÜV, UL |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.11 A |
Voltage | 12 V |
Power consumption (typical) | 1.68 W |
Weight & dimensions | |
---|---|
Cable length | 0.46 m |
Weight | 72 g |
Height | 25 mm |
Depth | 80 mm |
Width | 80 mm |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

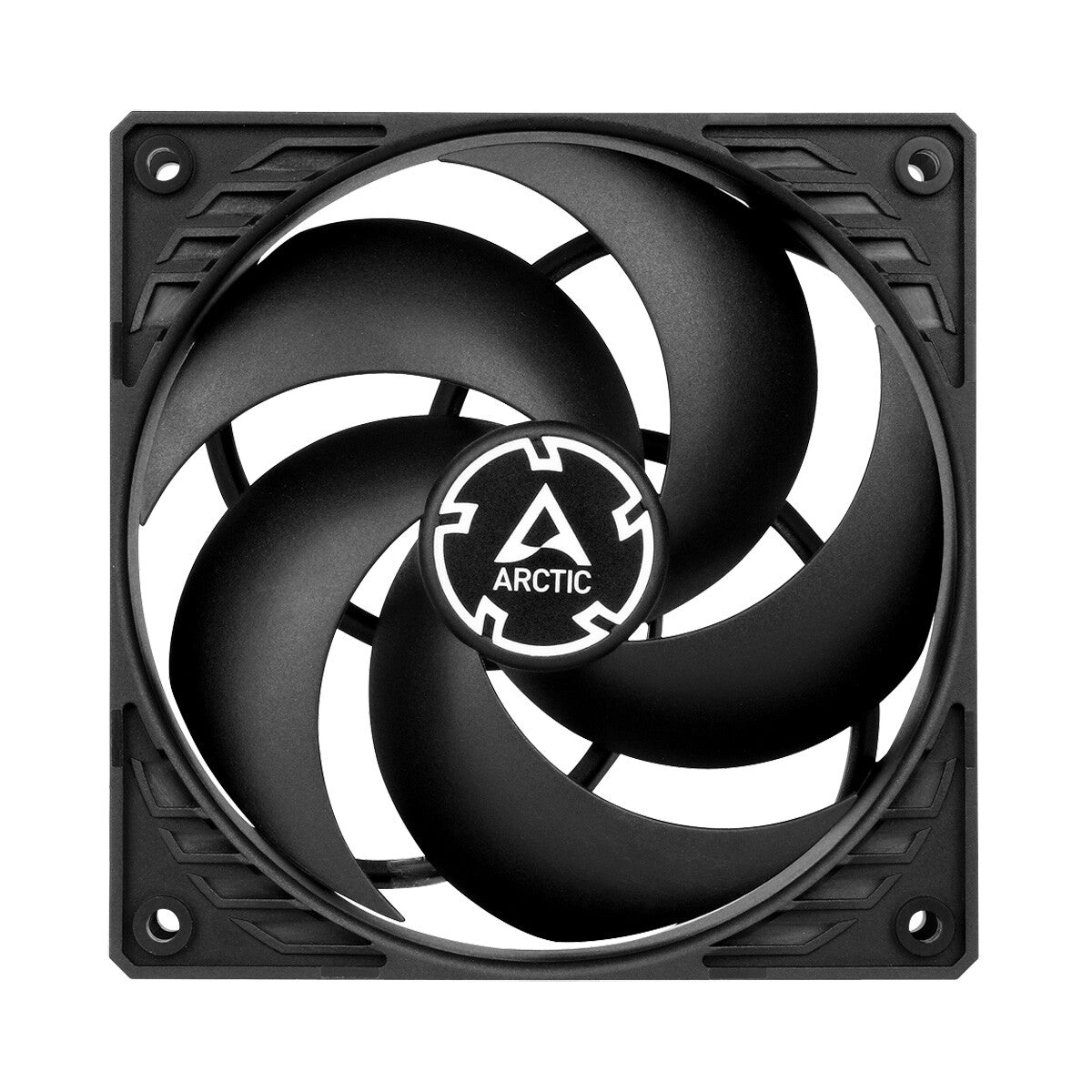

The P12 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the P12 is especially effective when used on heatsinks and with higher air resistance.
Performance | |
---|---|
Bearing type | Fluid Dynamic Bearing (FDB) |
Airflow | 95.65 m³/h |
Maximum airflow | 56.3 cfm |
Noise level | 0.3 sone |
Rotational speed (max) | 1800 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Number of fan blades | 5 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated current | 0.2 A |
Starting voltage | 2.8 V |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 170 g |
Package height | 27 mm |
Package depth | 123 mm |
Package width | 123 mm |
Cable length | 0.4 m |
Weight | 139 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

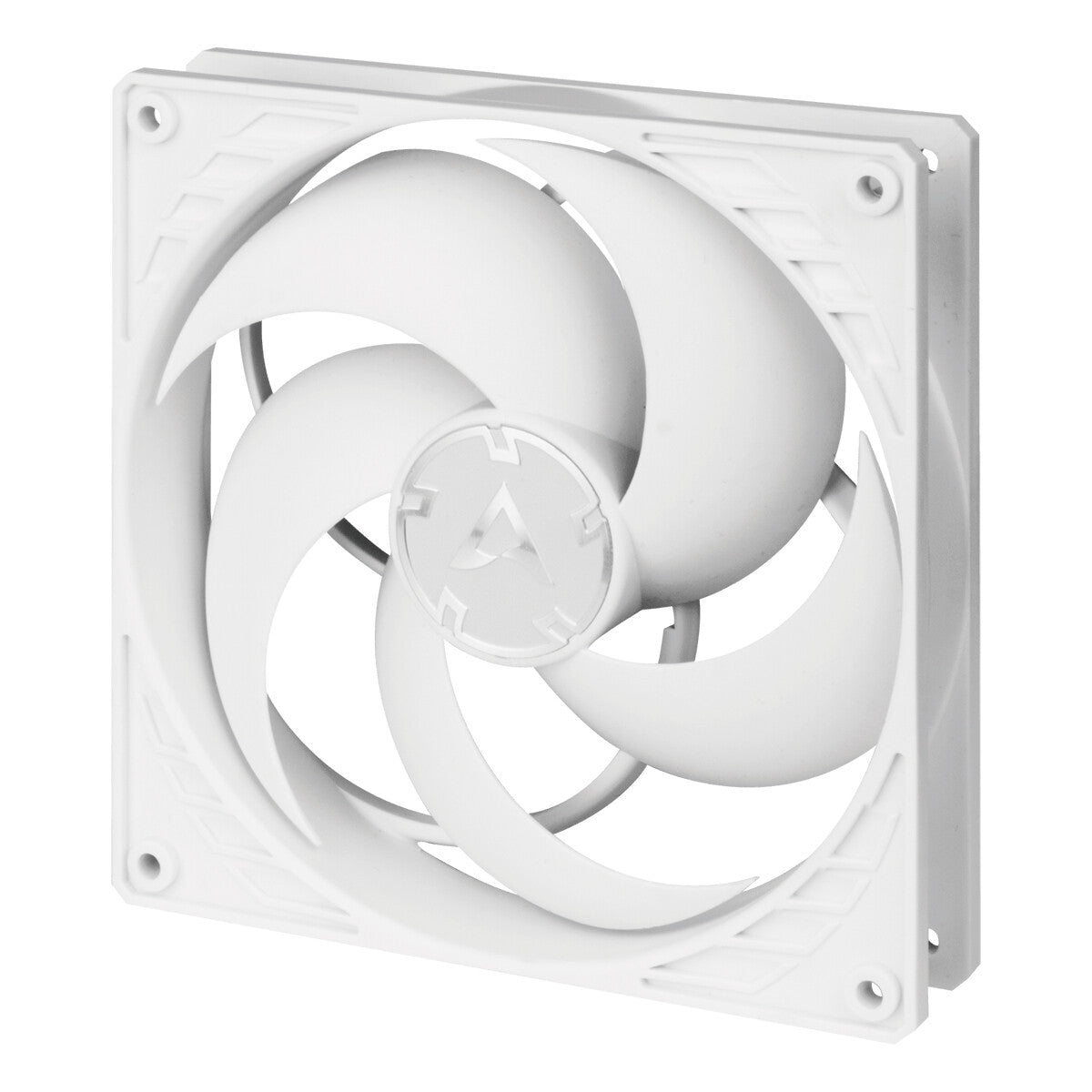

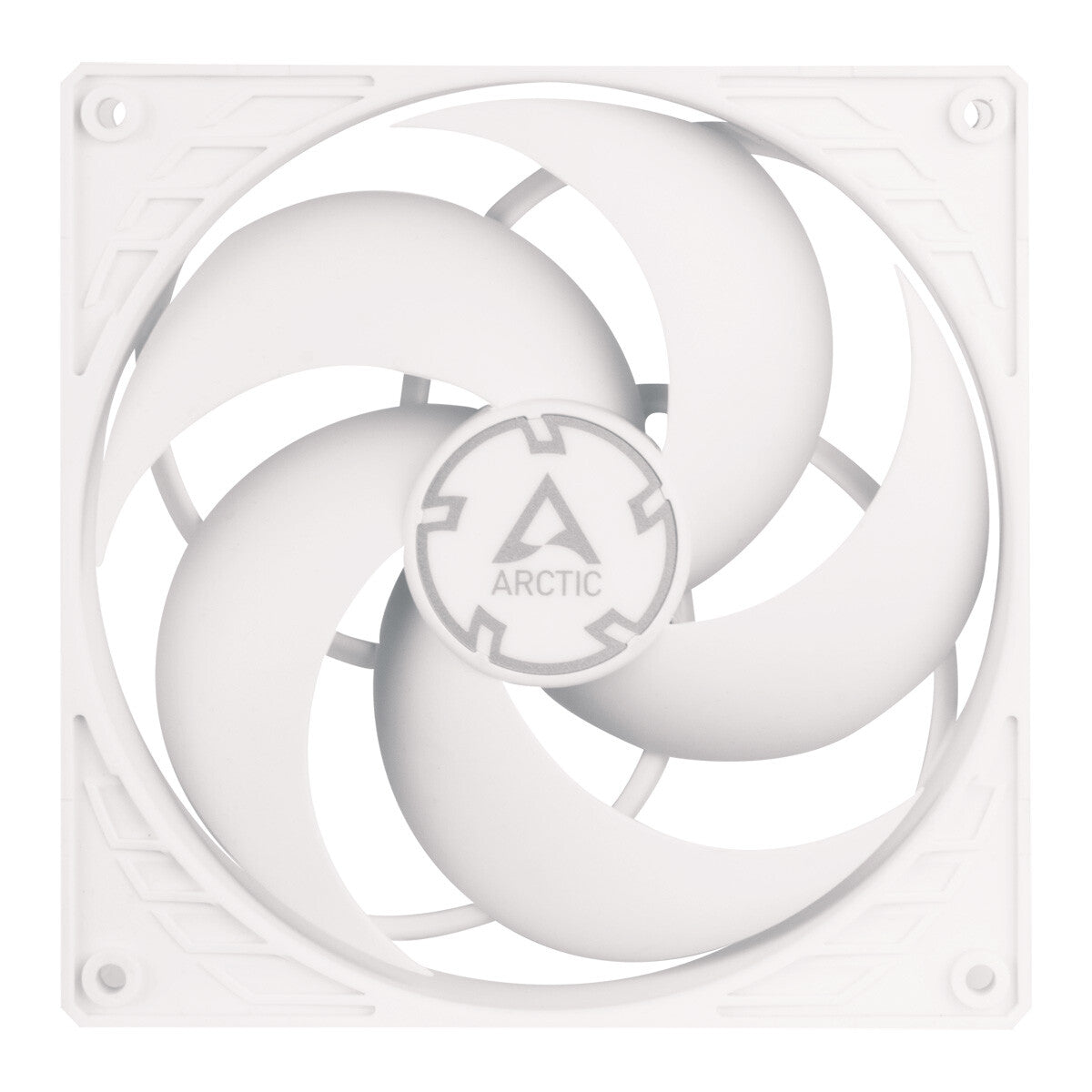

The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.4 mmH2O |
Airflow | 123.76 m³/h |
Maximum airflow | 72.8 cfm |
Noise level | 0.3 sone |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 200 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Number of fan blades | 5 |
Number of fans | 1 fan(s) |
Product colour | White |
Power | |
---|---|
Rated current | 0.12 A |
Starting voltage | 3.9 V |
Voltage | 12 V |
Power consumption (typical) | 1.44 W |
Weight & dimensions | |
---|---|
Package weight | 234 g |
Package height | 29 mm |
Package depth | 143 mm |
Package width | 143 mm |
Cable length | 0.4 m |
Weight | 194 g |
Height | 27 mm |
Depth | 140 mm |
Width | 140 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Package type | Box |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

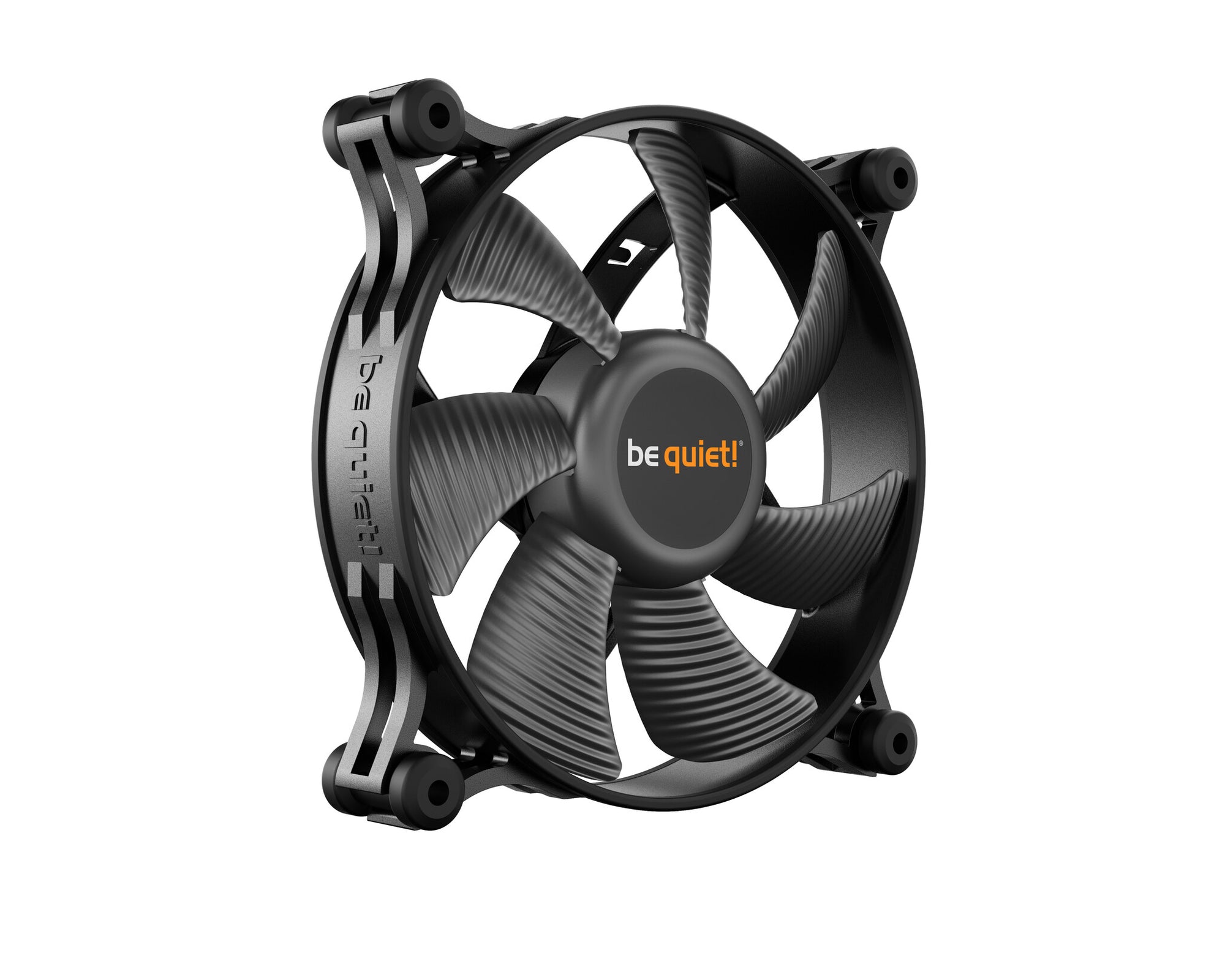

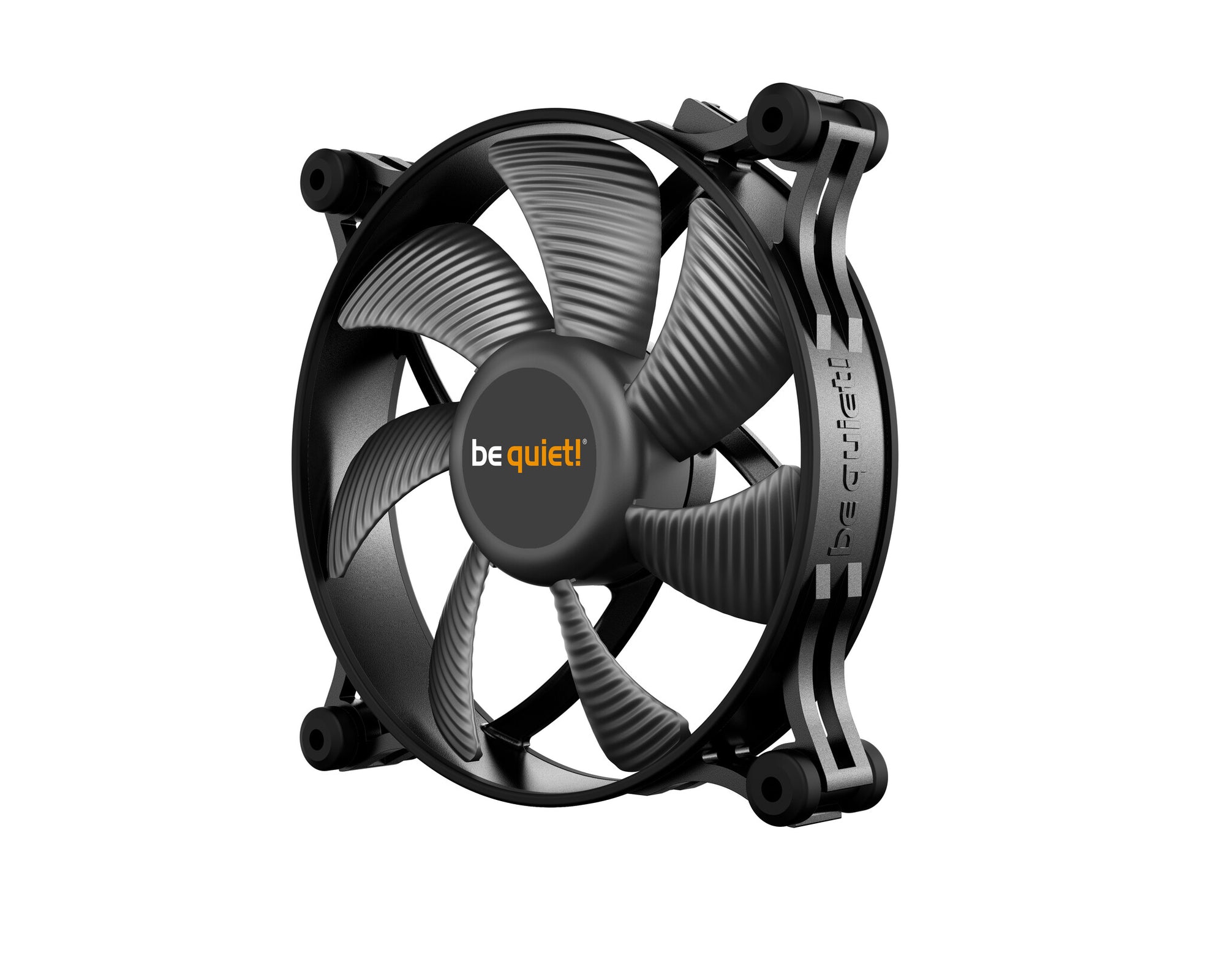

World-class quiet and solid cooling
be quiet! Shadow Wings 2 120mm PWM offers whisper-quiet operation and reliable cooling at low revolutions per minute. It is especially recommended for use in very silent PC builds.
Shadow Wings 2 fans are the perfect choice for all who appreciate maximum silence for their PC case.
Performance | |
---|---|
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 0.82 mmH2O |
Airflow | 65 m³/h |
Maximum airflow | 38.5 cfm |
Noise level (high speed) | 15.9 dB |
Rotational speed (max) | 1100 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Certification | CE, TÜV, UL |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated current | 0.12 A |
Safety current | 0.12 Ah |
Rated voltage | 12 V |
Voltage | 6 - 12 V |
Power supply | 1.44 W |
Weight & dimensions | |
---|---|
Package weight | 156 g |
Package height | 28 mm |
Package depth | 155 mm |
Package width | 120 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 132 g |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Products per master (outer) case | 60 pc(s) |
Master (outer) case gross weight | 10.7 kg |
Master (outer) case height | 290 mm |
Master (outer) case length | 410 mm |
Master (outer) case width | 320 mm |
Harmonized System (HS) code | 84733080 |

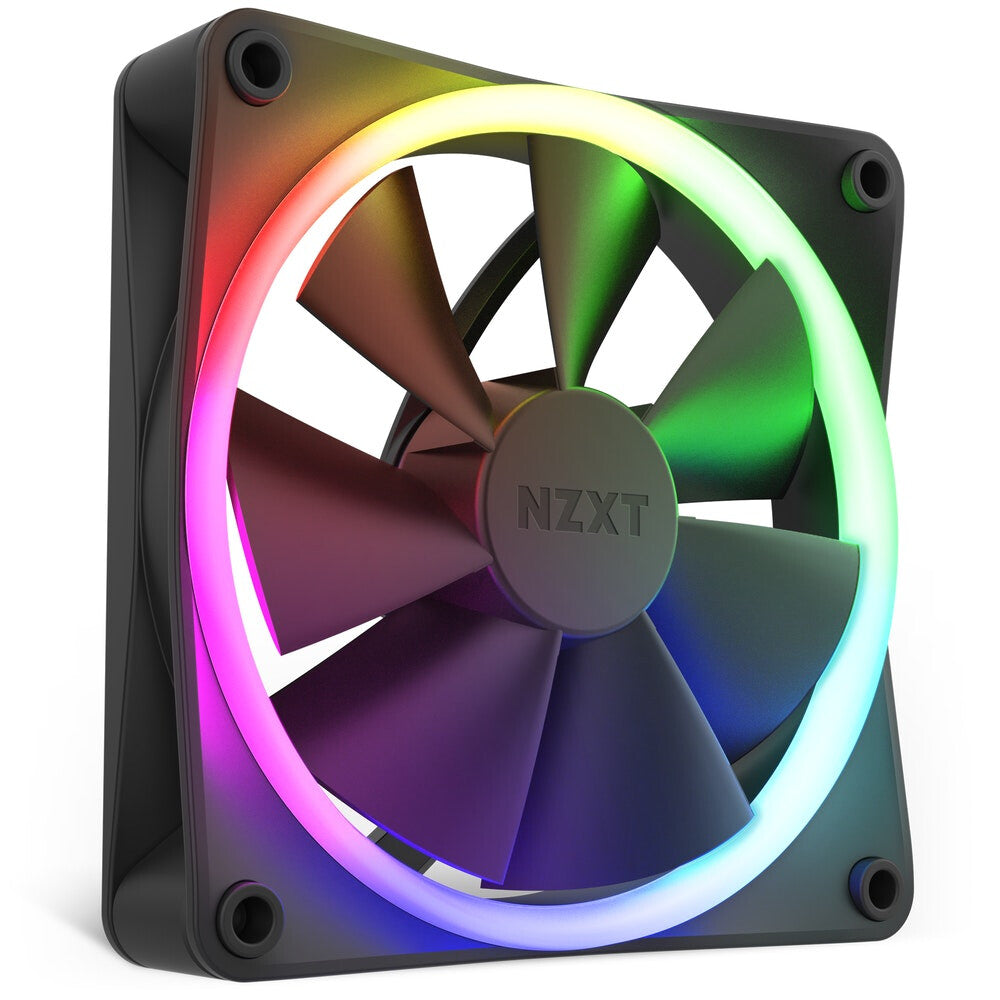

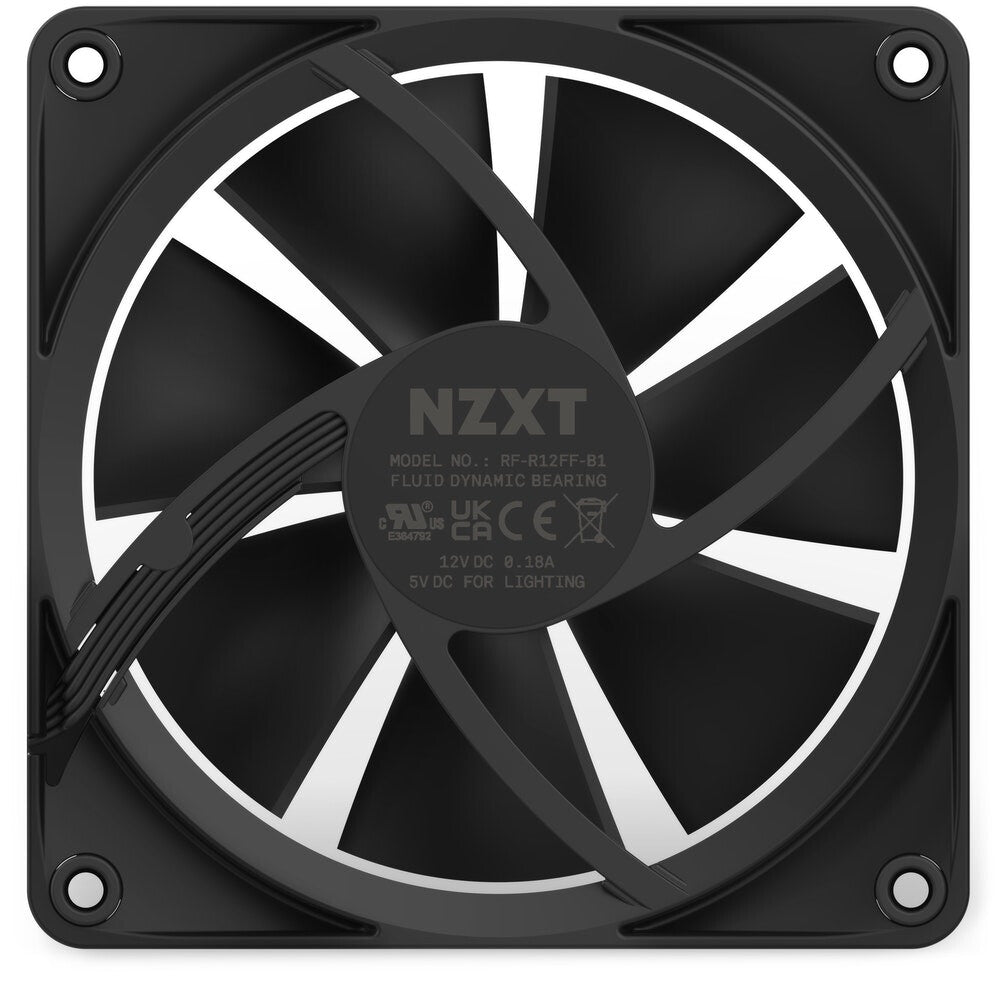

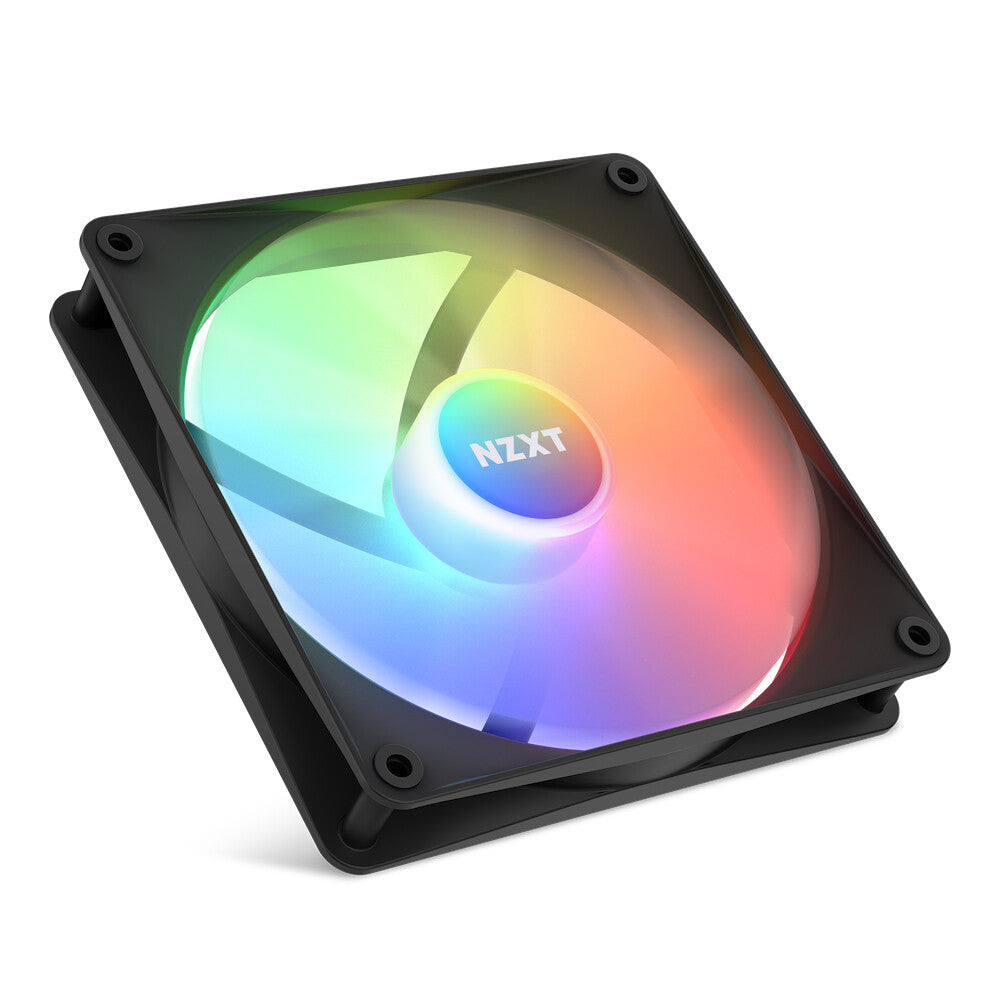

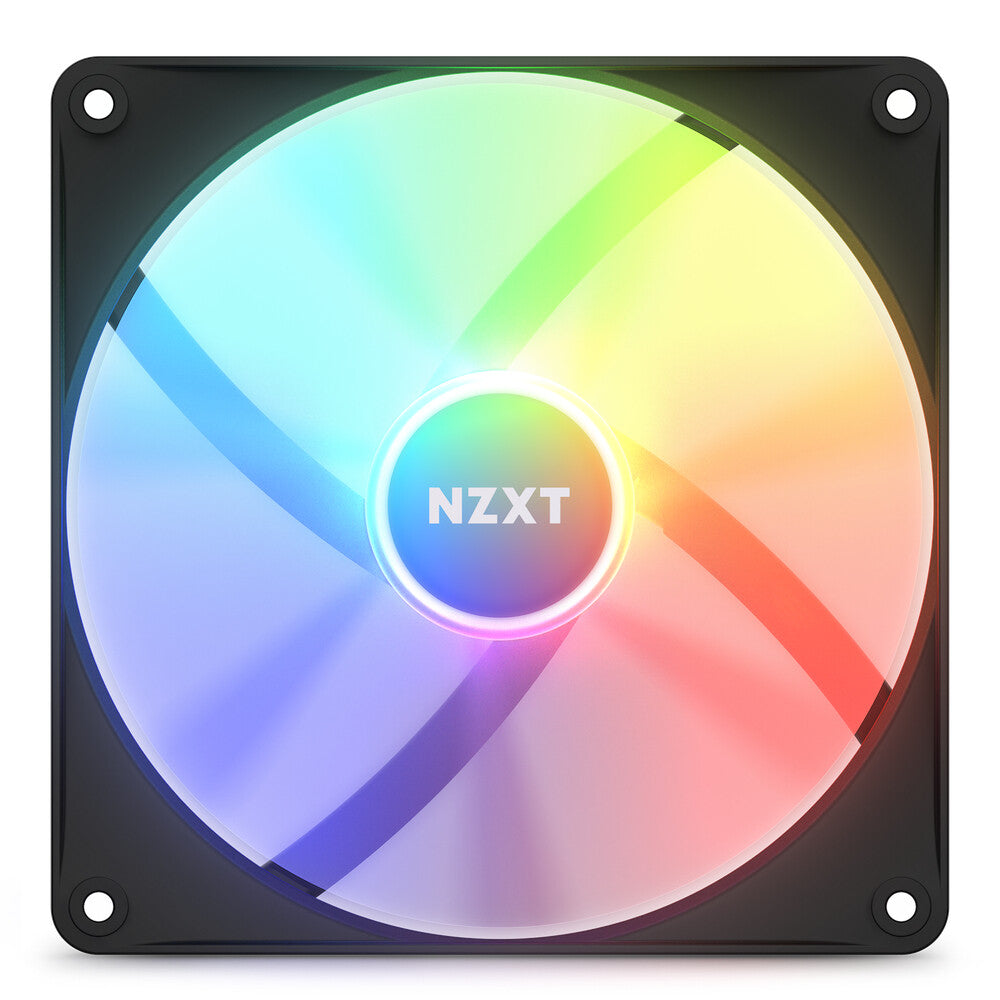

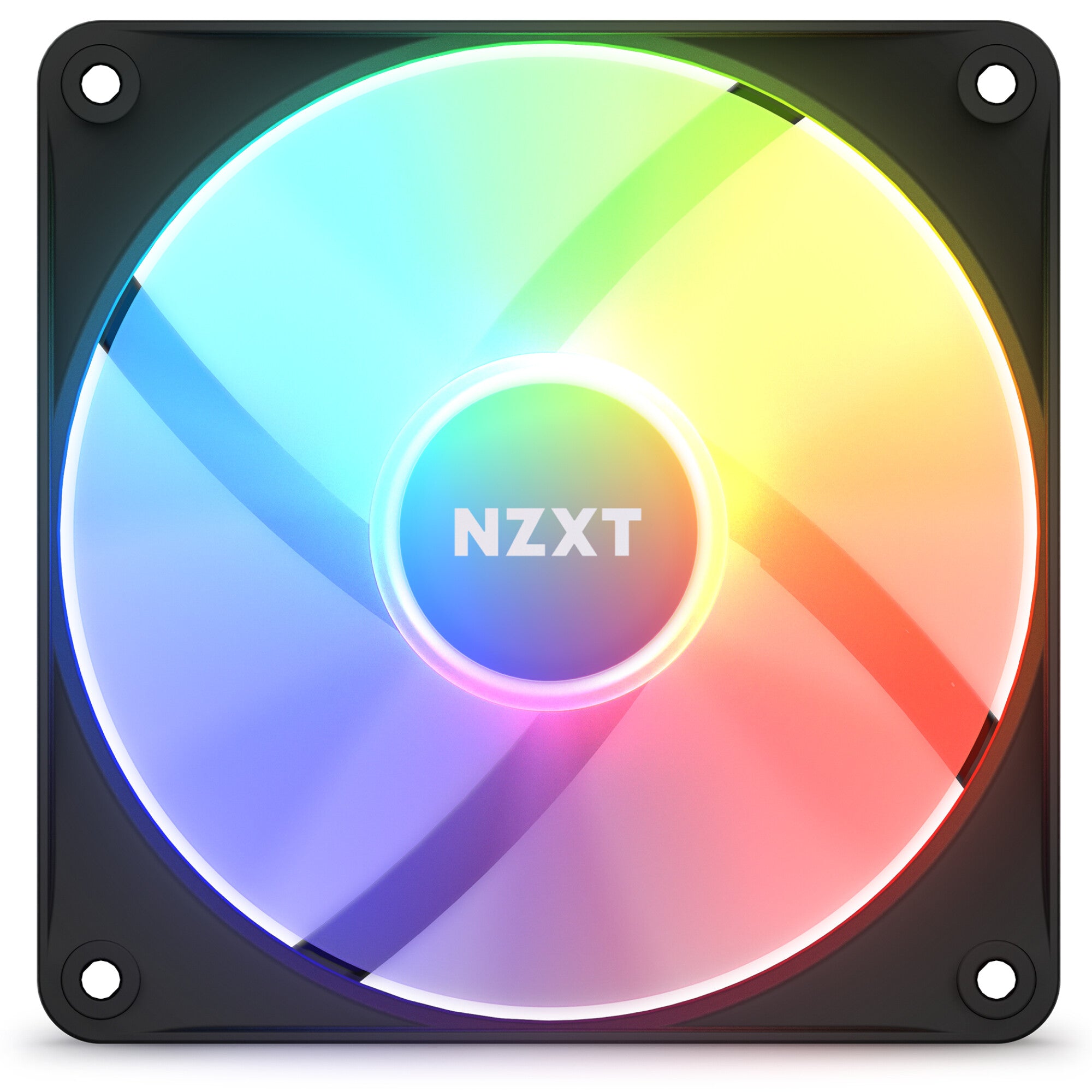

The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Hydro Dynamic Bearing (HDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.57 mmH2O |
Noise level (high speed) | 33.88 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 8 |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Material | Plastic |
Product colour | Black |
Power | |
---|---|
Rated current | 0.2 A |
Fan power consumption | 2.4 W |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Cable length | 0.6 m |
Fan dimensions (W x D x H) | 120 x 26 x 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |

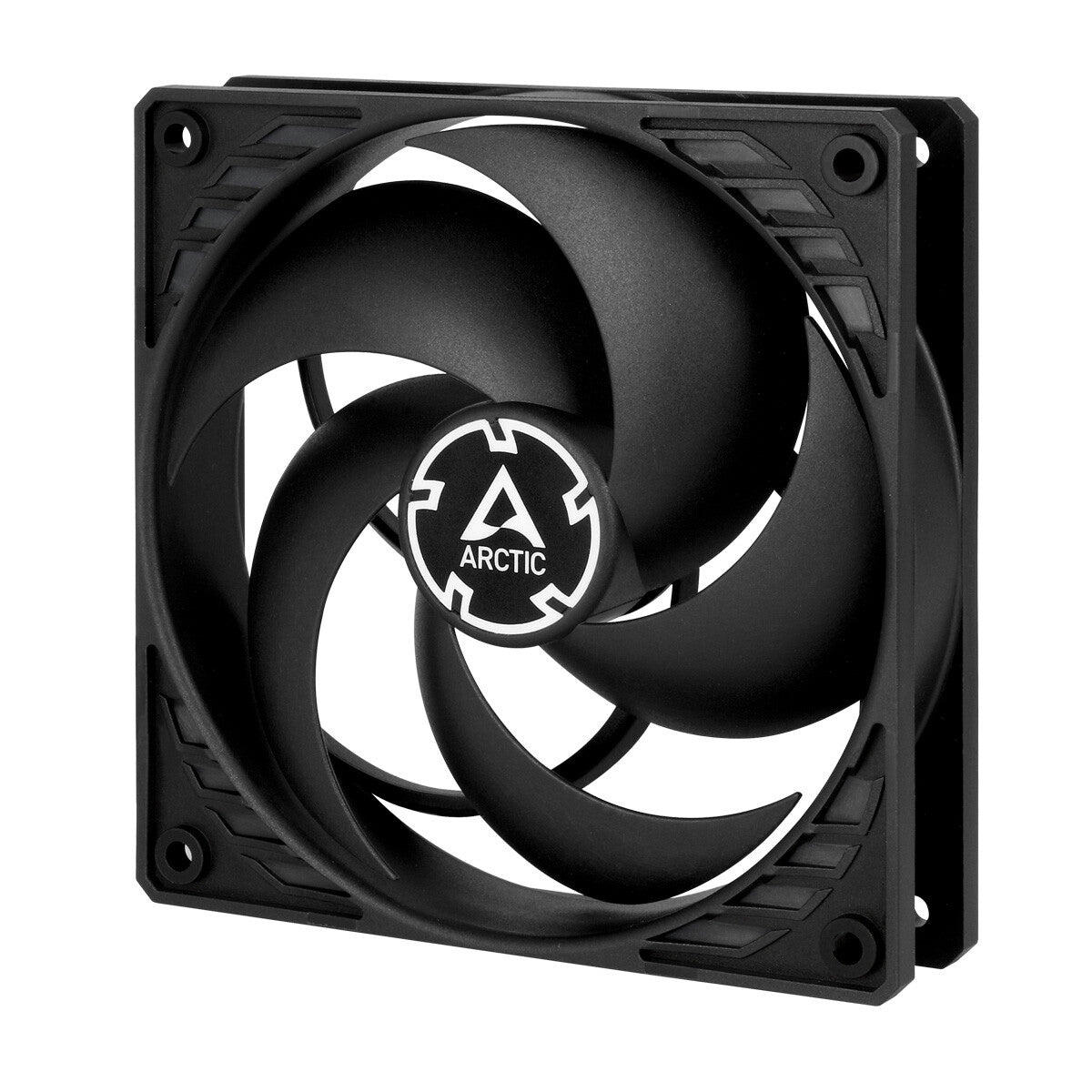

Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Performance | |
---|---|
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.2 mmH2O |
Airflow | 95.65 m³/h |
Maximum airflow | 56.3 cfm |
Noise level | 0.3 sone |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 200 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Number of fan blades | 5 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated current | 0.08 A |
Starting voltage | 3.9 V |
Voltage | 12 V |
Power consumption (typical) | 0.96 W |
Weight & dimensions | |
---|---|
Package weight | 176 g |
Package height | 27 mm |
Package depth | 123 mm |
Package width | 123 mm |
Cable length | 0.4 m |
Weight | 145 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!
As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.
Performance | |
---|---|
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.9 mmH2O |
Airflow | 40.3 m³/h |
Maximum airflow | 23.4 cfm |
Noise level | 0.3 sone |

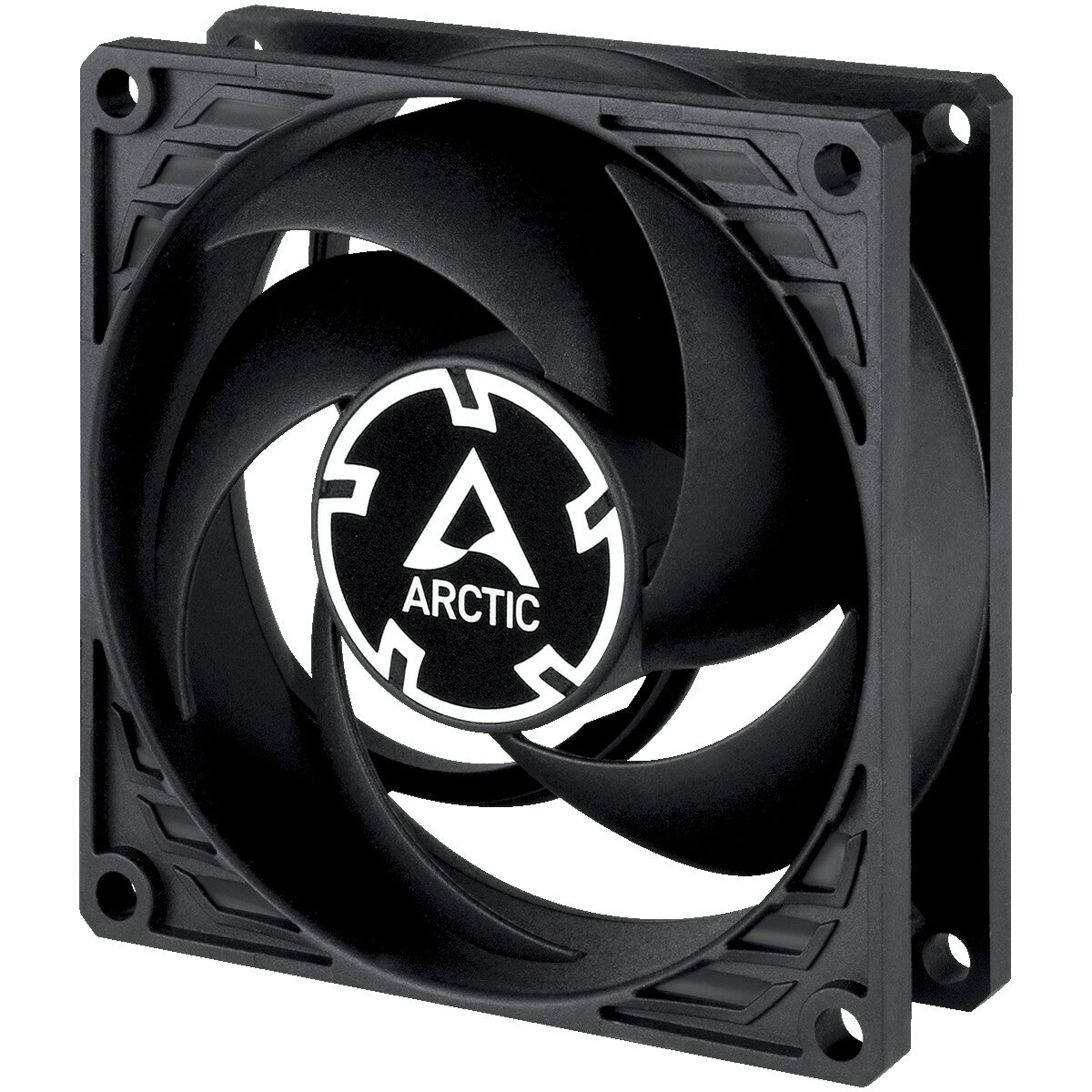

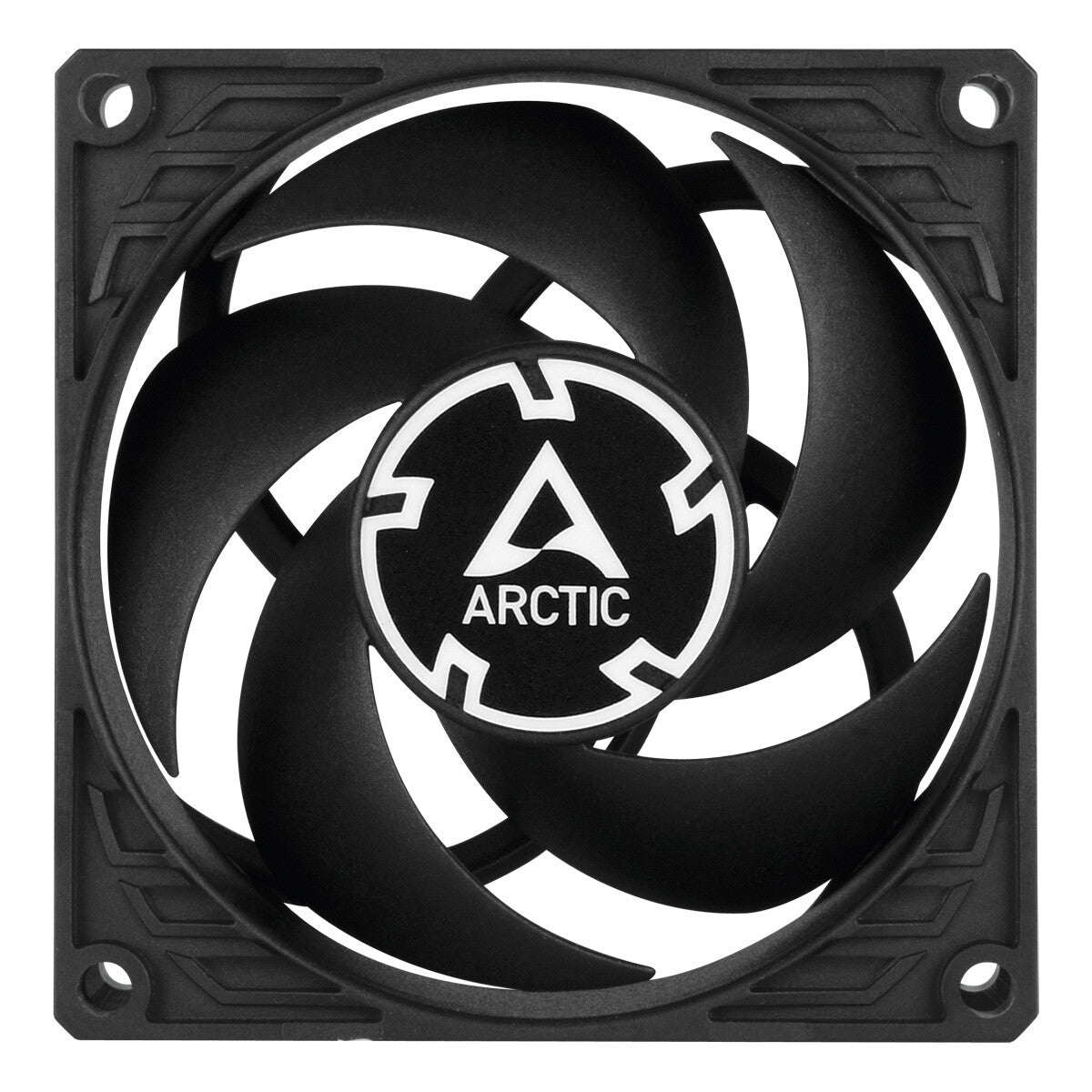

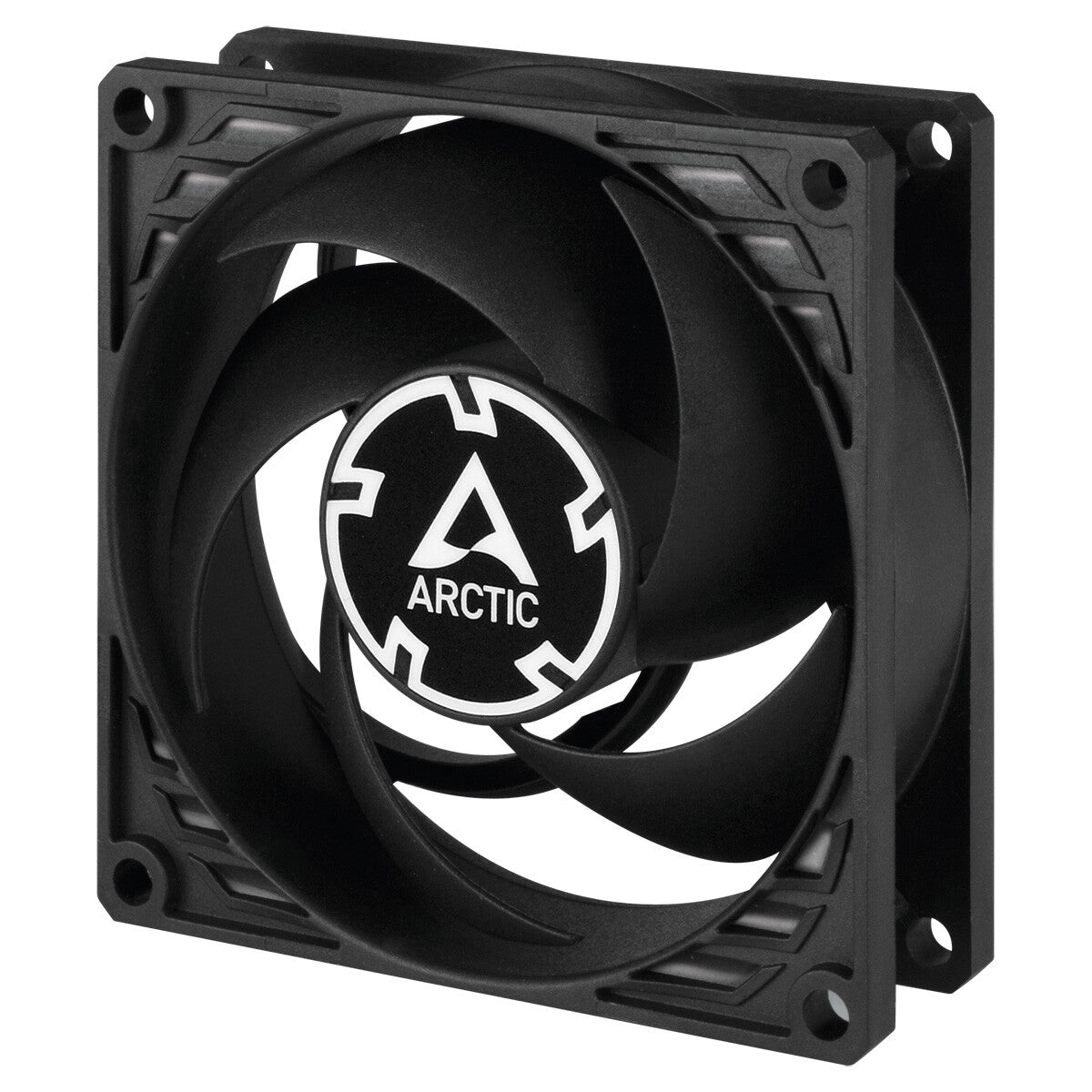

Rotational speed (max) | 3000 RPM |
Rotational speed (min) | 200 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 8 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Number of fan blades | 5 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 99 g |
Package height | 82.5 mm |
Package depth | 26 mm |
Package width | 82.5 mm |
Cable length | 0.4 m |
Weight | 81 g |
Height | 80 mm |
Depth | 25 mm |
Width | 80 mm |
Packaging content | |
---|---|
Manual | Yes |
Number of screws | 4 |
Screws included | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
