PERFORMANCE WHERE IT MATTERS
GREATER THICKNESS, GREATER PERFORMANCE
At 30mm, RS MAX fans are 17% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.
ENGINEERED FOR SUPERIOR AIRFLOW AND QUIET OPERATION
RS MAX fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.
AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.
STATIC PRESSURE
High static pressure makes the RS MAX ideal for radiator mounting, as it can push air more effectively through dense obstructions.
LOWER NOISE
Can spin at a lower RPM to reach the same airflow as a thinner fan, reducing the fan noise generated by your PC.
RIGID MATERIAL MEANS CONSISTENT PERFORMANCE
GLASS FIBER REINFORCED LCP
Constructed from glass fiber-reinforced liquid crystal polymer, RS MAX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.
CONCENTRATED COOLING
CORSAIR AIRGUIDE TECHNOLOGY
Anti-vortex stator vanes behind the fan blade focus airflow into a tight cone for more effective cooling as a case fan or better heat dissipation as a radiator fan.
EVERY SOURCE OF NOISE ADDRESSED
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
RIGOROUSLY TESTED AND PERFECTED FOR PERFORMANCE
Extensive testing bears out the RS MAX Series’ exceptional cooling performance, in both case fan and radiator fan applications. Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
Performance | |
---|---|
Quantity per pack | 2 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.4 mmH2O |
Minimum air pressure | 0.2 mmH2O |
Maximum airflow | 104 cfm |
Minimum airflow (imperial) | 27.5 cfm |
Noise level (high speed) | 31 dB |
Rotational speed (max) | 1600 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 2 fan(s) |
Product colour | Black |
Power | |
---|---|
Fan current | 0.22 A |
Weight & dimensions | |
---|---|
Fan weight | 680 g |
Fan dimensions (W x D x H) | 140 x 140 x 30 mm |
Packaging content | |
---|---|
Number of screws | 24 |
Screws included | Yes |
Package type | Box |
PERFORMANCE WHERE IT MATTERS
GREATER THICKNESS, GREATER PERFORMANCE
At 30mm, RS MAX fans are 17% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.
ENGINEERED FOR SUPERIOR AIRFLOW AND QUIET OPERATION
RS MAX fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.
AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.
STATIC PRESSURE
High static pressure makes the RS MAX ideal for radiator mounting, as it can push air more effectively through dense obstructions.
LOWER NOISE
Can spin at a lower RPM to reach the same airflow as a thinner fan, reducing the fan noise generated by your PC.
RIGID MATERIAL MEANS CONSISTENT PERFORMANCE
GLASS FIBER REINFORCED LCP
Constructed from glass fiber-reinforced liquid crystal polymer, RS MAX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.
CONCENTRATED COOLING
CORSAIR AIRGUIDE TECHNOLOGY
Anti-vortex stator vanes behind the fan blade focus airflow into a tight cone for more effective cooling as a case fan or better heat dissipation as a radiator fan.
EVERY SOURCE OF NOISE ADDRESSED
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
RIGOROUSLY TESTED AND PERFECTED FOR PERFORMANCE
Extensive testing bears out the RS MAX Series’ exceptional cooling performance, in both case fan and radiator fan applications. Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.4 mmH2O |
Minimum air pressure | 0.2 mmH2O |
Maximum airflow | 104 cfm |
Minimum airflow (imperial) | 27.5 cfm |
Noise level (high speed) | 31 dB |
Rotational speed (max) | 1600 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Fan current | 0.22 A |
Weight & dimensions | |
---|---|
Fan weight | 350 g |
Fan dimensions (W x D x H) | 140 x 140 x 30 mm |
Packaging content | |
---|---|
Number of screws | 12 |
Screws included | Yes |
Package type | Box |
The P12 Silent fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P12 Silent is especially effective when used on heatsinks and with higher air resistance.
The motor of the fan was developed in Germany and is virtually silent.
Performance | |
---|---|
Bearing type | Fluid Dynamic Bearing (FDB) |
Airflow | 40.95 m³/h |
Maximum airflow | 24.1 cfm |
Noise level | 0.08 sone |
Rotational speed (max) | 1050 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Number of fan blades | 5 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated current | 0.09 A |
Starting voltage | 4.8 V |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 170 g |
Package height | 27 mm |
Package depth | 123 mm |
Package width | 123 mm |
Cable length | 0.4 m |
Weight | 139 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
PERFORMANCE WHERE IT MATTERS
GREATER THICKNESS, GREATER PERFORMANCE
At 30mm, RS MAX fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.
ENGINEERED FOR SUPERIOR AIRFLOW AND QUIET OPERATION
RS MAX fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.
AIRFLOW
A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.
STATIC PRESSURE
High static pressure makes the RS MAX ideal for radiator mounting, as it can push air more effectively through dense obstructions.
LOWER NOISE
Can spin at a lower RPM to reach the same airflow as a thinner fan, reducing the fan noise generated by your PC.
RIGID MATERIAL MEANS CONSISTENT PERFORMANCE
GLASS FIBER REINFORCED LCP
Constructed from glass fiber-reinforced liquid crystal polymer, RS MAX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.
CONCENTRATED COOLING
CORSAIR AIRGUIDE TECHNOLOGY
Anti-vortex stator vanes behind the fan blade focus airflow into a tight cone for more effective cooling as a case fan or better heat dissipation as a radiator fan.
EVERY SOURCE OF NOISE ADDRESSED
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
RIGOROUSLY TESTED AND PERFECTED FOR PERFORMANCE
Extensive testing bears out the RS MAX Series’ exceptional cooling performance, in both case fan and radiator fan applications. Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
Performance | |
---|---|
Quantity per pack | 3 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 4.2 mmH2O |
Minimum air pressure | 0.22 mmH2O |
Maximum airflow | 72 cfm |
Minimum airflow (imperial) | 16.5 cfm |
Noise level (high speed) | 29.5 dB |
Rotational speed (max) | 2000 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Product colour | Black |
Power | |
---|---|
Fan current | 0.18 A |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 30 mm |
Packaging content | |
---|---|
Number of screws | 36 |
Screws included | Yes |
Package type | Box |
Next Generation Of SickleFlow Fans
SickleFlow 120 ARGB, a new series of the CoolerMaster Fan family, provides a specific air cooling solution ideal for CPU coolers and chassis in-take fans. Optimized blade design with updated curve that improves air flow and air pressure. Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency. Sealed and secured fan bearing, preventing dust and lubricating oil leakage while increasing the fan’s operation stability and life span.
Updated Lighting Design
Featuring eclipse-mode lighting and enhanced lighting effects.
Enhanced Fan Frame
Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency.
New Bearing Sealant
Improve dustproof properties as well as prevent sleeve lubricant from leaking.
New Blade Design
Optimized blade design with updated curve that improves air flow and air pressure.
Secure Connection
Includes Addressable RGB connector clips to ensure a secure connection
Sickleflow 120 ARGB 3 In 1
SickleFlow 120 ARGB 3in1, a new series of the CoolerMaster Fan family, provides a specific air cooling solution ideal for CPU coolers and chassis in-take fans. Optimized blade design with updated curve that improves air flow and air pressure. Enhanced frame structure, reducing turbulent flow and noise and increasing overall work efficiency. Sealed and secured fan bearing, preventing dust and lubricating oil leakage while increasing the fan’s operation stability and life span.
Addressable RGB Controller
With Included Addressable RGB Controller, You can choose your favorite color easily. It also support lighting RESET button of Case.
Performance | |
---|---|
Quantity per pack | 3 pc(s) |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.5 mmH2O |
Maximum airflow | 62 cfm |
Noise level (high speed) | 27 dB |
Noise level (low speed) | 8 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 650 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Blue, Green, Red |
Illumination LED | Yes |
Product colour | Black |
Power | |
---|---|
Rated current | 0.15 A |
Safety current | 0.37 Ah |
Rated voltage | 12 V |
Power consumption (typical) | 1.8 W |
Weight & dimensions | |
---|---|
Package weight | 659 g |
Package height | 198 mm |
Package depth | 133 mm |
Package width | 88 mm |
Fan weight | 156 g |
Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
Weight | 541 g |
Other features | |
---|---|
Mean time to failure (MTTF) | 160000 h |
Country of origin | China |
Logistics data | |
---|---|
Products per master (outer) case | 20 pc(s) |
Master (outer) case height | 303 mm |
Master (outer) case length | 465 mm |
Master (outer) case width | 363 mm |
Harmonized System (HS) code | 84733080 |
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Hydro Dynamic Bearing (HDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.57 mmH2O |
Noise level (high speed) | 33.88 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 8 |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Material | Plastic |
Product colour | White |
Power | |
---|---|
Rated current | 0.2 A |
Fan power consumption | 2.4 W |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Cable length | 0.6 m |
Fan dimensions (W x D x H) | 120 x 26 x 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
This bundle contains three F120 RGB fans and a fan controller. F120mm fans are high airflow fans that provide the ideal balance between airflow and static pressure. Fan controls and lighting effects are compatible with NZXT CAM.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Maximum air pressure | 2.7 mmH2O |
Minimum air pressure | 0.75 mmH2O |
Maximum airflow | 50.18 cfm |
Minimum airflow (imperial) | 13.94 cfm |
Noise level (high speed) | 27.5 dB |
Noise level (low speed) | 17.2 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 18 |
Illumination LED | Yes |
Material | Plastic, Rubber |
Product colour | White |
Power | |
---|---|
Rated current | 0.18 A |
Rated voltage | 12 V |
Power supply | 2.16 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
Other features | |
---|---|
Country of origin | China |
Legendary silence, epic performance and features
For the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 140mm PWM is the most progressive, performant, and versatile fan by be quiet!
Performance | |
---|---|
Mean time between failures (MTBF) | 300000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 3.64 mmH2O |
Airflow | 165.5 m³/h |
Maximum airflow | 97.41 cfm |
Noise level (high speed) | 36.8 dB |
Rotational speed (max) | 2400 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |
Fan connector | 4-pin |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.5 A |
Rated current | 0.5 A |
Rated voltage | 12 V |
Voltage | 7 - 13.2 V |
Power consumption (typical) | 6 W |
Weight & dimensions | |
---|---|
Package weight | 448 g |
Package height | 31 mm |
Package depth | 206.5 mm |
Package width | 156 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Weight | 258 g |
Height | 25 mm |
Depth | 140 mm |
Width | 140 mm |
Packaging content | |
---|---|
Number of clips | 4 |
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | Germany |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 15.5 kg |
Shipping (inner) case height | 38.8 cm |
Shipping (inner) case length | 46.3 cm |
Shipping (inner) case width | 31.7 cm |
Products per shipping (inner) case | 32 pc(s) |
Harmonized System (HS) code | 84733080 |
F120 RGB fans provide some flair while keeping things cool. This fan is a high airflow fan that provides ideal airflow for cooling. Fan controls and lighting effects are compatible with NZXT CAM.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Maximum air pressure | 2.7 mmH2O |
Minimum air pressure | 0.75 mmH2O |
Maximum airflow | 50.18 cfm |
Minimum airflow (imperial) | 13.94 cfm |
Noise level (high speed) | 27.5 dB |
Noise level (low speed) | 17.2 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 18 |
Illumination LED | Yes |
Material | Plastic, Rubber |
Product colour | White |
Power | |
---|---|
Rated current | 0.18 A |
Rated voltage | 12 V |
Power supply | 2.6 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
Other features | |
---|---|
Country of origin | China |
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Performance | |
---|---|
Bearing type | Fluid Dynamic Bearing (FDB) |
Airflow | 36 m³/h |
Maximum airflow | 21.2 cfm |
Noise level | 0.08 sone |
Noise level (high speed) | 20 dB |
Rotational speed (max) | 1000 RPM |
Rotational speed (min) | 380 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 9.2 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Number of fans | 1 fan(s) |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.057 A |
Starting voltage | 4 V |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 97 g |
Package height | 27 mm |
Package depth | 96 mm |
Package width | 96 mm |
Weight | 84 g |
Height | 25 mm |
Depth | 92 mm |
Width | 92 mm |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Compliance certificates | RoHS |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Package type | Box |
Other features | |
---|---|
Mounting hole pattern (W x D) | 82.5 x 82.5 mm |
A DUAL NEW WORLD
The MasterFan MF120 Halo² is our redesigned dual loop LED series fan, now available as a 3-in-1 pack, giving you triple the cooling power. The MF120 features 10% larger fan blades for improved air flow and cooling performance. The frame has been designed with a hybrid structure that maintains stability without sacrificing operational real estate. An upgraded driver IC is also included for increased cooling performance and minimal fan noise, while the elegant dual loop LED design is maintained via addressable gen 2 RGB lighting that provides the ultimate customizable experience. Enter a dual new world with the the MasterFan MF120 Halo².
Enlarged Fan Blades
10% larger fan blades provide improved air flow and cooling performance
Hybrid Frame Design
A hybrid frame structure maintains stability without sacrificing fan blade size or performance.
Upgraded Driver IC
An upgraded driver IC boosts cooling performance while minimizing fan noise.
LED Controller
An included ARGB controller enables fully customizable lighting.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 160000 h |
Quantity per pack | 3 pc(s) |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.89 mmH2O |
Maximum airflow | 51.88 cfm |
Noise level (high speed) | 27 dB |
Rotational speed (max) | 2050 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Product colour | Black |
Power | |
---|---|
Rated current | 0.14 A |
Safety current | 0.37 Ah |
LED voltage | 5 V |
Rated voltage | 12 V |
Power consumption (typical) | 1.68 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 174 g |
General | |
---|---|
Product Family | MasterFan |
Packaging content | |
---|---|
RGB controller included | Yes |
IMPRESSIVE LIGHTING, SUPERIOR COOLING
Three Light Wings 120mm PWM high-speed offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
If you are looking for high-performance fans with an impressive look from every angle, these three Light Wings 120mm PWM high-speed are your fans of choice. Not only a visual highlight, they’re also reliable and performant. These fans hit the sweet spot between performance, noise and ARGB lighting.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.6 mmH2O |
Airflow | 88.86 m³/h |
Maximum airflow | 52.3 cfm |
Noise level (high speed) | 31 dB |
Rotational speed (max) | 2500 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Product colour | Black |
Power | |
---|---|
Rated current | 0.6 A |
Safety current | 0.45 Ah |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Power consumption (typical) | 5.4 W |
Weight & dimensions | |
---|---|
Package weight | 864 g |
Package height | 86.5 mm |
Package depth | 172 mm |
Package width | 133 mm |
Cable length | 0.5 m |
Fan weight | 210 g |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 210 g |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, WEEE |
Packaging content | |
---|---|
Number of screws | 16 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 9.26 kg |
Shipping (inner) case height | 20 cm |
Shipping (inner) case length | 45.4 cm |
Shipping (inner) case width | 28.3 cm |
Products per shipping (inner) case | 10 pc(s) |
Harmonized System (HS) code | 84733080 |
AF ELITE SERIES
HIGH-PERFORMANCE FANS WITH AIRGUIDE TECHNOLOGY
NEW CHAMPION OF COOLING
HIGH-PERFORMANCE COOLING
The ideal cooling fans for your PC provide optimal airflow to keep components cool at low to medium speeds.
With up to 59.1CFM of airflow at peak 1,850 RPM, AF ELITE Series fans deliver the perfect balance between low noise, strong static pressure, and high airflow without compromising performance.
POWERFUL GUIDED AIRFLOW
CORSAIR AirGuide technology uses anti-vortex vanes to concentrate airflow, delivering improved cooling performance across your system's components.
AS QUIET AS A WHISPER
Thanks to its low-noise design, the AF ELITE Series fan spins as quietly as 31.5 dba.
Designed to support Zero RPM mode, AF ELITE fans eliminate fan noise by only spinning up when temperatures reach the threshold you've set using CORSAIR's iCUE software with a CORSAIR COMMANDER fan controller (sold separately).
EXCEPTIONAL DURABILITY
A fluid dynamic bearing reduces friction with lubricant between the shaft and bearing, ensuring exceptional durability and lifespan with minimal noise.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.93 mmH2O |
Minimum air pressure | 0.09 mmH2O |
Maximum airflow | 59.1 cfm |
Minimum airflow (imperial) | 10.9 cfm |
Noise level (high speed) | 28.9 dB |
Noise level (low speed) | 5 dB |
Rotational speed (max) | 1850 RPM |
Rotational speed (min) | 400 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination LED | No |
Product colour | Black |
Power | |
---|---|
Rated current | 0.38 A |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 256 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Performance | |
---|---|
Quantity per pack | 3 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.85 mmH2O |
Airflow | 82.91 m³/h |
Maximum airflow | 48.8 cfm |
Rotational speed (max) | 2000 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Number of LEDs | 12 |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Material | Plastic |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.11 A |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 560 g |
Package height | 86 mm |
Package depth | 124 mm |
Package width | 127 mm |
Cable length | 0.48 m |
Weight | 131 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Packaging content | |
---|---|
Screws included | Yes |
Mounting kit | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Bring On The Light
Vibrant Addressable Gen 2 RGB
Larger LED rings increase lighting by 50% for even more vibrant lighting.
Hybrid Frame Design
Redesigned frame structure and corner dampers maintain stability without sacrificing fan blade area for better performance.
Larger Fan Blades
Air Balance fan blades increased by 10% in size deliver stronger air flow and cooling performance.
Improved Cooling Performance
Fine tuned P-Q Curve increase air flow and pressure while being even more quiet than its predecessor.
MULTIPLE SIZE AND COLOR OPTIONS
Available in both 120mm and 140mm sizes, as well as in black and white color options.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 160000 h |
Quantity per pack | 1 pc(s) |
Fan noise level (max) | 27 dB |
Bearing type | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.89 mmH2O |
Maximum airflow | 51.88 cfm |
Rotational speed (max) | 2050 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Product colour | Black |
Power | |
---|---|
Rated current | 0.14 A |
Safety current | 0.37 Ah |
LED voltage | 5 V |
Rated voltage | 12 V |
Power consumption (typical) | 1.68 W |
Weight & dimensions | |
---|---|
Package weight | 250 g |
Package height | 178 mm |
Package depth | 130 mm |
Package width | 28 mm |
Fan weight | 174 g |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
General | |
---|---|
Product Family | MasterFan |
Logistics data | |
---|---|
Products per master (outer) case | 20 pc(s) |
Master (outer) case height | 155 mm |
Master (outer) case length | 370 mm |
Master (outer) case width | 330 mm |
Switch into Overdrive
Perfecting Engineering
Cooler Master has expanded on the Mobius Series performance fans with the new flagship model, Mobius 120 OC. The Mobius 120 OC features premium design and materials to deliver unprecedented quiet cooling performance. The upgraded Double Ball Bearing and metal motor hub guarantee high performance up to speeds of 3200rpm. We give you performance you can be confident in, and back it up with our lifetime warranty. Switch your experience into overdrive with the Mobius 120 OC.
Ring Blade Design
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.
Fan Speed Toggle
Integrated fan speedd toggle built into the cable let’s you conveniently adjust fan speeds from 1500rpm up to 3200rpm.
Metal Motor Hub
Motor hub constructed of metal for additional stability and reinforcement for extended superior fan performance.
Double Ball Bearing
Double Ball Bearings reduces friction to a minimum for silence and extended lifespan.
Premium Anti-vibration Dampers
Patented corner mount design dampen vibration and rattling while maintaining chassis stability for silent operation.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 200000 h |
Bearing type | Dual ball bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 4.75 mmH2O |
Minimum air pressure | 1.19 mmH2O |
Maximum airflow | 88.1 cfm |
Minimum airflow (imperial) | 40.2 cfm |
Noise level (high speed) | 39.3 dB |
Noise level (low speed) | 17.4 dB |
Rotational speed (max) | 3200 RPM |
Number of speeds | 3 |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination LED | No |
Product colour | Black |
Power | |
---|---|
Rated current | 0.35 A |
Safety current | 0.5 Ah |
Fan power consumption | 4.2 W |
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 254 g |
Package height | 178 mm |
Package depth | 130 mm |
Package width | 28 mm |
Fan weight | 220 g |
Fan dimensions (W x D x H) | 120 x 120 x 27 mm |
Logistics data | |
---|---|
Products per master (outer) case | 20 pc(s) |
Master (outer) case height | 155 mm |
Master (outer) case length | 370 mm |
Master (outer) case width | 315 mm |
This kit contains one additional fan.
Performance | |
---|---|
Compatible products | ProLiant DL160 Gen10 |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Number of fans | 1 fan(s) |
Weight & dimensions | |
---|---|
Weight | 120 g |
Height | 62 mm |
Depth | 167.6 mm |
Width | 137.9 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
LOW NOISE, HIGH PERFORMANCE
Powerful PWM-controlled fan speeds from 300 RPM up to 1,300 RPM, pushing up to 45.4 CFM of air with 1.23mm-H20 of static pressure, while keeping noise to a minimum.
QUIET AS A WHISPER
The anti-vortex vanes direct airflow at your hottest components for concentrated cooling, whether used for intake or exhaust. In radiator fans AirGuide technology ensures better airflow cover on all radiator fins.
ZERO NOISE MODE
When your computer is not in use you can count on CORSAIR's Zero RPM mode to eliminate fan noise. Fans will spin only when temperatures reach the threshold you've set in CORSAIR's iCUE software with a CORSAIR COMMANDER fan controller.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Hydraulic |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.23 mmH2O |
Minimum air pressure | 0.07 mmH2O |
Maximum airflow | 45.4 cfm |
Minimum airflow (imperial) | 6.37 cfm |
Noise level (high speed) | 24.7 dB |
Rotational speed (max) | 1300 RPM |
Rotational speed (min) | 300 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated current | 0.09 A |
Weight & dimensions | |
---|---|
Fan weight | 130 g |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
AF ELITE SERIES
HIGH-PERFORMANCE FANS WITH AIRGUIDE TECHNOLOGY
NEW CHAMPION OF COOLING
HIGH-PERFORMANCE COOLING
The ideal cooling fans for your PC provide optimal airflow to keep components cool at low to medium speeds.
With up to 84.5 CFM of airflow at peak 1,600 RPM, AF ELITE Series fans deliver the perfect balance between low noise, strong static pressure, and high airflow without compromising performance.
POWERFUL GUIDED AIRFLOW
CORSAIR AirGuide technology uses anti-vortex vanes to concentrate airflow, delivering improved cooling performance across your system's components.
AS QUIET AS A WHISPER
Thanks to its low-noise design, the AF ELITE Series fan spins as quietly as 31.0 dba.
Designed to support Zero RPM mode, AF ELITE fans eliminate fan noise by only spinning up when temperatures reach the threshold you've set using CORSAIR's iCUE software with a CORSAIR COMMANDER fan controller (sold separately).
EXCEPTIONAL DURABILITY
A fluid dynamic bearing reduces friction with lubricant between the shaft and bearing, ensuring exceptional durability and lifespan with minimal noise.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.73 mmH2O |
Minimum air pressure | 0.1 mmH2O |
Maximum airflow | 84.5 cfm |
Minimum airflow (imperial) | 15.3 cfm |
Noise level (high speed) | 31 dB |
Rotational speed (max) | 1600 RPM |
Rotational speed (min) | 400 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Product colour | Black |
Power | |
---|---|
Rated current | 0.39 A |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Weight | 223 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
In living color
- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Performance | |
---|---|
Mean time between failures (MTBF) | 90000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Rifle bearing |
Maximum air pressure | 1.02 mmH2O |
Airflow | 69.7 m³/h |
Maximum airflow | 41 cfm |
Noise level (high speed) | 19.5 dB |
Rotational speed (max) | 1000 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fan blades | 7 |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Maximum current | 0.14 A |
Starting voltage | 7 V |
Rated voltage | 5 V |
Voltage | 12 V |
Power consumption (typical) | 0.96 W |
Weight & dimensions | |
---|---|
Package weight | 185 g |
Package height | 30 mm |
Package depth | 212 mm |
Package width | 143 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Weight | 155 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

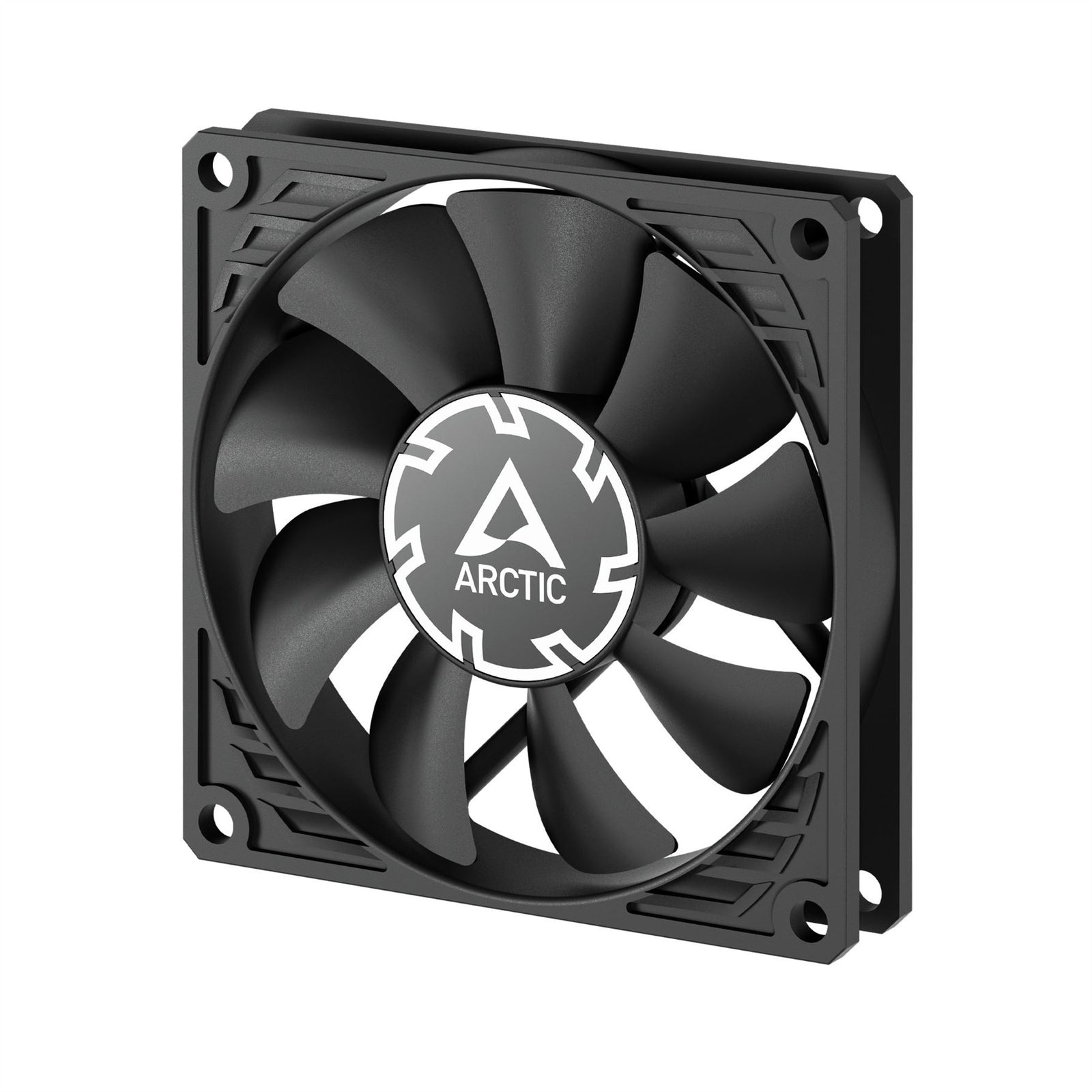

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.55 mmH2O |
Airflow | 88.35 m³/h |
Maximum airflow | 52 cfm |
Noise level | 0.3 sone |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 150 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Product colour | Black |
Power | |
---|---|
Fan current | 0.19 A |
Starting voltage | 4 V |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package height | 17 mm |
Package depth | 156 mm |
Package width | 143 mm |
Cable length | 0.48 m |
Fan weight | 109 g |
Fan dimensions (W x D x H) | 140 x 140 x 16 mm |
Weight | 109 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Performant, Progressive, Quiet
Pure Wings 3 140mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 80000 h |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.44 mmH2O |
Airflow | 122.6 m³/h |
Maximum airflow | 72.2 cfm |
Noise level (high speed) | 30.5 dB |
Rotational speed (max) | 1800 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Product colour | Black |
Power | |
---|---|
Fan current | 0.12 A |
Fan power consumption | 6 W |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Weight & dimensions | |
---|---|
Package weight | 221 g |
Package height | 27 mm |
Package depth | 174 mm |
Package width | 142 mm |
Cable length | 0.46 m |
Weight | 188 g |
Height | 25 mm |
Depth | 140 mm |
Width | 140 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, Triman, UKCA, WEEE |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 17.5 kg |
Shipping (inner) case height | 37 cm |
Shipping (inner) case length | 48.2 cm |
Shipping (inner) case width | 39.5 cm |
Products per shipping (inner) case | 72 pc(s) |
CORSAIR RX120 RGB PWM fans deliver cooling performance by pushing high airflow through obstructions with high static pressure and CORSAIR AirGuide technology.
WHAT IS iCUE LINK?
BUILD BETTER. BUILD SMARTER.
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
PERFORMANCE WHERE IT MATTERS
PEAK COOLING POWER
Push airflow through cases and radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Months of material and design optimization, along with meticulous testing, led to the RX Series’ unbeatable performance in delivering high static pressure and efficient airflow. These tests ensure that the fan performs exceptionally across a wide range of speeds.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.
HARNESS THE POWER OF ICUE LINK
Unleash the full potential of your fans using CORSAIR iCUE software, from fine-tuned fan speeds to pre-set fan curves.
Performance | |
---|---|
Fan static pressure | 3.79 mmH2O |
Quantity per pack | 2 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 94.7 cfm |
Minimum airflow (imperial) | 17.9 cfm |
Noise level (high speed) | 36 dB |
Noise level (low speed) | 10 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 300 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Product colour | White |
Power | |
---|---|
Fan current | 0.7 A |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Weight | 57 g |
Technical details | |
---|---|
Warranty period | 5 year(s) |
Packaging content | |
---|---|
Number of screws | 20 |
Screws included | Yes |
Package type | Box |
KEEP YOUR SYSTEM COOL
The ideal cooling fans for your PC with optimal airflow at low to medium speeds.
With up to 89 CFM of airflow at peak 1,700 RPM, AF RGB ELITE Series fans deliver the perfect balance between low noise, strong static pressure, and high airflow without compromising performance.
ULTRA QUIET OPERATION
A fluid dynamic bearing utilizes lubricant to reduce friction, resulting in exceptional durability and minimal noise. When your computer is idling, you can rely on Zero RPM mode to turn off the fans and completely eliminate fan noise.
BRILLIANT RGB LED LIGHTING
Eight individually addressable RGB LEDs provide a brilliant backdrop in your PC build.
CORSAIR AIRGUIDE TECHNOLOGY
Utilizes anti-vortex vanes to channel concentrated airflow and improve cooling, whether used as intake, exhaust, or mounted to a liquid cooling radiator or heatsink.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2 mmH2O |
Minimum air pressure | 0.16 mmH2O |
Maximum airflow | 89 cfm |
Noise level (high speed) | 33.8 dB |
Noise level (low speed) | 5 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 500 RPM |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Product colour | White |
Power | |
---|---|
Maximum current | 0.39 A |
Weight & dimensions | |
---|---|
Weight | 205 g |
Height | 25 mm |
Depth | 140 mm |
Width | 140 mm |
